H802RA Artnet WS2811 WS2801 LED Strip Light WS2812B SK6812 Digital Panel Pixel Controller DMX Artnet Controller



Product Description:



(1). Four ports control maximum 4096 pixels (for example WS2812). But for DMX512, each port outputs 512 channels.



(2). Support ArtNet protocol, 4 universes(each 512 channels) output when H802RA works with Madrix.



(3). Allocate address for DMX512 chips (for example UCS512, TM512)



(4). Controlled by master controller or PC.



(5). Transmission distance between two controllers is up to 100 meters.



Supported Driver Chips:



DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc.



Note: H802RA supports more than the chips listed above(for example UCS2903 has the same sequence diagram with UCS1903, H802RA supports them all).

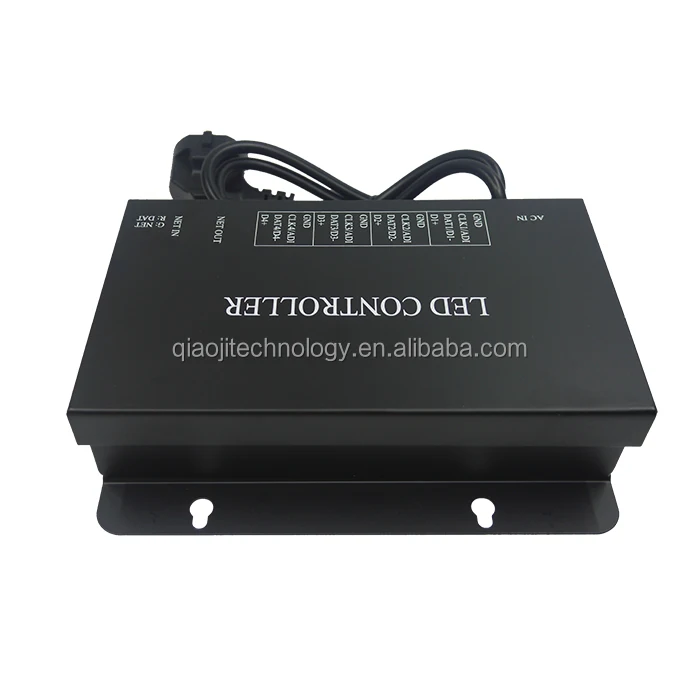

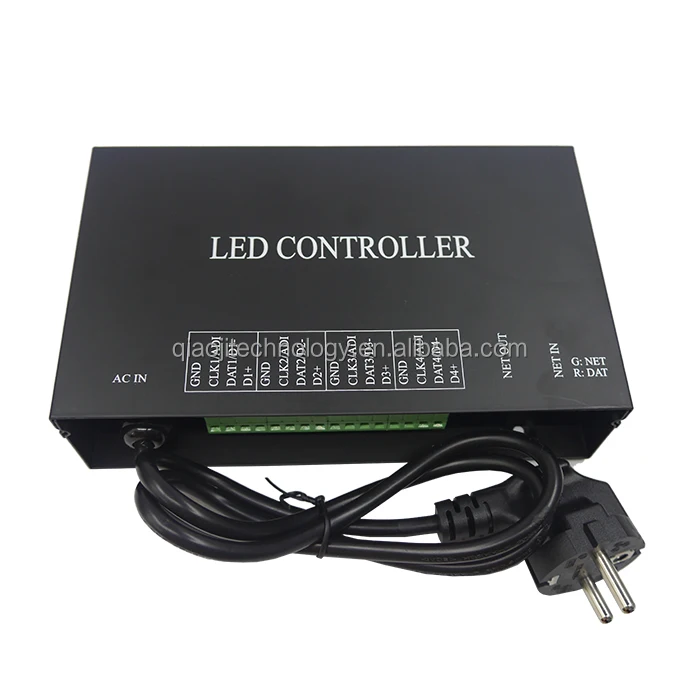

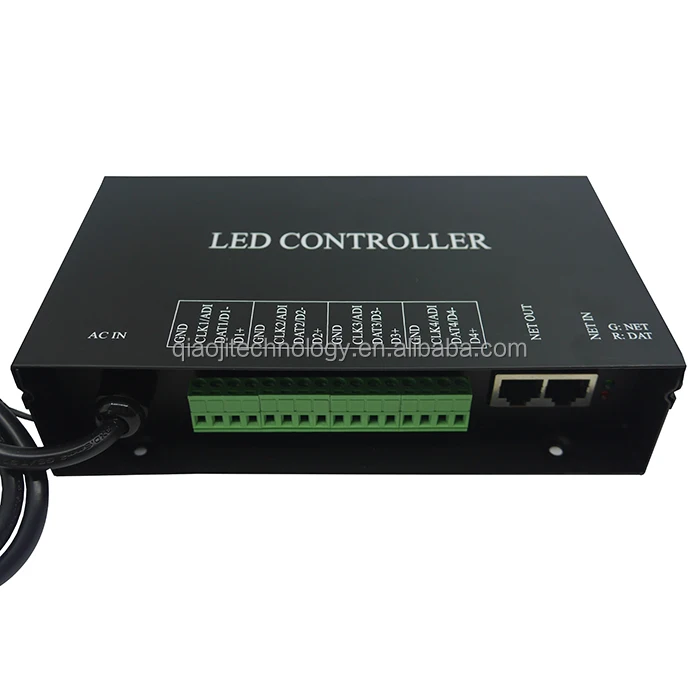

Product Display:

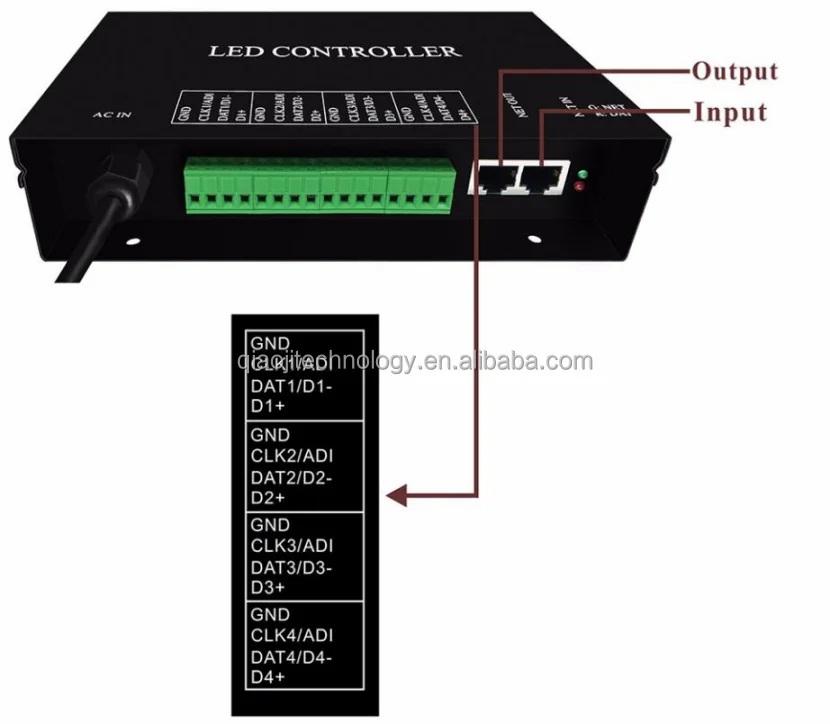

GND and DAT are for chips like TM1812, WS2811, WS2812.



GND, CLK and DAT are for chips like APA102, LPD6803.



GND, D- and D+ are for DMX512 chips like TM512, UCS512.



ADI(address input) is address line for DMX512 chips.



Working Mode:

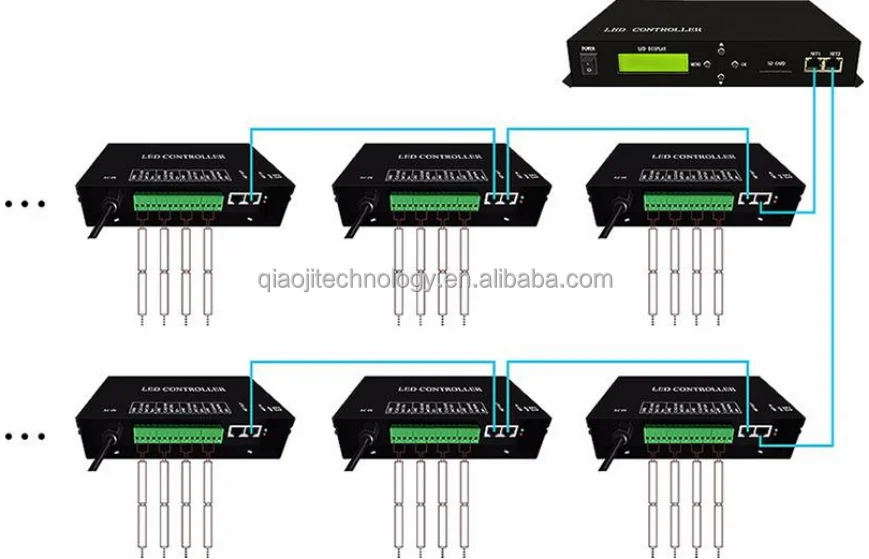

(1). Connect to master controller, software is LED Build. Programs are stored in SD card.

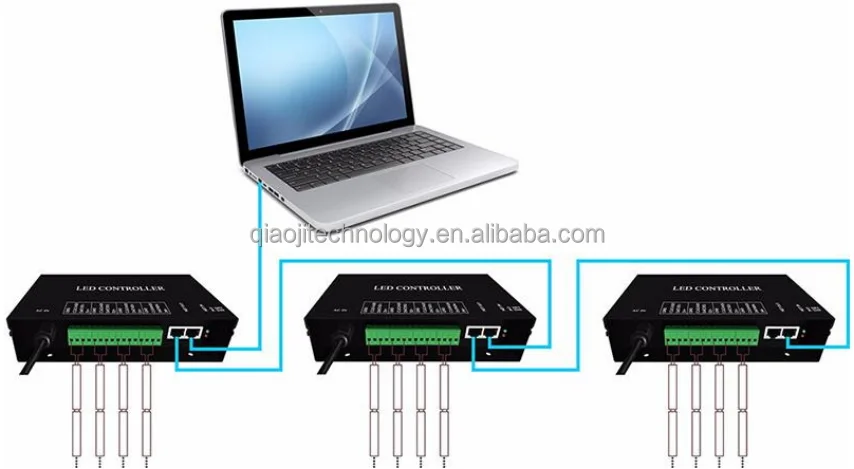

(2). Connect to computer, software is LED Studio(our software) or other software that supports Art-Net protocol.
