Полностью автоматическая машина для производства гигиенических салфеток

Цена:9 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Napkin/ Serviette Production Line With Packaging

Model	SY--1(190/200)
Width of Paper Material	180-200mm， (can be customized)
Max Diameter of Paper Material	1500mm
Core Diameter of Paper Material	76mm
Unfolding Size of Final Paper	190/200mm
Foled Size	Length 95-100mm, Width 66-100mm
Embossing	Steel to Rubber (Customized)
Maximum Running Speed	50-70 packets per minute (500-700 sheets per minute)
Main Power	2.2KW
Fans Power	5.5KW High Pressure Suction and Supply Fan
Dimension	With Maximum Roll L4050mm * W750mm * H1550mm

Number of Sheets Per Package :

(6 /1 fold) 5-15 sheets / package of three layers of base paper

12 sheets 1 package of four layers of base paper

(four in one fold) 5-20 sheets I bag of three-layer base paper

15 sheets / bag of four-layer base paper

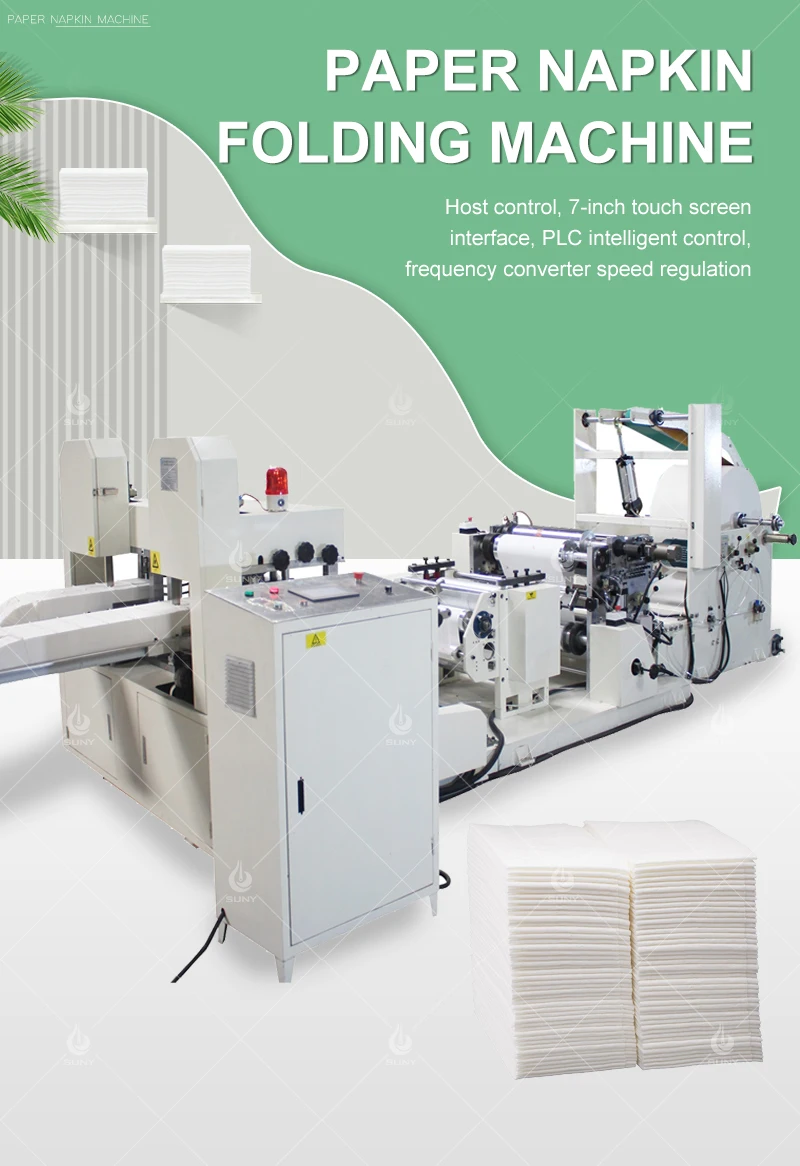

Host control, 7-inch touch screen interface, PLC intelligent control,

frequency converter speed regulation

Paper feeding mode: pneumatic paper feeding

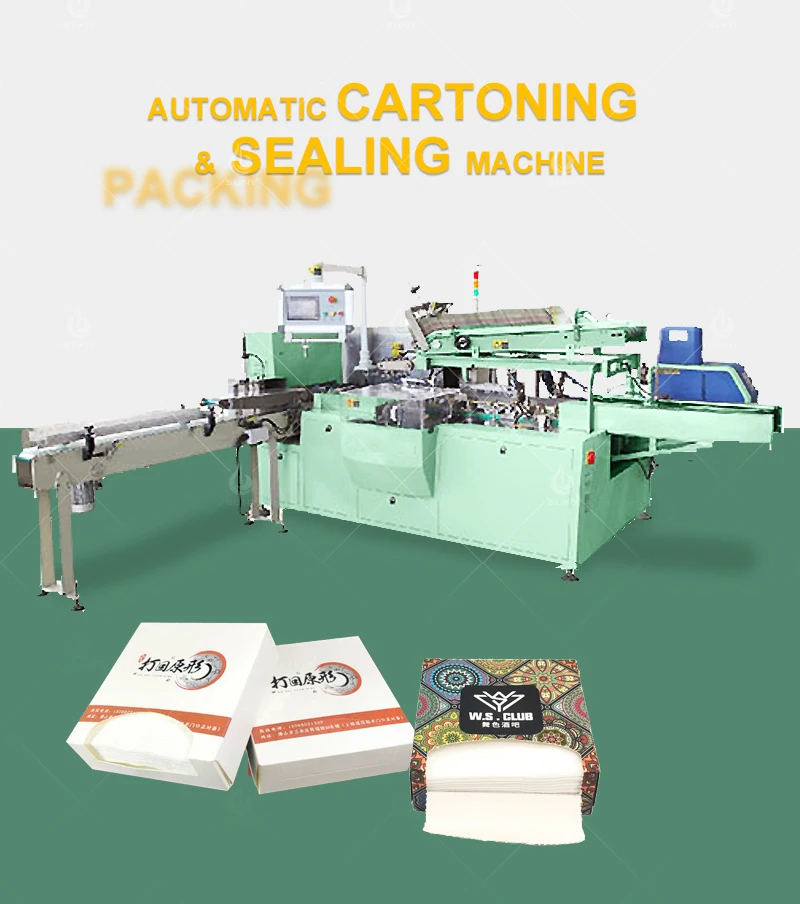

Name	Automatic Cartoning and Sealing Machine
Model	SY-70
Speed	50-70 Boxes/Min
Box Size	(55-230) x (30-130) x (30-75) MM
Napkin Size	(55-215) x (30-115) x (30-65) MM
Dime nsion	5280 x 1600 x 1900MM
Weight	2700KG
Power	3KW
Air Pressure	0.6Mpa
Air flow	100L/Min
