Hot Sale Trailer 3 Axle Fuel Oil Tanker Truck Stainless crude oil Tank Semi Trailer
Product Description
LUYI High quality aluminum fuel tanker trailer adopt advanced design concept. We also can produce the tanker trailers for different liquid like Ethanol,fuel, petrol, water, palm oil etc.
To make sure the safety, our standard trailers adopt the Bottom Emergency valves. This can help the tankers to prevent liquid leakage, when emergency happens. LUYI Fuel tanker trailers Major parts and
components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
components of the trailer are processed by advanced equipment. Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.
Specification
Trailer Model | Fuel tank trailer |
Overall dimension | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm |
Trailer Model | Ellipse |
Axle | 3 Axle BPW/FUWA /4Axle/5Axle |
Wheelbase(mm) | 6700+1310+1310 or other |

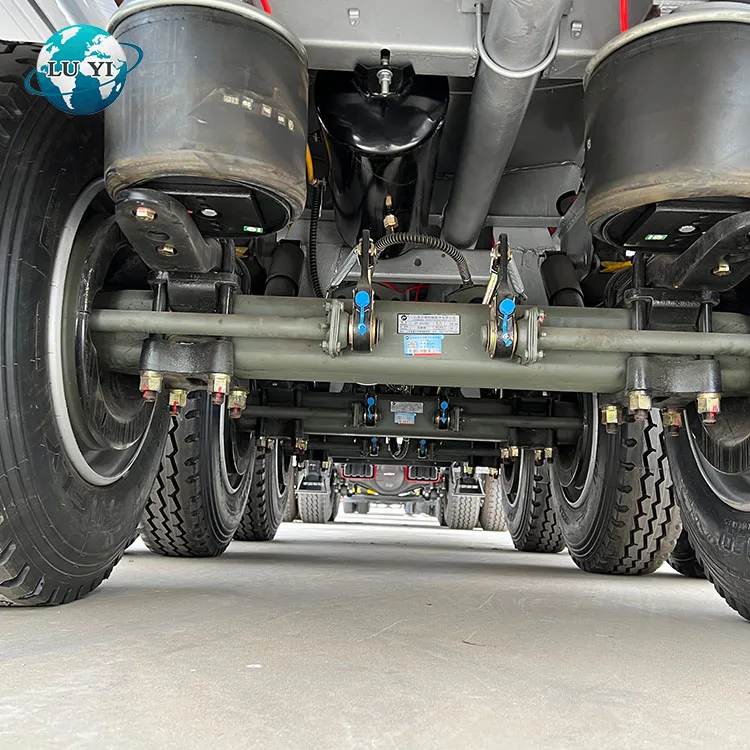

Suspension system | Mechanical or air supension (American or German) |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Frame | Height: 450mm-520mm, |
Frame | upper plate thickness is 16mm-25mm, |
middle plate thickness is 8mm-12mm, | |
down plate thickness is 16mm-25mm; | |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B welded by automatic Submerged-Arc processes Height I beam. | |
Tanker Body Material | 6mm/5mm aluminum |
Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
Traction Pin | JOST 2''(50#)/3.5''(90*) changeable |
Spare Wheel Bracket | 2 sets(Patent type) |
Tool Box | 2 sets(waterproof type) |
Landing Leg | JOST, FUWA or CHINA brand 28T |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
One piece of 45L air tanks | |
Brake air chamber | Six double chamber |
Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector,side lamp etc. | |
One set 6-core standard Cable. | |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |

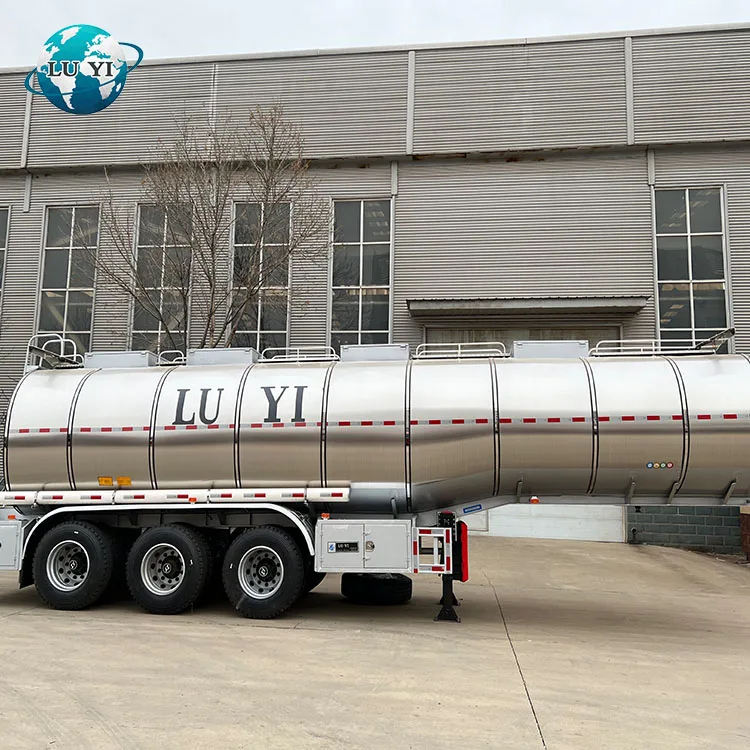

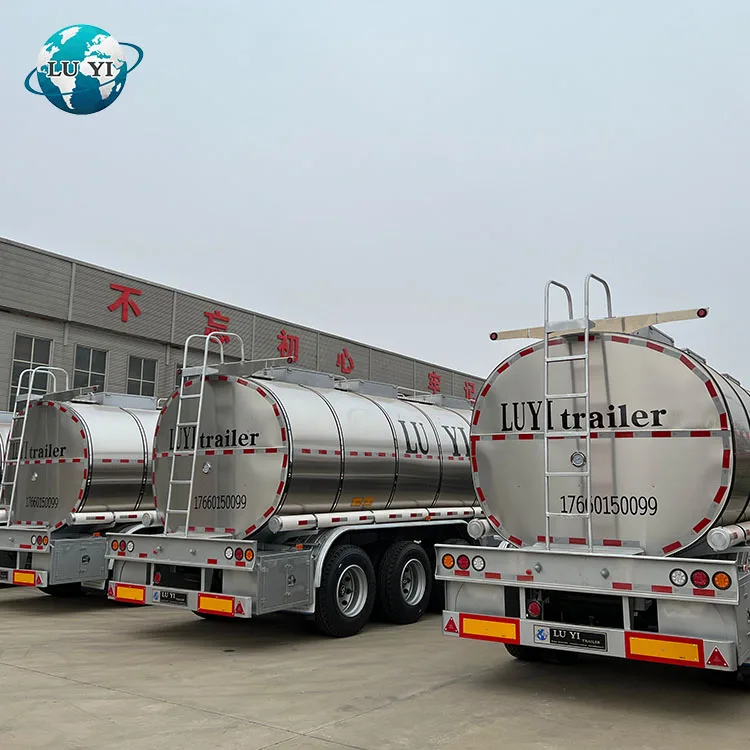

Product Display
Our aluminum oil fuel tanker trailer welded by automatic Submerged-Arc processes.According to clients' requirements, we can customize different volume and compartment.
Accessories are selected from famous Chinese brands, durable, safe and improved.
Can transport different types of fuel, according to customer requirements for strict design

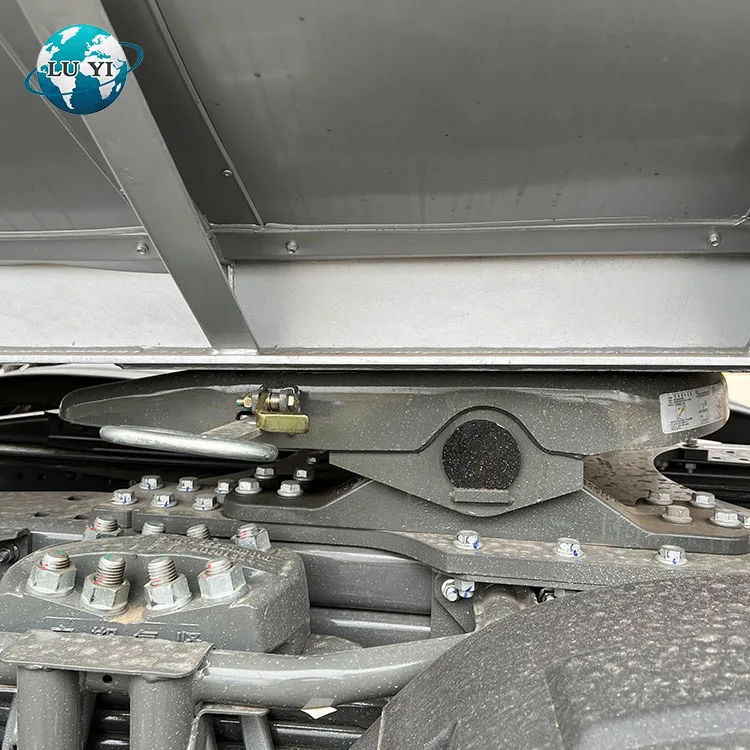

Product Details
Company Profile
Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
Why Choose Us
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time 5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security.
Just trust us, you will get a satisfactory answer.
