Products Description




Product name
Low Voltage Ozone Generator Disinfection For Agricultural Vegetable Garden Greenhouse Water Treatment
Modle No
DJ-W3030
Material
stainless steel
Input Voltage
100-240V
Ozone Production
1600mg/hr
Ozone Concentration
250-285mg/L
Ambient Temperature
4-35ºC
Ambient Humidity
<90%

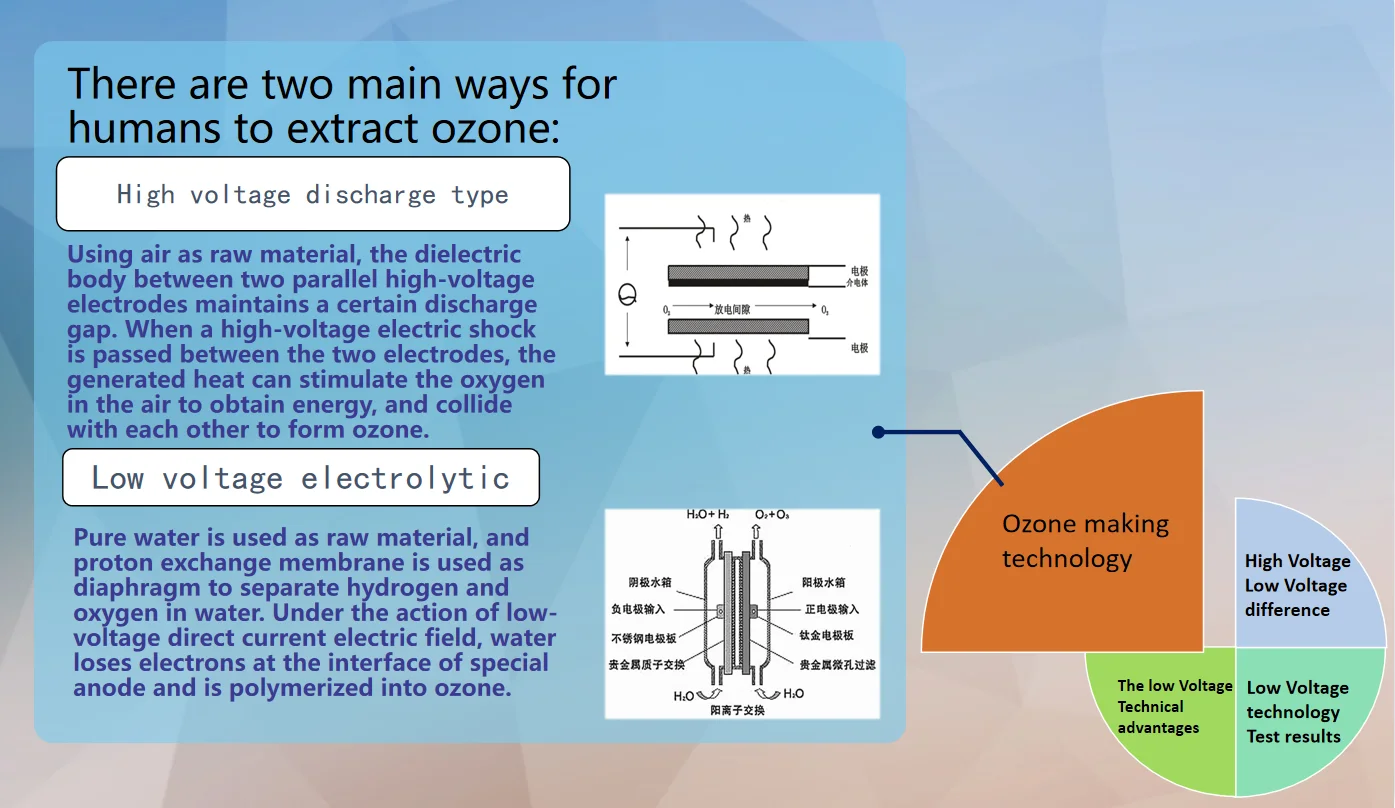

There are three ways of generating ozone artificially, Air Discharge, Ultraviolet Light Radiation and Electrolysiswhich can be divided into two kinds—Chemical Electrolysis Technology and Polymer Electrolyte.

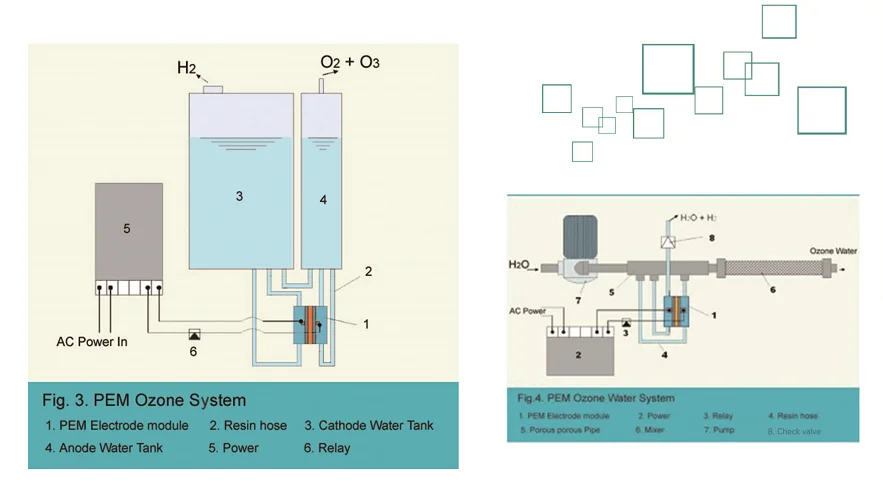

Membrane (PEM)Ozone technology.Low-tension DC connects anode and cathode of the special solidmembrane and then water is electrolyzed. The water on the anode will lose atoms and hydrogen and oxygen wilseparate. Oxygen gets energy under high concentration current and polymerize into ozone.

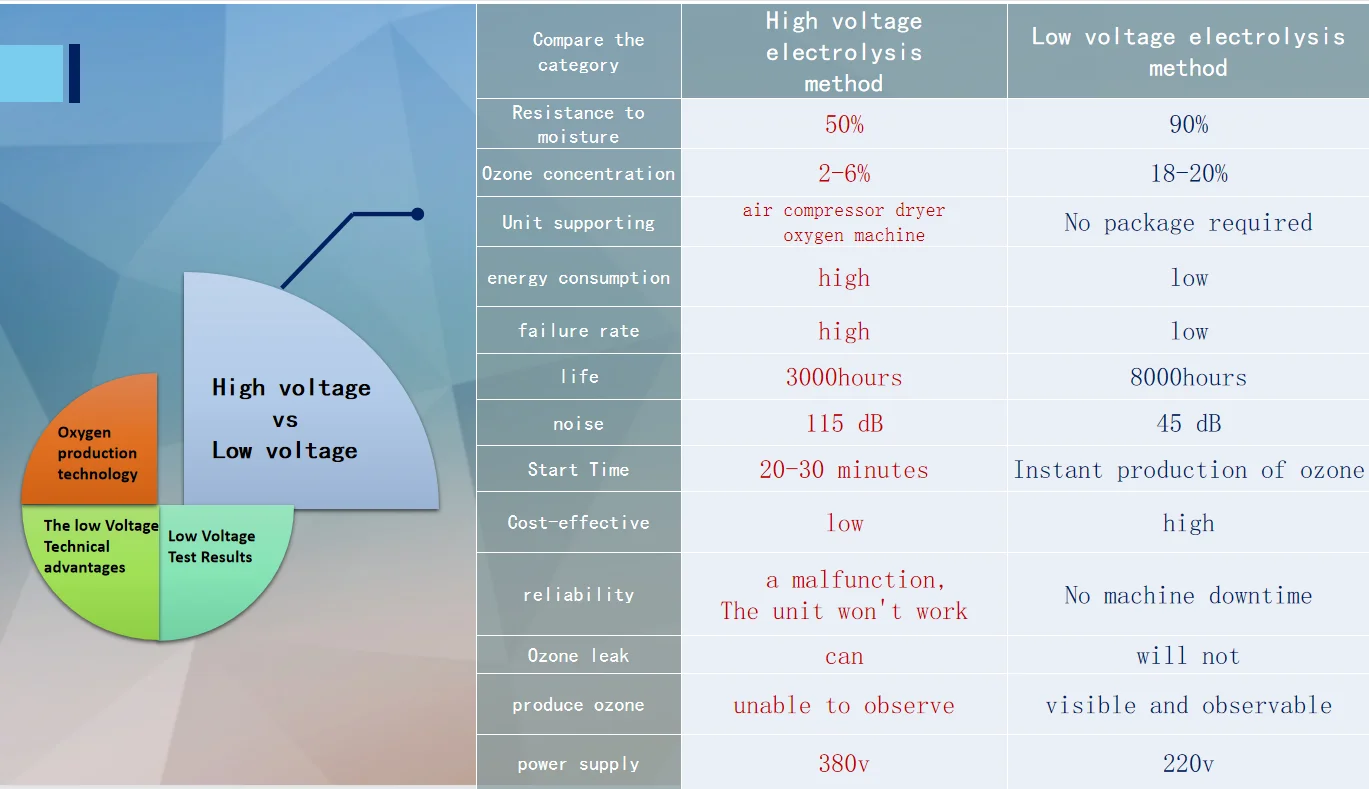

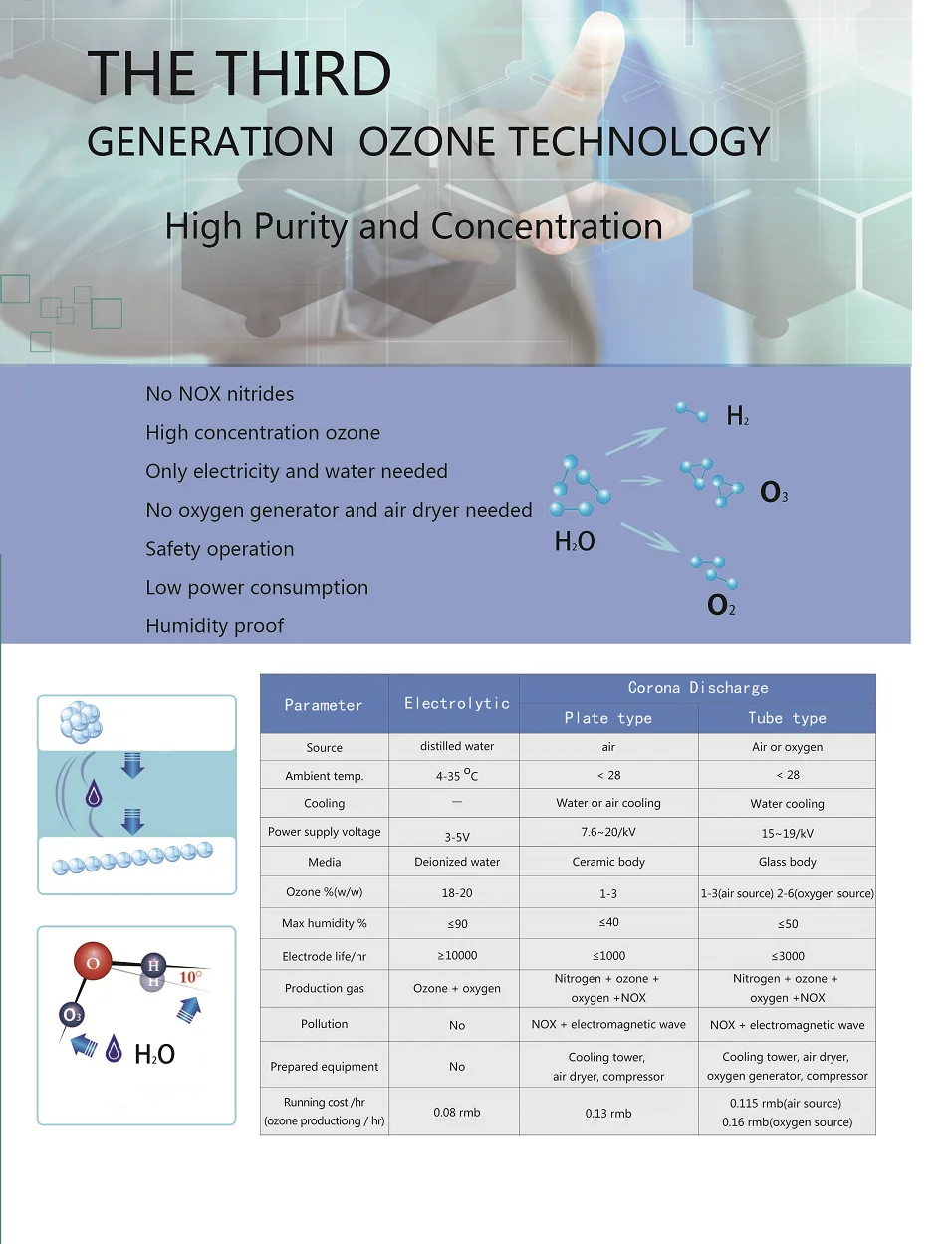

Features of PEM ozone generator
1.The PEM ozone generator which operates at constant pressures to produce a continuous flow of ozone in anoxygen stream having 20% by weight of ozone.

2.The produced gas are only oxygen and ozone, without NOX nitrides which may induce cancer to human body

3.PEM cell uses 3.5v low-tension DC voltage. It has no electricity danger, no electromagnetic wave and noisegenerated. It can work along with other high accuracy instrument in the lab.

4.The source used in PEM cell is only pure water, with electricity current. lt is safe to operate and easy to maintain.lt needs no prepared equipments.

5.The use of 3.5v low voltage means that the wearout on the anodes and cathodes of PEM cell is very limited. Itensures a long life running more than 8,000 hours.

6.The located place chosen is not subject to the ambient temperature and humidity. It can run under thecircumstance of 90% humidity.

7.Self cooling water loop has no danger of fire accident.

8.High concentration of ozone production make sure high dissolved amount in water with easy.

9.20% ozone and 80% oxygen weight by weight gas is ideal for air purification.













Application of Indoor Space Disinfection
Cleanliness
Ozone equipment model
Design Ozone Concentration
Ozone disinfection time
Effective space (volume)/ m3
A
DJ-Q1010
30ppm
120min
20
DJ-Q2020
40
DJ-Q4040
80
DJ-Q8080
160
DJ-Q1616
320
DJ-Q2424
480
B
DJ-Q1010
20ppm
100min
30
DJ-Q2020
60
DJ-Q4040
120
DJ-Q8080
240
DJ-Q1616
480
DJ-Q2424
720
C
DJ-Q1010
10ppm
90min
50
DJ-Q2020
100
DJ-Q4040
200
DJ-Q8080
400
DJ-Q1616
800
DJ-Q2424
1200
D
DJ-Q1010
6ppm
80min
80
DJ-Q2020
160
DJ-Q4040
320
DJ-Q8080
640
DJ-Q1616
1280
DJ-Q2424
1920


Application of water treatment and water disinfection
Product number
Treated water
Ozone production
Ozone concentration in water
Pump power
DJ-Q1010
0.5-1.0m3/H(T/H)
800mg/h
25600mg/h
0.35kw
DJ-Q2020
1.0-2.0m3/H(T/H)
1600mg/h
0.2-0.5mg/L
0.5kw
DJ-Q4040
2.0-4.0m3/H(T/H)
3200mg/h
0.2-0.5mg/L
0.5kw
DJ-Q8080
4.0-8.0m3/H(T/H)
6400mg/h
0.2-0.5mg/L
1 kw
DJ-Q1616
8.0-16.0m3/H(T/H）
12800mg/h
0.2-0.5mg/L
1.5kw
DJ-Q2424
12.0-24.0m3/H(T/H)
12800mg/h
0.2-0.5mg/L
2 kw
DJ-Q3232
16.0-32.0m3/H(T/H)
25600mg/h
0.2-0.5mg/L
2 kw




Product use and features

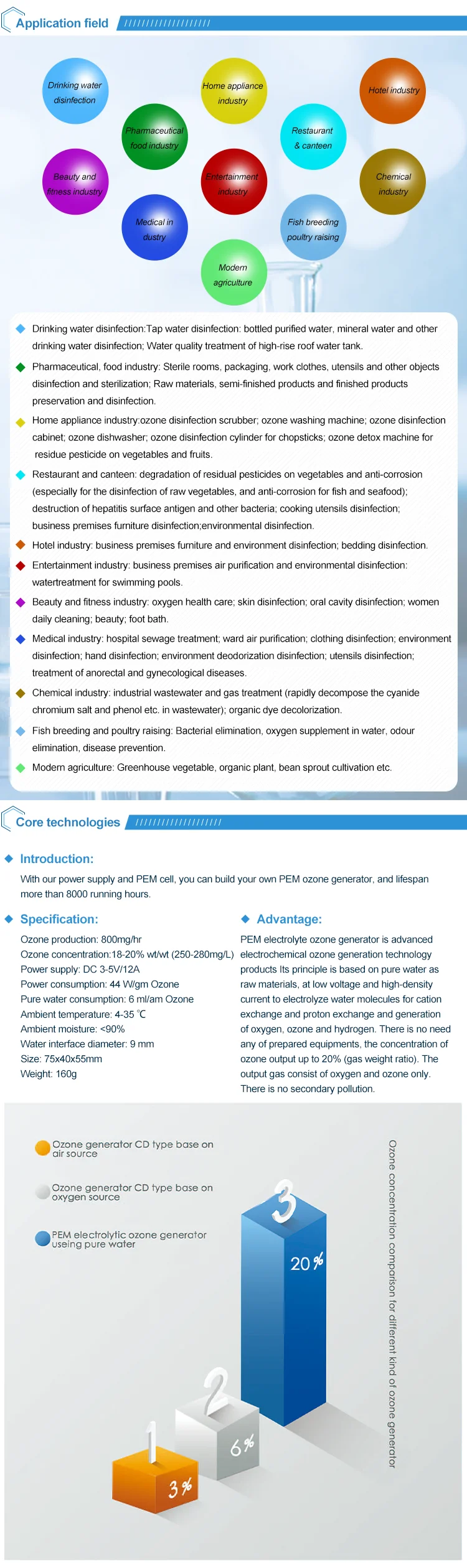

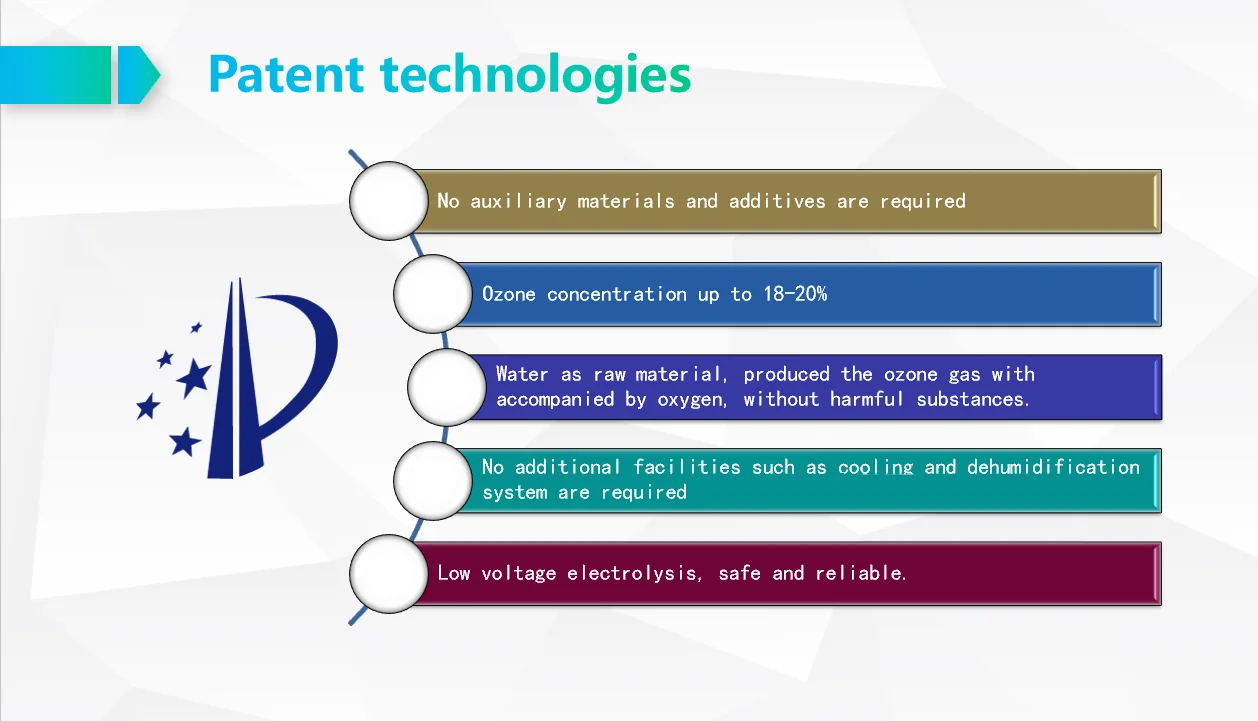

DJ-W series ozonated water generator is developed by YIDI Instrument Factory with its proprietary patented technology, which utilizes pure water as raw material to obtain ozone through low voltage electrolysis, requiring neither auxiliary materials nor additives, produces ozone concentration as much as 18-20%. The Machine is extensively applicable in pharmaceutical, medical, food, drinking water, seafood, tourism, entertainment, osmetic, poultry farming and other industries, and suitable for surface disinfection in hotels, restaurants, canteens, hospitals and farms. When used for sterilization, the target surface to be sterilized may be washed with clean water in advance according to the quantity of objects to facilitate sterilization; experimental study shows that continuous spraying for 0.5-5.0 minutes could thoroughly sterilize the surface.
The product no needs additional facilites such as cooling and dehumidification systems..
















Our Advantages




Certifications






Product packaging




Welcome to browse our products!
