Products Description
Product Description:
LRS series is a single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire series provides 35W/50W/75W/100W/150W/200W/350W/450W/600W with an output voltage line of DC 3V 5V 12V / 15V / 24V / 36V / 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS series that the 35W/50W/75W/100W/150W/200W operates from -30 ℃ through 70 ℃ under aire convection without a fan (350W/450W/600W with the built-in long life fan). Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to sasily meet the worldwide energy requirement. LRS has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such an TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1 AND gb4943. LRS series serves as a high price to performance power supply solution for various industrial applications.LRS Series Features:
> Non-PFC, most economical models
> Ultra compact and 1U low profile
> 300VAC input surge
> No load power consumption: 0.2W~0.75W
> 5G vibration, 70℃ operation
> Operating altitude up to 5000 meters
> Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
> Ultra compact and 1U low profile
> 300VAC input surge
> No load power consumption: 0.2W~0.75W
> 5G vibration, 70℃ operation
> Operating altitude up to 5000 meters
> Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
> 3 years warranty
> Mean time between failures > 1,000,000 hours
LRS series Basic parameters:
Model | Watt | Input Voltage | Output Voltage | Dimension |

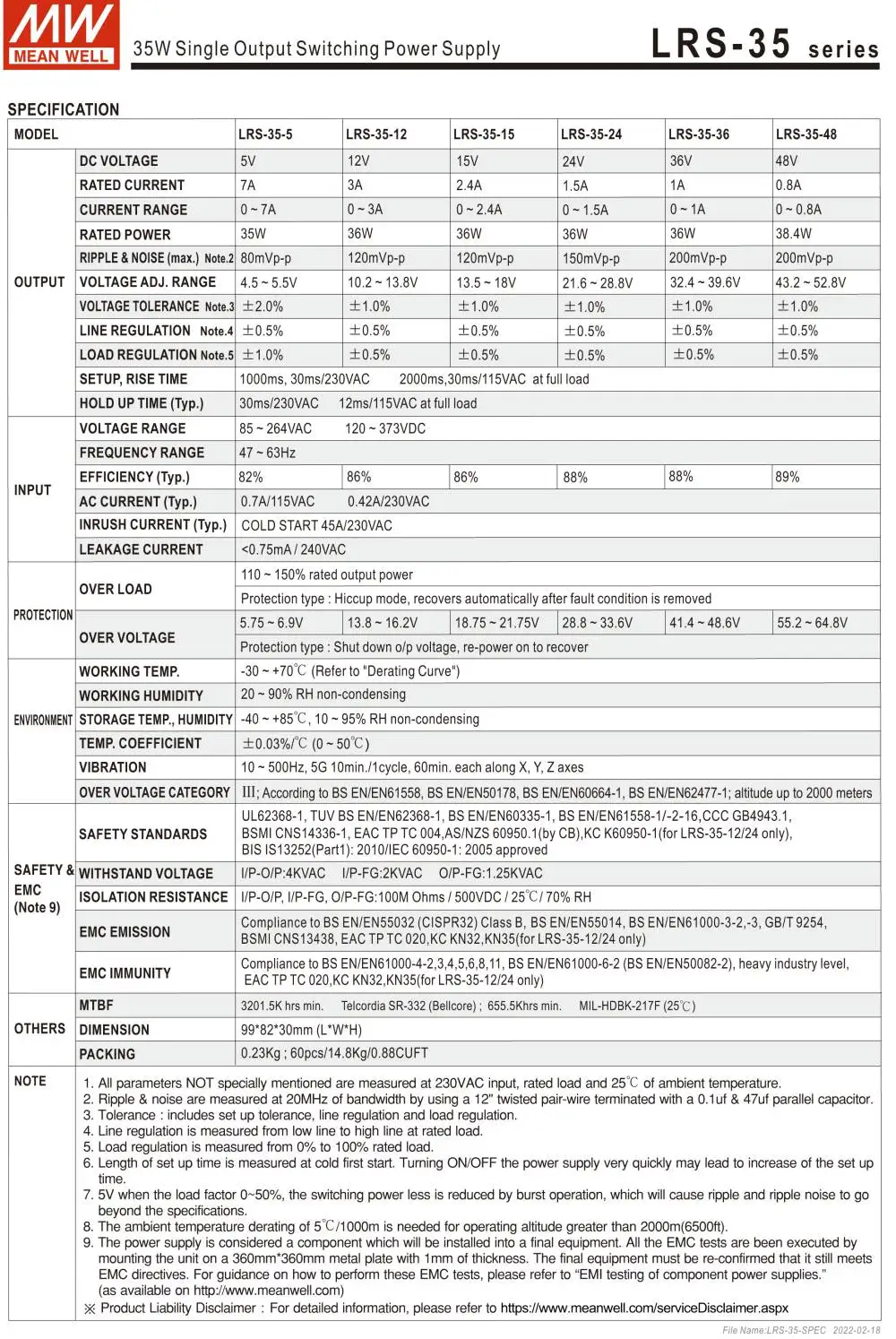

LRS-35 | 35W | 85~264VAC | DC5/12/15/24/36/48V | 99*82*30mm |

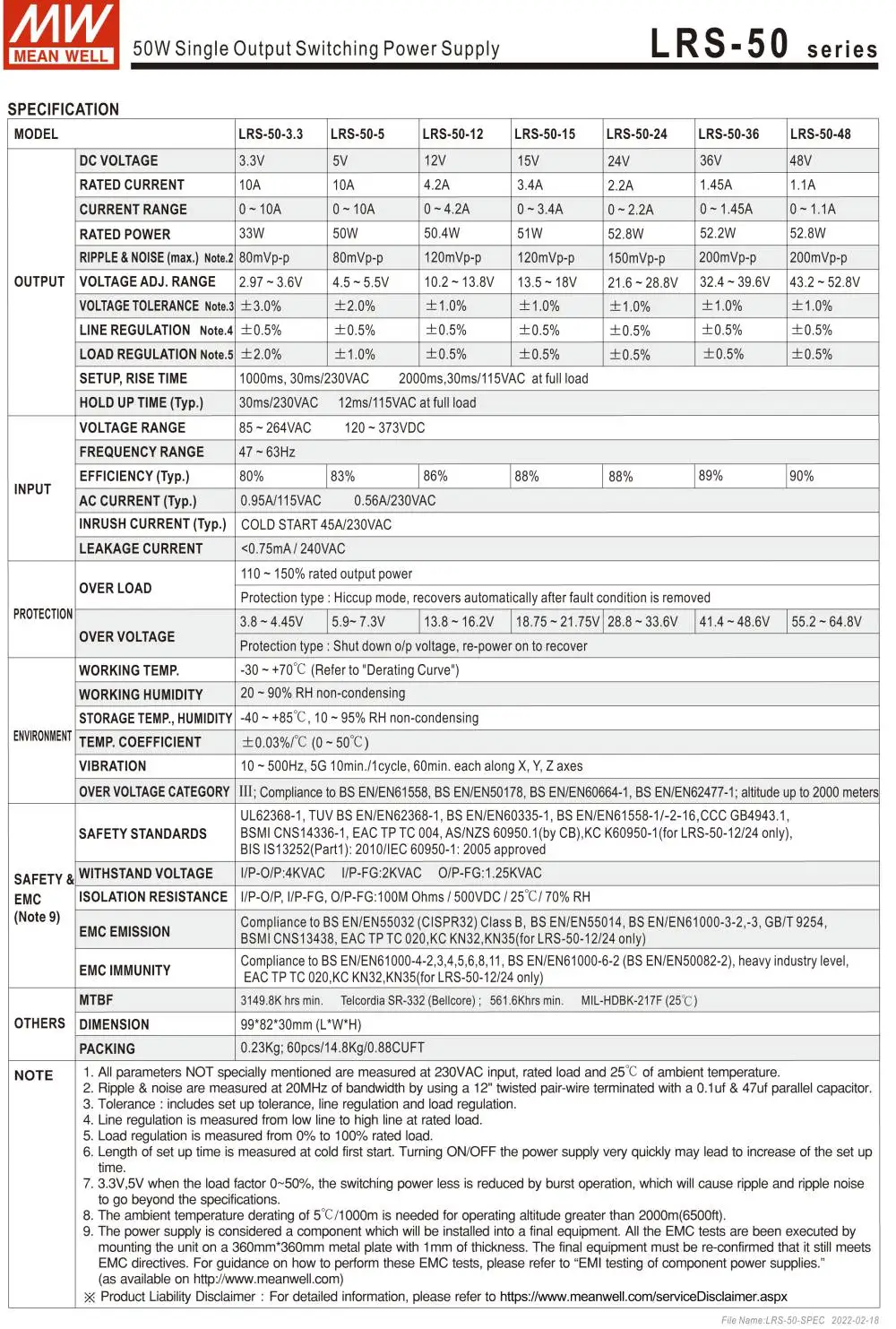

LRS-50 | 50W | 85~264VAC | DC3/5/12/15/24/36/48V | 99*82*30mm |
LRS-75 | 75W | 85~264VAC | DC5/12/15/24/36/48V | 99*97*30mm |
LRS-100 | 100W | 85~264VAC | DC3/5/12/15/24/36/48V | 129*97*30mm |

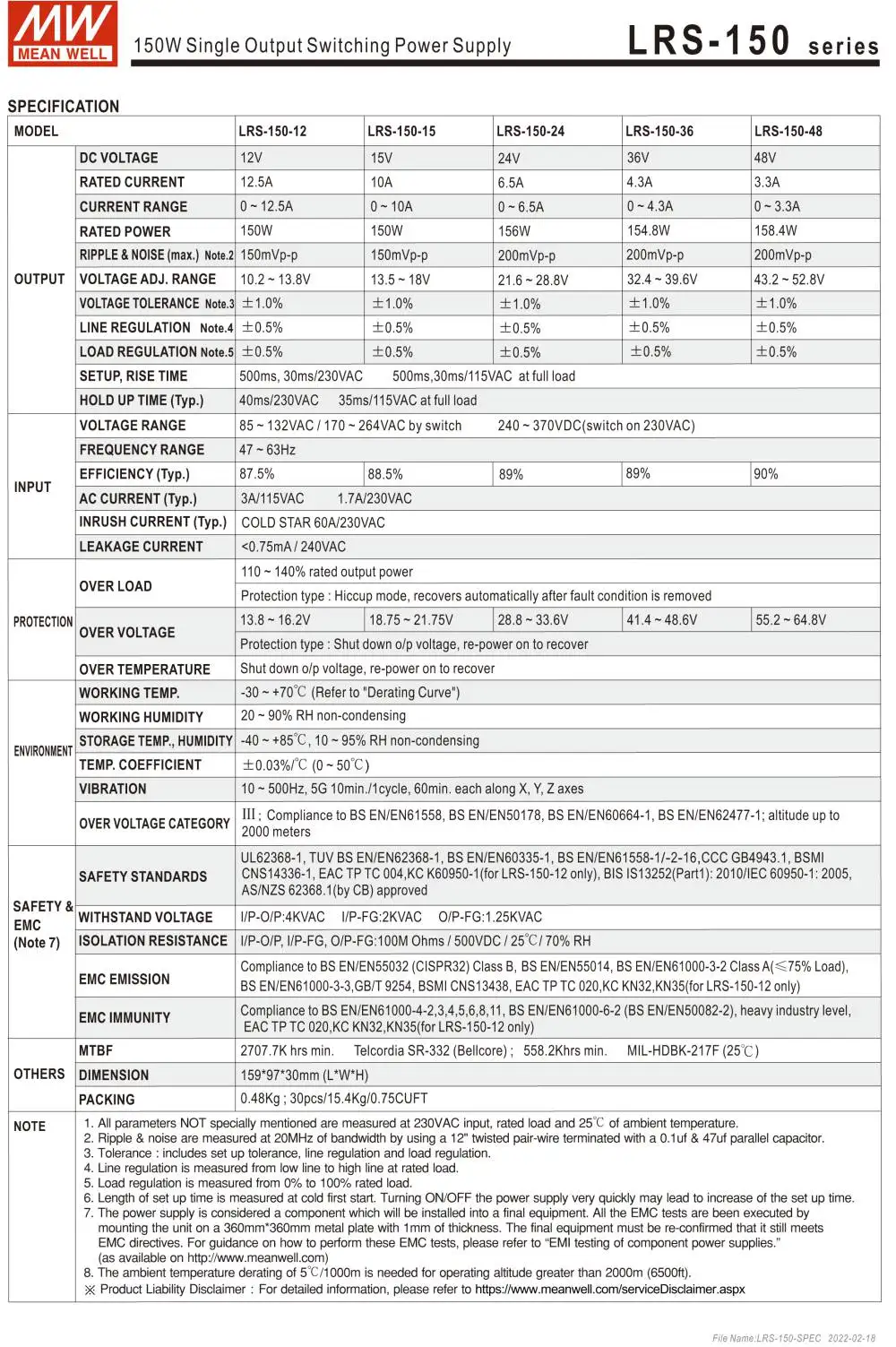

LRS-150 | 150W | 115VAC/230VAC | DC12/15/24/36/48V | 159*97*30mm |

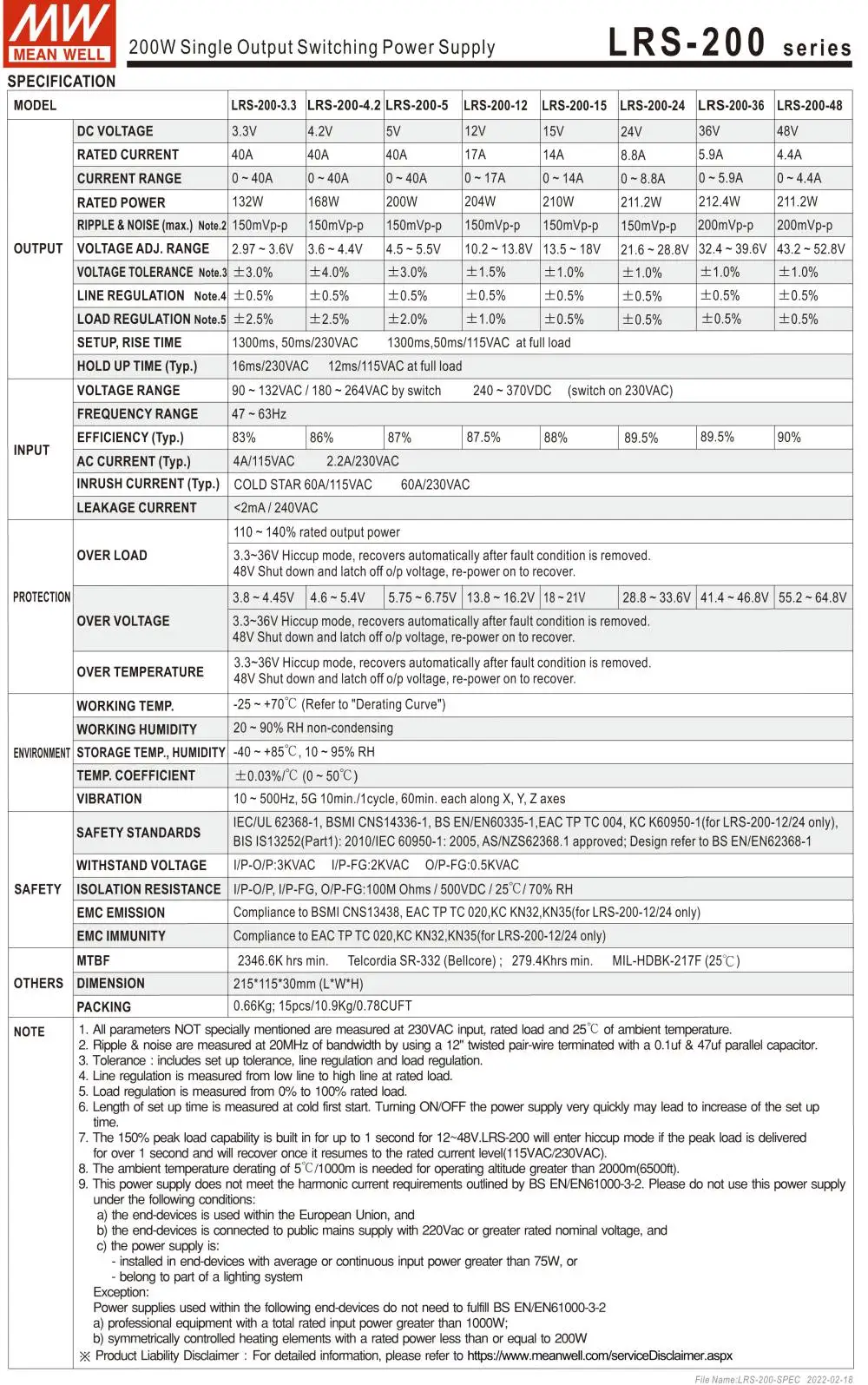

LRS-200 | 200W | 115VAC/230VAC | DC3/5/12/15/24/36/48V | 215*115*30mm |
LRS-350 | 350W | 115VAC/230VAC | DC3/5/12/15/24/36/48V | 215*115*30mm |

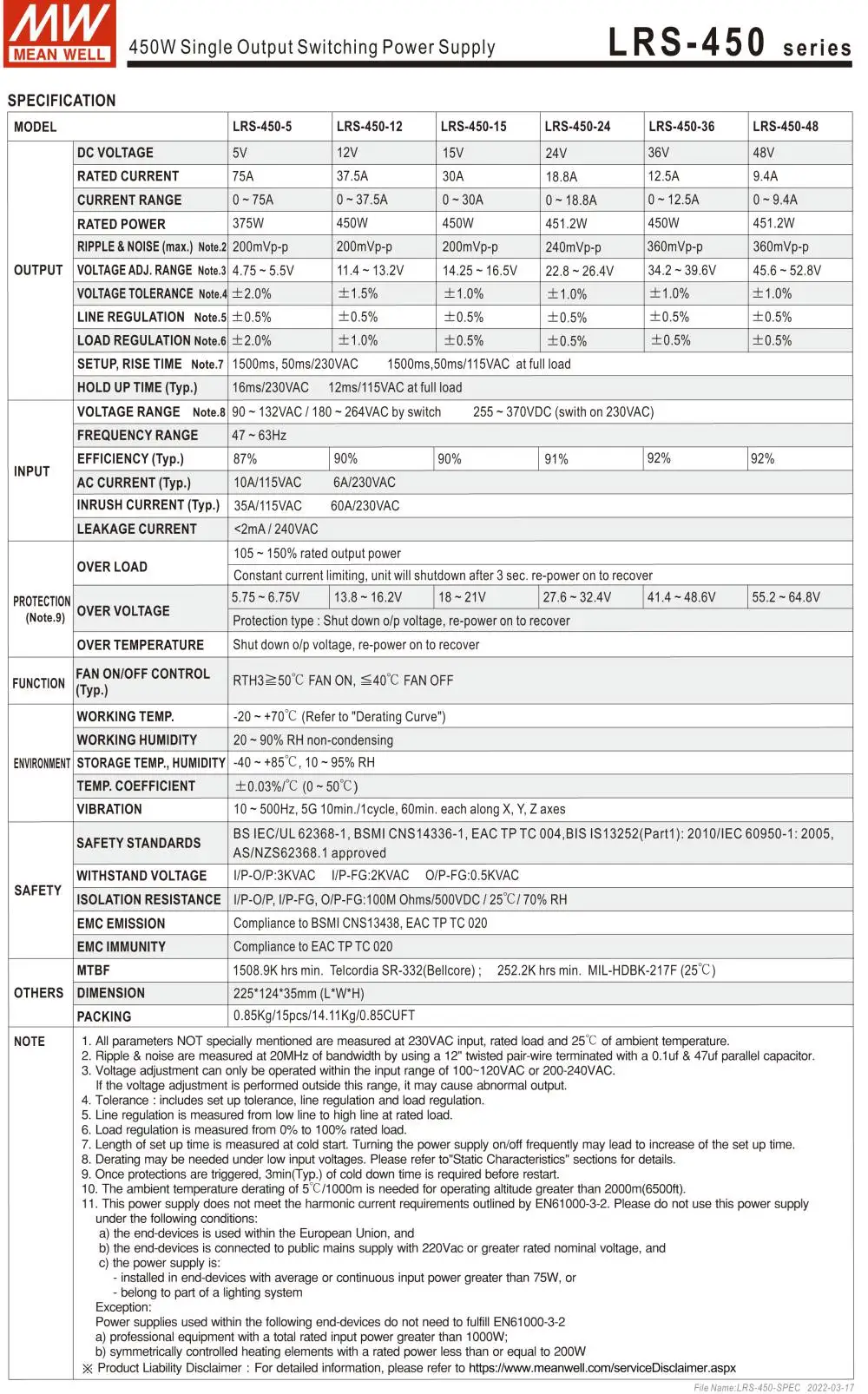

LRS-450 | 450W | 115VAC/230VAC | DC5/12/15/24/36/48V | 225*124*35mm |

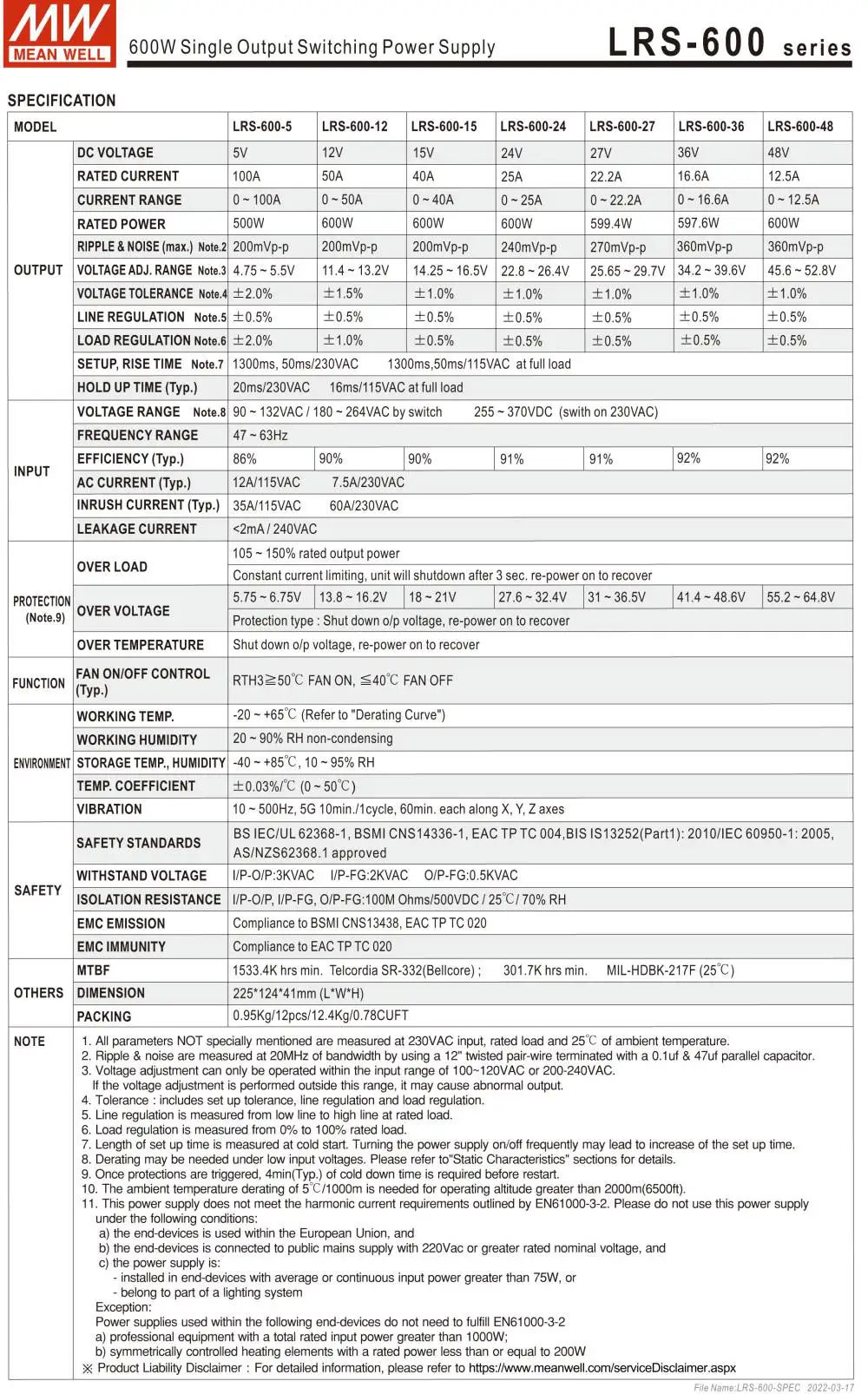

LRS-600 | 600W | 115VAC/230VAC | DC5/12/15/24/36/48V | 225*124*41mm |
Specification:
Meanwell mean well LRS-35W DC 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply

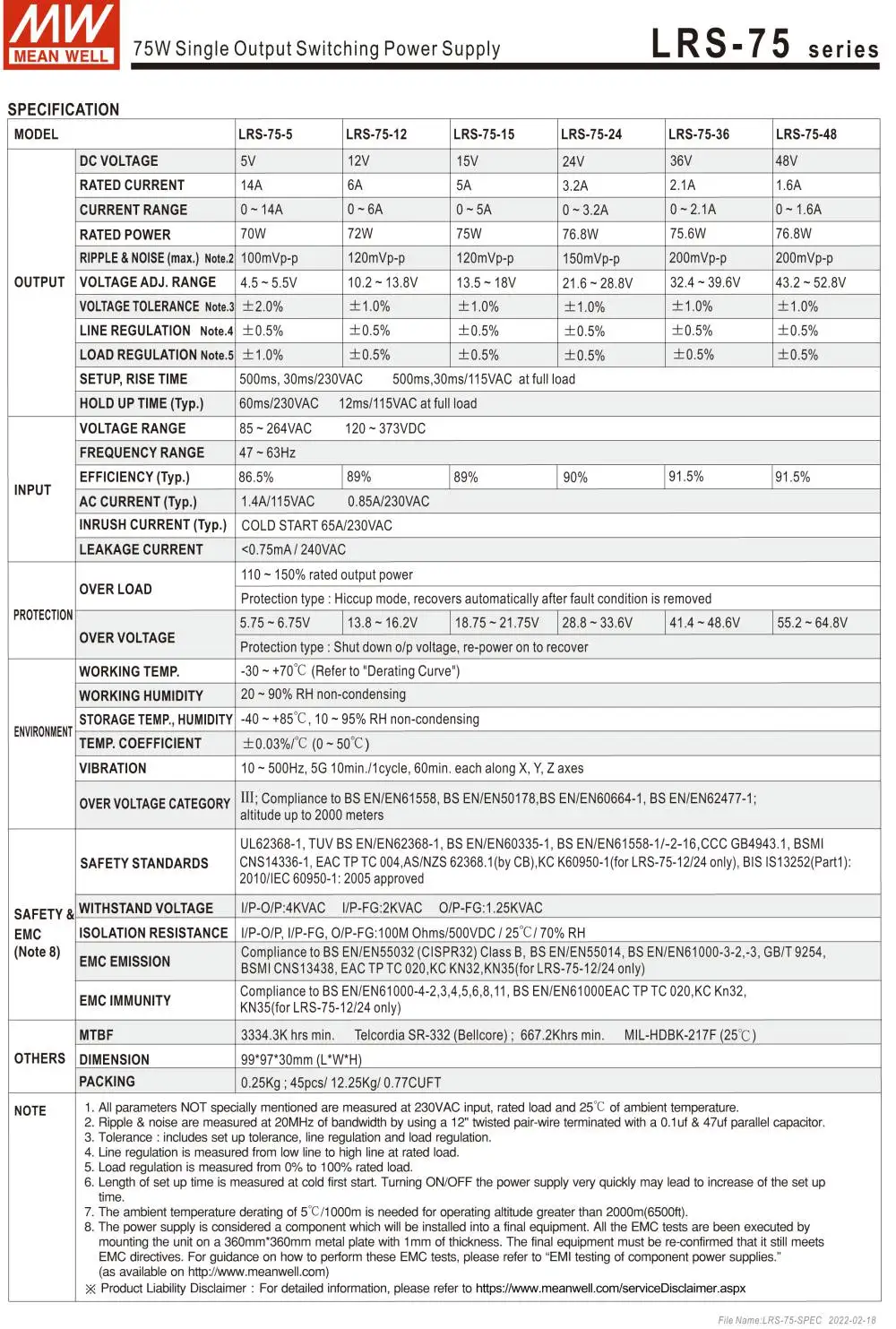

Meanwell mean well LRS-75W DC 5V 12V 15V 24V 36V 48V Constant Voltage LED Strip Light Driver.

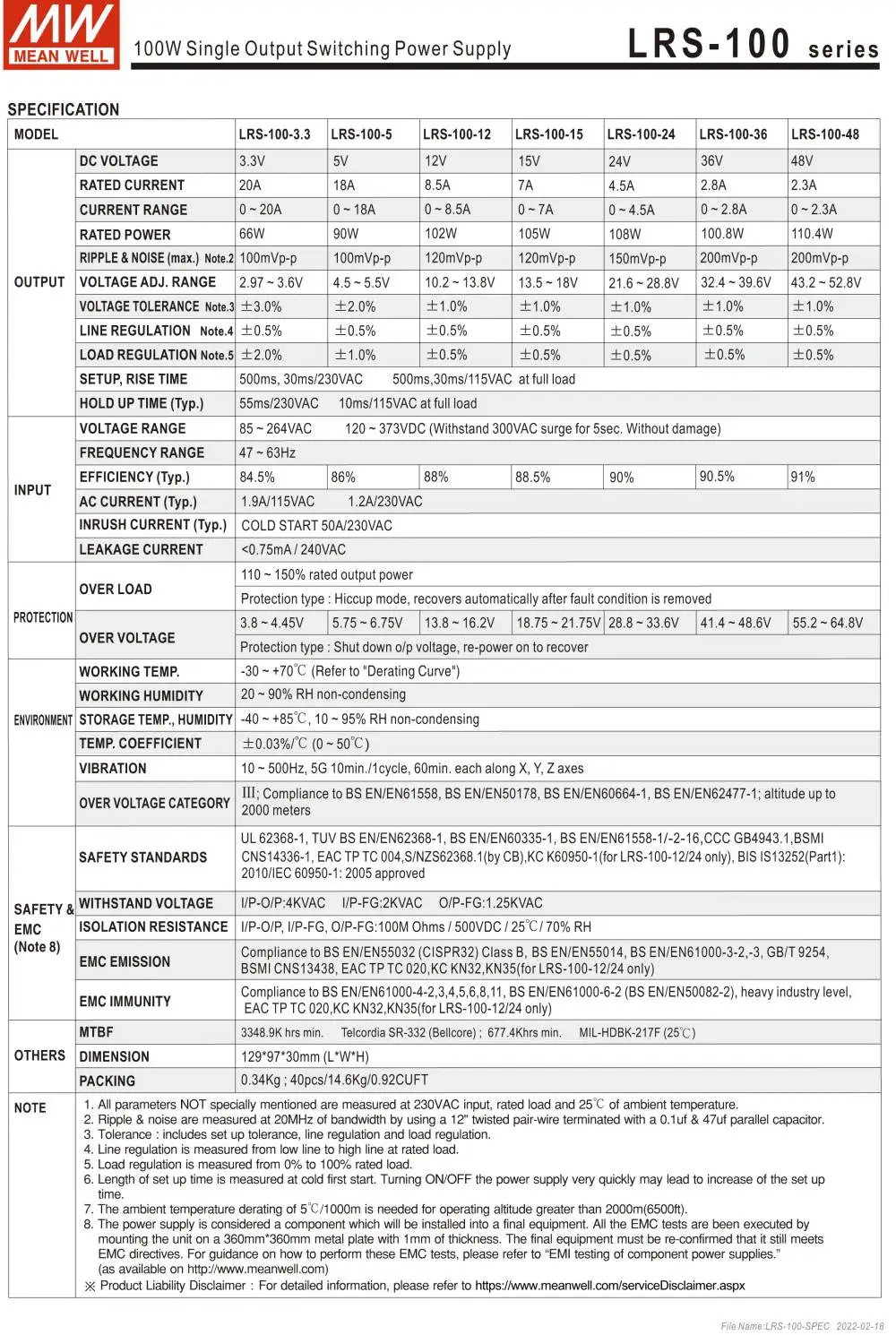

Meanwell mean well LRS-100W DC 3.3V 5V 12V 15V 24V 36V 48V Constant Voltage LED Strip Light Driver.
Meanwell mean well LRS-150W DC 12V 15V 24V 36V 48V Constant Voltage LED Strip Light Driver.

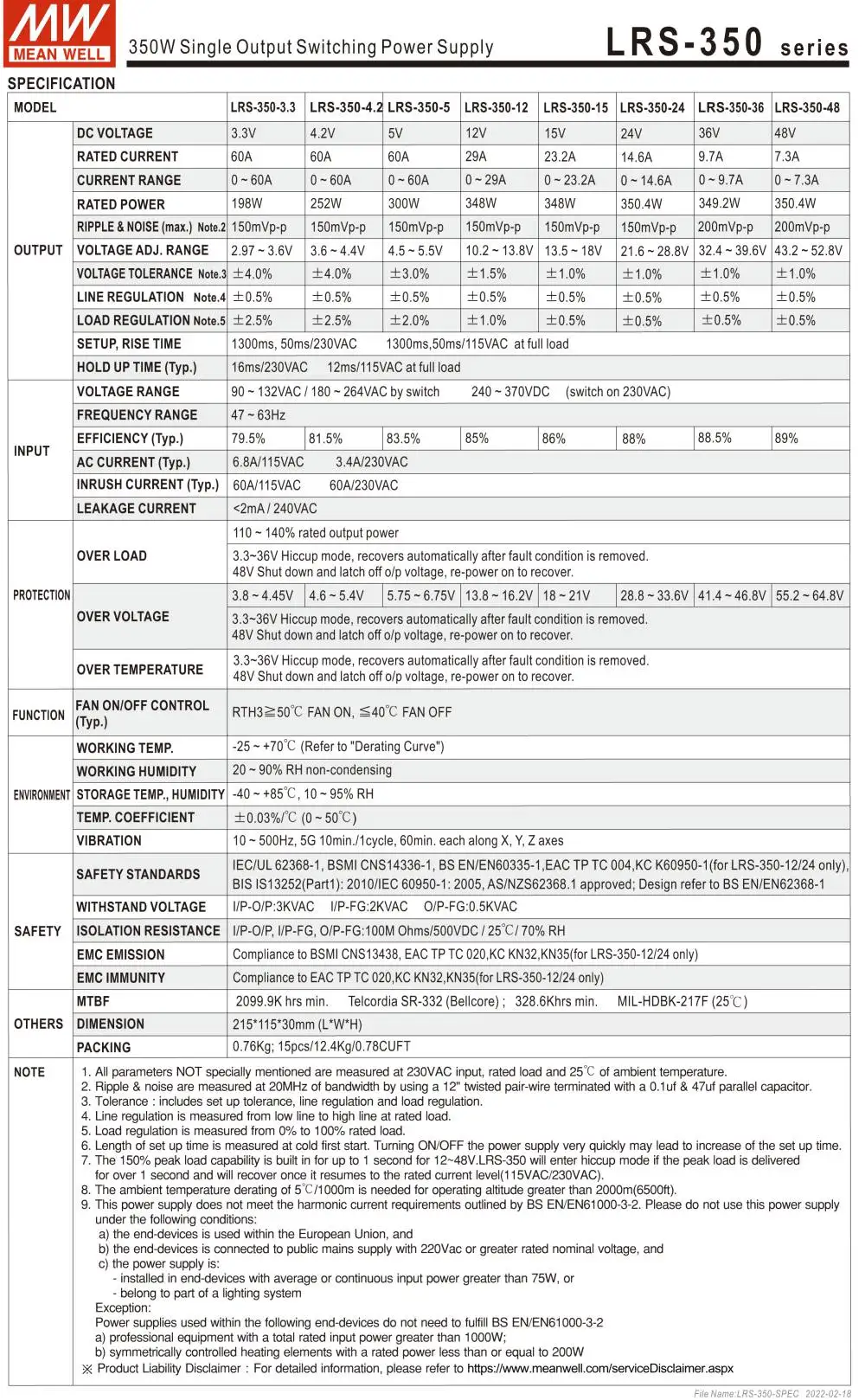

Meanwell mean well LRS-350W DC 3.3V 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell mean well LRS-450W DC 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell mean well LRS-600W DC 5V 12V 15V 24V 36V 48V LED Driver DC Switching Power Supply.
Meanwell other series switching power supply:

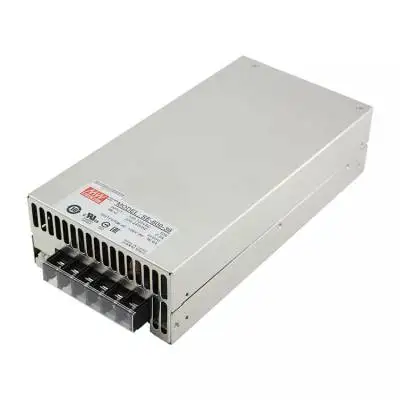

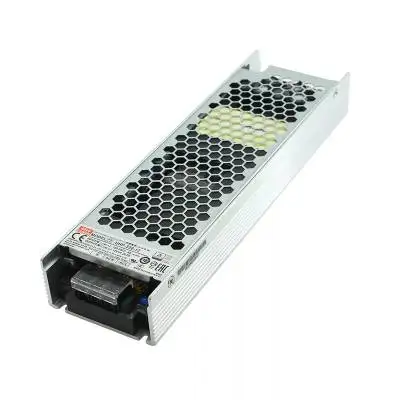

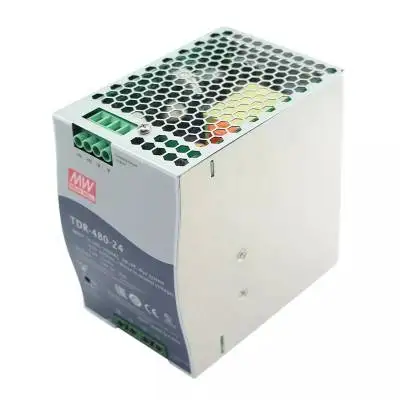

SE Series | RSP Series | UHP Series | TDR Series |
Model: SE-450, SE-600 SE-1000, SE-1500 | Model: RSP-75, RSP-100 RSP-150, RSP-200 RSP-320, RSP-500 RSP-750, RSP-1000 RSP-1500, RSP-1600 RSP-2000, RSP-2400 RSP-3000 | Model: UHP-200(R), UHP-200A UHP-350(R), UHP-500(R) UHP-750, UHP-1000 UHP-1500, UPH-1500-HV, UHP-2500 | Model: TDR-240 TDR-480, TDR-960 |
Watt: 450W, 600W, 1000W, 1500W | Watt: 75w, 100w, 150w, 200w, 320w, 500w, 750w, 1000w, 1500w, 1600w, 2000w, 2400w, 3000w | Watt: 200w, 350w, 500w, 750w, 1000w, 1500w, 2500w | Watt: 240W, 480W, 960W |
Output voltage: DC 3.3V 5V 9V 12V 15V 24V 27V 36V 48V | Output voltage: DC 3.3V 5V 12V 15V 24V 36V 48V | Output voltage: 3.3V 4.2V 5V 12V 15V 24V 36V 48V | Output voltage: DC24V, DC48V |
Application
Meanwell Power Supplies Mean Well Industrial Regulated Switch Mode LED Driver DC Switching Power Supply for CCTV/LED stripInsustrial control/LED lamp/ light box/ luminous words/ stepper motor lighting project
