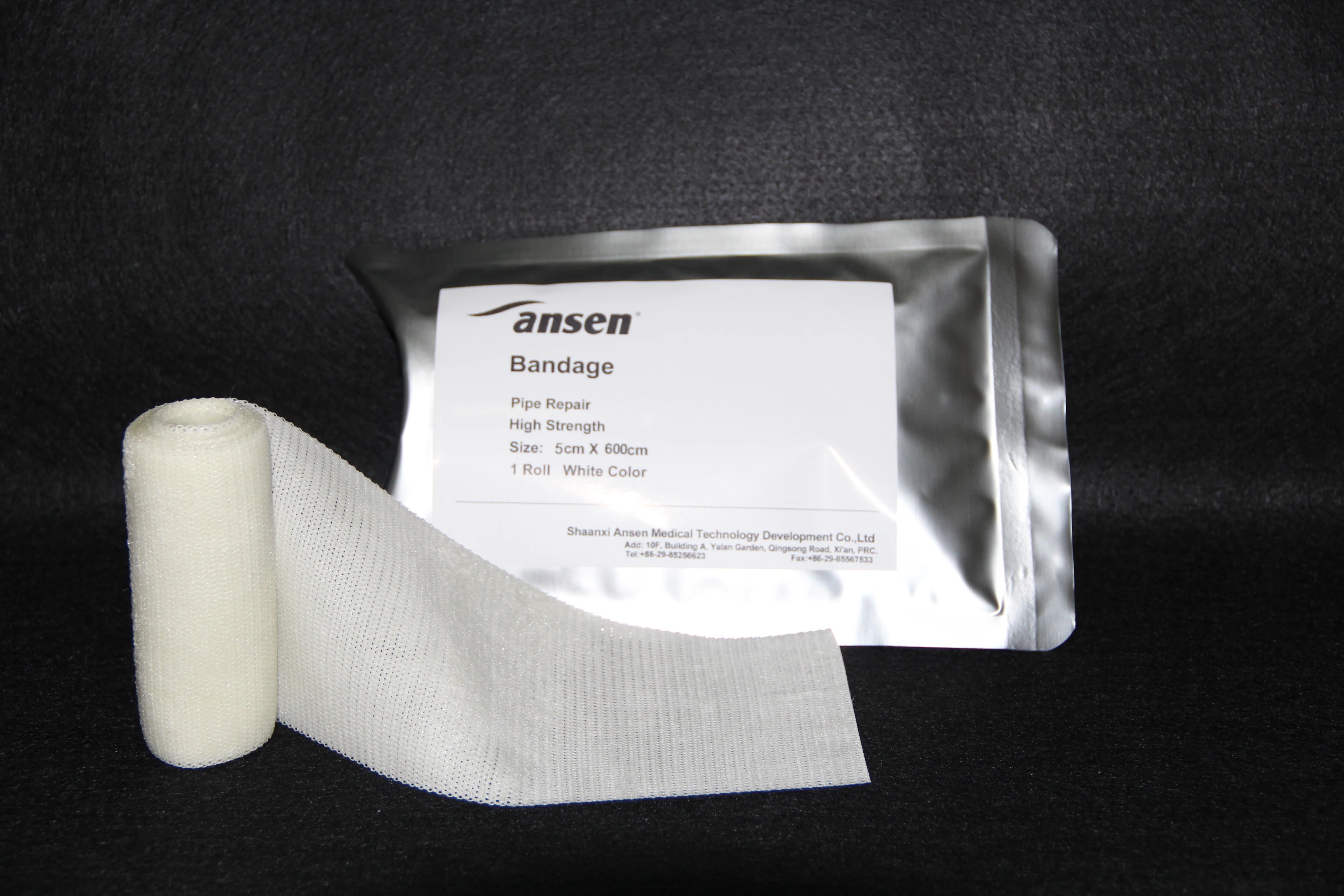

Production instruction-Ansen pipe repair bandage
Industrial Cracked Plumbing Repair Tape With Epoxy Putty High Pressure Water Leak Sealant
DESCRIPTION
Ansen pipe repair bandage is a fibre reinforced polyurethane repair tape designed for the rapid repair of cracks and leaks in most types of pipework encountered in the engineering,chemical,marine and other industries.
Ansen pipe repair bandage works on wet,dry,dirty or corroded pipes even works under water...Salt or fresh activated by water it cures to produce a tough chemical resistant wrap around pipe.
Fast Emergency Pipe Repairs Wrap Plumbing Solutions Pinhole Leak Repair Water-activated Fiberglass Wrap
Easy to use No mixing,repaired pipes can be returned to service in less than thirty minutes.
Resistant to most chemicals including: mek, acetone,sulphuric acid,ethyl alcohol,gasoline,toluene,diesel,varsol,crude oil,hydraulic oil...
TECHNICAL DATA
√ Withstand temperature up to 120-150°C
√ Repairs leak in 30 minutes
√ Withstand pressure up to 3.1 Mpa/31bar/450psi
√ Repairs leak in 30 minutes
√ Withstand pressure up to 3.1 Mpa/31bar/450psi
√ Tensile Strength: 5075Psi
√ Hardness : 70 Shore D
√ Pipe diameter up to 60″ (1524 mm)
√ Ideal for pipe reinforcement & corrosion protection
√ Hardness : 70 Shore D
√ Pipe diameter up to 60″ (1524 mm)
√ Ideal for pipe reinforcement & corrosion protection
Specification
Name | Model | Size | Packing |
Pipe repair bandage | PR002 | 50mm × 3.6m (2''×12'') | 10 rolls ×10 rolls/ctn |
Pipe repair bandage | PR003 | 75mm × 3.6m (3''×12'') | 10 rolls ×10 rolls/ctn |
Pipe repair bandage | PR004 | 100mm × 3.6m (4''×12'') | 10 rolls ×10 rolls/ctn |
Pipe repair bandage | PR005 | 125mm × 3.6m (5''×12'') | 10 rolls ×10 rolls/ctn |
Pipe repair bandage | PR006 | 150mm × 3.6m (6''×12'') | 10 rolls ×10 rolls/ctn |
DIRECTIONS FOR USE
1.Shut off the pressure and isolate leak. Clean, degrease and abrade substrate around leak site.
2.Work putty until a uniform mixture is evident.3.Apply mixed putty immediately to leak site. Firmly press putty into defect.
4.Put on gloves supplied with the Pipe Repair Bandage. Immerse Bandage in water or place under running tap water
for 10 secs. Fast Emergency Pipe Repairs Wrap Plumbing Solutions Pinhole Leak Repair Water-activated Fiberglass Wrap
5.Wrap the Bandage tautly around the leak site extending 50mm either side of damaged area.
6.Smooth the resin as it foams during curing and work resin into the base fabric in a 'tightening motion'. Restore pipe to
service once Bandage is cured.
2.Work putty until a uniform mixture is evident.3.Apply mixed putty immediately to leak site. Firmly press putty into defect.
4.Put on gloves supplied with the Pipe Repair Bandage. Immerse Bandage in water or place under running tap water
for 10 secs. Fast Emergency Pipe Repairs Wrap Plumbing Solutions Pinhole Leak Repair Water-activated Fiberglass Wrap
5.Wrap the Bandage tautly around the leak site extending 50mm either side of damaged area.
6.Smooth the resin as it foams during curing and work resin into the base fabric in a 'tightening motion'. Restore pipe to
service once Bandage is cured.

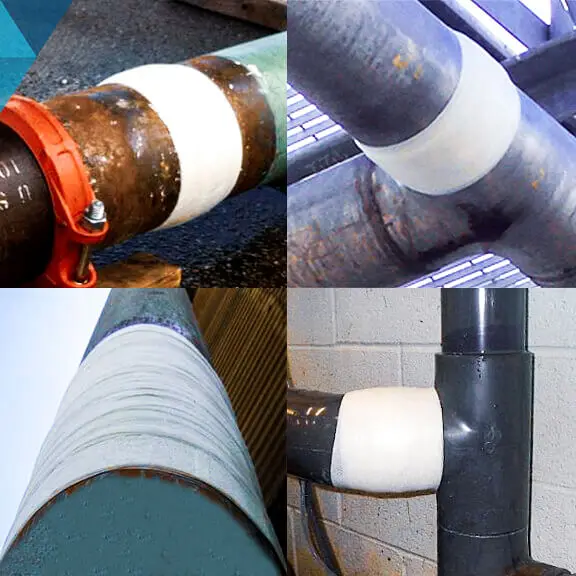

Application:Pipe leak repair and Corroded pipe reinforcement
Reinforce corroded pipelines
Ansen pipe repair bandage works on wet,dry,dirty or corroded pipes even works under water.
it is used to halt and encapsulate external corrosion and restore structural integrity to piping.
Resistant to most chemicals including: mek,acetone,
acetone,sulphuric acid,ethyl alcohol,gasoline,toluene,diesel,varsol,crude oil,hydraulic oil...
It is ideal product for oil and gas pipeline protection.
Repair pipe leaks
Pipe leaks cost petrochemical plants millions of dollars:
- In lost energy
- Increasing emissions
- Creating safety hazards
- Lowering the reliability of plant operations
- In lost energy
- Increasing emissions
- Creating safety hazards
- Lowering the reliability of plant operations
Fixing pipe leaks with Ansen product is an easy and low cost way of decreasing operational cost and increasing energy efficiency.
This could be the most important management item of all.
This could be the most important management item of all.

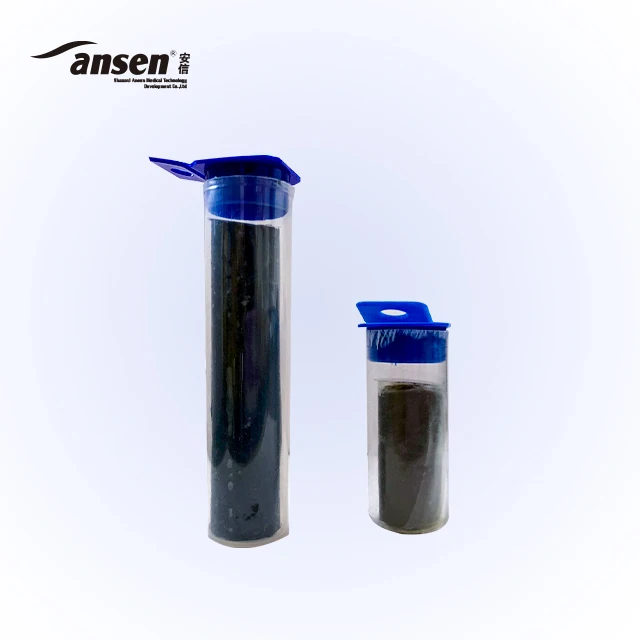

Optional matching-Epoxy Putty
DESCRIPTION
Epoxy putty is a hand kneadable epoxy putty as a two-part concentric stick of contrasting colors,when mixed it sets to a hard dark grey material which can be drilled,tapped,machined or filed as required.
Fast Emergency Pipe Repairs Wrap Plumbing Solutions Pinhole Leak Repair Water-activated Fiberglass Wrap
Epoxy putty is a non-rusting steel epoxy putty used to provide fast permanent repairs to a wide range of materials.
Epoxy putty make repairs that are impervious to water,oils,chemicals,solvents,acids
TECHNICAL DATA
√ Withstand temperature:-55°C to +250°C
√ Compressive strength: 122 MN/㎡
√ Hardness : 90 Shore D
√ Compressive strength: 122 MN/㎡
√ Hardness : 90 Shore D
√ Working/usable life at 20°C : 3 min
√ Initial set: 5-7 min
√ Full set: 1 hour
√ Initial set: 5-7 min
√ Full set: 1 hour
Directions for use

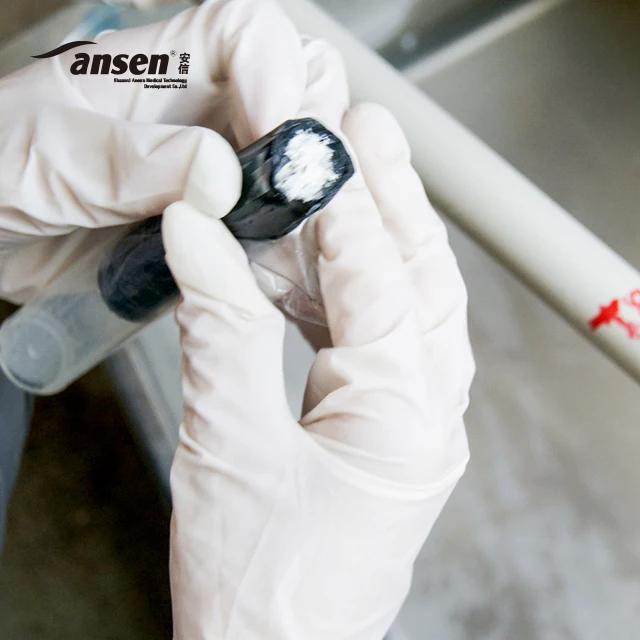

Cut off the required amount of the epoxy putty.
To mix,knead the putty with the fingers at least 2 minutes,until it is a uniform dark grey color.
Push the epoxy putty on to the prepaired surface.
After 5-10 minutes,epoxy putty will harden and start to form a tenacious bond-fully cured in one hour.
Package-can be customized
