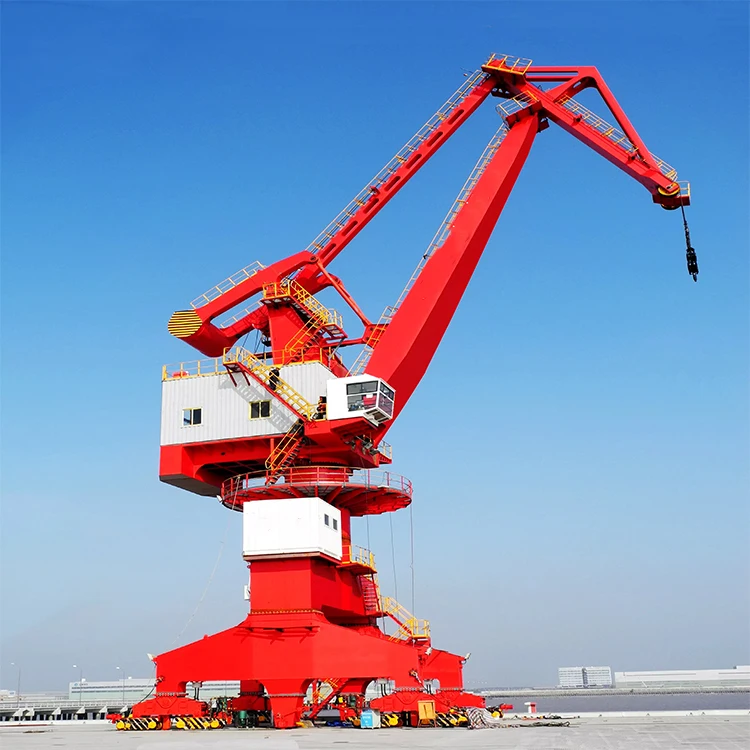

Портовая машина 25ton портальный поворотный кран
- Категории: >>>
- Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Full automatic tracking for spreader slewing
Slewing angle of the crane and position of the slewing motor is sent to the spreader by real time control and intelligent
compensation algorithm. The spreader will move in the same angle speed in opposite to counteract the angle of crane slewing.
Grab track recording
Data of the grab in one or more cycle (wire rope lowering distance, slewing angle, luffing angle, wire rope lowering distance, accelerating and decreasing time) are optimized based on the recorded data for the grab to repeat the movement automatically.
Slewing angle of the crane and position of the slewing motor is sent to the spreader by real time control and intelligent
compensation algorithm. The spreader will move in the same angle speed in opposite to counteract the angle of crane slewing.
Grab track recording
Data of the grab in one or more cycle (wire rope lowering distance, slewing angle, luffing angle, wire rope lowering distance, accelerating and decreasing time) are optimized based on the recorded data for the grab to repeat the movement automatically.
Product Paramenters
Item | Parameter |
Rated Hoisting Capacity | 25/40T |
Radius | 9.5-35m |
Wheel Base | 10.5m |
Rail Span | 10.5m |
Slewing Diameter | ≤8.5m |
Hoisting Height Under Hook | 30m |
Wheel Load | 300KN |
Hoisting Speed | 35m/min |
Gantry Speed | 26m/min |
Slewing Speed | 1.2m/min |
Luffing Speed | 50m/min |
