Устройство для пайки печатных плат устройство горячим воздухом с 8 тепловыми
- Категории: Welding Equipment >>>
- Поставщик: Zhejiang,Huaqi,Zhengbang,Automation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Details
Products Description

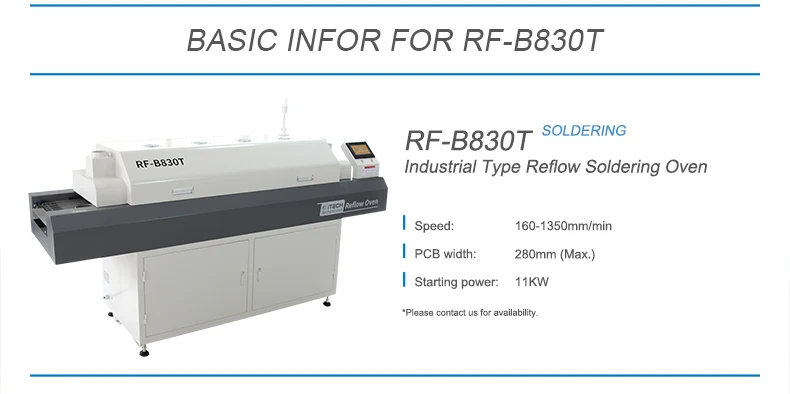

Industrial Type Reflow Oven machine

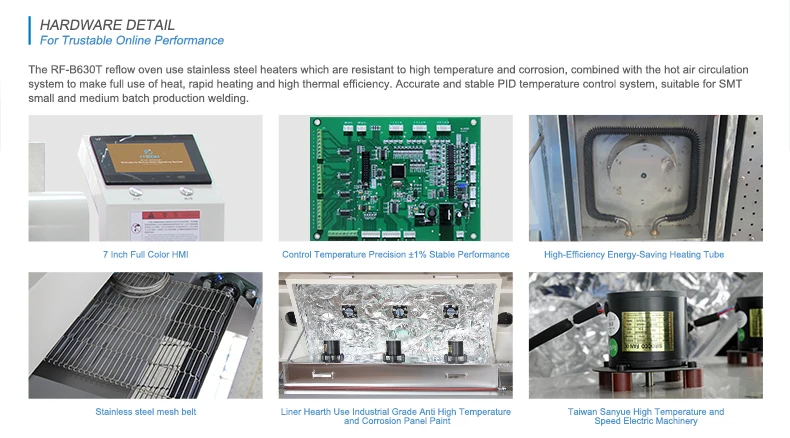

The Infrared benchtop reflow oven RF-B830T uses the PID temperature control system and rapid infrared heating technology controlling, so the temperature is being kept very accurate and evenly distributed. The whole soldering process can be completed automatically and it is very easy to use. It is suitable for the board has chips and output is larger or the welding quality requirements are better.Model | RF-B830T | ||||||
Heat zone numbers | 8 zones (up 4, down 4) | ||||||
Heat method | Hot wind | ||||||
Cooling zone numbers | Two natural air cooling | ||||||
Length of heating zone | 1400mm | ||||||
Width of net belt | 300mm | ||||||
PCB size | 280mm | ||||||
Height of net belt | 900±20mm | ||||||
Transport speed of net belt | 160-1350mm/min (Analog Quantity adjusting) | ||||||
Transport direction of net belt | Left -> Right (Right -> Left) | ||||||
Starting power | 11kw | ||||||
Working power | 3.5kw | ||||||
Input supply power | Three-phase five-wire 380V±10% 50Hz | ||||||
Heating up time | About 20 mins | ||||||
Time of passing through the machine | 3.5-5.5 mins | ||||||
Range of temperature control | Indoor temperature --- 400 degrees | ||||||
Method of temperature control | PID close cycle control | ||||||
Net weight | 250kg | ||||||
Outline size | 2440*680*1200 mm | ||||||
FAQ
Q: How many nozzles do you supply? Do you sell nozzles and spares?
A: If the machine has two nozzle-heads, we supply 4 nozzles. If has four nozzle-heads, we supply eight nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.
Q: What's the way of shipping?
A: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.
Q: How is the training?
A: After buying our machines, your engineers can go to our company or our engineers go to your factory if require, and we will train them how to use these machines.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Does you machines have quality certificate?
A: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have own patent.
Q: How about the warranty?
A: We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.All the spare parts will be provided free of charge for you within the warranty period.
A: If the machine has two nozzle-heads, we supply 4 nozzles. If has four nozzle-heads, we supply eight nozzles. Yes, we do sell nozzles and spares. If you need any spars, just let us know.
Q: What's the way of shipping?
A: These are all heavy machines; we suggest you use cargo ship. But components for mending the machines, air transportation would be fine.
Q: How is the training?
A: After buying our machines, your engineers can go to our company or our engineers go to your factory if require, and we will train them how to use these machines.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Does you machines have quality certificate?
A: All of our machines have passed CE certificate, ISO14001(BCC), ISO9001(IQNET) and have own patent.
Q: How about the warranty?
A: We support one year warranty( The nozzle with a warranty of 1 months; belt with a warranty of 3 months ). We will regularly update the software for customers. If there is any doubt in the process of operating the machine, pls feel free contact us. We will help you in time.All the spare parts will be provided free of charge for you within the warranty period.
Recommend Products
About Us

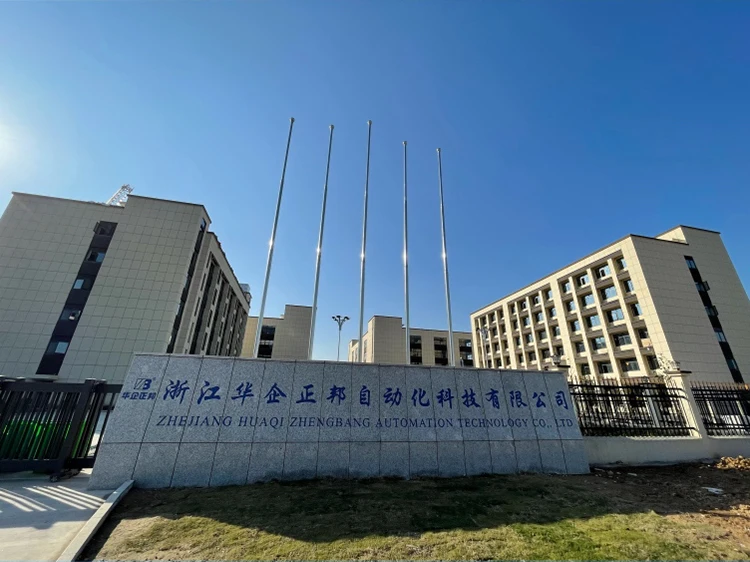

Wenzhou HuaQi ZHENGBANG Electronic Equipment Co., Ltd
