Product Description
Properties
Item | NKS-###-PAD-TC | NKS-###-PAD-MTC | NKS-###-PAD-HTC | Test Method | |||
Reinforced Carrier | N/A | N/A | N/A | --- | |||
Pad Type | Silicone Polymer | Silicone Polymer | Silicone Polymer | --- | |||
Thickness （mm） | 0.25~12.00 | 0.25~5.0 | 0.25~3.0 | ASTM D 374 | |||
Color | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | Grey/Pink/Blue/Black | VISUAL | |||
Density(g/cc) | 1.8~2.8 | 3.0 | 3.2~3.5 | ASTM D792 | |||
Hardness(Shore C) | 30±5 | 25±5 | 25±5 | ASTM D2240 | |||
Thermal Conductivity(W/m-k) | 1.0~2.5 | 2.0~3.0 | 3.0~6.0 | ASTM D2240 | |||
Voltage Resistance(KV/mm) | ＞4.0 | ＞4.0 | ＞4.0 | ASTM D149 | |||
Temperature Resistance （℃） | -40~+220 | -40~+220 | -40~+220 | ASTM D5470 | |||
Volume Resistance(Ω .cm) | 1.0*10 11 | 3.1*10 11 | 3.1*10 11 | ASTM D257 | |||
Flame Rating | V-0 | V-0 | V-0 | UL-94 | |||
Standard Size （mm） | 200*400(Customized Available) | ||||||

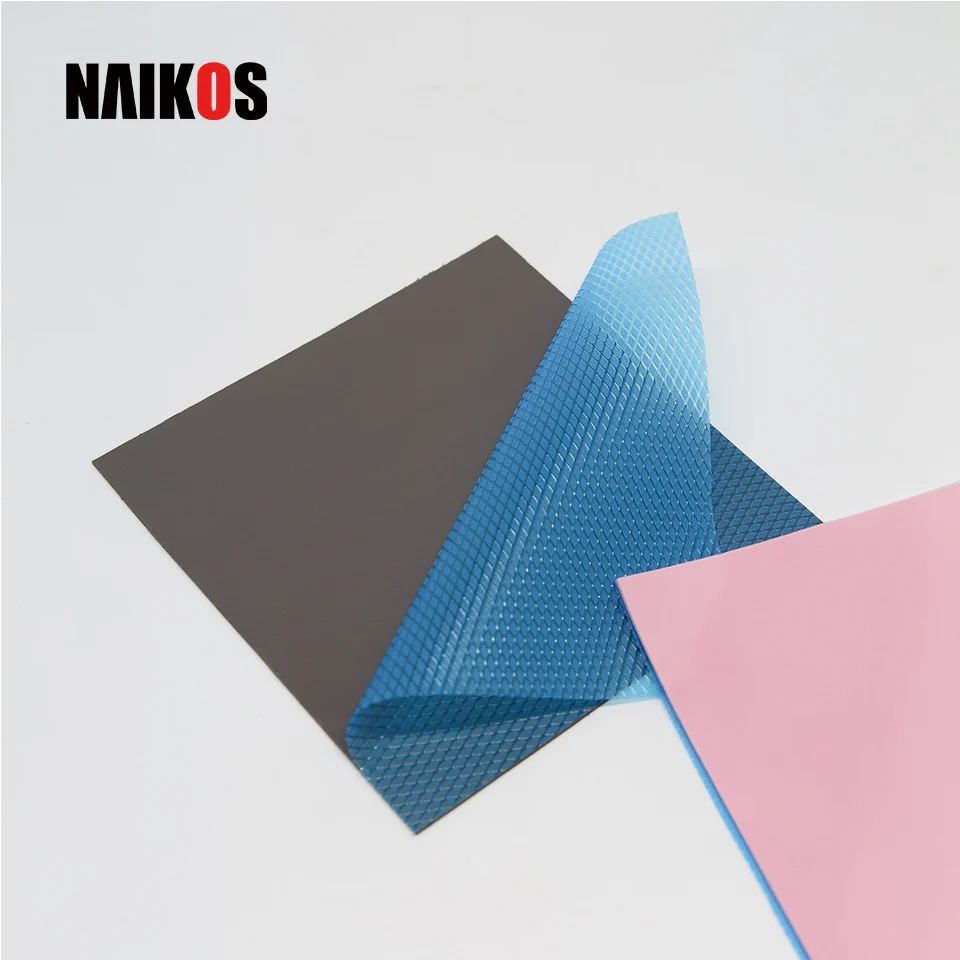

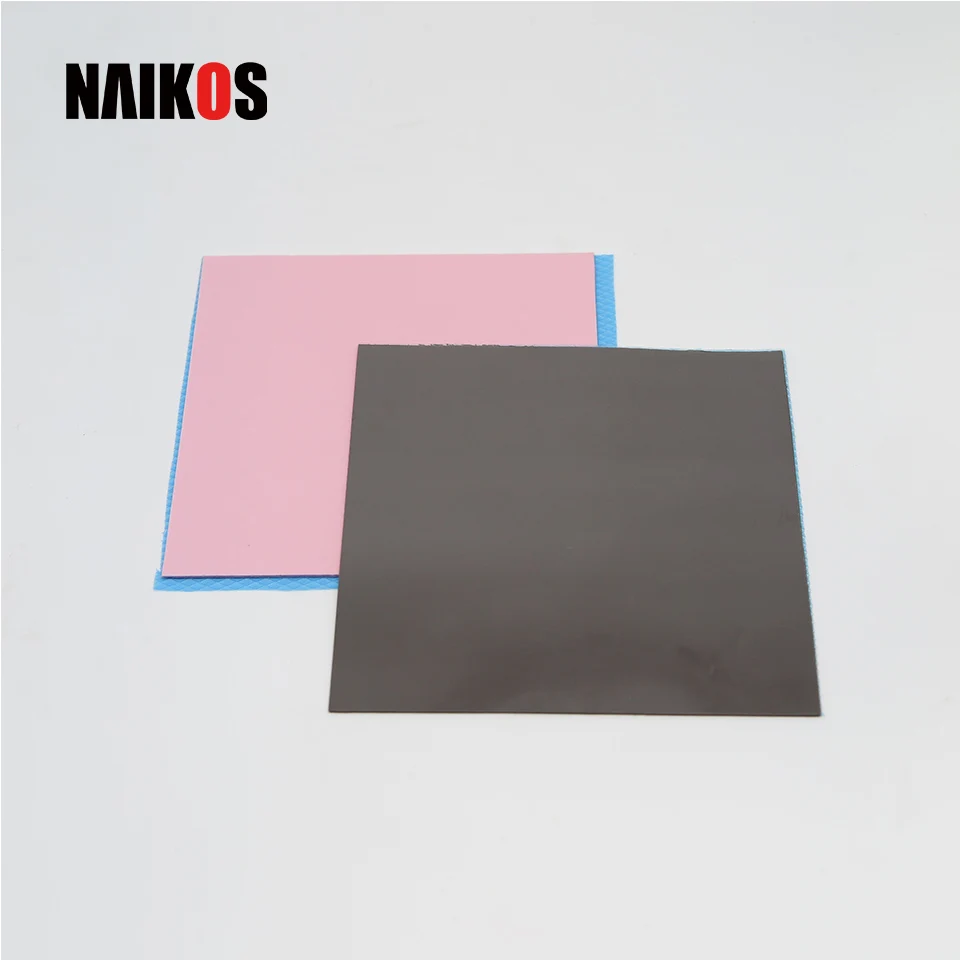

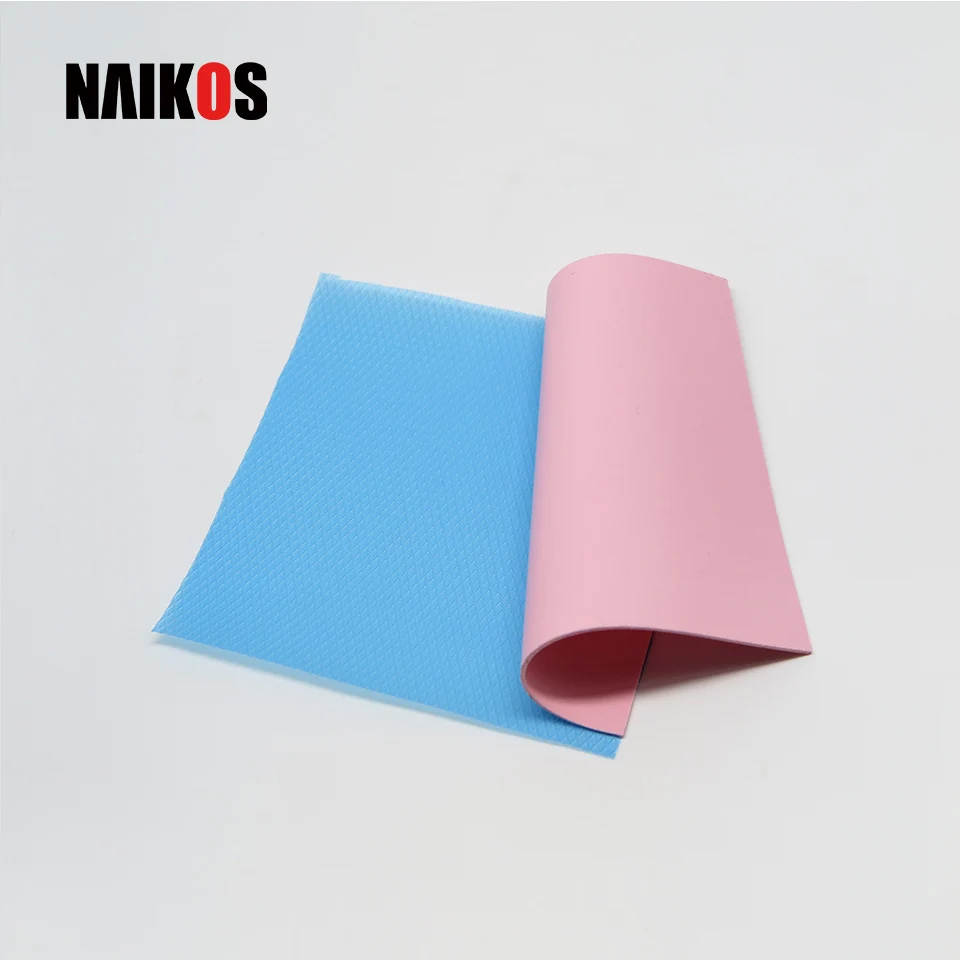

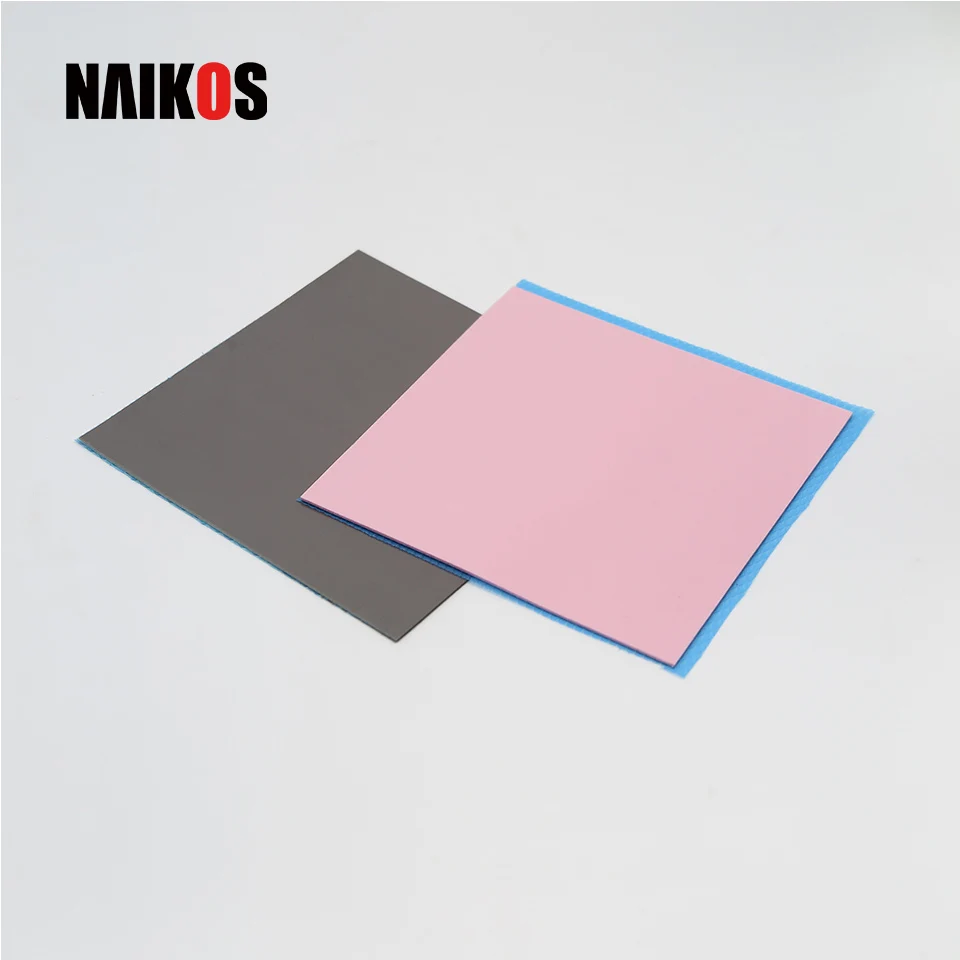

TC Soft Thermal Conductive Silicon Pad w/o Reinforcement
NKS Soft Thermal Conductive Silicon Pad is a kind of thermal interface with high performance. It is soft, self-sticky and elastic.

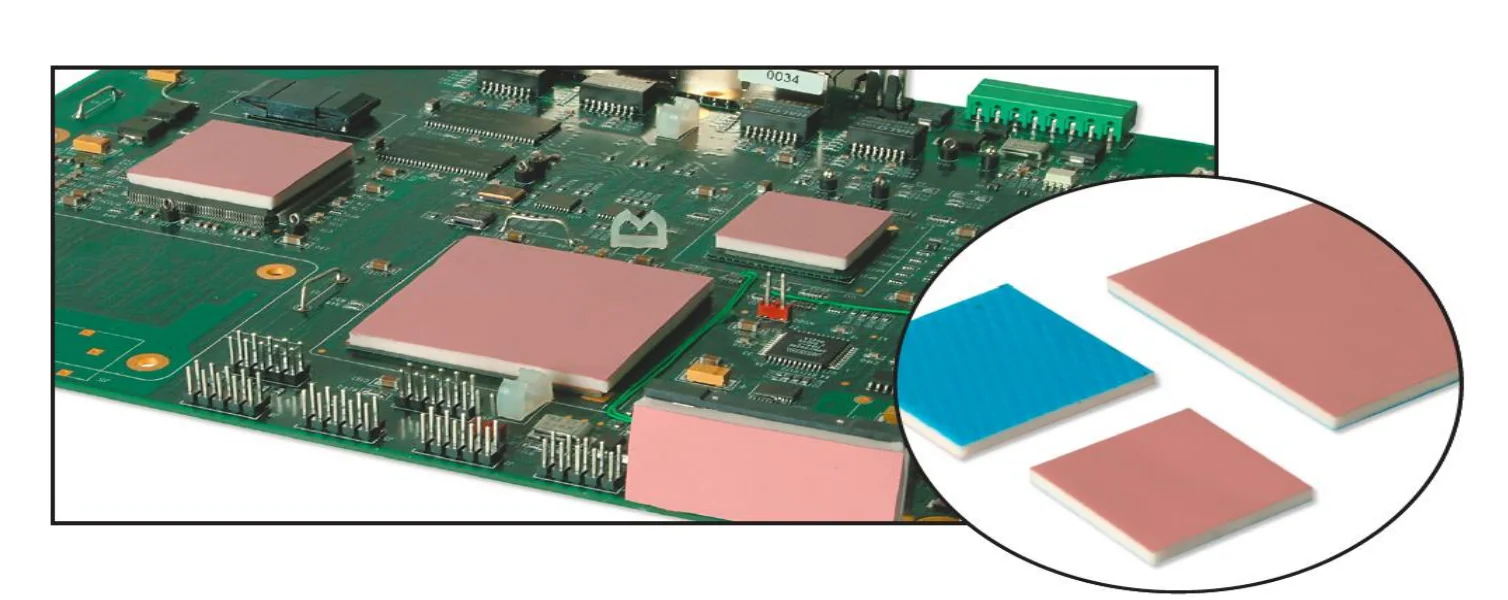

It can fill the gap between heat-generating components and heat sink, metal mechanism and shell or other cooling devices.
It can fill the gap between heat-generating components and heat sink, metal mechanism and shell or other cooling devices.
The heat can be transferred out speedily so as to improve the electronic components' working efficiency and prolong the life-span of equipments.
Key Features
★ Excellent thermal conductivity and electrical insulation.
★ Soft, self-sticky and elastic. Can be used as buffer absorber.
★ Multiple thicknesses, hardness, and thermal conductivities.
★ Meet the environmental requirements of ROHS and UL.
★ Multiple thicknesses, hardness, and thermal conductivities.
★ Meet the environmental requirements of ROHS and UL.
Application Ideas
★ PDP, LCD, Laptop, PC, Communication hardware equipments, Routers, etc.
★ IC, CPU, COP, Capacitance, MOS, Power Supply Module, Server, Player, Mobile Phone, etc.
