Pipe Hoisting Crawler Pipelayer SP45Y for Pipelaying







20190725 Infront SHANTUI bulldozer SD22 220HP with ripper


20190725 Infront SHANTUI bulldozer SD22 220HP with ripper



Product Description


Construction Machinery Shantui SD32 SD22 SD16 Crawler Bulldozer on Sale

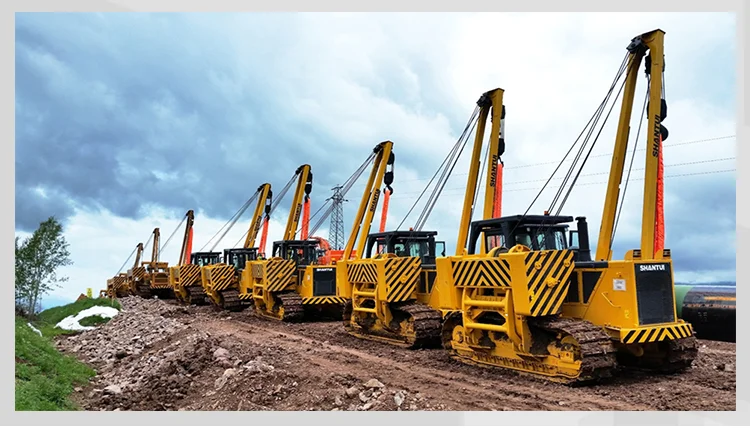

The pipelayer is an important construction equipment in the construction of oil and natural gas pipelines. It is mainly used for the transportation of pipelines such as oil and gas, that is, pipeline transportation and piping operations, pipeline counterpart operations, and pipeline trenching operations. The pipelayer was developed and designed on the basis of the bulldozer in the 1930s. The vast majority of pipelayers produced in the world are based on bulldozer chassis.

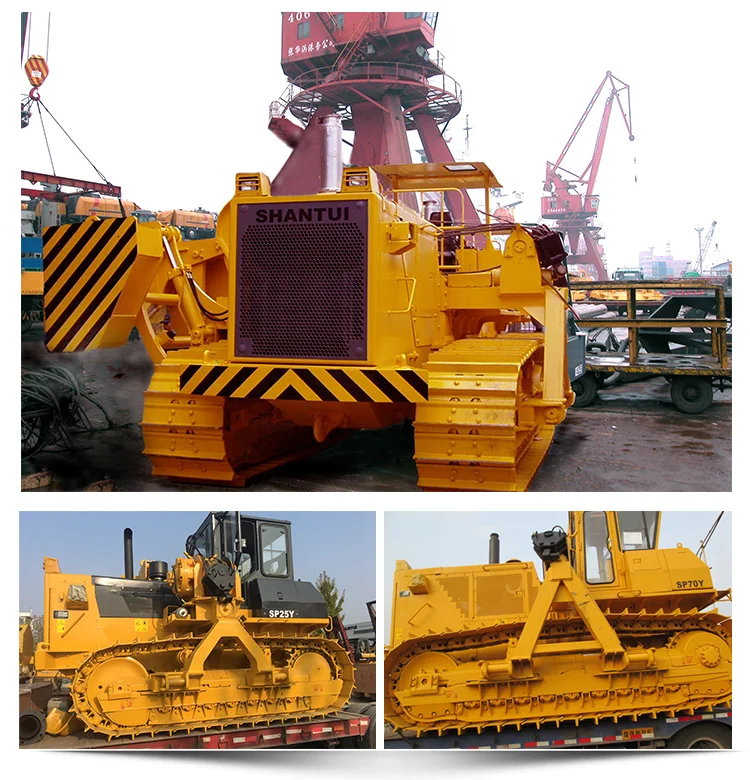

More Types




Delivering power, lift and value, the SP25Y features load feedback, overload prevention, anti-rollover protection and precise controls.


-----------------------------------------------------------------------------------------------


Engine model:  SC11CB184G2B1/WD10G178E25


Rated power: 120 kW


Operating weight: 22.0 t


 ----------------------------------------------------------------------------------------------


Overall length: 4000 mm


Overall width: 3280 mm


Overall height: 2954 mm

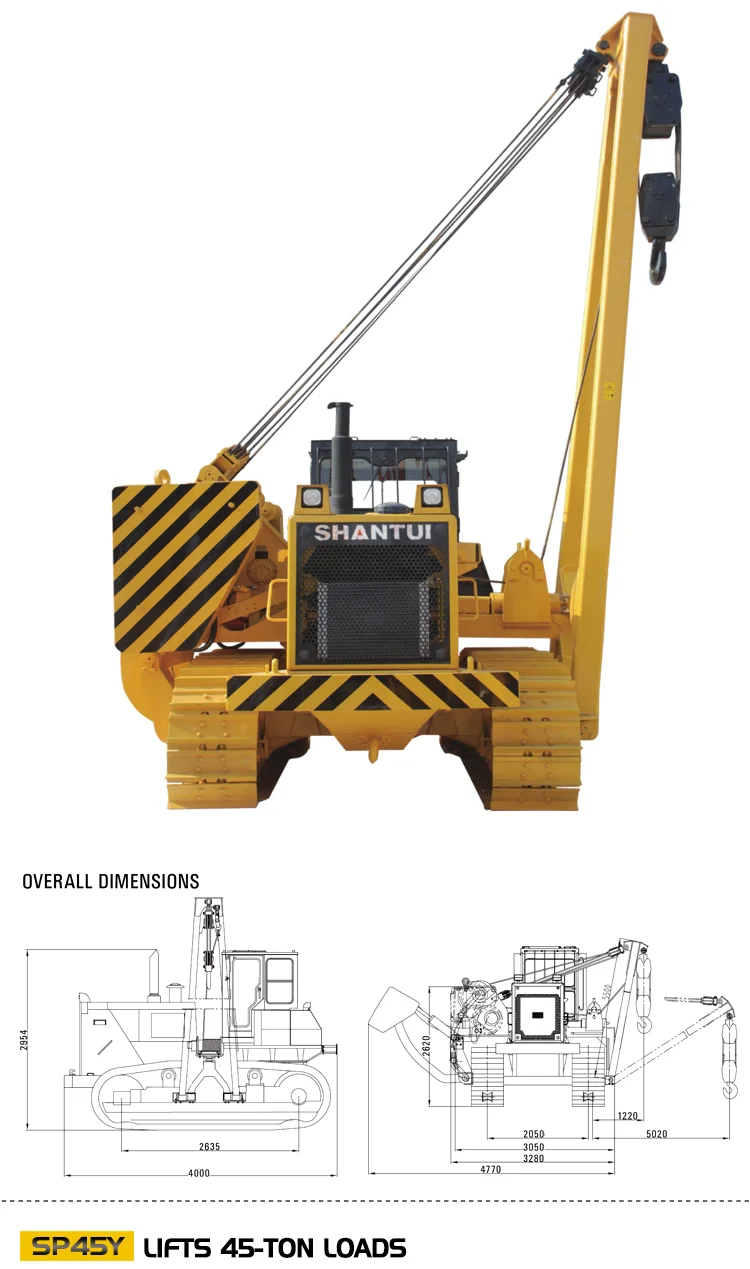

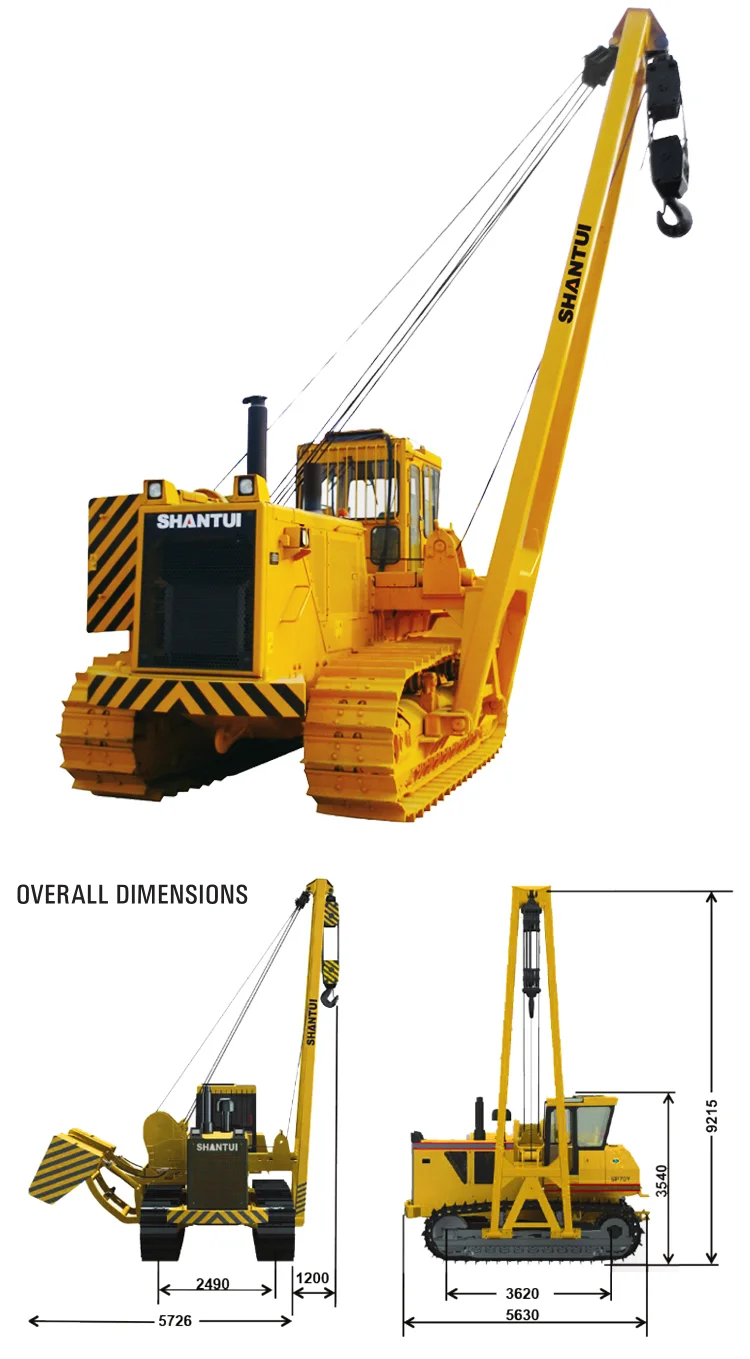

Shantui SP45Y pipe layer is a product released by Shantui on the basis of integrating all advanced technologies of pipe layer products both home and abroad and sufficiently researching the market.


 ----------------------------------------------------------------------------------------------


Engine model:  NT855-C280S10
Operating weight of whole machine:  34000kg


 ----------------------------------------------------------------------------------------------


Overall length: 4750 mm


Overall width: 3690 mm


Overall height: 2700 mm







 ----------------------------------------------------------------------------------------------

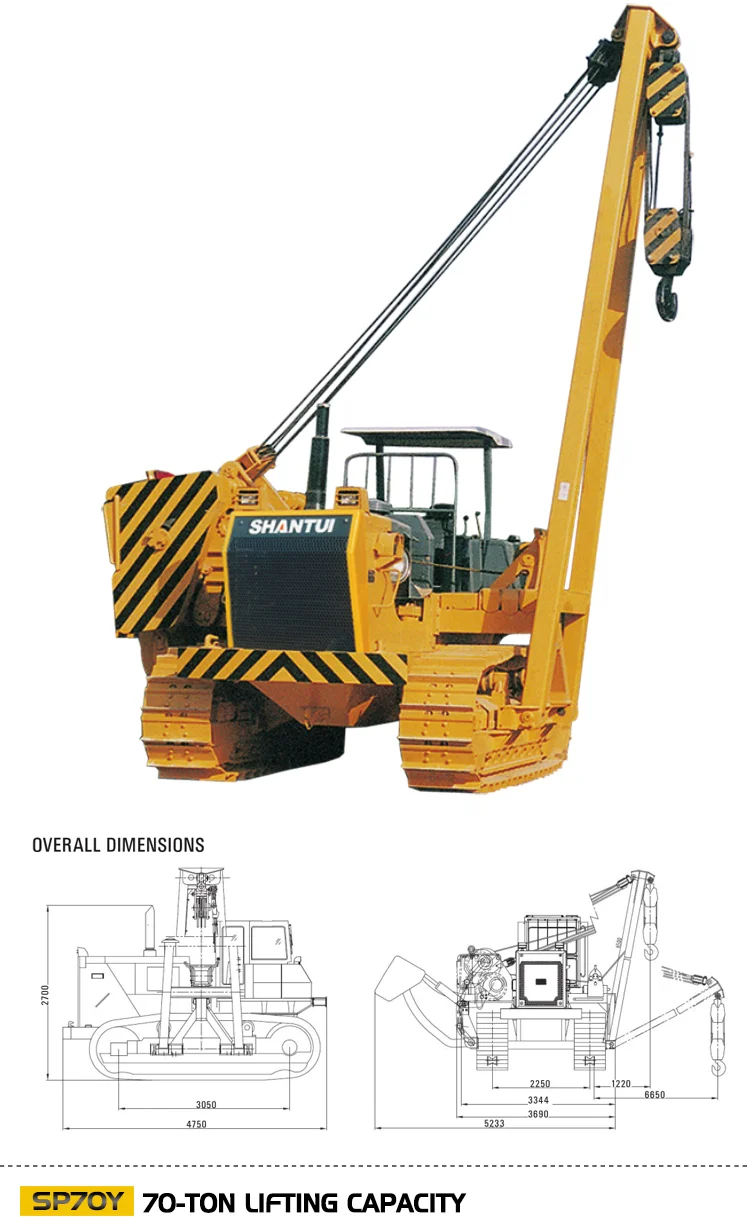

Engine model: NTA855-C360S10
Operating weight of whole machine: 47.5t


 ----------------------------------------------------------------------------------------------


Overall length: 5560 mm


Overall width: 3940 mm


Overall height: 3395 mm







 ----------------------------------------------------------------------------------------------

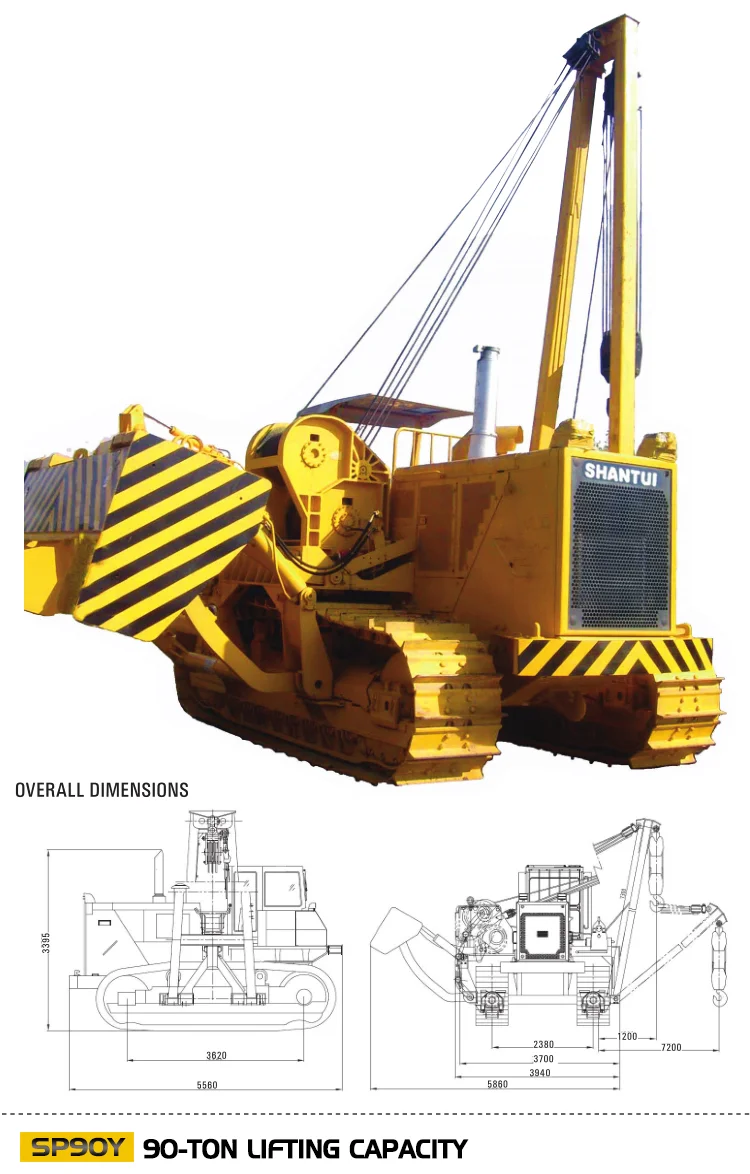

Engine model:  NTA855-C360S10
Operating weight of whole machine:  55000kg
Maximum lifting capacity:  90t

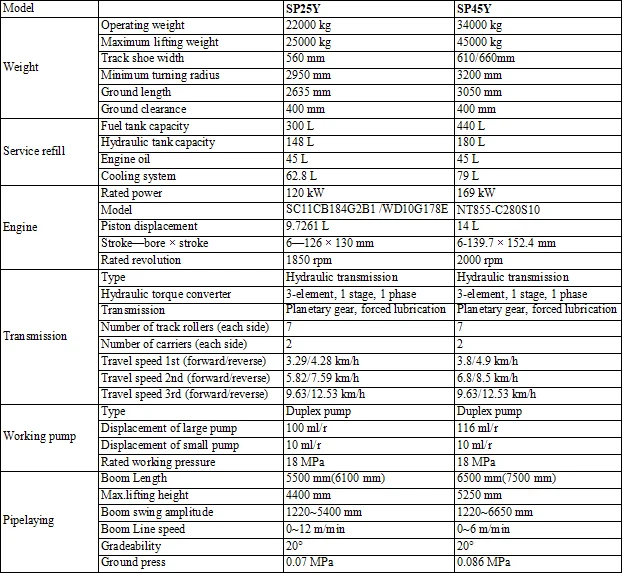

Performance Paramete














Technical Features










Packaging & Shipping













Contact Us


Shantui Infront Machinery Co., Ltd.


Miss. Leah Zhang





Skype:jkmachinery801    QQ:2748523788


Mobile/Whats up: +0086 183 6981 5899


WeChat: 86 183 6981 5899


Email:sales08@ chinaift.com





Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
