Cylinder head and block resurfacing machine-TSM850
The TSM850 has been designed as a brake lathe for the reconditioning of plane surfaces
Maximum 850mm length and 430mm height of workpiece, TSM850 can do job of inline 6 block and head.
The adjustable head and table speeds with frequency inverters, and equipped with CBN and PCD cutter, machine can reach good surfacing result.
Amazing cost make it best machine for small garages.
Model | TSM850 |
Table travel | 1115mm |
Max. workpiece lenght | 850mm |
Max. workpiece width | 330mm |
Max. workpiece height | 440mm |
Min. workpiece height | 160mm |
Table feed | 0÷600mm/min |
Milling wheel diameter | 330 mm (13") |
Cutting tool speed | 300÷1200g/min(rpm) |
Voltage(+/- 15%) | 230V , 400V |
Phases | 1 , 3 |
Min.protection degree | IP 44 |
Main motor power | 1.5kw |
Gear box motor power | 0.75kw |
Total power | 2.25kw |
Environment conditions: | 10÷30°C |
Net/gross Weight | 800/1000 kg |
Packing Dimensions length*width*height | 1610×1390×1620mm mm |

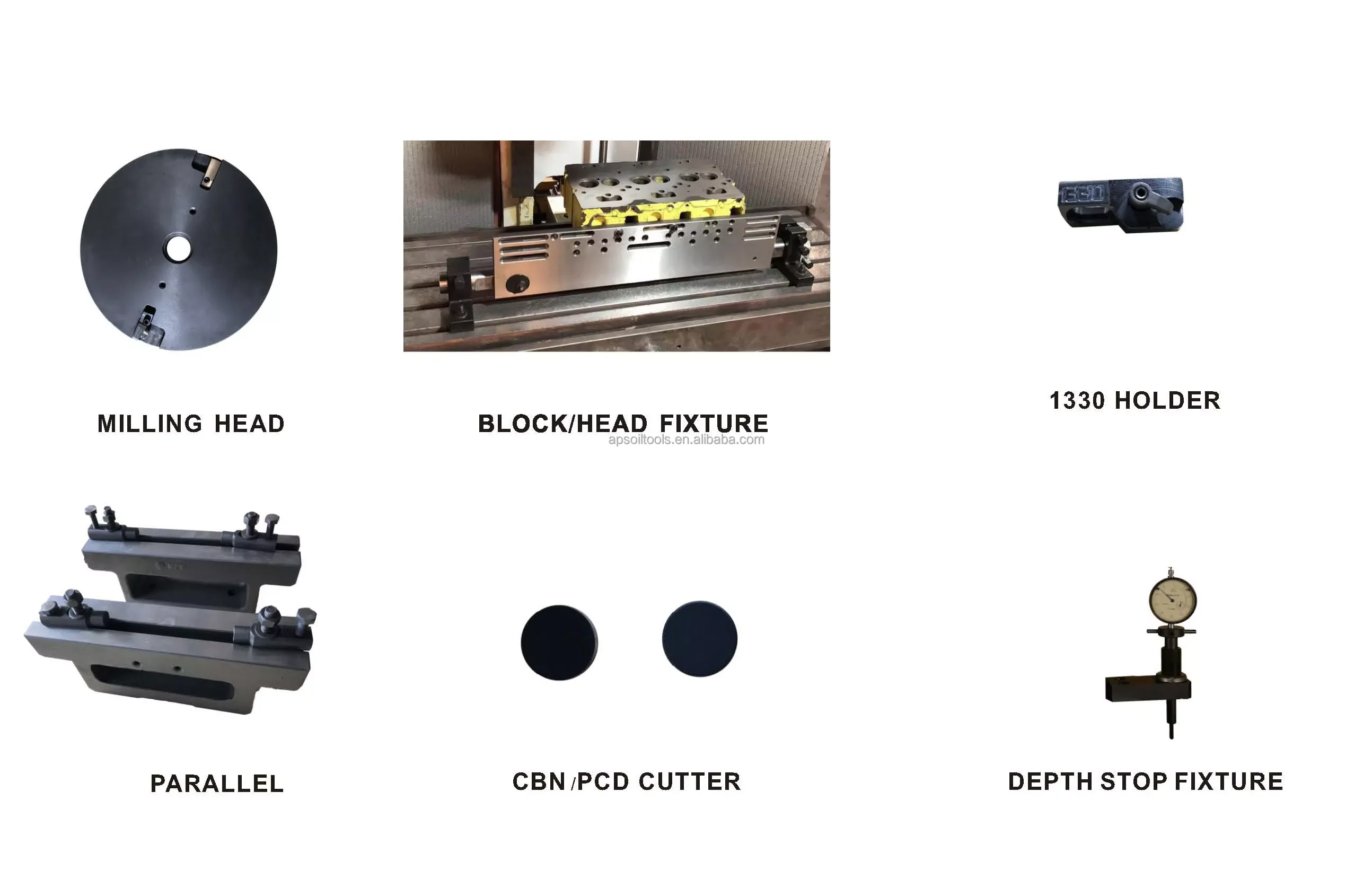

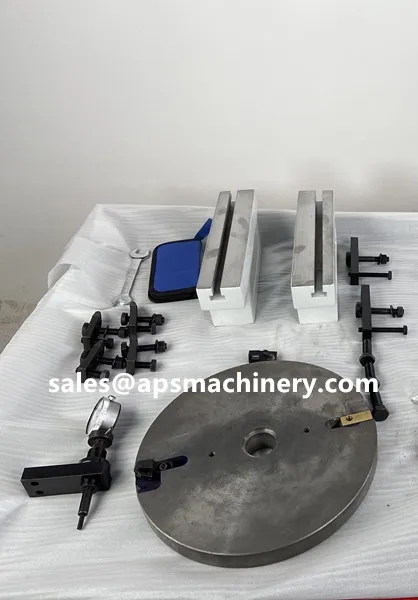

Accessory:

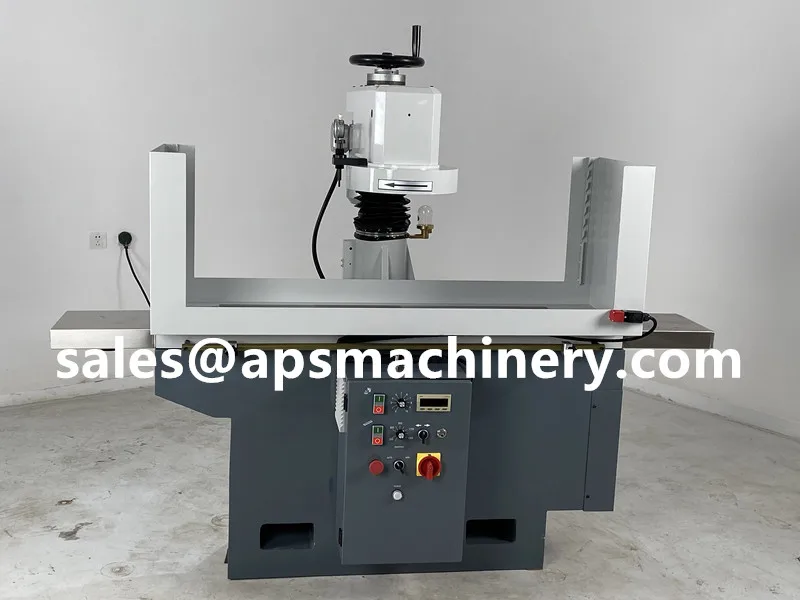

Real Photo for machines :
