Стальная конструкция сборные дома 40 футов мобильный раздвижной
- Категории: Prefab Houses >>>
- Поставщик: Woodenox(hangzhou),Integrated,Housing,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Details Images

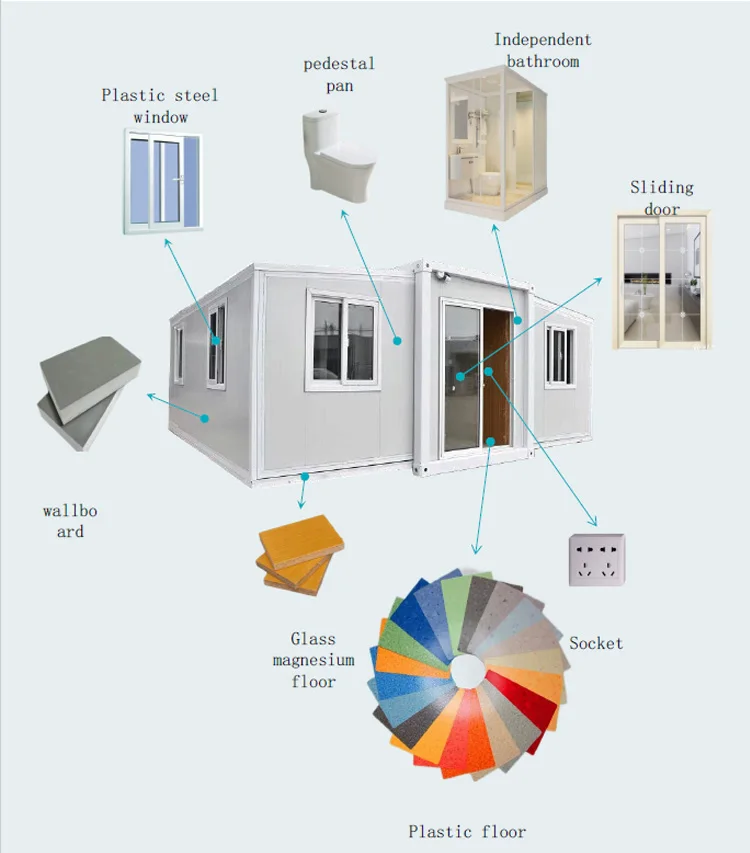

Specification

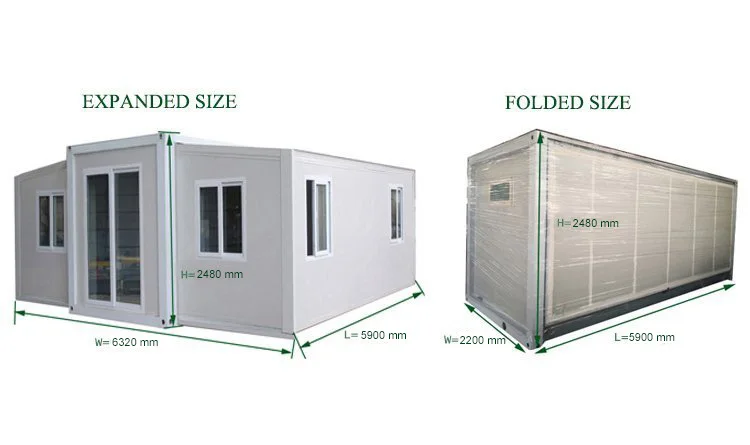

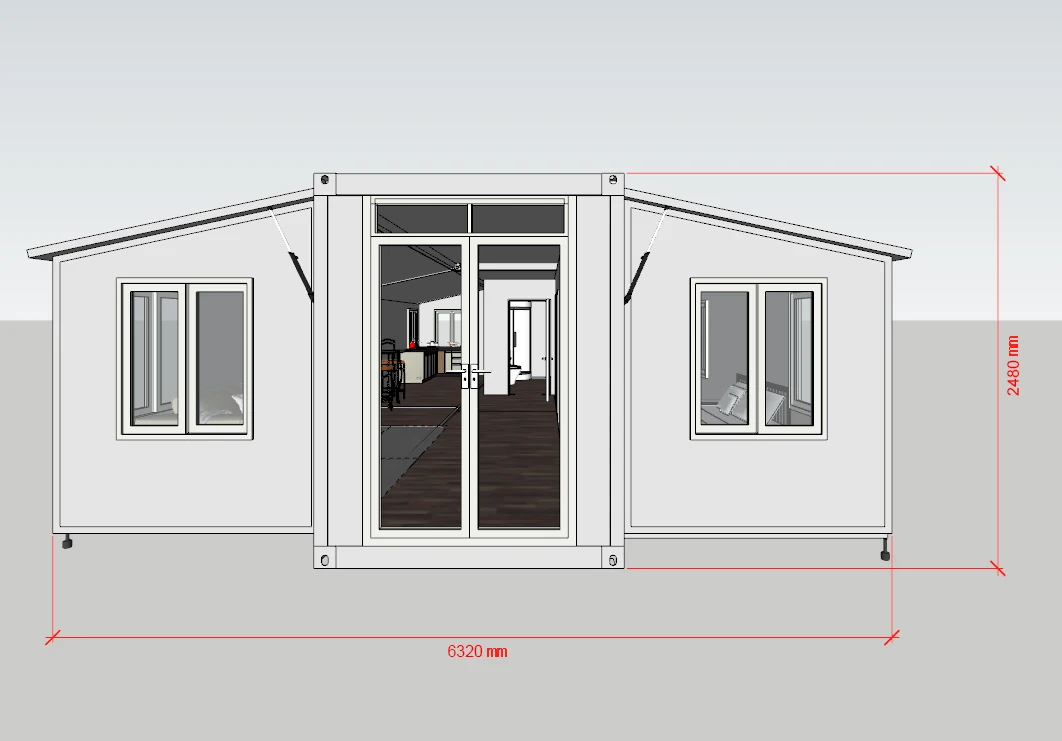

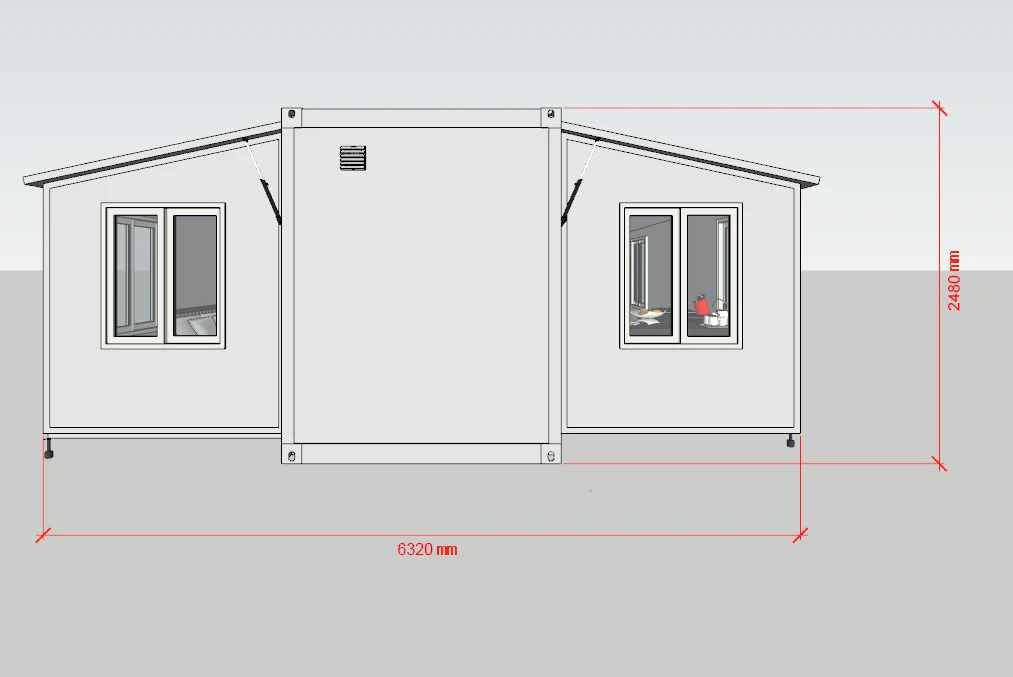

Basic feature | External Dimensions (mm) W * L * H | W 6320*L 5900*H 2480 | |
Internal Dimensions (mm) W * L * H | W 6160*L 5450*H 2240 | ||
Folding state (mm) W * L * H | W 2200*L 5900*H 2480 | ||
Total mass (kg) | 2000KG | ||
Frame construction | In the top beam | T3 0mm Q 235B | |
The bottom beam | T3.0mm Q 235B | ||
End side beam | T1.5mm Q 235B | ||
Central pillar | T3.0mm Q 235B | ||
Side wall frame | T1.5mm Q 235B | ||
Second frame | T1 .5mm Q 235B | ||
Hanging head | T4mm Q 235B | ||
Fold the combined page | 13mm, galvanized sheet | ||
Integral frame protection coating | Electrostatic spray plastic / straightforward plastic powder | ||
The top and bottom of the cabinet | 80*100 | ||
Side cabinet top bottom | 40 * 60 * 1.5 Thick square pipe | ||
Head of cask | External roof | Galvanized plate of t 0.5mm | |
Internal ceiling | Interior ceiling of t 831 | ||
Wallboard | Intermediate top insulation | Side top 50 EP S sandwich panel | |
Side wall, front and rear wall panels | T50m m EPS sandwich board | ||
Internal partition | T50m m EPS sandwich board | ||
Internal toilet | Around 1700 * 1500 (adjustment whole) | ||
Floor board | The middle floor | Fire proof glass magnesium floor 15mm | |
On both sides of the floor | 18MM, Bamboo and wood flooring | ||
Electrical system | Electrical wiring, installed in strict accordance with the moisture-proof specifications, all electricity All the device products shall conform to the CE certification.According to the circuit engineering specification Connection circuit, indoor: LE D lamp, suction ceiling lamp, International III Hole socket air conditioning socket, 63A leakage protector.voltage 110V ,50HZ | ||
Ordinary security door | Standard steel door / optional broken bridge aluminum double door opening | ||
Window | Standard plastic steel window / optional broken bridge aluminum curtain wall + plastic steel single glass window push and pull 4 (920 * 920) | ||
Toilet | Optional hand basin (ceramic), toilet (ceramic), shower shower | ||

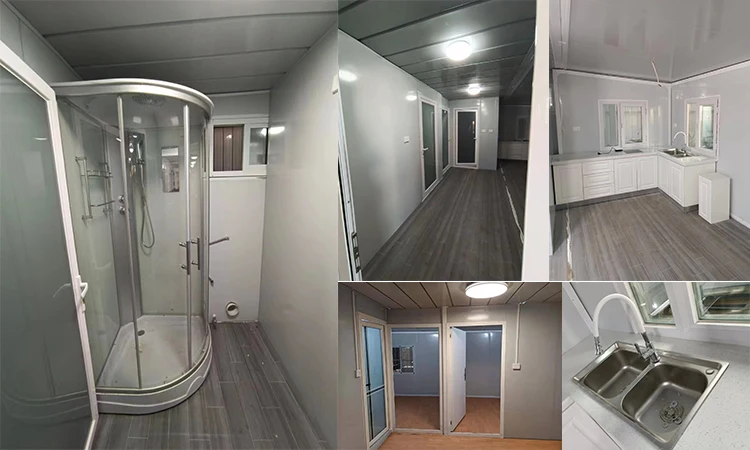

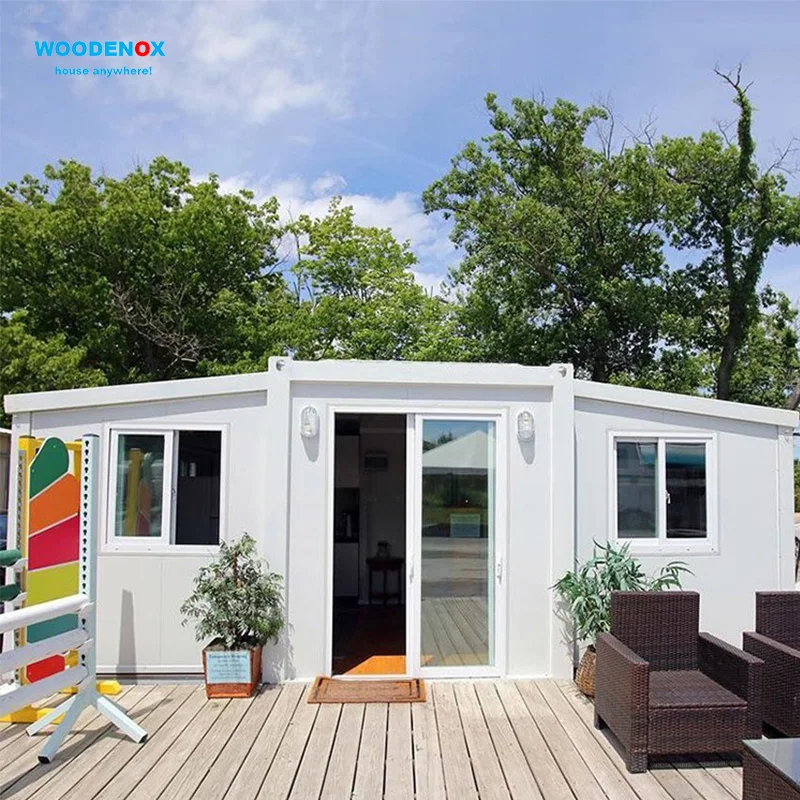

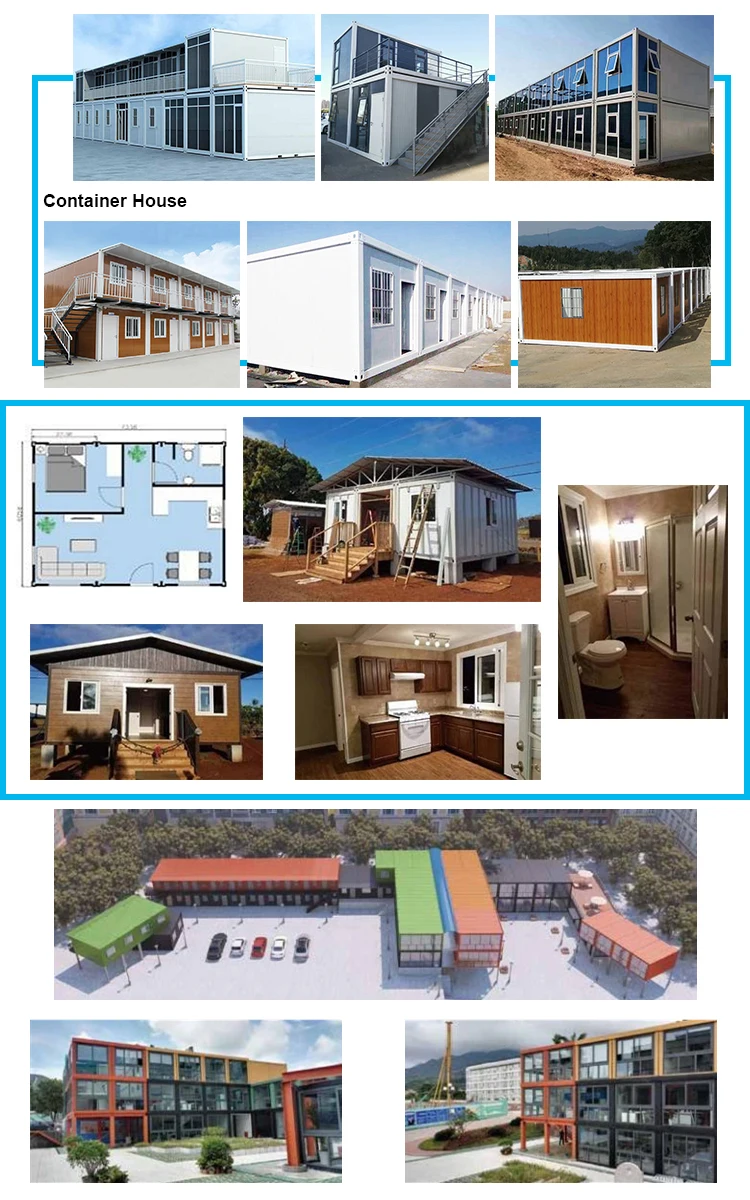

Case Show

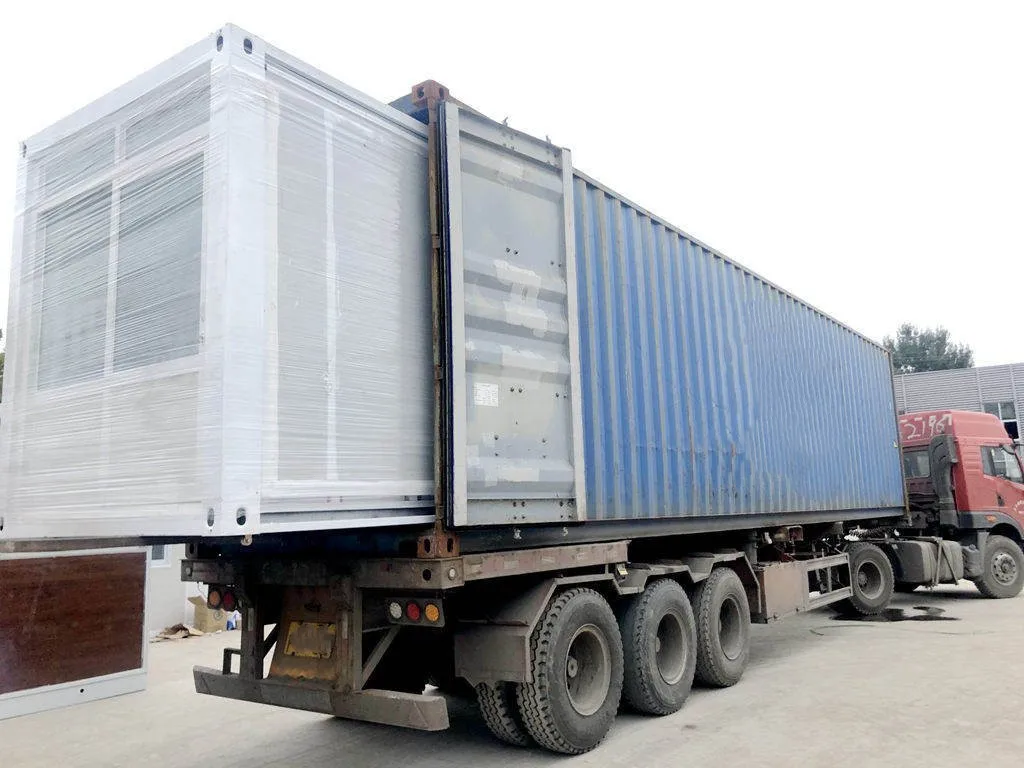

Product packaging
Packaging Details：
1.AII of steel columns,beams and plates are maked packaged.
2.All the parts will be filmed by different sides and fixed stablly in the container.
3. According to container size, standard export package.
1.AII of steel columns,beams and plates are maked packaged.
2.All the parts will be filmed by different sides and fixed stablly in the container.
3. According to container size, standard export package.
Company Profile
FAQ
1. Are you a factory or trading company?
Guangdong Cbox Co.Limited. is a factory located in Shunde District , Foshan, Guangdong Province, China.
2.What's your delivery time?
Normal order delivery time is 2-30 days after recevie deposit. Big order delivery time with confirm with order management dept.
3.What is your terms of payments?
30% deposit in advance, balance before shipment.
4.Is it difficult to build a prefab house?
Easy to install, installation video and guide book will be send to you demostrating the steps for installation.Or an engineer or installation team can be arranged on site.
5.Do you provide on-site installation service?
Big projects provide installation services, installation charge standard: 150 USD / Day, customer charge travel fee,
accommodation, translation fee, and ensure staff's health and safety.
6.How do you guarantee the quality of the products?
100% strict quality check before shipping and delivery.
7.How can I get the quotation of the project?
If you have a design, we can offer a quotation accordingly.
If you don't have a design, we can provide a full design package service and offer a quotation based on the confirmed design accordingly.
8.What is your supply capacity?
We supply over 160000 sets of standard containers monthly.
9.Can you help to provide purchase and install the interior appliances?
We can help provide and purchase some appliances if needed such as air conditioning, refrigerator, dishwasher, ocen etc. which will be packed inside rhe container shipped together with the container house.
10.How to get a fast quotation?
With the following information; container or structure type, size and area, materials and finishes of roof, ceiling, walls and
floors, other specific requests, we will then offer a quotation accordingly.For fixed or standard products; for example portable toilets, expandable containers, domes etc. We will be able to provide a quotation within 10 minutes upon receiving your inquiries.
Guangdong Cbox Co.Limited. is a factory located in Shunde District , Foshan, Guangdong Province, China.
2.What's your delivery time?
Normal order delivery time is 2-30 days after recevie deposit. Big order delivery time with confirm with order management dept.
3.What is your terms of payments?
30% deposit in advance, balance before shipment.
4.Is it difficult to build a prefab house?
Easy to install, installation video and guide book will be send to you demostrating the steps for installation.Or an engineer or installation team can be arranged on site.
5.Do you provide on-site installation service?
Big projects provide installation services, installation charge standard: 150 USD / Day, customer charge travel fee,
accommodation, translation fee, and ensure staff's health and safety.
6.How do you guarantee the quality of the products?
100% strict quality check before shipping and delivery.
7.How can I get the quotation of the project?
If you have a design, we can offer a quotation accordingly.
If you don't have a design, we can provide a full design package service and offer a quotation based on the confirmed design accordingly.
8.What is your supply capacity?
We supply over 160000 sets of standard containers monthly.
9.Can you help to provide purchase and install the interior appliances?
We can help provide and purchase some appliances if needed such as air conditioning, refrigerator, dishwasher, ocen etc. which will be packed inside rhe container shipped together with the container house.
10.How to get a fast quotation?
With the following information; container or structure type, size and area, materials and finishes of roof, ceiling, walls and
floors, other specific requests, we will then offer a quotation accordingly.For fixed or standard products; for example portable toilets, expandable containers, domes etc. We will be able to provide a quotation within 10 minutes upon receiving your inquiries.
