Product Introduction：
This product is a portable alcohol tester that uses semiconductor-type sensors with high flexibility and accuracy. This product is equipped with:
1. Instructions2.USB charging cable
*Because the surface of the sensor will be oxidized when the tester is not used for a long time, so when the tester is taken out of the package for the first time or the tester has not been used for a long time, the user needs to preheat the product as many times as possible before performing the alcohol test.
English Products Description
Japanese Products Description
Guideline
BAC: Blood Alcohol Concentration
BrAC: Breath Alcohol Concentration
Drinking and driving: the blood alcohol content in the human body is greater than or equal to 0.15mg/l and less than 0.25mg/l.
Drunk driving: The blood alcohol content in the human body is greater than or equal to 0.25mg/l.
BrAC: Breath Alcohol Concentration
Drinking and driving: the blood alcohol content in the human body is greater than or equal to 0.15mg/l and less than 0.25mg/l.
Drunk driving: The blood alcohol content in the human body is greater than or equal to 0.25mg/l.
Instructions for use
1. Power on: Press and hold the power button for 1 second, after a beep sound, the LCD screen of the tester starts.
2. Preheating: The character "preheating" appears on the display, and the number in the upper left corner starts to count down from 10 to 00.
3. Air blowing detection: After the "preheating" is completed, it enters the "air blowing" state, the display shows blowing characters, and the numbers start to count down from 10 to 00. Blow at any time during the countdown, after the machine senses the gas, the buzzer will make a beep to stop blowing.
4. Display results: read the test results on the display. Press and hold the power button for 1s to switch the unit, that is, the unit flashes after the value, and press and hold again for 1s to exit.
The test results show that the device automatically shuts down after 10s. Power on again for the next test.
2. Preheating: The character "preheating" appears on the display, and the number in the upper left corner starts to count down from 10 to 00.
3. Air blowing detection: After the "preheating" is completed, it enters the "air blowing" state, the display shows blowing characters, and the numbers start to count down from 10 to 00. Blow at any time during the countdown, after the machine senses the gas, the buzzer will make a beep to stop blowing.
4. Display results: read the test results on the display. Press and hold the power button for 1s to switch the unit, that is, the unit flashes after the value, and press and hold again for 1s to exit.
The test results show that the device automatically shuts down after 10s. Power on again for the next test.
Description of test results

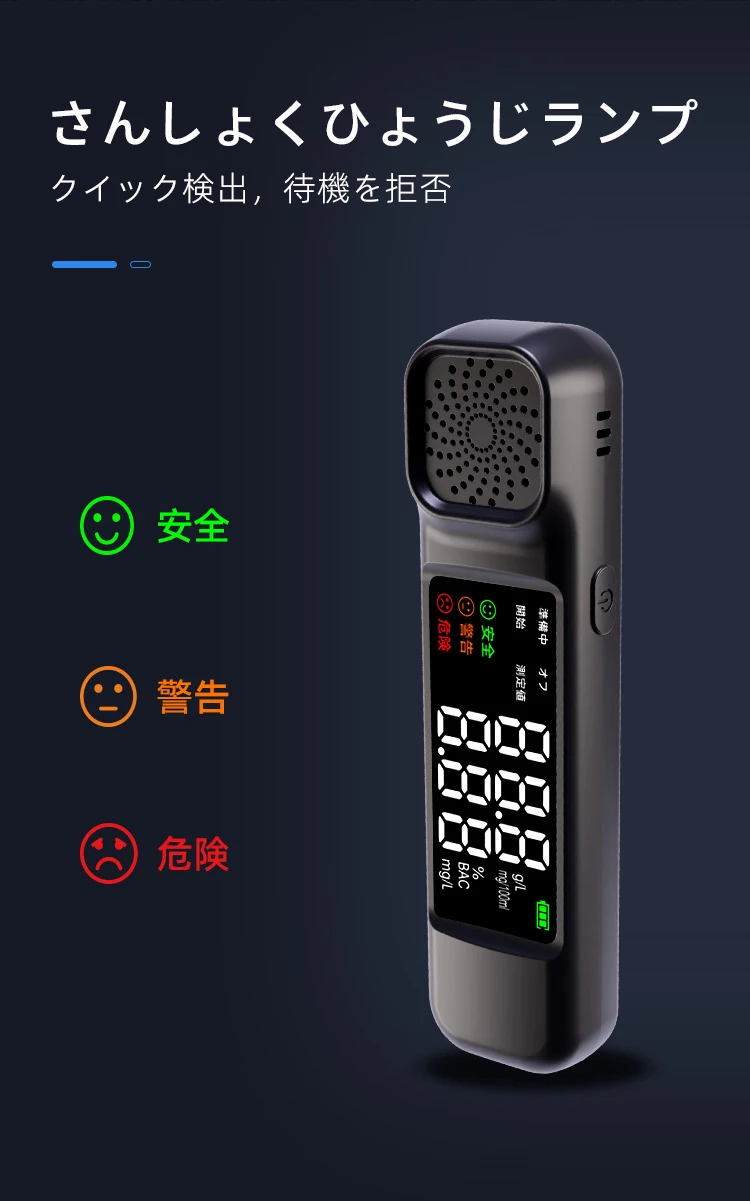

1. If the alcohol concentration result is 0mg/L, the warning light does not respond.
2. If the alcohol concentration is >0mg/L and <0.15mg/L, the "safe" character will appear on the display, and the green warning light will flash.
3. If the alcohol concentration is ≥0.15mg/L and <0.25mg/L, the character "Warning" will appear on the display, the yellow warning light will flash, and there will be a "beep" sound.
4. If the alcohol concentration result is ≥ 0.25mg/L, the character "Danger" appears on the display screen, the red warning light flashes, and there is a beep sound of "Di".
2. If the alcohol concentration is >0mg/L and <0.15mg/L, the "safe" character will appear on the display, and the green warning light will flash.
3. If the alcohol concentration is ≥0.15mg/L and <0.25mg/L, the character "Warning" will appear on the display, the yellow warning light will flash, and there will be a "beep" sound.
4. If the alcohol concentration result is ≥ 0.25mg/L, the character "Danger" appears on the display screen, the red warning light flashes, and there is a beep sound of "Di".

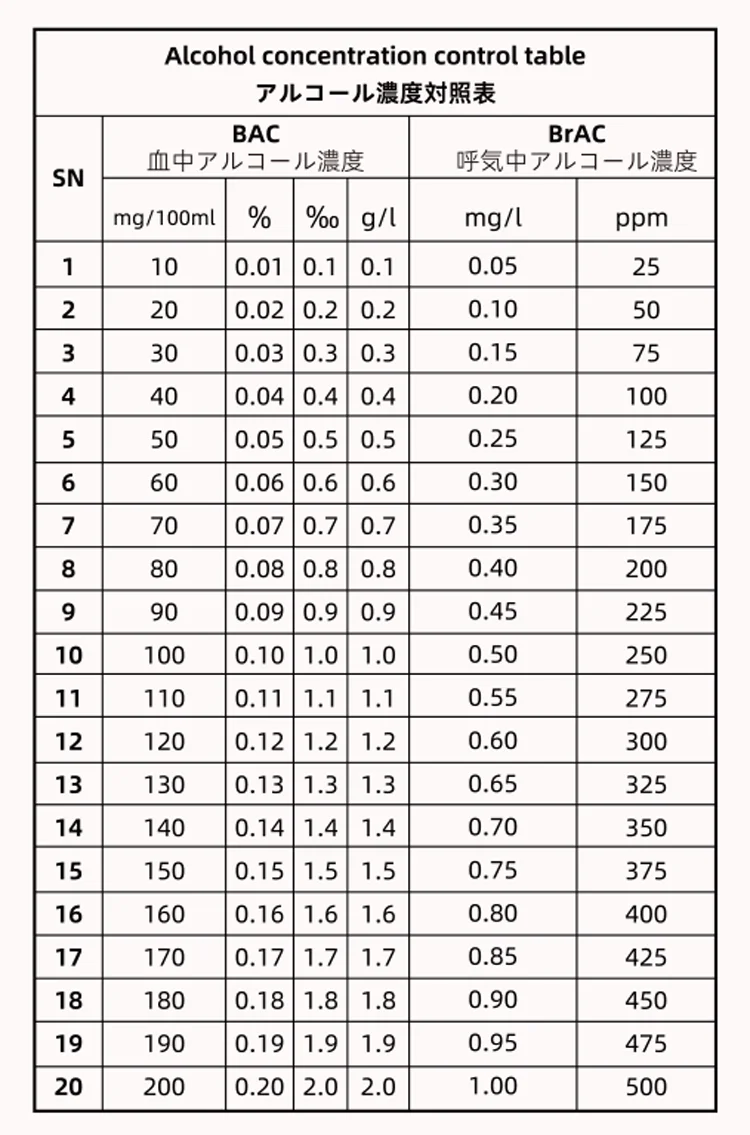

*0.0 %BAC means 0.0 g ( 0 mg ) alcohol per 100 ml of blood

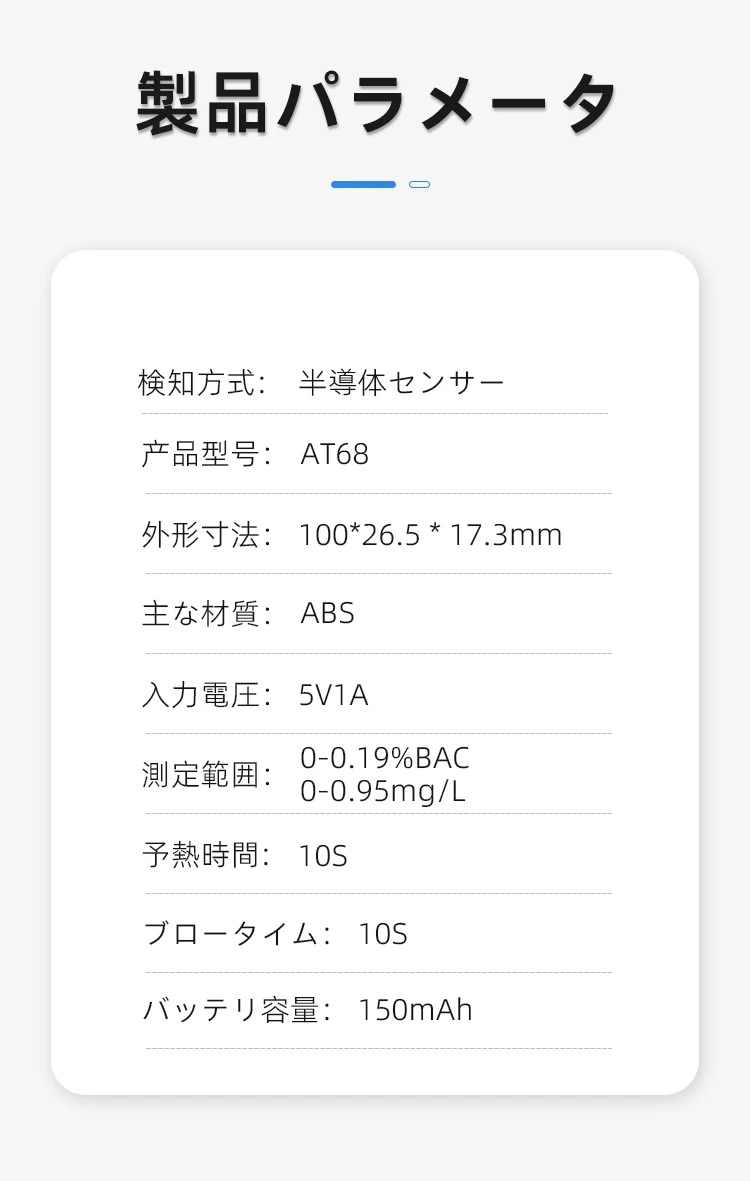

Product parameters
Model | AT68 | Test Range | 0.00-0.19%BAC(0-0.95mg/l) | ||||
Sensor Type | semiconductor sensor | Units of Measurement | mg/l（BrAC)， m/l(BAC)，%BAC，mg/100ml | ||||

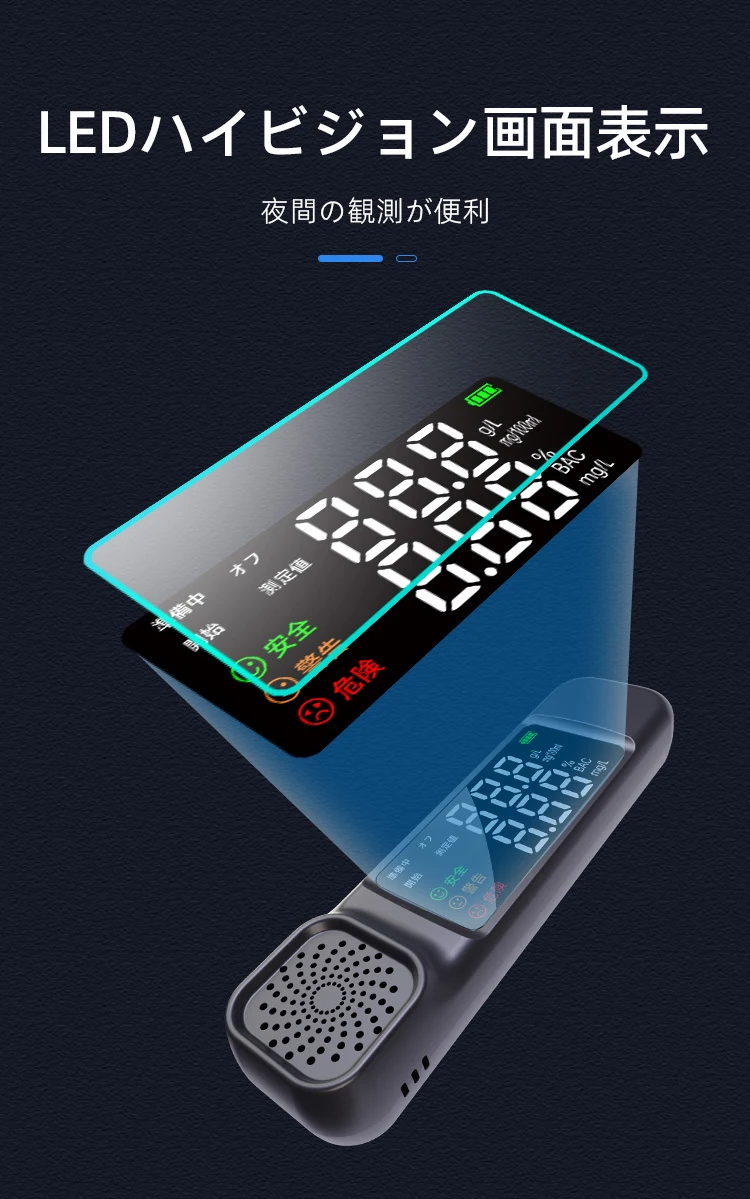

Display | LED display | Measure Time | 10 seconds | ||||
Shell Material | ABS plastic | Power Supply | Built-in rechargeable polymer lithium battery | ||||
Use Battery | 3.7V 150mAh | Preheat Time | 10 seconds | ||||
Power Adapter Requirements | DC5V 1A | Blow Time | Within 10 seconds, request > 4 seconds | ||||
Operating Temperature | 0-45℃ | Reaction Time | < 5 seconds | ||||
Product Size | 100x26.5x17.3mm | ||||||
Statement:
1: Regardless of Whether the Product is Used or Not, the Manufacturer and Seller Will Not Bear Any Responsibility for Illegal Acts. for Example: Drunk Driving, Working at Heights, Etc.
2: Everyone's Reaction to Alcohol is Different, So the Test Results Are for Reference Only and Cannot Be Used As a Standard for Determining the Results.
1: Regardless of Whether the Product is Used or Not, the Manufacturer and Seller Will Not Bear Any Responsibility for Illegal Acts. for Example: Drunk Driving, Working at Heights, Etc.
2: Everyone's Reaction to Alcohol is Different, So the Test Results Are for Reference Only and Cannot Be Used As a Standard for Determining the Results.
