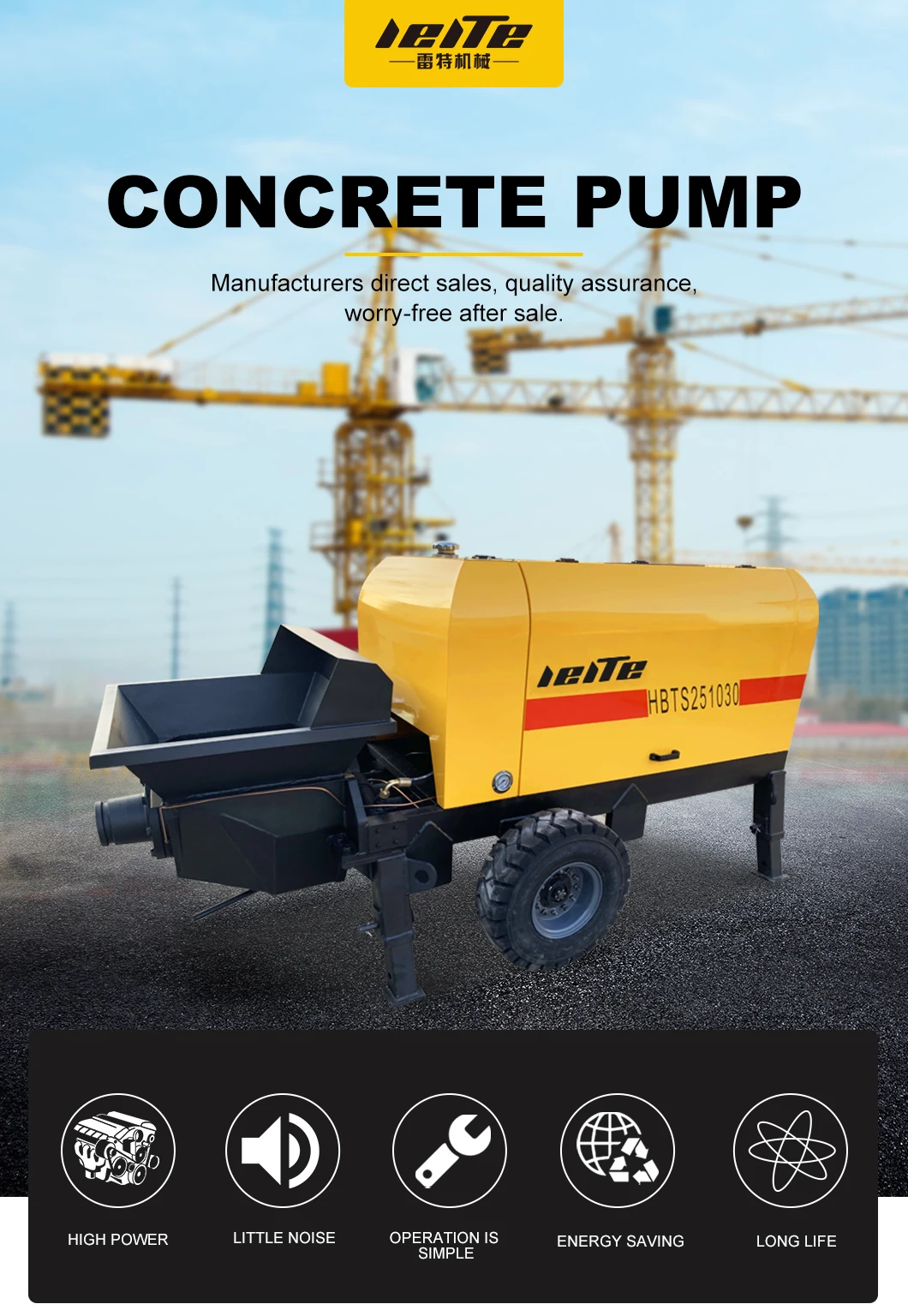

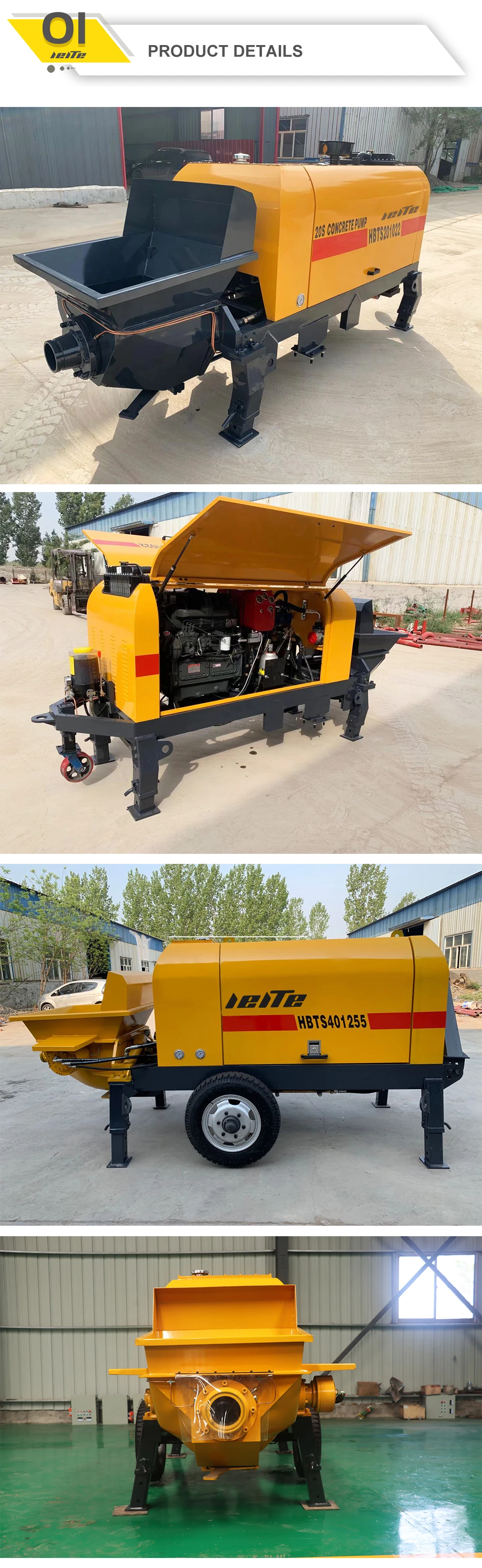

Mini Concrete Pump Truck Concrete Injection Pump For Building Small Secondary Construction Column Mini Concrete Pump For Sale



1.The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and mortar for long-distance high-rise buildings.

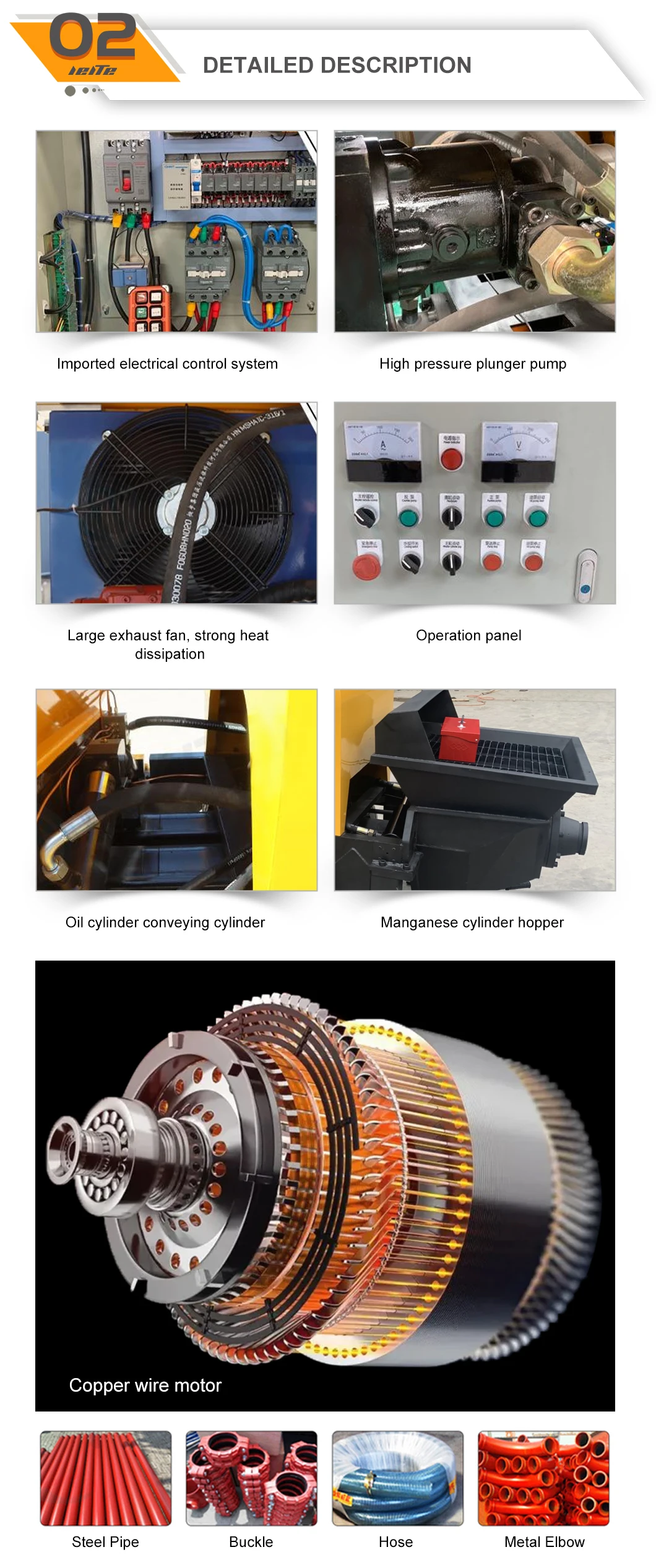

2.The distribution valve adopts advanced S-tube valve, which has good sealing performance and simple and reliable structure.
3.The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance, long service life and convenient replacement. The cutting ring can automatically compensate the gap structure.
4.The machine adopts electric-liquid control mode, with perfect electro-hydraulic overload protection and instrument display system. It has anti-pump operation function, easy to eliminate blockage fault. The pumping speed can be adjusted to meet various working conditions.
5.The centralized lubrication system automatically controls the start and stop and running time by the program, effectively extending the service life of the rotating parts.
6.The electrical components such as the contactor and the push button switch are reliable in operation, the control circuit is simple, and the electrical box is equipped with a switch for easy operation.
7.The main seals are made of high quality seals to prevent internal and external leakage of the hydraulic system.

Concrete Pump Product parameters
Model	LEITE-10	VTGZ-10S	LEITE-20
Driving mode	Drag-and-drop	Self-propelled(electric)	Drag-and-drop
Motor Power	15KW(National standard)	15KW(National standard)	22KW(National standard)
Working form	Hydraulic piston	Hydraulic piston	Hydraulic piston
Concrete throughput	10m³/h	10m³/h	20m³/h
Largest aggregate size	<15mm	<15mm	Type A <15mm, Type B <30mm
Duct diameter	75/80mm	75/80mm	75/80mm
Bore/stroke	120/400mm	120/400mm	120/500mm
Machine weight	720kg	720kg	1050kg
Product usage	Conveying mortar fine stone	Conveying mortar fine stone	Conveying fine stone concrete
Dimension	2000*700*1050mm	2000*700*1050mm	2350*820*1150mm
Theoretical max.	Vertical 30m	Vertical 30m	Vertical 50m
	Parallel 60m	Parallel 60m	Parallel 80m
