M12 M12x0.5 Крепление объектива голоса катушка VCM актуатор Автофокус VCA держатель двигателя для автофокуса m12 * 0 5 плата
- Категории: Surveillance Products >>>
- Поставщик: Hangzhou,Ai,Ke,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
M12 M12x0.5 mount lenses voice coil VCM actuator autofocus VCA Inhaber motor holder for auto-focus m12*0.5 board camera lens

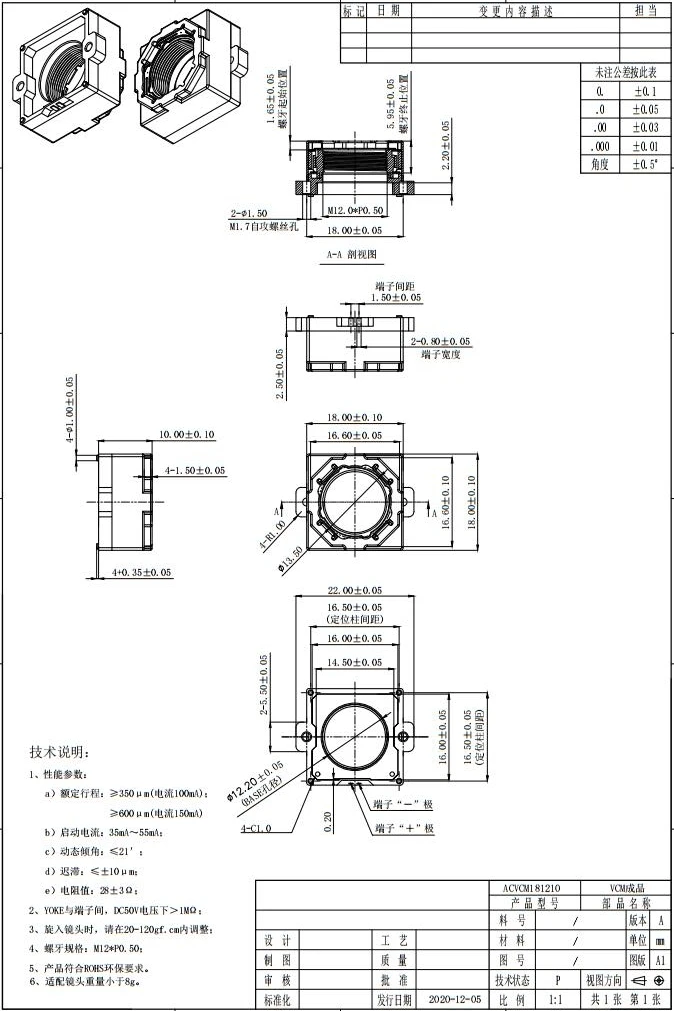

Specification
VCM Dimensions: | 18.0x18.0x10.0mm (without terminal) |
Lens Diameter: | M12*p0.5mm |
Rate Current (Stroke=0.35mm) Optical Axis: +Z | 100mA |
Rate Current (Stroke=0.60mm) Optical Axis: +Z | 150mA |
Absolute Max Current: | 0mA - 180mA |
Insulation Resistance: | 1MΩ or over at DC 50V, between the housing and contact |
Working Direction: | Along the Optical Axis |
VCM Unit Weight: | ≤5g (nominal without Lens) |
Lens Unit Mass: | ≤8g |
Rated Stroke: | ≥350μm |
Terminal Resistance: | 28±3Ω |
Sensitivity: | 3~9μm/mA |
Hysteresis: | ±10μm |
Dynamic Tilt: | ≤21′ |
Linearity: | ≤10µm |
Starting Current: | 35~55mA |
Torque: | 20-150 gf.cm |
Operating Environment: | -30℃~70℃ 10%~90%RH |
Storage Environment: | -40~85℃ 10~90% Relative humidity |
Model: | ACVCM181210 |
These specifications specify general requirement and performance of auto-focus Voice Coil Motor. These specifications may be changed for improvement after agreement between both parties.
All parts including glue and solder of this product fit into RoHS regulations.
