Wall Cladding Aluminium Composite Panel
Contact us : Ken @zjalu.com
Product Description

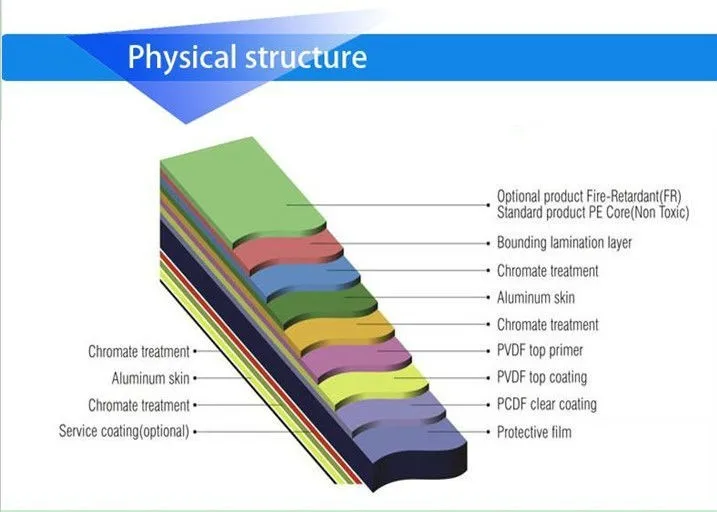

1. Aluminium composite panel ACP Structure
Aluminum Sheet | AA1100H18 | Reasonable Price And Good Performance |
AA3003 | High Strength Rustproof | |
AA5005 | Little High Price Best Performance | |
Core Material | Fireproof A2 | Noncombustible Inorganic |
Fireproof B1 | Fireproof Core ( KEOCT )(top grade exterior decoration) | |
Breakable | Non-toxicity Unbroken LDPE(Black)(interior) | |
unbreakable | (Exterior) | |
Coating | PVDF | 28~35 Um ,KYNAR500 PPG |
PE | 18 MICRON Polyester | |
Surface Treatment | Brush, Mirror, Wooden, Marble, art figure, etc | |
Back | Primer | 8 Micron washing Paint |
2.Aluminum plastic board dimensions recommond:
Specification | Recommend | |
PVDF | 4*0.4mm | Most Popular In The World For Outdoor Decoration |
4*0.5mm | Best For Outdoor Decoration In General | |
4*0.3mm | Economy Also Meet Requirement For Outdoor Decoration | |
3*0.3mm | Popular For Indoor Decoration In Commercial Building | |
4*0.5mm Fireproof | Superior Fireproof Performance On The Basis Of The Best Specification | |
PE | 3*0.3mm | Most Popular In The World For Indoor Decoration |
3*0.21mm | Economy For Indoor Decoration In General | |
Standard size | 1220*2440mm and 1250*2440mm | |
Accepted Width | Max:1580mm | |
Accepted Length | Max:6000mm | |
Accepted Thickness | 2mm,3mm,4mm,5mmm,6mm | |
Aluminum alloy thickness | ACP THICK | AL THICK |
2mm | 0.06mm-0.15mm | |
3mm | 0.06mm-0.21mm | |
4mm | 0.06mm-0.55mm | |
5mm | 0.06mm-0.55mm | |
Weight | 5kg/m2,base on 4*0.4mm,1400pcs/20’FCL | |
Nonstandard | sizes are available according your requirement | |
3. Range of applications
1) galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, and apartments .
2) as ideal decorative materials for the outer-wall and inner-wall of buildings.
3) Kitchen cabinets, billboards, signboards, tunnels and subway interiors.
4) Ceilings, eaves, balconies, partitions and interior decorations.
5) Telephone booths, vehicle bodies, and industrial usages.
6) Re-decoration of the old building
4.Quality and character:
1)Under natural climate ,film coating will be no flake .no rubbles ,no vestige and no pulverization.
2)Under common environment. no flake. no rubbles.
3)Under common temperatures and radiation,no color deferent.
4)According to international test standard,all the tested items are satisfied with high-class.
5)Our products with PVDF coating which produced under GB/T17748-1999 is with 70% PVDF.and under common environment,we can guarantee 15~20 years;and for FR products,it is good at fireproof,and the FR grade is B1(according to the standard Q B8624).

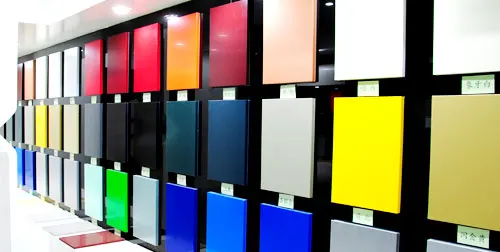

5. Product Image:
Packaging & Shipping
seaworthy packing:1*20' FCL loading about 1200 sheets . 1. Bulk Packing (Recommend building panels) 2.Wooden Pallet Packing (Recommend Signage Advertising Panels) 102~105 sheets per pallet ; 1*20' FCL loading 4~8 pallet ,1*40' FCL loading 12~16 pallet
Our Services After-sale Service:
PVDF Coating ACP: | We offer 20 years guarantee |
PE Coating ACP: | We offer 5~8 years guarantee |
Claim: | Pls contact our After-sale service department within 60 days after you receive the cargo |
Process: | If the quality meet any problem, pls provide us the photos which describe the problem |
Solution: | A: If the problem is small, we will send the same quantity free in new shipment |
B: If the problem is big, except the goods value, we will pay for all installation charges for the each claim |
COLOR CHART
