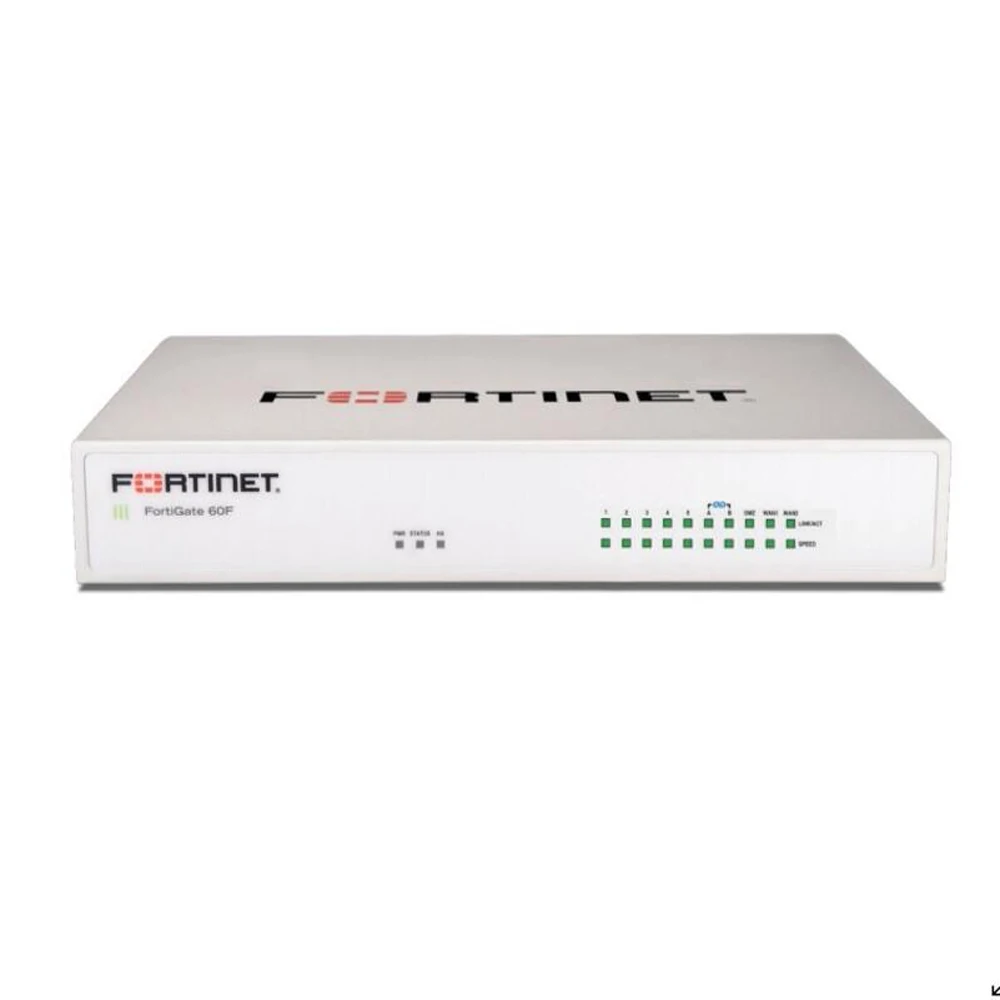

Fortigate брандмауэр FG-60F Fortinet

Hardware  Specifications

FG-60E

FG-60E-POE

FWF-60E

FG-61E

FWF-61E

GE RJ45 WAN / DMZ Ports

2/1

2

2/1

2/1

2/1

GE RJ45 Internal Ports

7

-

7

7

7

GE RJ45 PoE/+ Ports

-

8

-

-

-

Wireless Interface

-

-

802.11 a/b/g/n/ac

-

802.11 a/b/g/n/ac

USB Port

1

1

1

1

1

Console Port (RJ45)

1

1

1

1

1

Internal Storage

-

-

-

1x128GB SSD

1x128GB SSD

Included Transceivers

0

0

0

0

0

System Performance - Enterprise Traffic Mix

IPS Throughput

400 Mbps

NGFW Throughput

250 Mbps

Threat Protection Throughput

200 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets)

3 / 3 / 3 Gbps

Firewall Latency (64 byte UDP packets)

3 μs

Firewall Throughput (Packets Per Second)

4.5 Mpps

Concurrent Sessions (TCP)

1.3 Million

New Sessions/Second (TCP)

30,000

Firewall Policies

5,000

IPsec VPN Throughput (512 byte)

2 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

200

Client-to-Gateway IPsec VPN Tunnels

500

SSL-VPN Throughput

150 Mbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

100

SSL Inspection Throughput (IPS, avg. HTTPS)

135 Mbps

SSL Inspection CPS (IPS, avg. HTTPS)

135

SSL Inspection Concurrent Session (IPS, avg. HTTPS

75,000

Application Control Throughput (HTTP 64K)

650 Mbps

CAPWAP Throughput (HTTP 64K)

890 Mbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of Switches Supported

8

Maximum Number of FortiAPs (Total / Tunnel Mode)

30 / 10

Maximum Number of FortiTokens

100

Maximum Number of Registered FortiClients

200

High Availability Configurations

Active / Active, Active / Passive, Clustering

Dimensions

FG-60E/FG-60E-POE/FG-61E/FWF-60E/FWF-61E

Height x Width x Length (inches)

1.5 x 8.5 x 6.3

Height x Width x Length (mm)

38 x 216 x 160

Form Factor

Desktop

Weight

1.9 lbs (0.9 kg) [N.G weight for FG-60E-POE is 2.2 lbs (1.0 kg)]
