Product Description
Main Features of SOBOWO Electric Tricycle N2-M
* Front suspension fork
* Double-wall alloy rims, 80mm wide, with cut-outs
* Zoom hydraulic disc brakes on all 3 wheels
* Rear wheel dual brakes with splitter for activating rear brakes
* 20" x 4" tires tuned for all trail conditions
* Ergo grips and wide handlebars for trail riding comfort
* Comfort seat with suspension springs
* 8.5" of trail-ready ground clearance
* Double-wall alloy rims, 80mm wide, with cut-outs
* Zoom hydraulic disc brakes on all 3 wheels
* Rear wheel dual brakes with splitter for activating rear brakes
* 20" x 4" tires tuned for all trail conditions
* Ergo grips and wide handlebars for trail riding comfort
* Comfort seat with suspension springs
* 8.5" of trail-ready ground clearance
Product Name | Sobowo Fat Tire Mid Drive 750W 1000W Electric Tricycle N2-M |
Frame | Aluminum Alloy 606, 750mm Width x 22.2 Diameter w/ 7º Back Sweep and .5" Rise |
Stem | Aluminum Alloy, Folding, Telescoping to 11"-16" |
Motor | Bafang MM G510.750 /750-watt Integrated Mid-Drive Motor |
Display | Bafang Full Color DPC18 Display |
Battery | 48V12.8AH/14AH/16AH/17.5AH/21AH, etc. Cells Brand Options: LG, Panasonic, Chinese, Samsung |
Brakes | (F & R) Zoom Hydraulic Discs w/ 160mm Rotors and Splitter for Rear Rotors, Both Wheels are Controlled by One Lever |
Gearing | Singlespeed w/ 20t Freewheel Cog |
Fork Details | RST Guide Spring Suspension w/ 50mm Travel, Preload Adjust, 135mm Hub Spacing, 10mm Threaded Axle w/ 15mm Nuts |
Rear Frame Details | 28" Wide Bolted Rear Split Axle Differential |
Cranks | 170mm Length w/ 46t Chainring |
Pedals | Wellgo, Alloy Platform Pedals |
Basket | Metal Basket: 22" Long x 17" Wide x 9" Deep (Drybag is not included) |
Fenders | Black Front and Rear |
Lights | (F & R) Auto-On/Off Lights Powered by the E-bike Battery / Tail-light Features Daytime Brake Light Function |
Tires | Kenda Krusade Sport, 20" x 4" at 5-30 psi |
Rims | Alloy, 36-Holes, Double-Wall, w/ Cut-Outs |
Spokes | 13 Gauge, Stainless Steel |
Seat Post | Rigid Alloy, 28.6mm Diameter x 300mm Length |
Saddle | Velo or Chifan Comfort Seat w/ Springs |
Headset | 1 1/8″ Threadless Sealed Cartridge Bearings |
Load Capacity | 135kg/300 lbs (With Rider and Cargo) |
Details Images

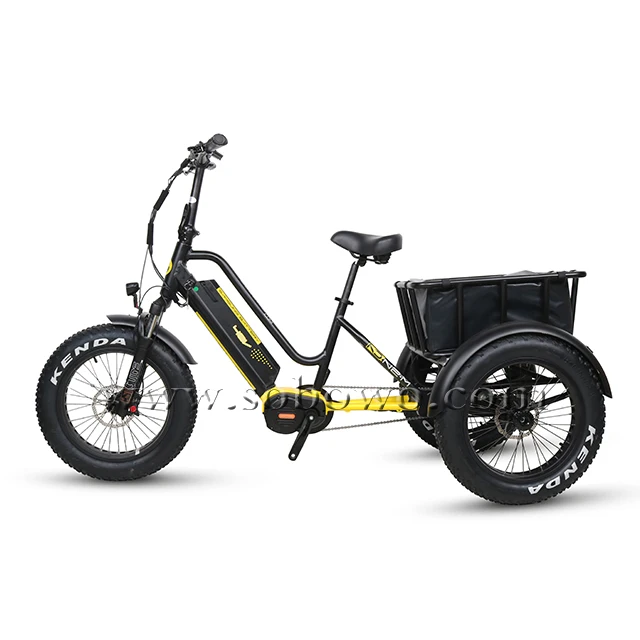

The Mid-Drive Electric Fat Trike features with front suspension, 20" x 4” tires,
easy-turn rear differential, cargo basket, and integrated lighting system.
easy-turn rear differential, cargo basket, and integrated lighting system.

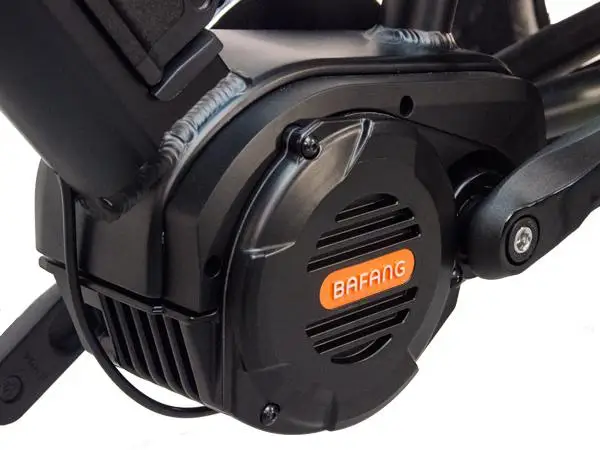

750-1000 Watt Mid-Drive Motor
The frame-integrated Bafang mid-drive motor delivers an impressive 160Nm of torque. With its built-in torque sensor and adjustable
assist levels, this motor provides seamless pedal-assist mode and powerful, quiet hill-climbing performance. There are two wattage options: 750W and 1000W. Choose the power you want.
assist levels, this motor provides seamless pedal-assist mode and powerful, quiet hill-climbing performance. There are two wattage options: 750W and 1000W. Choose the power you want.

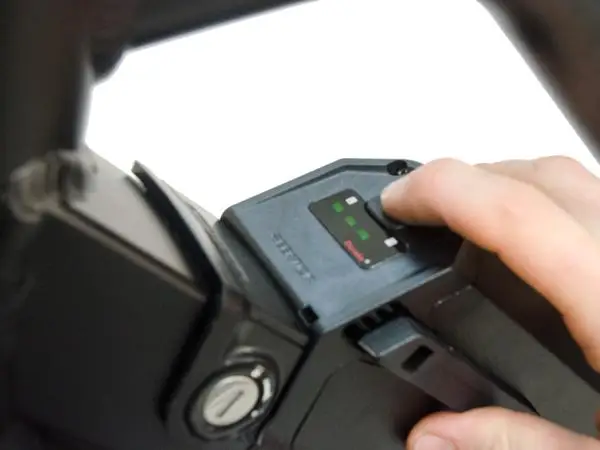

Dorado Lithium Battery Case
The Mid-Drive Electric Fat Trike features a sleek, frame-integrated, locking battery with authentic brands Lithium-Ion cells such as LG, Panasonic and Samsung (Chinese cells are also available), a USB charging port for your phone, and an integrated battery meter. The Dorado battery case can hold up to 78 cells which will give you a plenty of different capacity options.

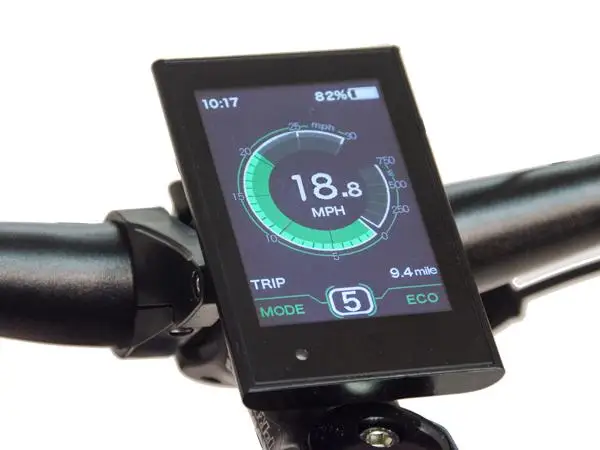

Bafang DPC18 Color LCD
The Electric Mid-Drive Fat Trike features an easy-to-read backlit, full-color TFT LCD display with large text and modern styling. This advanced display includes a battery meter, speed and trip distance readout, programable top speed limit, and a USB charging port for your phone.

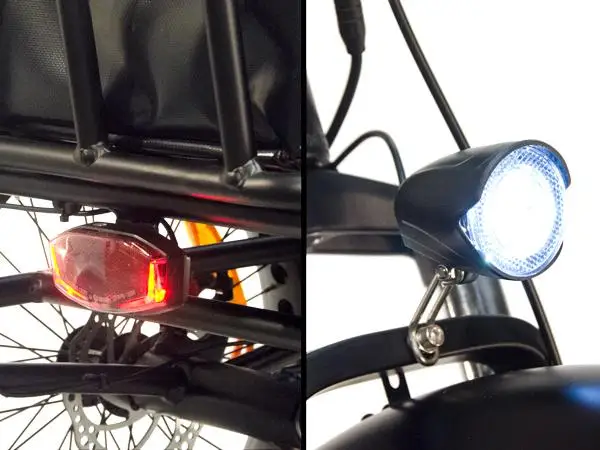

Integrated Lights
The Electric Mid-Drive Fat Trike features integrated front and rear lights powered by the E-bike battery and controlled by a
handlebar button. The tail-light also features a daytime brakelight function. Never worry about changing out AAA batteries again!
handlebar button. The tail-light also features a daytime brakelight function. Never worry about changing out AAA batteries again!

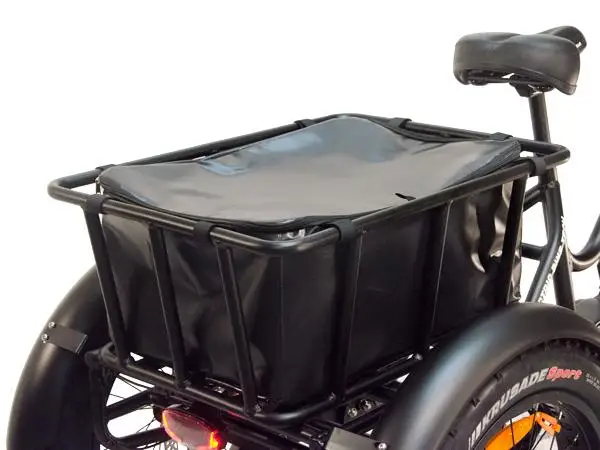

Heavy-Duty and fully equipped
The Electric Mid-Drive Fat Trike sports an extra-large (22” x 17” x 9.5”) drybag (optional), heavy-duty aluminum frame, internal cable
routing, rear axle differential, frame-integrated battery, 3 hydraulic disc brakes (with a rear brake splitter), fenders, lights, and front suspension - this is a fully loaded trike!
routing, rear axle differential, frame-integrated battery, 3 hydraulic disc brakes (with a rear brake splitter), fenders, lights, and front suspension - this is a fully loaded trike!

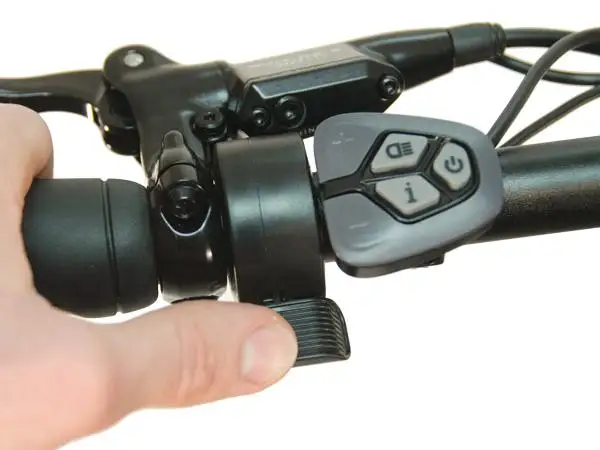

Throttle-on-Demand
The easy to use thumb throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Electric Mid-Drive Fat Trike also features an integrated torque sensor for smooth and responsive pedal-assist (PAS).
The easy to use thumb throttle allows you to engage the motor whenever you need it. Use the throttle to get a boost when starting from a stop or to help get up to cruising speed. The Electric Mid-Drive Fat Trike also features an integrated torque sensor for smooth and responsive pedal-assist (PAS).
Related Products
Packing&Shipping

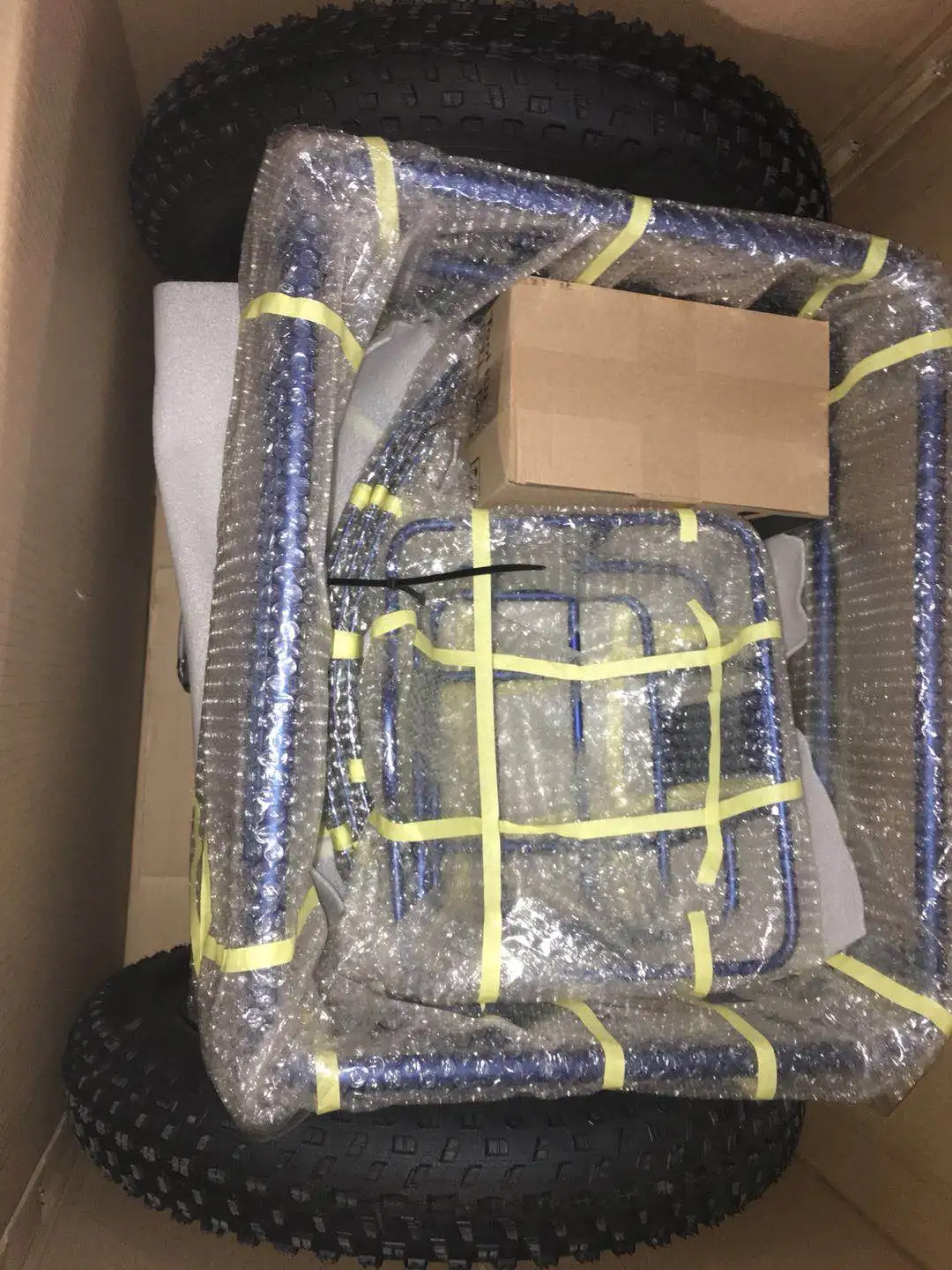

Packaging Details （Two cartons needed to package one unit of tricycle）:
1.white sheet sponge wrap unitized frame.
2.Bubble sheet wrap the unitized frame again.
3.7-layer corrugated carton. Much thicker and stronger
1.white sheet sponge wrap unitized frame.
2.Bubble sheet wrap the unitized frame again.
3.7-layer corrugated carton. Much thicker and stronger
Company Introduction
About Sobowo

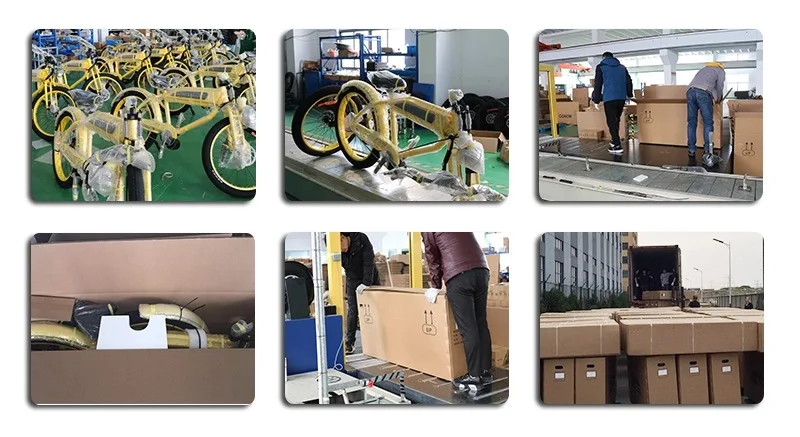

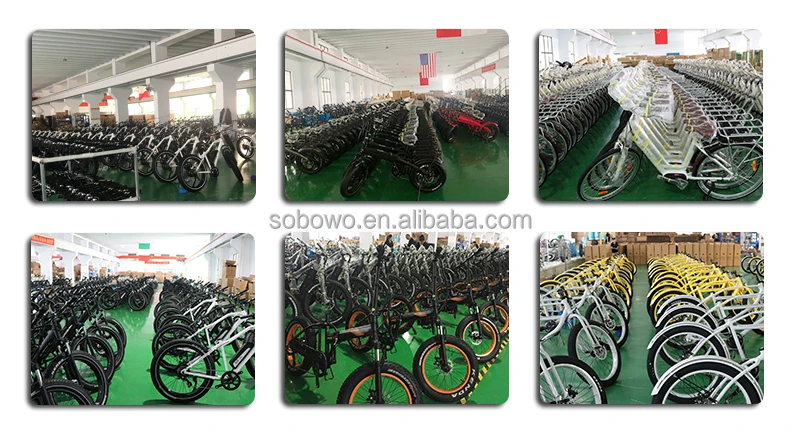

More than 8 years’ experience in electric bike manufacturing industry
