Product Description
Industrial gas liquid Nitrous Oxide tank
Large-scale atmospheric cryogenic liquid Nitrous Oxide storage tank is currently the most economical cryogenic liquid storage method. It has the characteristics of large storage capacity, low pressure and safety. It is widely used in low temperature storage of industrial gases. Liquid Nitrous Oxide storage sandalwood with flat bottom The double-layer metal wall powder insulation structure of the dome is mainly composed of inner tank, outer tank, heat insulation layer, safety system, instrument system, piping system, etc.
Model | Volume m³ | Working/Design Pressure(Mpa) | Device Size (L*W*H)mm | Weight kg |
CFL-10/0.8 | 10 | 10 | 2312*5987 | 5125 |
CWL-10/0.8 | 10 | 10 | 2312*2792*5364 | 5125 |
CFL-30/0.8 | 30 | 30 | 2512*11583 | 10809 |
CWL-30/0.8 | 30 | 30 | 2807*2512*11099 | 11358 |
CFL-50/0.8 | 50 | 50 | 3016*3088*12120 | 17680 |
CWL-50/0.8 | 50 | 50 | 3477*3216*10560 | 18145 |
CFL-100/0.8 | 100 | 100 | 3554*3587*16435 | 34437 |
CWL-100/0.8 | 100 | 100 | 4185*3924*12816 | 34549 |
CFL-150/0.8 | 150 | 150 | 3754*3787*20991 | 47225 |
CWL-150/0.8 | 150 | 150 | 4185*3924*18316 | 47940 |
CFL-200/0.8 | 200 | 200 | 4087*4054*23047 | 64214 |
Specification
Product | 150m3 Nitrous Oxide Tank |
Condition | New |
Applicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops |
Max Working Pressure(MPa) | 0.84MPa |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | PLC, Engine |
Capacity | 150m3 |
Place of Origin | China |
Brand Name | DOER |
Dimension(L*W*H) | 4185*3924*18316 |
Weight | 47940 |
Warranty | 1 Year |
Key Selling Points | High Safety Level |
Showroom Location | None |
Product name | Nitrous Oxide tank |
Other Name | Flat Bottom Cryogenic container |
inner Material | S30408 |
Outer Material | Q345R |
Application | Chemcial Storage |
Usage | Store Liquid |
Keywords | Liquid Cylinders |
Medium | LN2O、laughing gas |
Item | Liquid Cryogenic Storage Tank |
Function | Industrial Liquid Storage Tank |

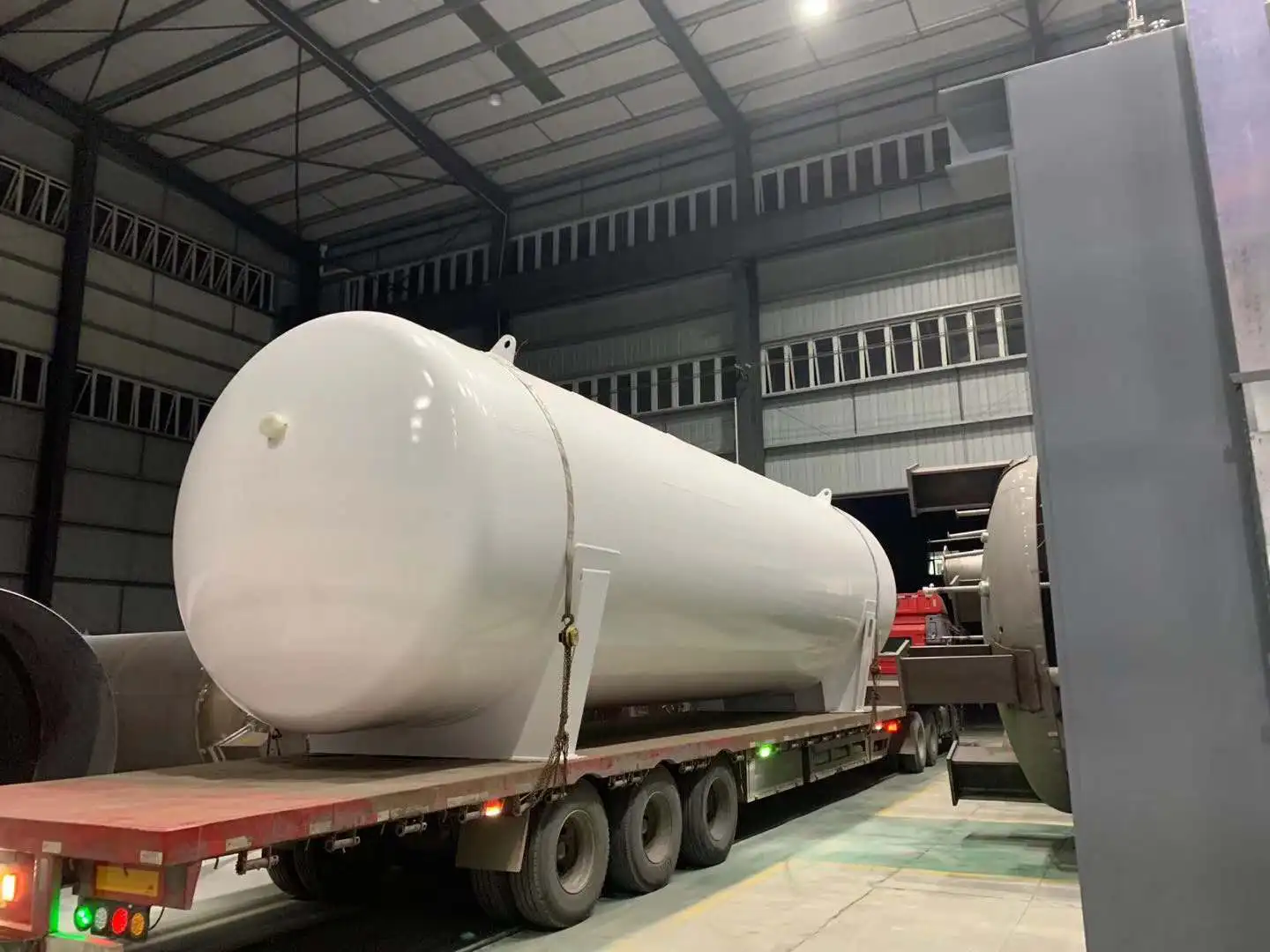

Packing & Delivery
10-200m3 Nitrous Oxide tank for liquid storage Cryogenic Liquid Tanks
1.10-200m3 container
1.10-200m3 container
2.No packing or Seaworthy packing
3.Customer's Request
3.Customer's Request
Our Advantages
Nanyang Doer Gas Equipment Co., Ltd. is mainly engaged in the research, design，manufacture and after-sales service of various industrial gas equipment and cryogenic equipment.
The company has:
1. Cryogenic equipment division: large atmospheric cryogenic storage tank, powder vacuum cryogenic storage
tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.
2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG
vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.
3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube
heat exchanger, floating head heat exchanger. The concept of "building a reliable brand in the industry based on advanced Doer technology" has been adhered to by the company. Adhering to this concept, the company actively
explores and develops new processes and technologies, and constantly introduces advanced technologies and scientific research achievements at home and abroad.
The company has:
1. Cryogenic equipment division: large atmospheric cryogenic storage tank, powder vacuum cryogenic storage
tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.
2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG
vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.
3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube
heat exchanger, floating head heat exchanger. The concept of "building a reliable brand in the industry based on advanced Doer technology" has been adhered to by the company. Adhering to this concept, the company actively
explores and develops new processes and technologies, and constantly introduces advanced technologies and scientific research achievements at home and abroad.
Certification
Exhibition
Company Profile
Doer is a leading industrial gas and engineering company.
The company serves a variety of end markets including chemicals & energy, food & beverage, electronics, healthcare, manufacturing, metals and mining.
Nanyang Doer Gas Equipment Co., Ltd. is mainly engaged in the research, design,manufacture and after-sales service of various industrial gas equipment and cryogenic equipment. The company has:
1. Cryogenic equipment division: Nitrous Oxide tank, large atmospheric cryogenic storage tank, powder vacuum cryogenic storage tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.
2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.
3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube heat exchanger, floating head heat exchanger.
Cryogenic tanks of Doer help your business succeed.
The company serves a variety of end markets including chemicals & energy, food & beverage, electronics, healthcare, manufacturing, metals and mining.
Nanyang Doer Gas Equipment Co., Ltd. is mainly engaged in the research, design,manufacture and after-sales service of various industrial gas equipment and cryogenic equipment. The company has:
1. Cryogenic equipment division: Nitrous Oxide tank, large atmospheric cryogenic storage tank, powder vacuum cryogenic storage tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.
2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.
3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube heat exchanger, floating head heat exchanger.
Cryogenic tanks of Doer help your business succeed.
FAQ
1. who are we?
We are based in Henan, China, start from 2013, sell to Domestic Market(25.00%), Southeast
Asia(20.00%), Africa(10.00%), Mid East(10.00%), South Asia(10.00%), North America(5.00%), South America(5.00%), Eastern Europe(5.00%), Eastern Asia(5.00%), Western Europe(5.00%). There are total about 201-300 people in our office.
Asia(20.00%), Africa(10.00%), Mid East(10.00%), South Asia(10.00%), North America(5.00%), South America(5.00%), Eastern Europe(5.00%), Eastern Asia(5.00%), Western Europe(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can youbuy from us?
Nitrous Oxide tank, Cryogenic Liquid Storage Tanks, Air separation plant, LNG/L-CNG Filling Station, PSA/VPSA Oxygen Nitrogen Generator Plants, Micro Bulk Cryogenic Liquid Tanks.
4. why should you buy from us not from other suppliers?
Doer is a leading industrial gas and engineering company. The company serves a variety of end markets including chemicals & energy, food & beverage, electronics,
healthcare, manufacturing, metals and mining.Cryogenic tanks of Doer help your business succeed.
healthcare, manufacturing, metals and mining.Cryogenic tanks of Doer help your business succeed.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T, L/C, Credit Card,PayPal,Western Union;
Language Spoken: English, Chinese, German, Russian
