Product Description
Product Description:
ZBJ-H automatic medium speed paper cup machine adopts the table type layout, isolating the molding mold from the transmission part, and sets the transmission parts in the frame box under the table.The machine has automatic spray lubrication system, using vertical shaft drive structure, cylindrical separation structure and gear drive combined way.Each molding mold is set on the table surface to facilitate cleaning and maintenance.
ZBJ-H automatic medium speed paper cup machine uses a cylindrical degree cam with only one aluminum disc to complete the cup structure, making the machine faster and smaller.It has photoelectric detection, fault alarm, count and other functions.
Through automatic transmission paper delivery, sealing (adhesive cup), oil injection, flushing, bottom, heating, rolling flowers,rolling, cup unloading and other continuous processes, is the ideal equipment to improve the production of beverage cup, tea cup,coffee cup, advertising paper cup, tasting cup, production capacity of 70-90 / minute.
The overall design is a box type structure with welded reinforcing bars on the side, using spray lubrication system to reduce wear and effective heat dissipation, making the machine have a longer life and more stable operation.
ZBJ-H automatic medium speed paper cup machine uses a cylindrical degree cam with only one aluminum disc to complete the cup structure, making the machine faster and smaller.It has photoelectric detection, fault alarm, count and other functions.
Through automatic transmission paper delivery, sealing (adhesive cup), oil injection, flushing, bottom, heating, rolling flowers,rolling, cup unloading and other continuous processes, is the ideal equipment to improve the production of beverage cup, tea cup,coffee cup, advertising paper cup, tasting cup, production capacity of 70-90 / minute.
The overall design is a box type structure with welded reinforcing bars on the side, using spray lubrication system to reduce wear and effective heat dissipation, making the machine have a longer life and more stable operation.

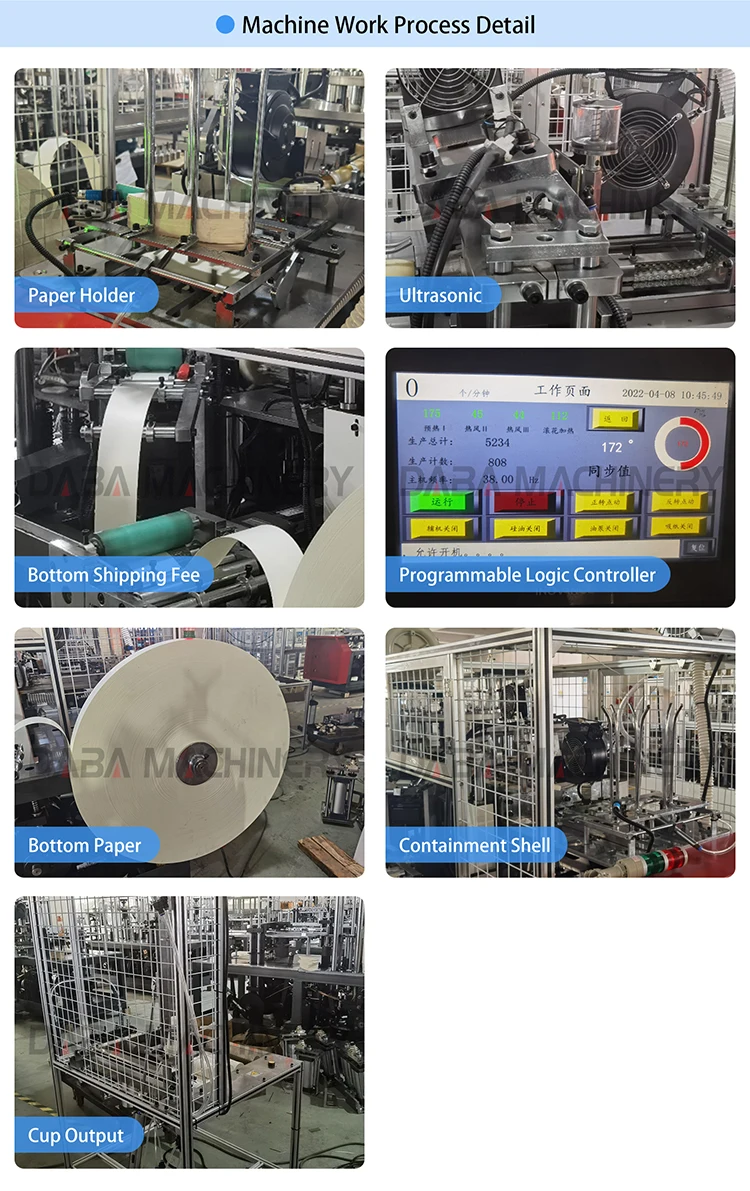

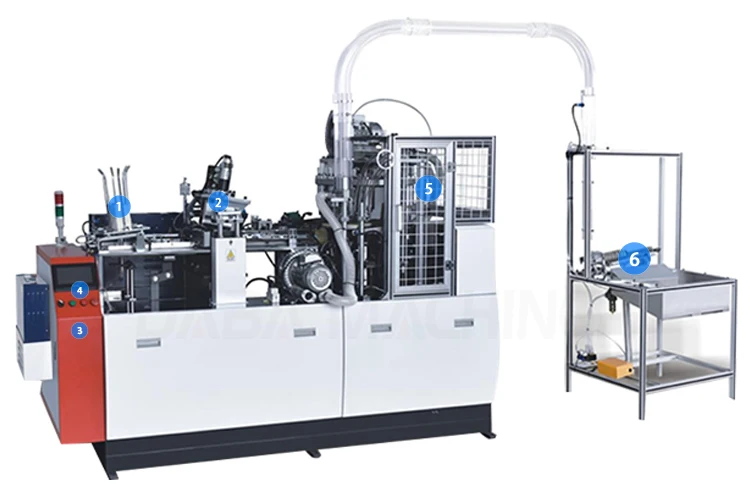

product presentation
1 Paper Holder 2 Ultrasonic 3 Operating Platform
4 PLC 5 Containment Shell 6 Cup collector
Product Paramenters
Main Technical Parameter | ||
Model | Ultrasonic | |
Paper Cup Size | 3~160z | |
Rated Speed | 70~80PCS/minute,7oz stable 80pcs/minute Speedaffected by cup size,paper quality & thickness | |
Raw Material | One-side or Two side PE coated paper | |
Suitablepaper weight | 180-350gsm | |
Power Source | 50Hz(380V3-phase50Hz)(Betteruse380V3-phase)*if User power different? Please INFO US IN ADVANCE | |
Total Power: | 10KW | |
Working Power: | 4.5KW | |
Total Weight: | 2100KG | |
Pack Size(LW*H) | 2250x1230x1950mm | |
Products Description
Product Advantage
1. (multiple paper feeding) three times paper feeding system，multiple mediation, to avoid unevenness on both sides of the paper cup.
2. Slotted wheel-make the machine inside-connection more tightly ,and it is not easy to loosen during the operation of the
machine.
3. The single-plate bottom combine fan body running system offset the problem of paper jam and bottom down Make the machine more beautiful and increase the production capacity .
4. Automatic time control of oil lubrication for full machine, avoid the trouble of manual oil lubricating ,make the machine
running more stable.
5. Open cam running system replace the connecting rod system to reduce malfunction rate, Increase production speed.
6. Open cam, Slotted wheel makes the machine running more stable and increase machine Wear-resistant at high
speed.
2. Slotted wheel-make the machine inside-connection more tightly ,and it is not easy to loosen during the operation of the
machine.
3. The single-plate bottom combine fan body running system offset the problem of paper jam and bottom down Make the machine more beautiful and increase the production capacity .
4. Automatic time control of oil lubrication for full machine, avoid the trouble of manual oil lubricating ,make the machine
running more stable.
5. Open cam running system replace the connecting rod system to reduce malfunction rate, Increase production speed.
6. Open cam, Slotted wheel makes the machine running more stable and increase machine Wear-resistant at high
speed.
7. According to other models. RN-BJ16 body use square steel, body weight 2500kgs,machine running more stable under high speed.
8. Taiwan brand reducer , NSK bearing .
9. Standardized production of parts,strong versatility,good interchangeability,easy to maintenance.
8. Taiwan brand reducer , NSK bearing .
9. Standardized production of parts,strong versatility,good interchangeability,easy to maintenance.

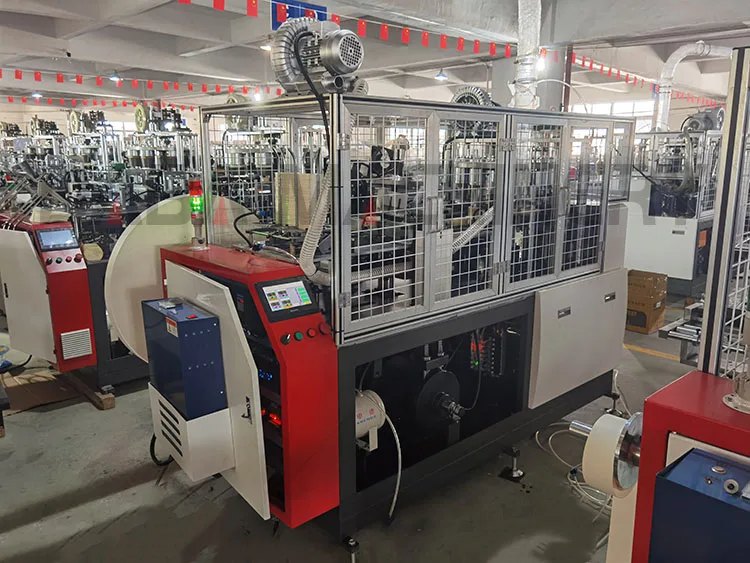

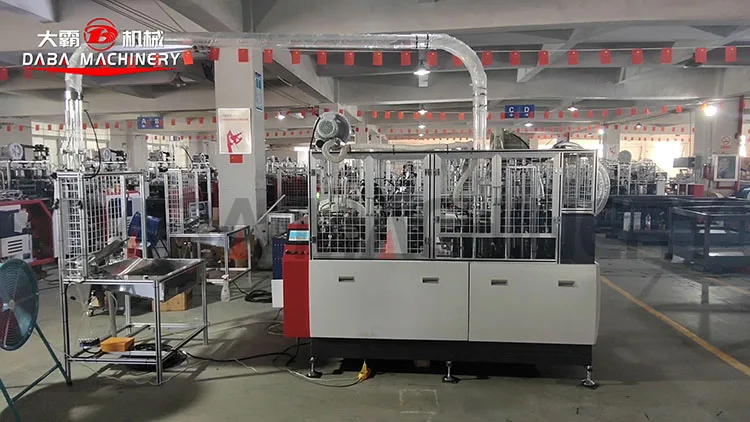

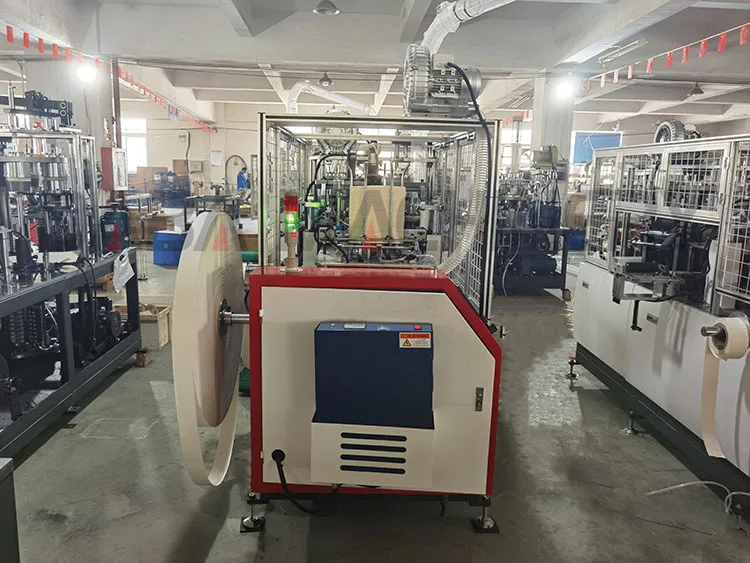

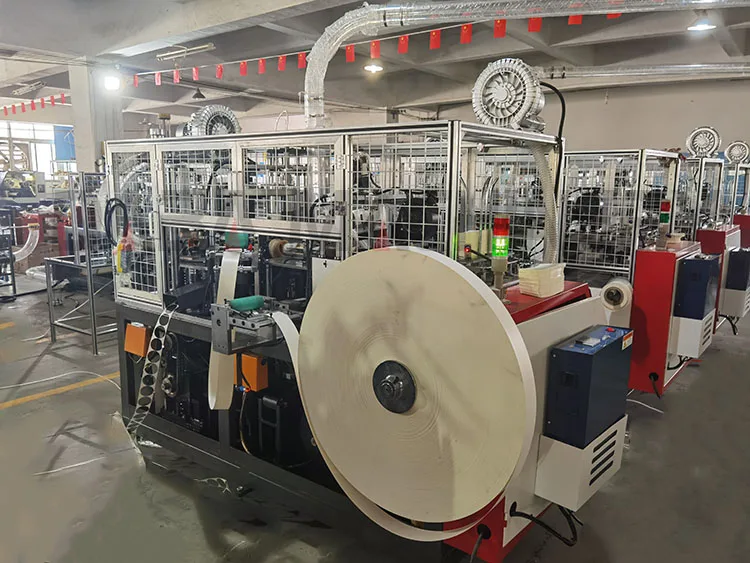

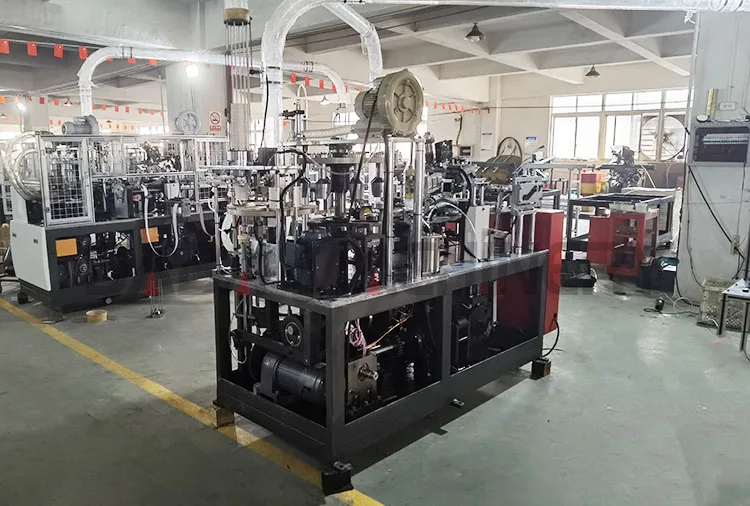

Product Detail

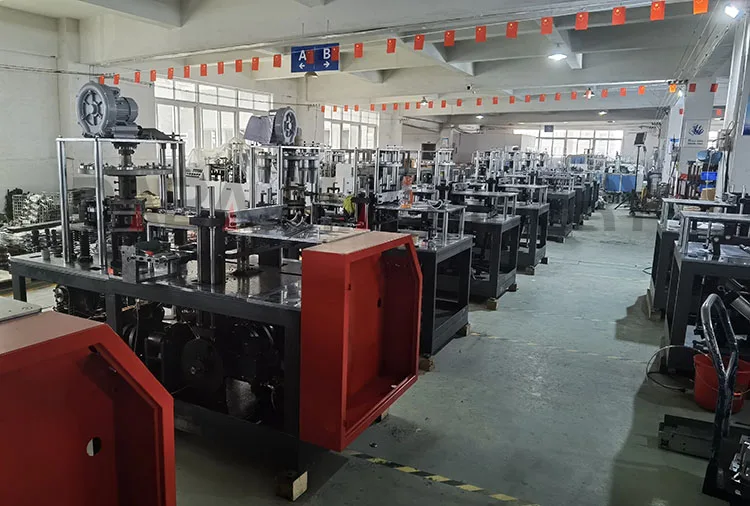

Company Profile
Wenzhou Daba Machinery Co.,Ltd.'s introduction:
High quality of life today, everything requires exquisite packaging era, Wenzhou Daba machinery Co., Ltd. was established,located in the east China Sea shore of "Ruian". The main products of the company are: flexo web printing machine, water-based inkjet machine, high-speed web flat die-cutting machine, high-speed paper box forming machine, automatic paper cup forming machine,automatic paper bowl forming machine, automatic paper plate machine.
