Product Description

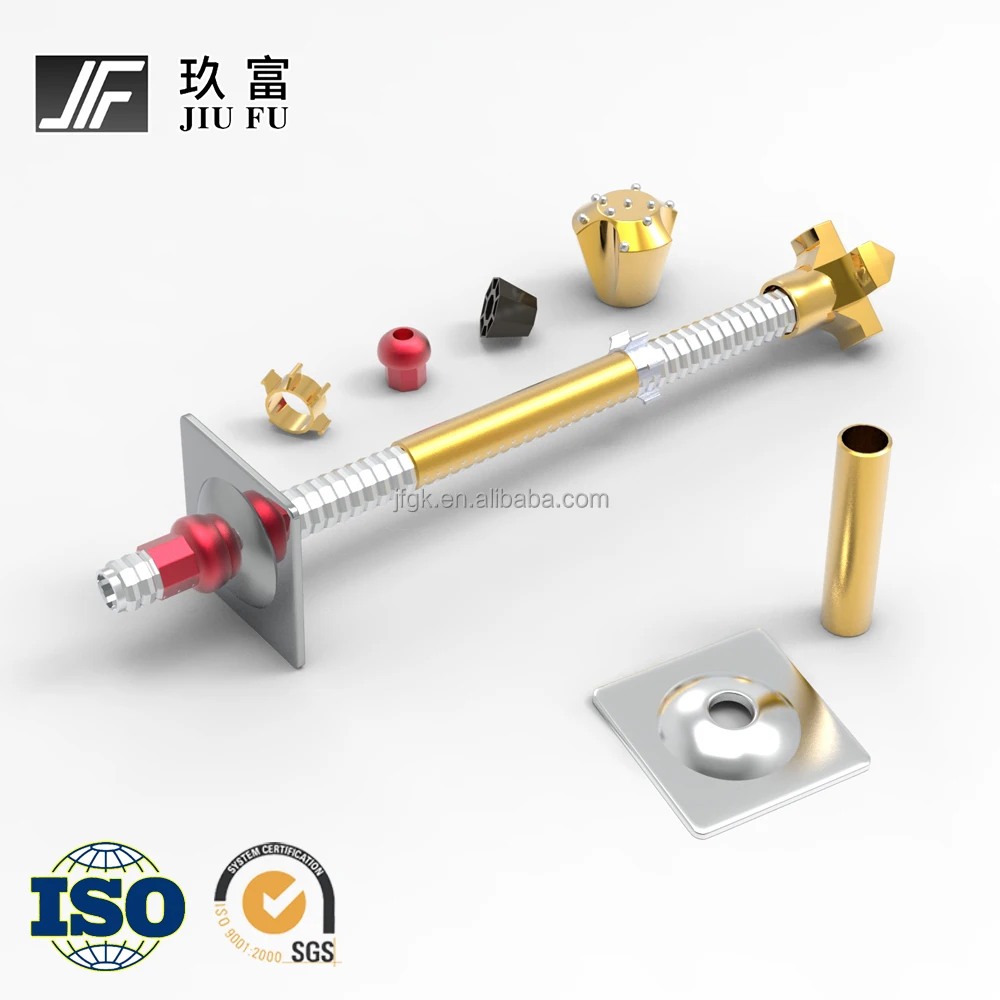

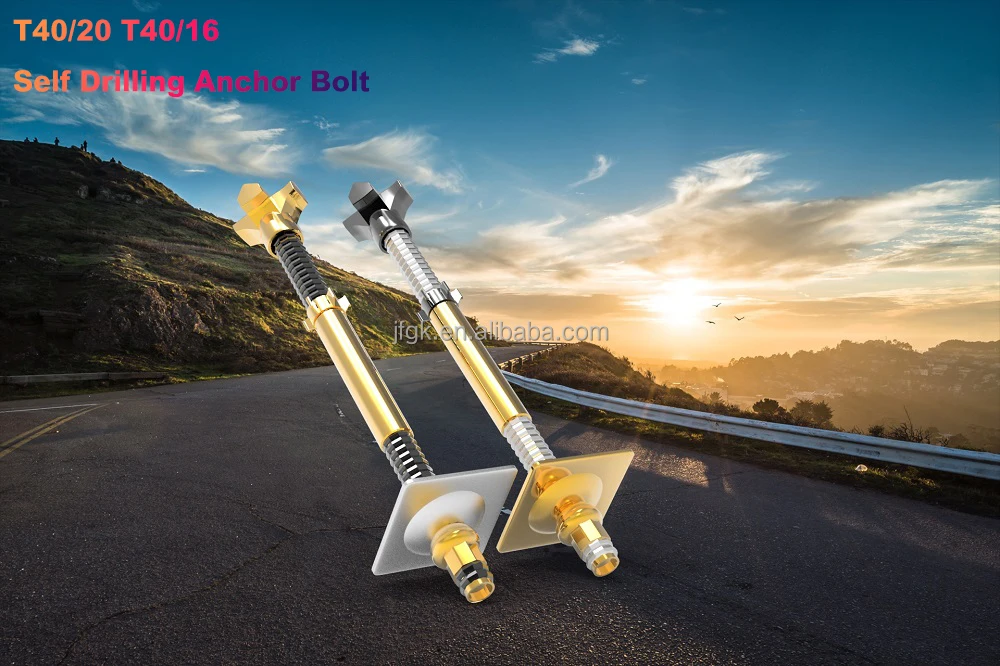

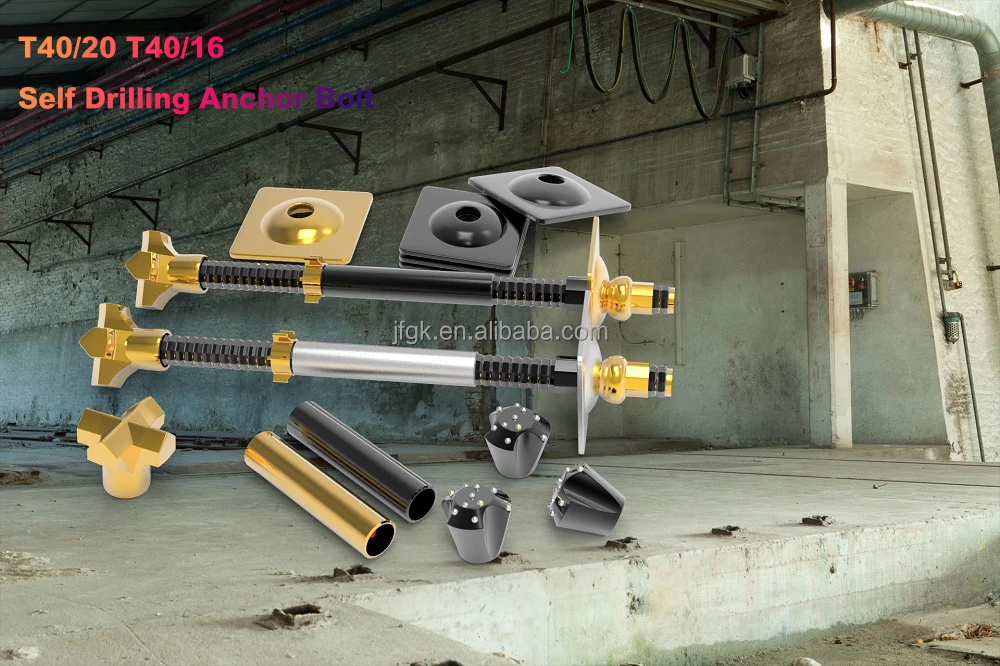

Full threaded steel self drilling rock bolt / Hollow anchor bar / Anchor rods

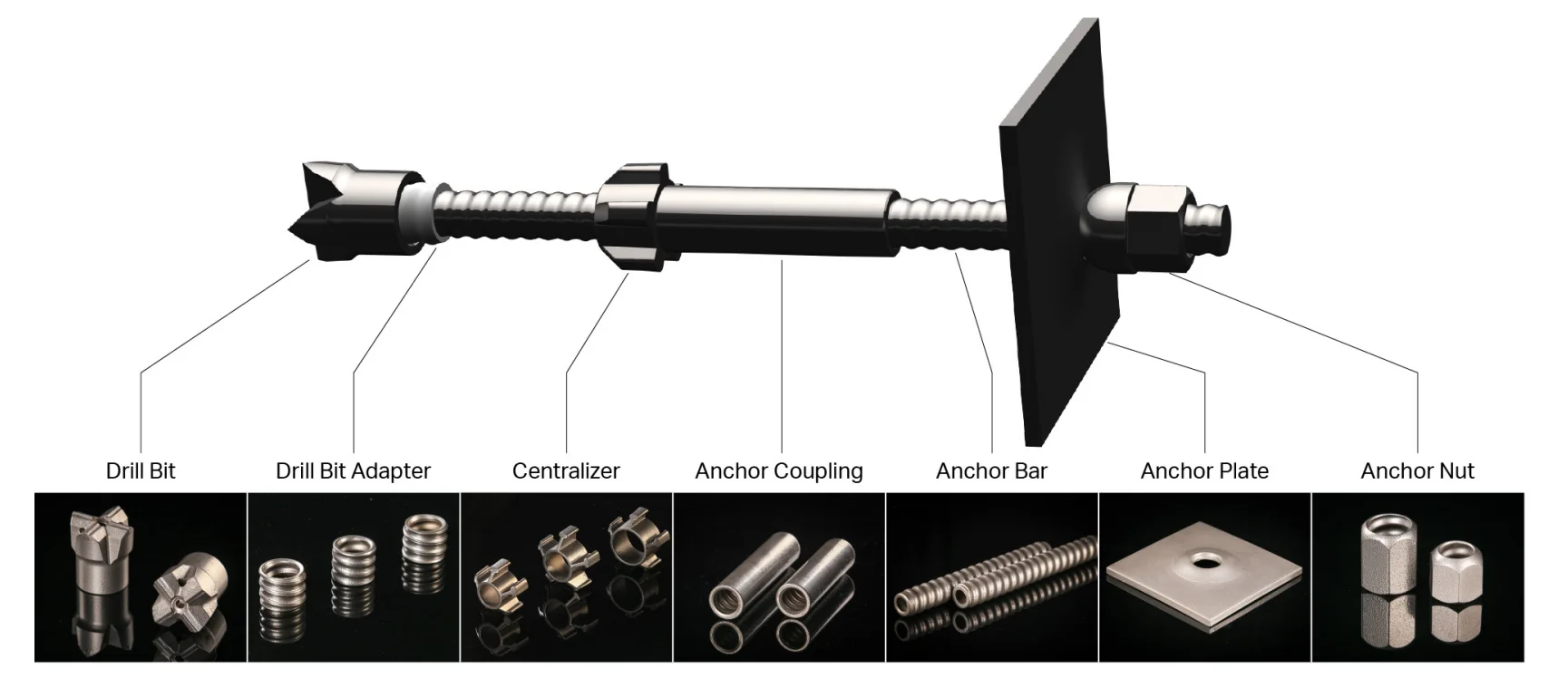

The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling,anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles etc projects.

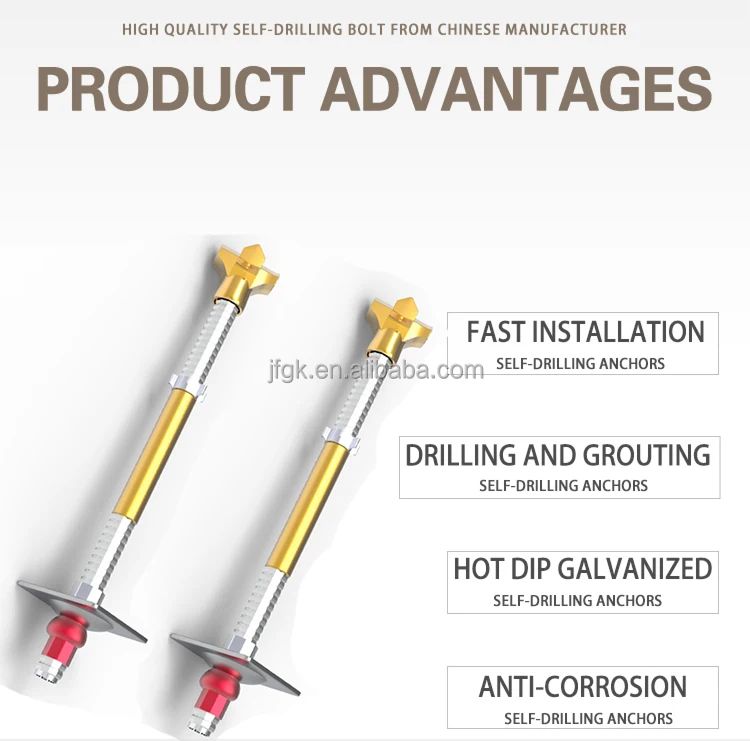

Advantages and Characteristics as below:
1. No casings required, because anchor bars can be drilled into loose soils without needing casings to support the boreholes.
2. Fast drilling and installation, because drilling, installation and grouting are in a single operation.
3. Both rope threads and trapezoid threads are robust and ideal for rotary-percussive drilling and ensuring a high level of bondwith the borehole gout.
4. The hollow core not only serves for flushing during drilling, but also for grouting after drilling.
5. Continuous threads ensure the bars can be cut and coupled at any point, or extended.
6. Different anchor bits are available for different ground conditions.

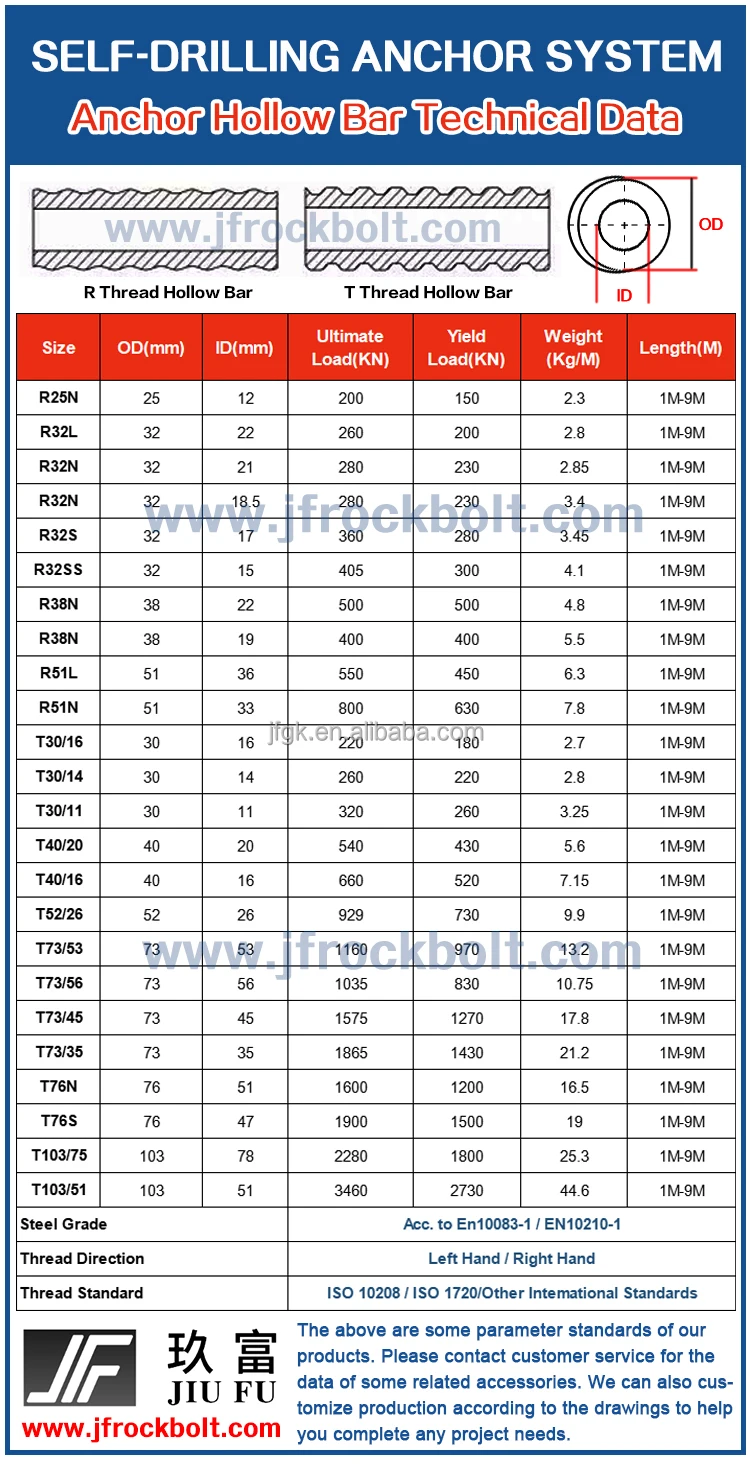

R-Thread Hollow anchor Bar
















Size




Outer Dia.(mm)




Ultimate Lad(kN)




Yield Load(kN)




Weight(kg/m)




R25N




25




200




150




2.35




R32L




32




210




160




2.8




R38N




38




500




400




5.45




R51N




51




800




630




8.15




T-Thread Hollow anchor Bar
























T30L




30




220




180




2.9




T40S




40




660




525




6.8




T52N




52




929




730




10.2




T73L




73




1160




970




13.2




T76S




76




1900




1500




19.7




T103N




103




2270




1800




23.5




T111N




111




3650




2750




34.5




T127L




127




2400




1810




30.5




T130S




130




7940




5250




78




T150S




150




8400




5600




108




T200S




200




14230




9500




183

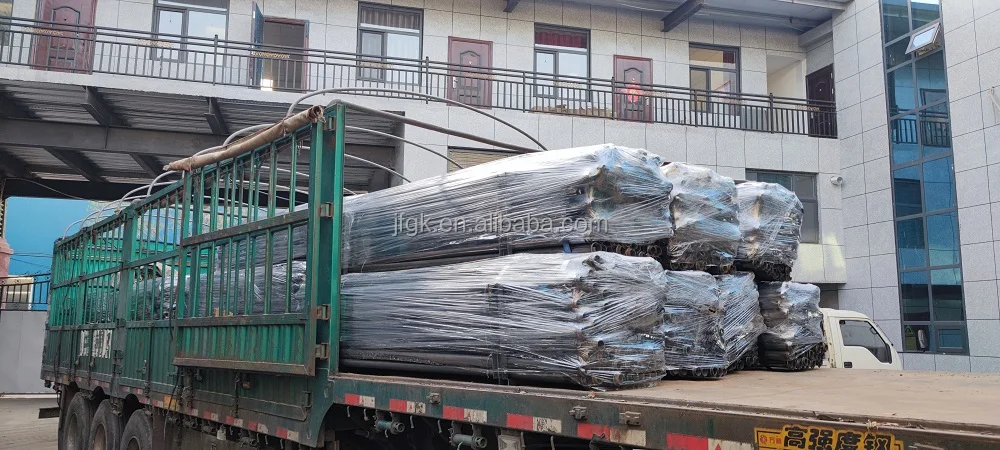

Packing & Delivery

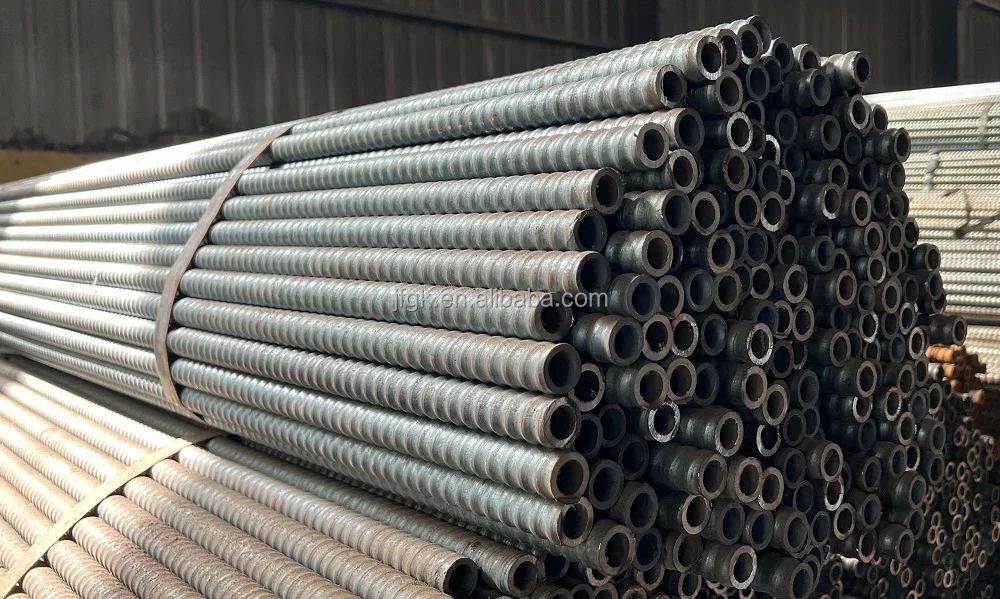

R thread self drilling anchor rods, hollow anchor bar, rock bolt are packed by bundles









Company Profile











































FAQ










1. who are we?
We are based in Hebei, China, start from 2020,sell to Domestic Market(50.00%),Southeast Asia(30.00%),Africa(10.00%),Mid East(5.00%),Eastern Asia(5.00%). There are total about 101-200 people in our office.

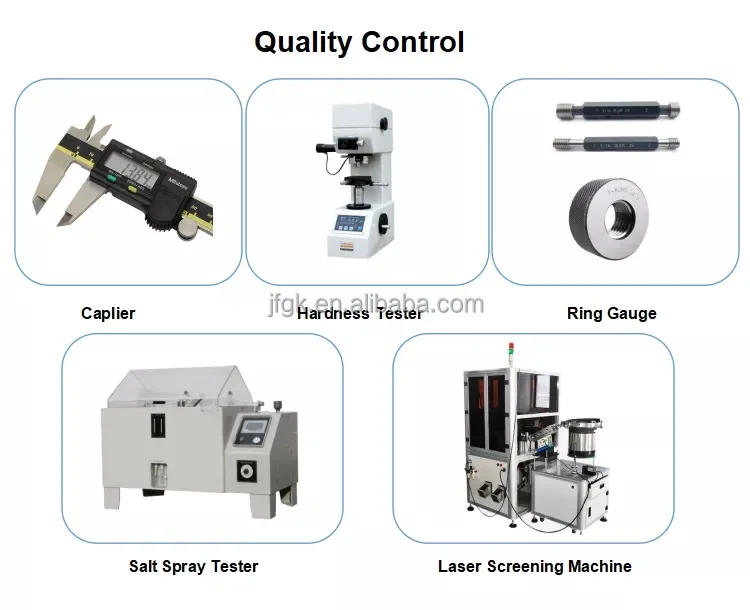

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Anchor rod,Rock self-drilling anchor,Welded Wire Mesh Pieces,Prestressing Thread Steel Bar for Bridge,Domed Nut

4. why should you buy from us not from other suppliers?
Hebei Jiufu Industrial and Mining Parts Co., Ltd. was established in 2012, with an annual export volume of 12,000 tons and annual sales of 50 million US dollars. It has 14,000 square meters of standardized industrial plants, 2 large raw material warehouses

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
