Introduction of Zero Defect Best Selling High Quality Steel Light Rail Standard Rails

Normally, steel rail is devide into light rail heavy rail and crane rail   .

The nominal weight of light rails is 30kg or less. Our light rails are available in various specs. and are mainly used for laying temporary hauling tracks in forested areas, factories, mines, and construction areas.
Heavy steel rail is the main component of railroad track.Heavy steel rail's function is to lead the locomotive wheels go forward, bear huge pressure of the wheels, and transfer to the sleeper.  Heavy steel rail must provide wheels with continuous and smooth and the least resistance of the rolling surface.
Besides all kinds of international standard steel and iron products, we also can develop and manufacture various non-standard products.

Here are the types of steel rails:
It is including light rails, heavy rails, crane rails and rail fittings.

1)Light rails: 9kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg
Steel grade: 55Q / Q235
Length: 6m~12m
Executive standard: refer to GB11264-89…

2)Heavy rails: 38kg, 43kg, 50kg, 60kg
Steel grade: U71Mn / 50Mn and so on
Length: 12.5m
Executive standard: refer to GB2585-81/QB

In order to ensure better quality, our steel rails have to undergo many tests, including chemical composition test, tensile strength test, hardness test and the drop weight test.
According to clients' demands, we can provid various specification rails with different materail/steel grade .zmwm12

Parameter of Zero Defect Best Selling High Quality Steel Light Rail Standard Rails

THE LIST OF YYGT
Name of Commodity	Specificaton	Materials   (Steel Grade)	Standard of Products	Theory Weight (kgs/M)	Length of Dimension     (M)	Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail	4kgs/m	Q235	Q/YG001-2014	4kgs/m	6,8	75
	8kgs/m	Q235	Q/YG001-2014	8.42kgs/m		55
	12kgs/m	Q235	GB11264-2012	12.2kgs/m		36
	15kgs/m	Q235/55Q	GB11264-2012	15.2kgs/m	6,8,9,10	28
	18kgs/m	Q235/55Q	Q/YG001-2014	18.06kgs/m		21
	22kgs/m	Q235/55Q	GB11264-2012	22.3kgs/m		21
	24kgs/m	Q235/55Q	Q/YG001-2014	24.46kgs/m		21
	30kgs/m	Q235/55Q	GB11264-2014	30.1kgs/m		15
Heavy Rail	38kgs/m	U71Mn	GB2585-2007	38.733kgs/M	12,12.5	10
	43kg/m	U71Mn	GB2585-2007	44.653kgs/M		10
	50kgs/m	U71Mn	GB2585-2007	51.514kgs/M		10
		45/50Mn	Q/YYG002-2008	31/34/36/39/41kgs/M	12,12.5	10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kgs/m	12	10
	QU80		YB/T5055-93	63.69kgs/m		10
	QU100		YB/T5055-93	88.96kgs/m		5
	QU120		YB/T5055-93	118.1kgs/m		5

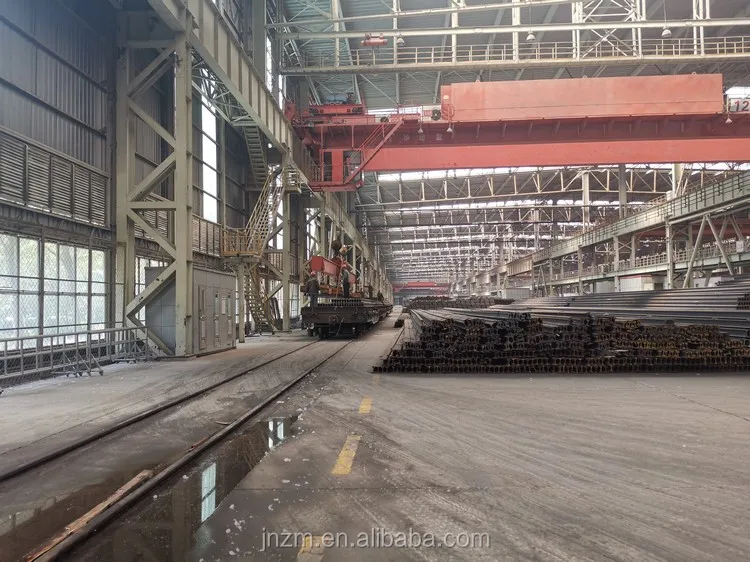

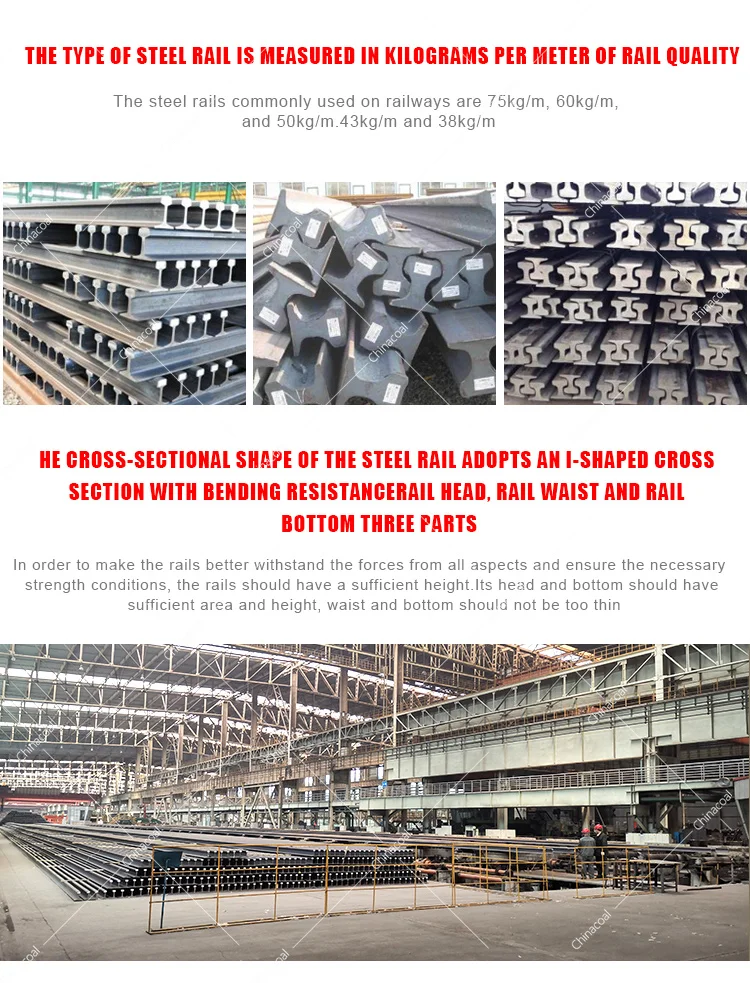

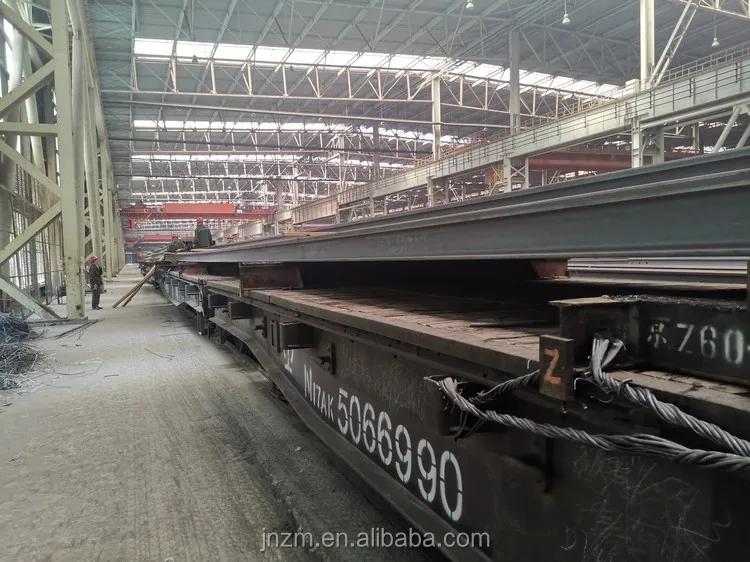

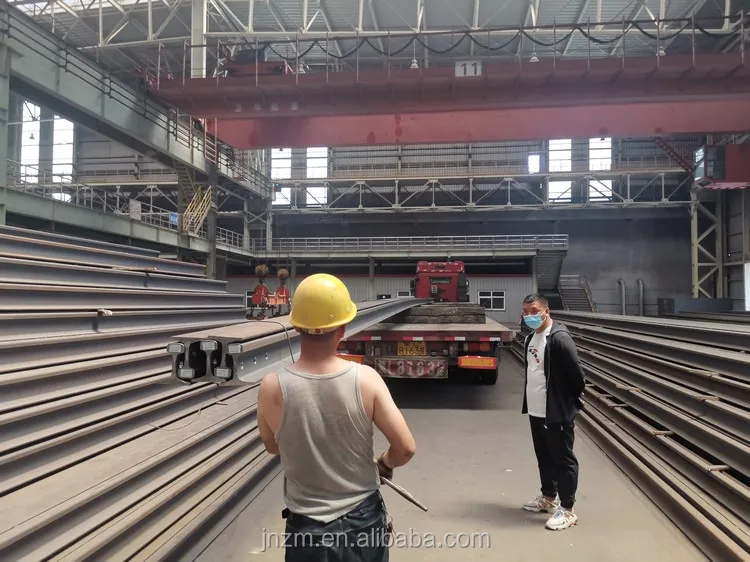

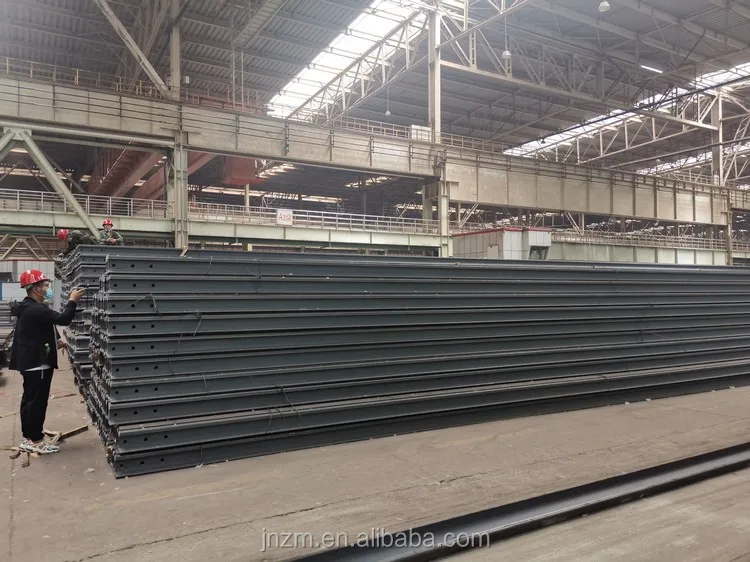

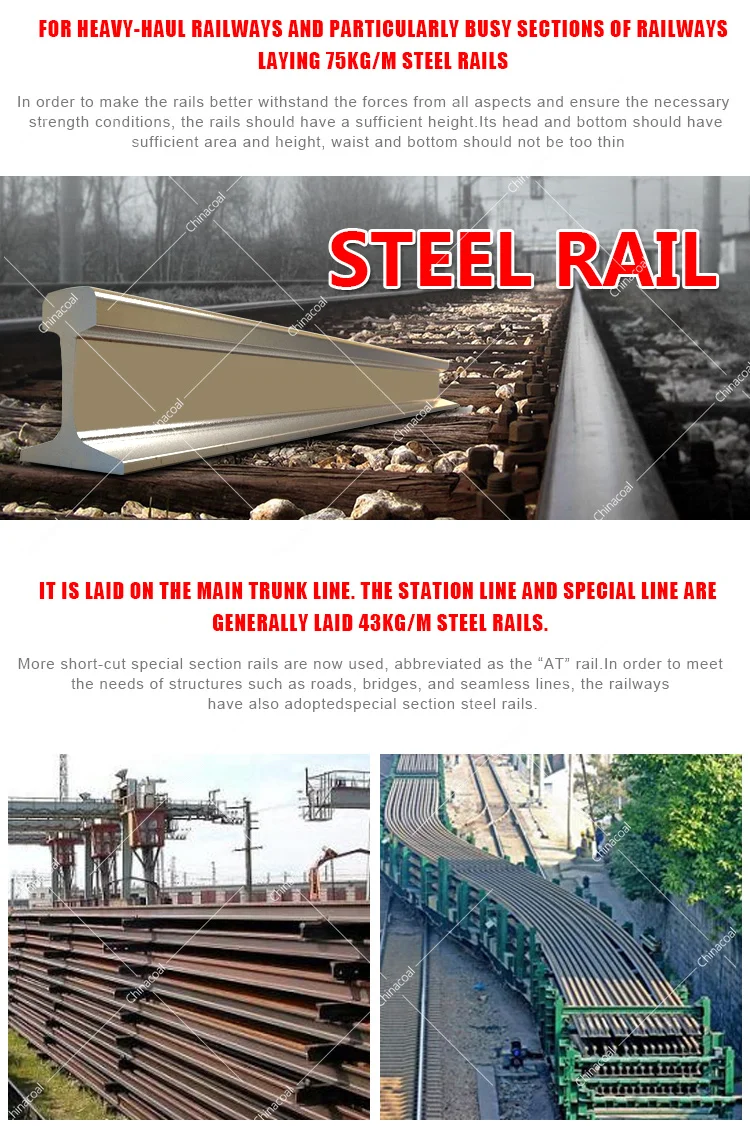

Photos of Zero Defect Best Selling High Quality Steel Light Rail Standard Rails
