Production description


Application

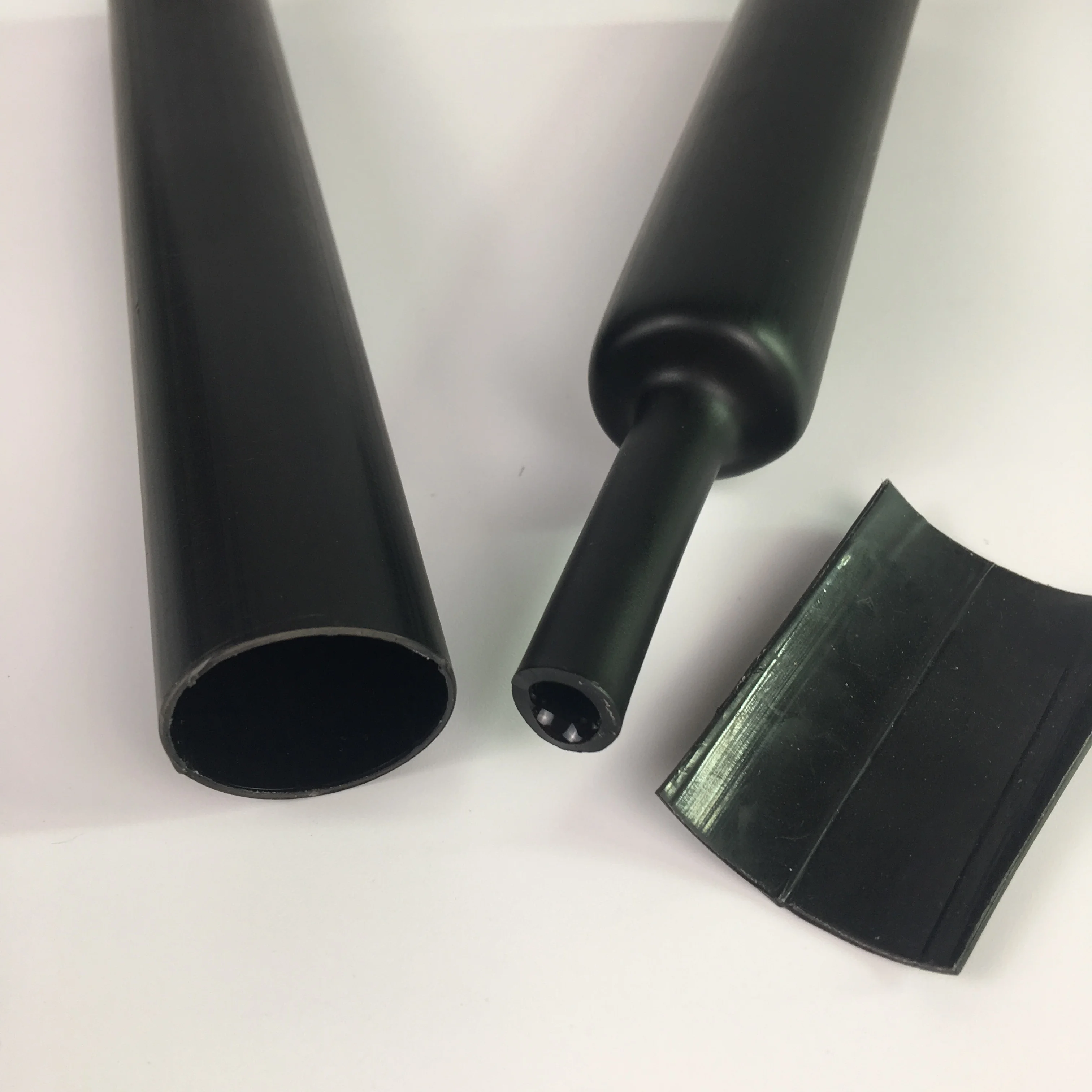

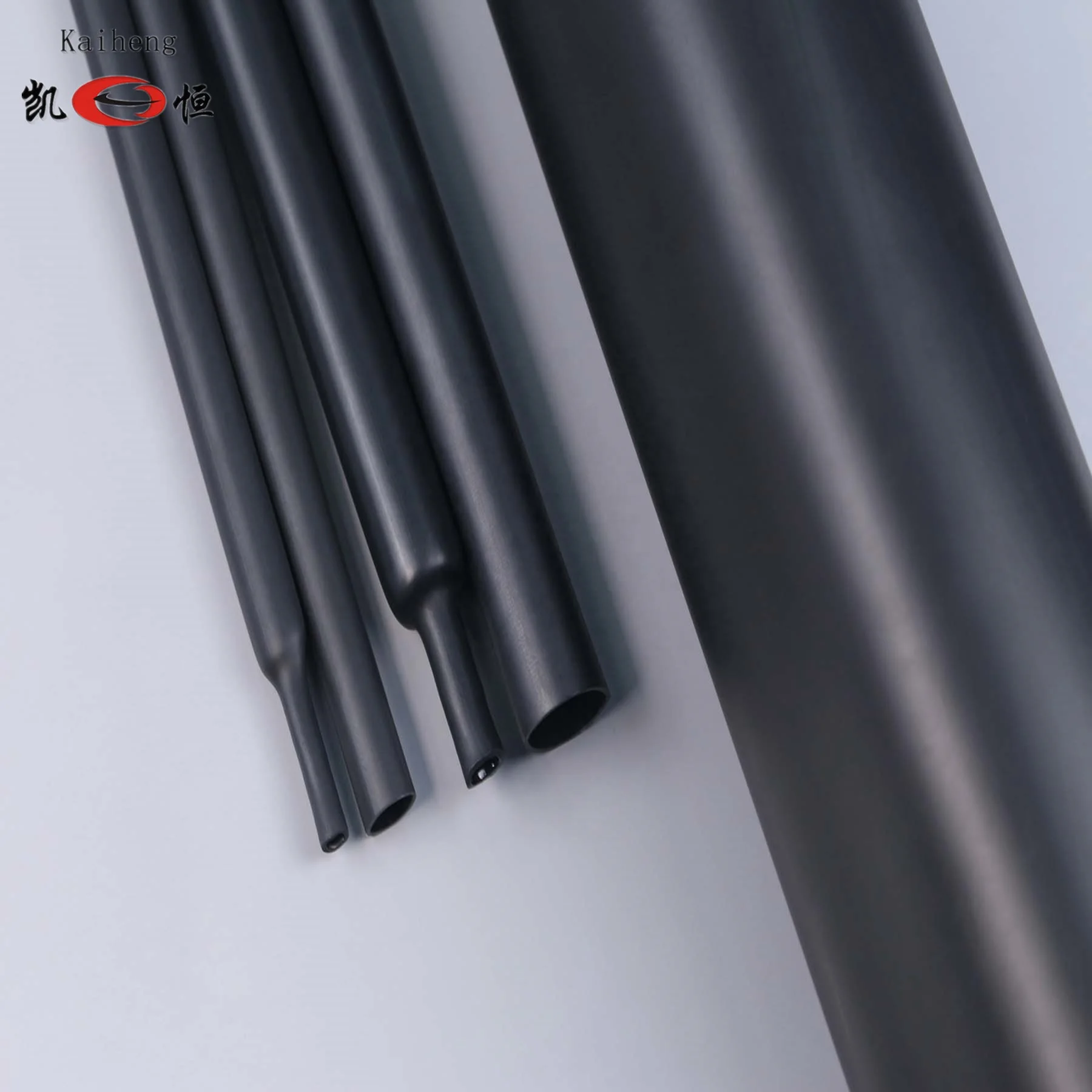

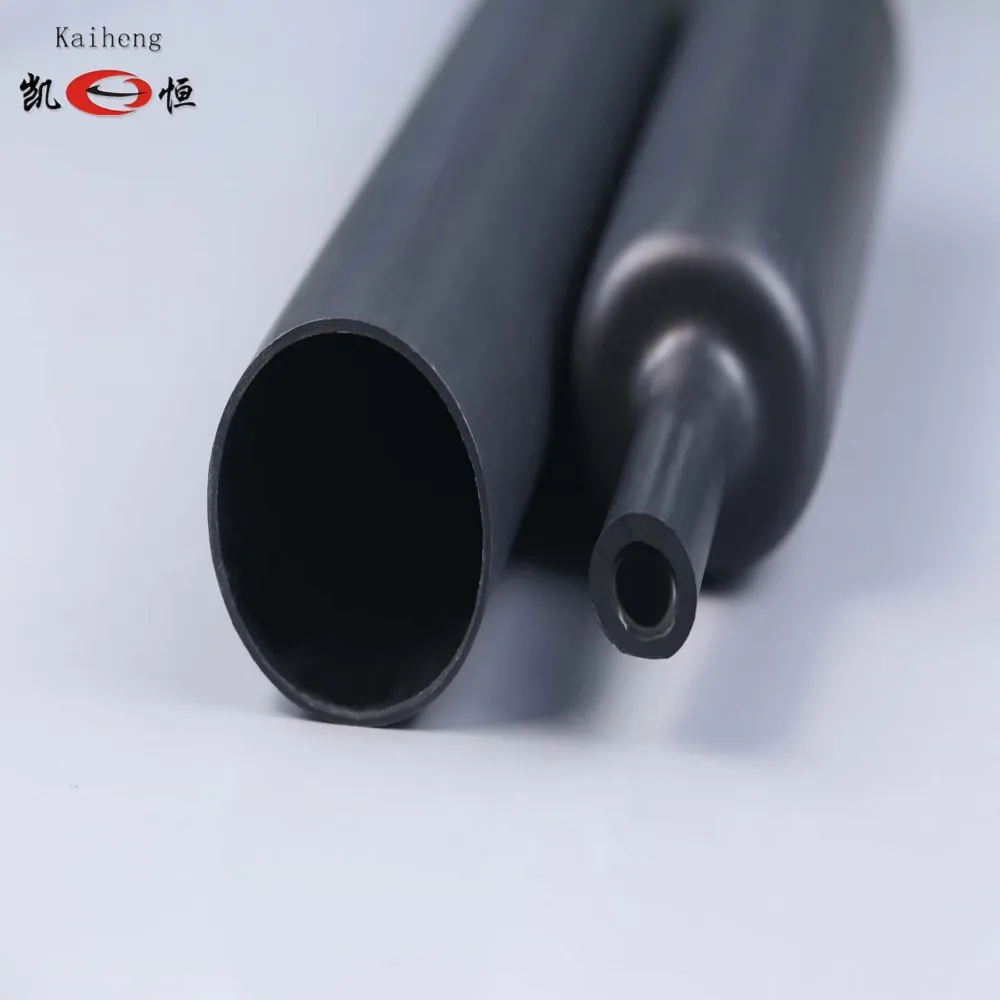

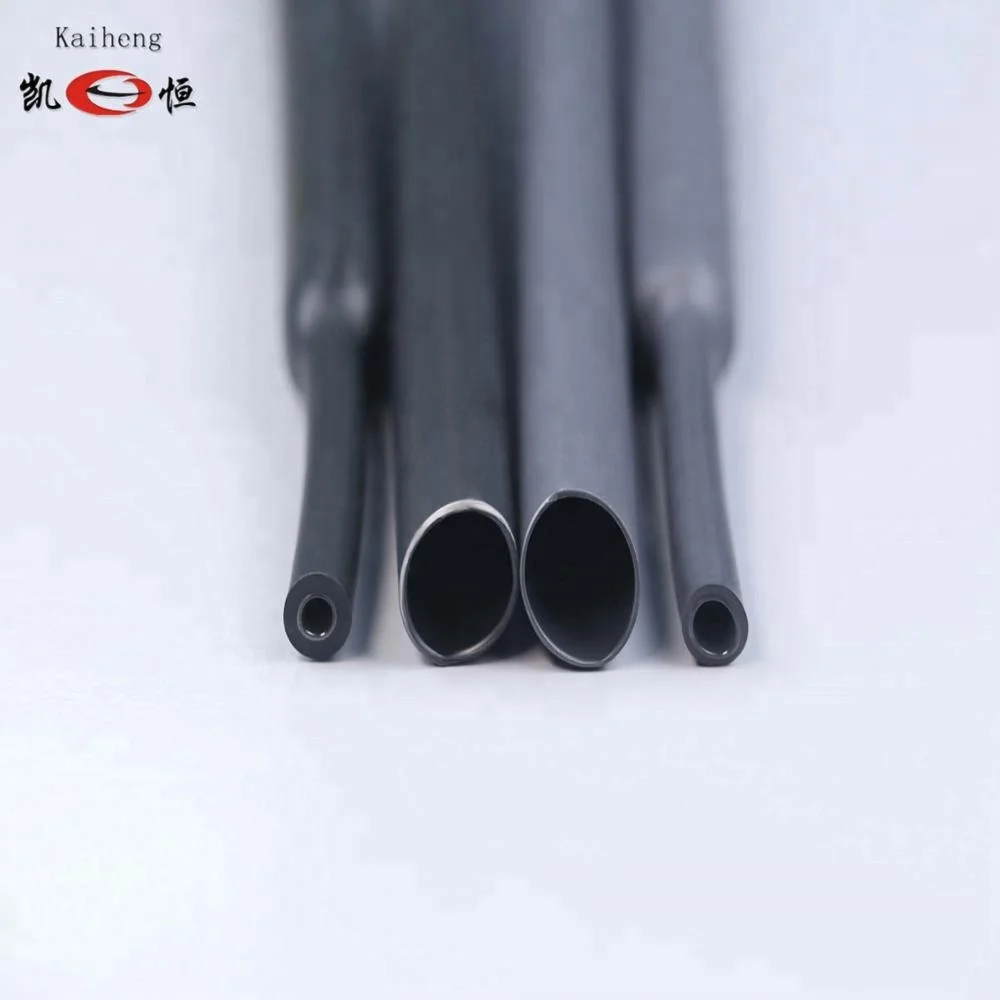

KOSOO DW (3:1, 4:1) is a flexible, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of
polyolefin and hot-melt adhesive. Inner is hot-melt adhesive with good stickness and outer is flexible, irradiated cross-linked
polyolefin. It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture
and corrosion. High shrink ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets
without removing connectors.




Features/Benefits
* Shrink ratio: 3:1, 4:1.
* Environmentally seals and protects components, joints and interconnections from fluids, moisture and corrosion.
* Good mechanical, electrical and chemical properties.
* Adhesive has good stickness and bonds to a wide variety of plastics, rubbers and metals.


Specification Values


Requirement
Physical：
Longitudinal shrinkage
-10 % ～ 10 %
Tensile strength
9.0MPa min.
Elongation
200% min.
 Heat shock
No cracking, dripping or flowing
Aging158℃,168hrs
Tensile strength after aging
70% of original min.
Elongation after aging
100% min.
Electrical：
Dielectric voltage
 2500V, 60sec
Volume resistivity
1012Ω·cm min.


Product sizes


Size
(inch/mm)
As suppied（mm）
After recovery （mm）
Standard length
（m/length,
m/spool）
Inside diameter
(min.)
Inside diameter (max.)
Wall thickness*
3：1
1/8(3/1)
3.0
1.0
1.00±0.28
1.22/200
3/16(4.8/1.6)
4.8
1.6
1.00±0.28
1.22/100
1/4(6/2)
6.0
2.0
1.00±0.28
1.22/100
3/8(9/3)
9.0
3.0
1.40±0.28
1.22/50
1/2(12/4)
12.0
4.0
1.78±0.38
1.22/50or25
3/4(18/6)
19.0
6.0
2.25±0.55
1.22/25
1(24/8)
24.0
8.0
2.54±0.55
1.22/25
1 1/2(39/13)
39.0
13.0
2.54±0.55
1.22/20
2（51/17）
51
17
2.54±0.55
1.22/20
4：1
4/1
4.0
1.0
1.00±0.28
1.22/100
8/2
8.0
2.0
1.00±0.28
1.22/50
12/3
12.0
3.0
1.40±0.28
1.22/50
16/4
16.0
4.0
1.78±0.38
1.22/25
24/6
24.0
6.0
2.25±0.55
1.22/25
32/8
32.0
8.0
2.54±0.55
1.22/20
52/13
52.0
13.0
2.54±0.55
1.22/20


Wall thickness includes adhesive wall thickness.


Ordering information
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Specification


item
value
Place of Origin
China
Guangdong
Brand Name
kosoo
Model Number
KS-DW
Type
Heat Shrinkable
Material
PE
Tensile Strength
≥10.4Mpa
Work temperature
-55 to 105℃
Material
PE, Polyolefin
Type
Insulation Sleeving


Packing & Delivery




Standard packing for heavy wall heat shrinkable tube:cut 1.22m / Pcs, carton out packing


Company Profile






Guangzhou Kaiheng Enterprise Group Co., Ltd. is a diversified group primarily involved in the research and development, sales and production of new polymer materials, heat shrinkable tubing, cross-linked special wires and cables, PVC tubing and other electronic products. Our company enjoys convenient transportation and beautiful surroundings.

Covering an area of more than 100,000 square meters, our factory is composed of modern standard plants, office buildings and R&D centers. Since our establishment, our group and our underling companies have kept up a strong development momentum by adhering to the corporate tenet to have good faith and be united, to stick to our words, to succeed with science and technology, and to keep abreast of the time.

We have a strong technical team consisting of professors, experts and engineers of profound background, and have set up a research and development center on polymer materials on a cooperative basis with the local government. Through both internal development of new solution for tomorrow's challenges and the acquisition of advanced equipment and technologies, we will deliver even more value to our customers. Our expertise in material science, product design and process engineering allows us to develop, manufacture and sell high-performance, superb quality products.

We sincerely welcome customers from around the world to cooperate with us for mutual benefit.


FAQ


Q1. What is your terms of packing?
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing
for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
