Пульт дистанционного запуска EASYGUARD CAN BUS подходит для benz E класса 17-20/18-20 S класса/2019 A с кнопкой и остановки

Dear Customers,

This is EASYGUARD PLUG AND PLAY CAN BUS PKE kit with remote engine start system fit for following BENZ cars with OEM/factory/original push start button Gas engine only:

Important:

1. Please confirm the car model and year with seller before buying. You may need to send some photos of the car original key, ignition cylinder etc.

2. Need to remove the ignition cylinder and solder it, professional car alarm technician installation only!!! Please pay attention about this point.

3. Soldering the key PCB --- once finish soldering, remember to take out the battery from the remote.

If your car is with factory oem push button, please contact seller for more details,

We have some more products fit for other Benz cars, see below chart for the list.

Main features:

1. Compatible with oem/factory Push button start/stop

2. PKE-passive keyless entry

3. Manual arm/lock

4. Manual disarm/unlock

5. Mute alarm/audible alarm

6. Remote trunk release

7. Panic mode/car finding

8. PKE on/off setting

9. Remote engine start/stop

12.Alarm trigger by illegal door opening

13.Central door locking automation

14.Intelligent power off in arm status

15. Door not well closed reminder

16.Alarm reminder

17.Door opening while driving warning

18.Power saving & car battery low power protection

19.Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)

20.Remote open the window (optional, only some car models are supporting this feature)

21.Programming method

Advantage

1. Plug & play with OBD2 connector & T-harness, no damage to the original car circuit, CAN BUS compatible, only need to connect a few wires and solder the ignition cylinder.

2. Upgrade your push button start vehicle to remote start stop with PKE-passive keyless entry function.

3. Although the device is plug & play, we recommend you install it by a trained alarm installer or professional alarm installer, if you have no alarm installation experience. or if you don't know how to remove the cars trim/dashboard panels or don't know where the wire harness is connected.

Pls note that due to safety shipping consideration, we have to take out the battery from remote control as the courier does not allow to ship products with battery. The battery for this car alarm is button cell CR2032 battery.

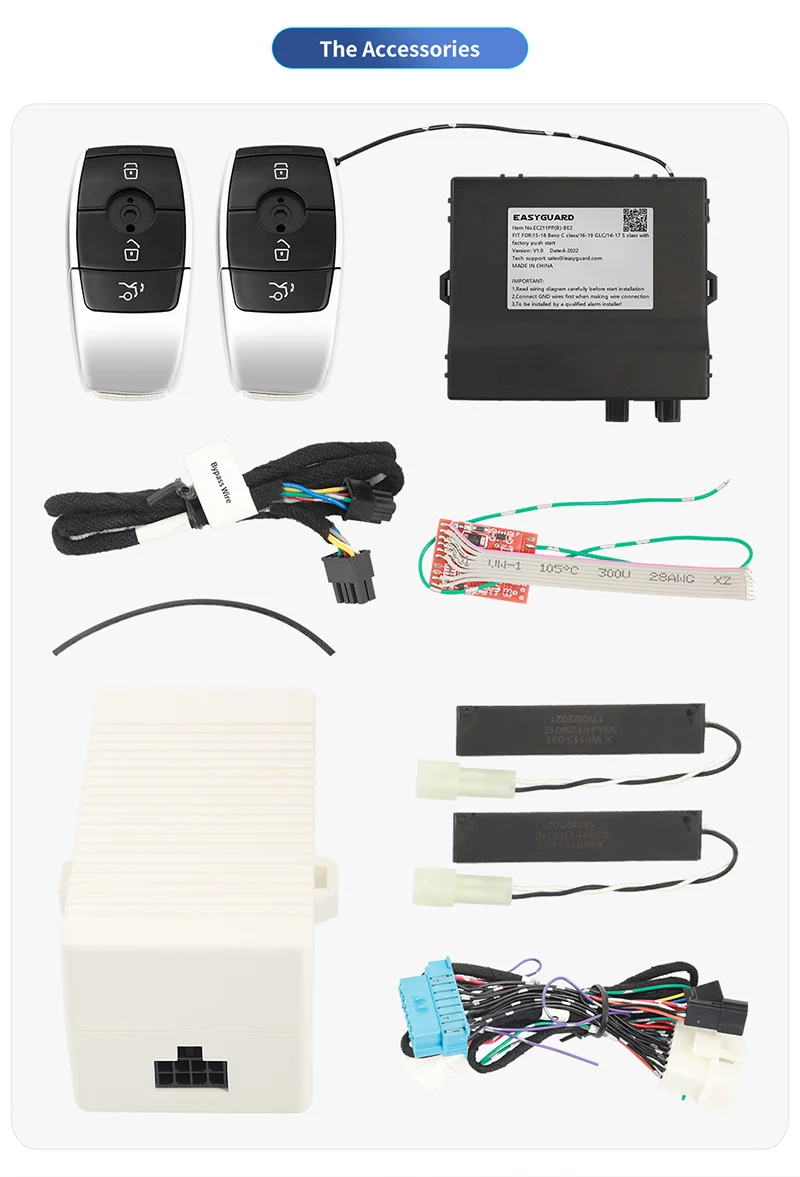

Packing information

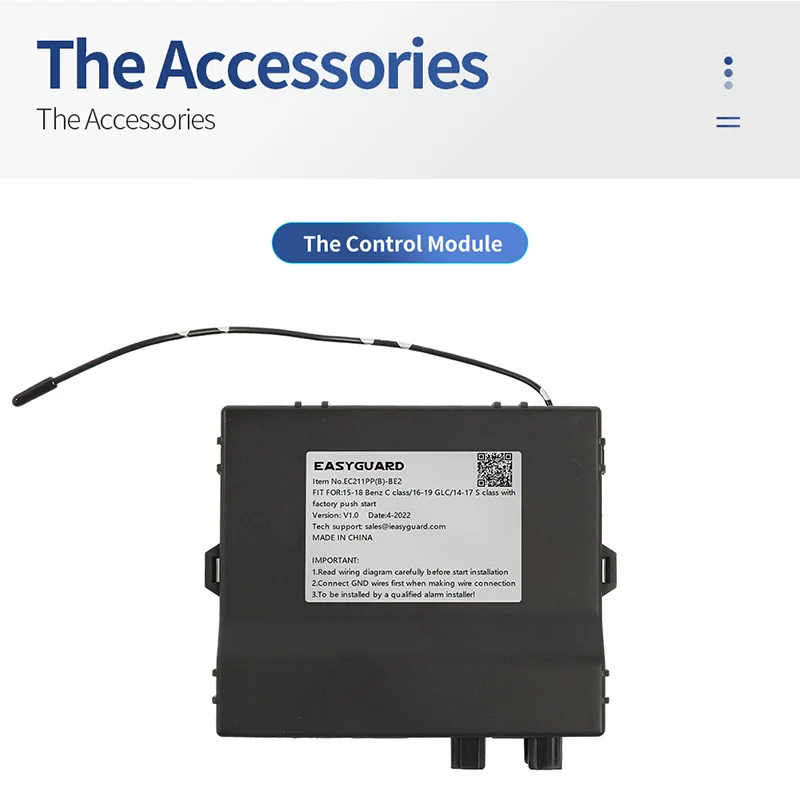

Brain x 1

Remote control x 2

PKE antenna x 2

Wire harness x 2

English user manual & installation guide x 1

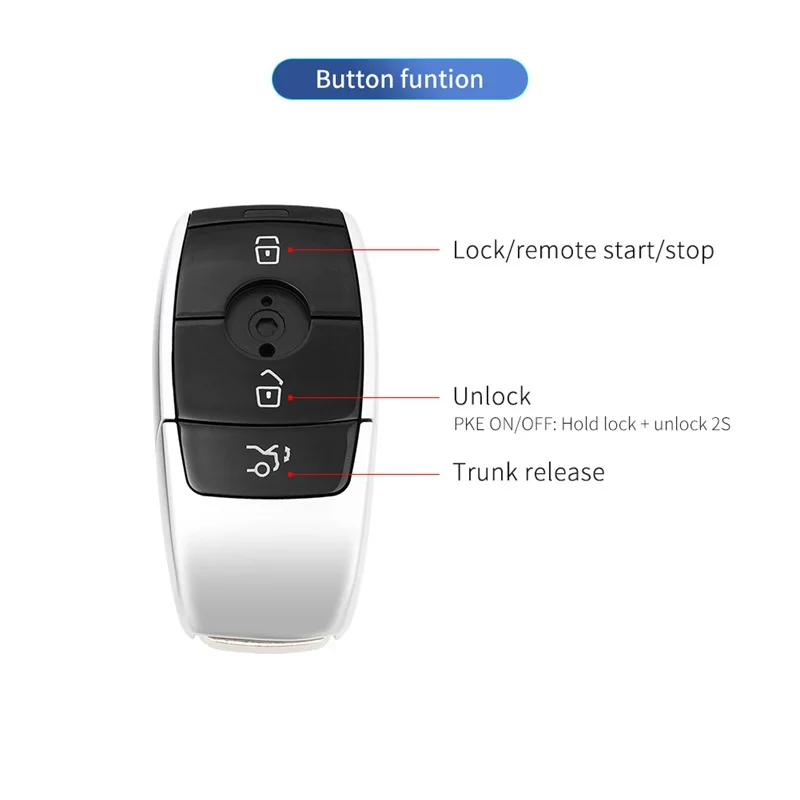

Common use function

1. Lock: press the lock button once

2. Unlock: press the unlock button once

3. Trunk: keep pressing the trunk button to release the trunk

4. Finding car/Panic mode: press the finding car button (lock button) once

5. Automatically window roll up & down by remote (optional function, only available for some cars supporting this feature)

6. To enable or disable PKE feature(PKE ON/OFF setting)

In lock status, keep pressing the lock and unlock button together for about 2s, the siren sounds 4 times means turn on the PKE, siren sounds 3 times means turn off the PKE.

7. Mute alarm & audible alarm

In lock status, keep pressing the lock and trunk button for about 2s, the siren sounds 4 times means turn on the audible alarm, siren sounds 3 times means turn on the mute alarm mode

8. Remote engine start:

In lock status,ensure all the doors are closed well,keep pressing the lock button for about 2s will remote start the car

9. Remote engine stop:

After remote start, make sure in lock status and all the doors do not open, keep pressing the lock button for about 2s will remote stop the car

remove the ignition cylinder and solder---professional car alarm technician installation only!!!
