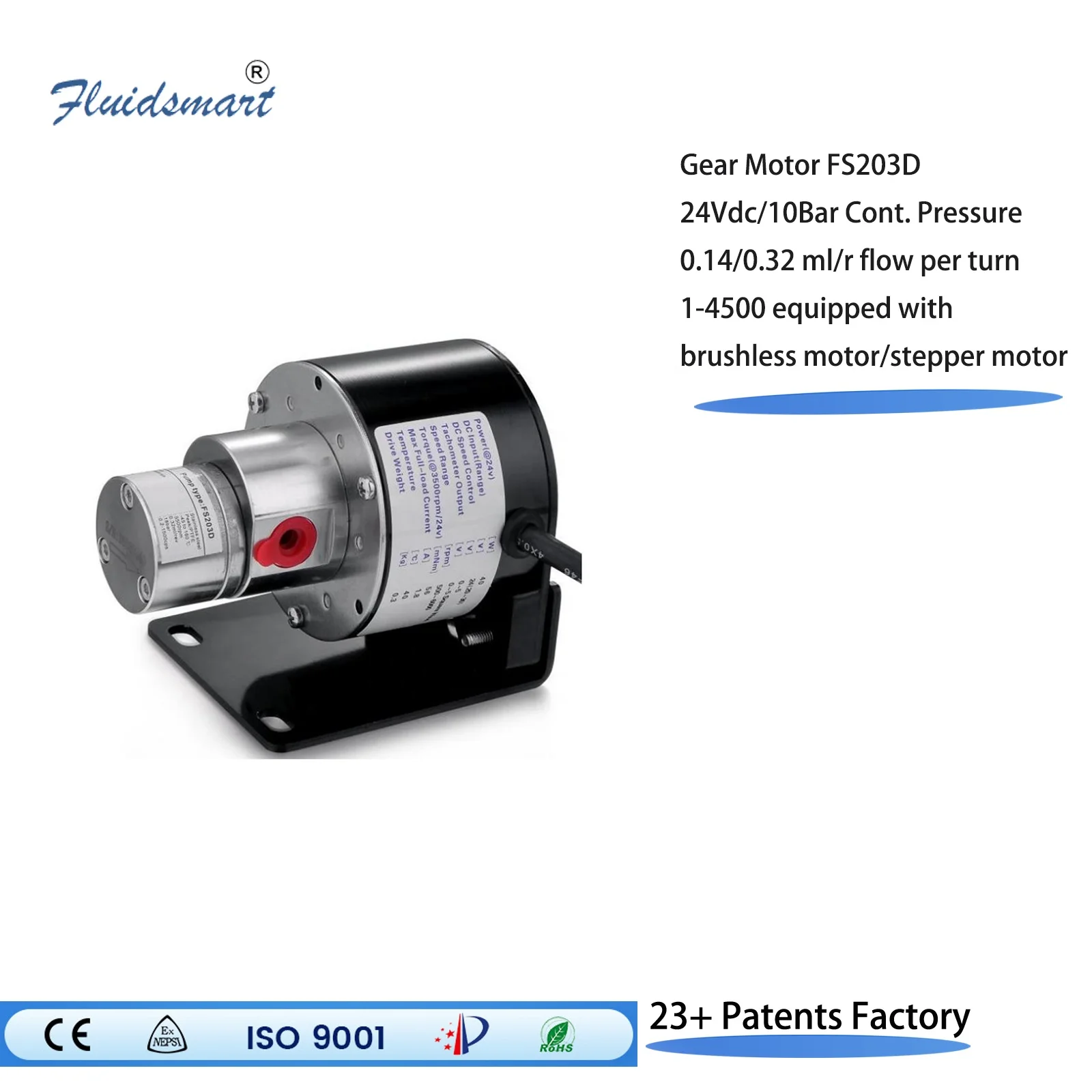

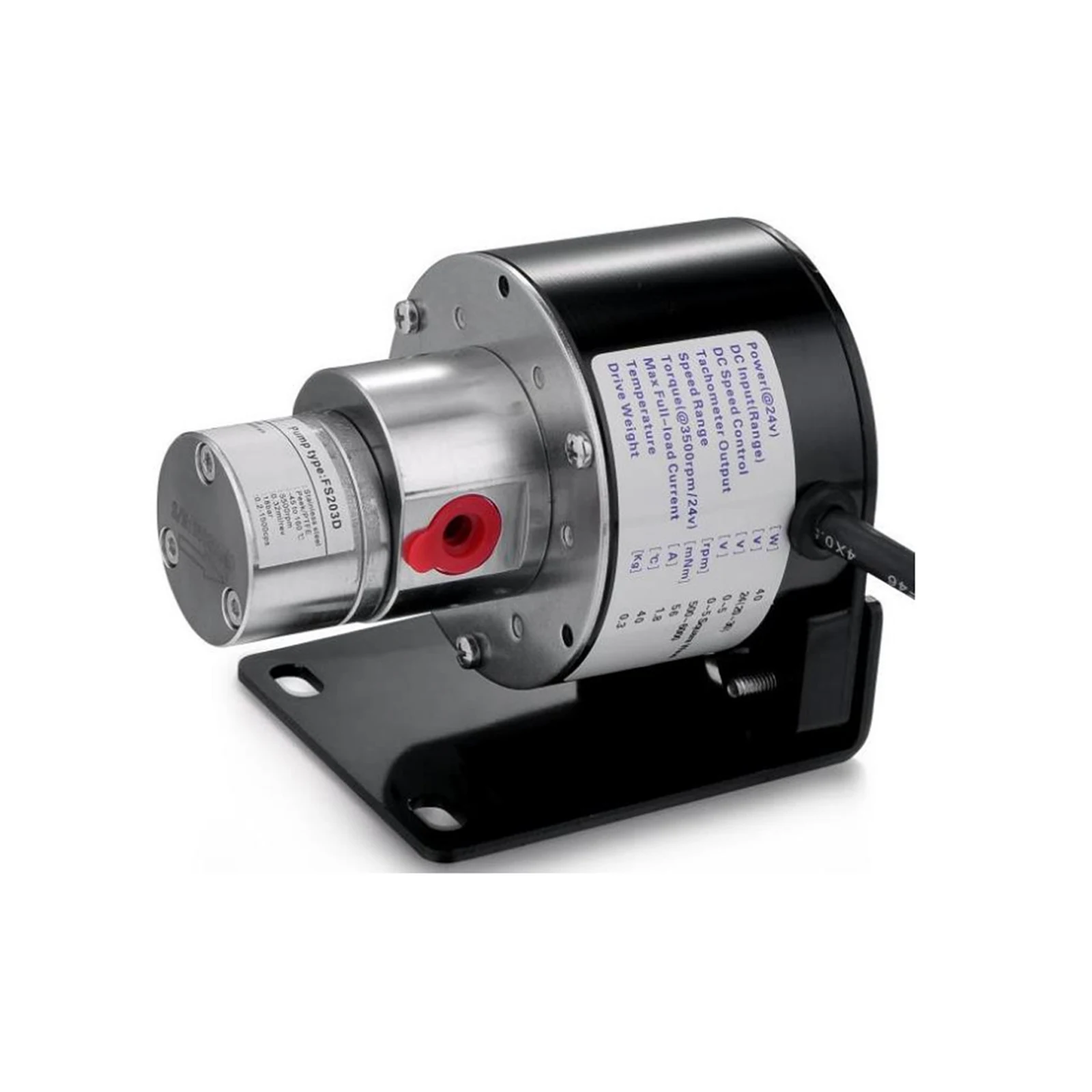

24vdc Gear Pumps
Features
* Low noise without pulsation
* Can be installed in any direction
* Super long life, can work without shutdown
* Compact structure with light weight
* Ultra-low power consumption
* 1-4500 equipped with brushless motor/stepper motor
Model: | FS203D |
Voltage range: | 24Vdc |
Max. Conti. Pressure: | 10Bar |
Flow per turn: | 0.14/0.32 ml/r |
Speed Range: | 1-4500 equipped with brushless motor/stepper motor |
Motor type: | 24Vdc brushless motor/stepper motor |
Connector Size: | G1/8 |
Waterproof grade: | IP00/IP50 customized |
Storage environment temp.: | -20℃~60℃ |
Working environment temp.: | 0℃~50℃ |
Pump body material: | 304 stainless steel |
Rotor material: | Rubidium, Iron and Boron |
Rotor outer plastic material: | PPS |
Gear / Sleeve material: | PEEK |
Sealing material: | PTFE |
Applicable viscosity range: | 0~1500cps (meet current less than 1.8A) |
Liquid particles: | diameter less than 20um |
Dimensions(mm): | 96*66*72mm |
Wiring Instructions: | please contact |
