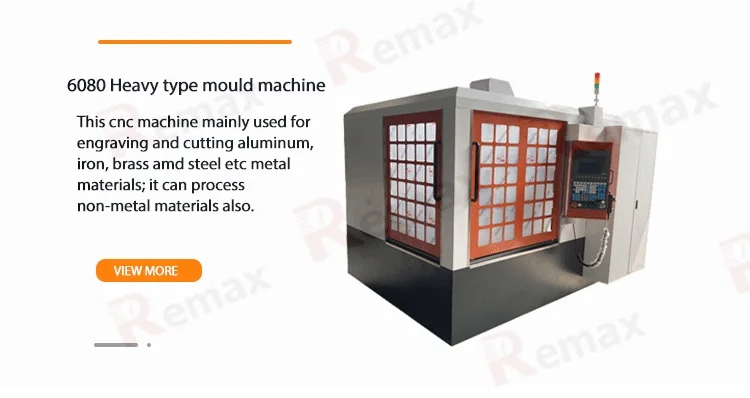

6080 ATC Heavy Duty Metal Milling CNC Router Machine
Feature and parameter
Features:
1.Whole machine cast by iron,very strong and never out shape,rigid,high precision,reliable and durable.
2.Steel dust proof prevent swarf liquid or water and processed debris fall on the guide rail and ball screw,make them rusting,protect the ball screw and guide rail,make the maintenance operation easily.
3.Machine adopts advanced CNC system(NC studio/DSP or Mach3 control system),has break point memory mode to make sure continuous working after electronic drop or other postpone.The system adopts the driver system of high precision ball screws and servo motor,and this assure the high precision of the cutting.
4.High quality all steel liner with high precision,ensure machine frame much stability and durability.
5.Imported high-precision ball screw gap,smooth movement,to ensure that the machine high-precision.
6.The operation of the numerical control controller is simple and convenient, so that users can quickly become familiar with the operation of the machine.
2.Steel dust proof prevent swarf liquid or water and processed debris fall on the guide rail and ball screw,make them rusting,protect the ball screw and guide rail,make the maintenance operation easily.
3.Machine adopts advanced CNC system(NC studio/DSP or Mach3 control system),has break point memory mode to make sure continuous working after electronic drop or other postpone.The system adopts the driver system of high precision ball screws and servo motor,and this assure the high precision of the cutting.
4.High quality all steel liner with high precision,ensure machine frame much stability and durability.
5.Imported high-precision ball screw gap,smooth movement,to ensure that the machine high-precision.
6.The operation of the numerical control controller is simple and convenient, so that users can quickly become familiar with the operation of the machine.
Description | Parameter of cnc milling machine |
Work area | 600*800*300mm |
Main Axle Rotational Speed | 0-24000rpm/min |
Spindle | 7.5kw ATC water cooling spindle |
Motor and driver | Japan YASKAWA 750w servo motor and driver |
Control system | Taiwan SYNTEC 21MA contro system |
Machine structure | Whole machine cast iron |
Transmission | Taiwan PMI linear guide and TBI ball screw |
Auto tool change | Disc 16pcs auto tool changer |
Auto tool sensor | With |
Inverter | Fuling inverter |
Lubrication system | Auto lubrication system |
Command Language | G Code |
Working Voltage | AC220/380V 50/60Hz |
Relative Humidity | 30%-75% |
Detailed Photos
Samples
Customer visit and feedback

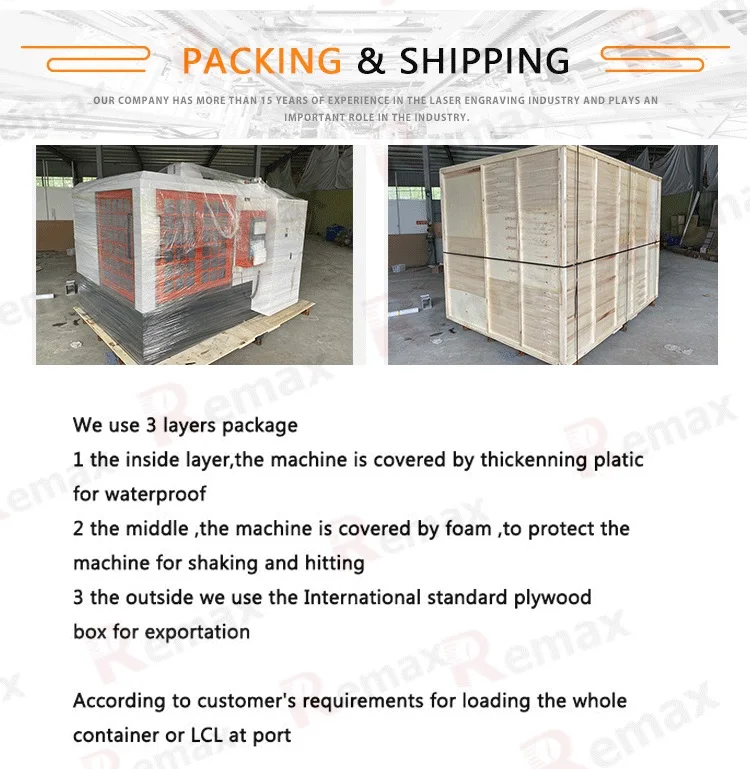

Packing & Delivery
Company Profile
FAQ
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail /whatsapp/wechat/trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail /whatsapp/wechat/trademanager online service at any time.
B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.
If the parts less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.
D How can I buy this machine from you? ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
6. Send your order by air or by sea.
