Product Description
Huawei PowerEdge Pro 2288H V5 Server Intel Xeon network rack server2U 24bay Intel Xeon Gold 6128 Processor

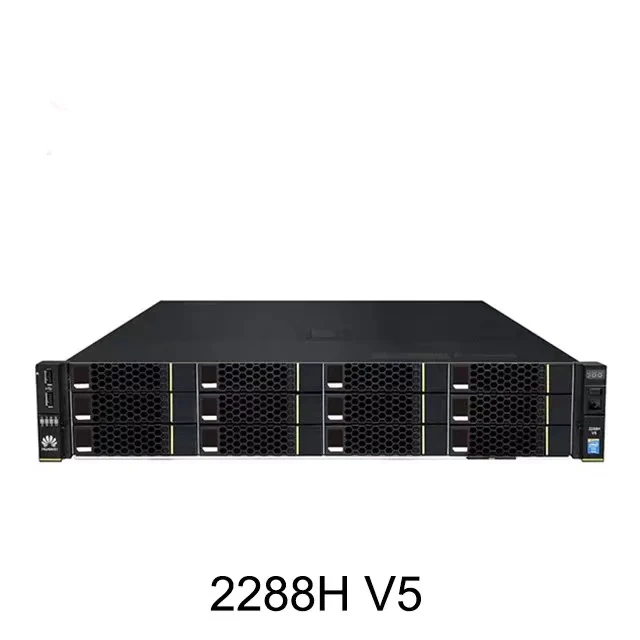

Huawei FusionServer Pro 2288H V5 is a 2U 2-way rack server with flexible configuration and can be widely used in cloud computing virtualization, database, big data and other loads. 2288H V5 can be configured with 2 processors, 24 DDR4 memory expansion slots, 10 PCIe expansion slots and up to 20*3.5” or 31*2.5” local storage resources (4/8/12/24/28 can be configured NVMe SSD hard drive). Integrated DEMT intelligent power management, FDM intelligent fault management and other patented technologies, and optional Huawei FusionDirector full life cycle management software, can effectively reduce operating costs and improve return on investment.
1.Support 2 processors, support 24 DDR4 memory, support maximum 20*3.5" or 31*2.5" local hard disk configuration, NVMe models can be configured with 4/8/12/24/28*NVMe SSD.

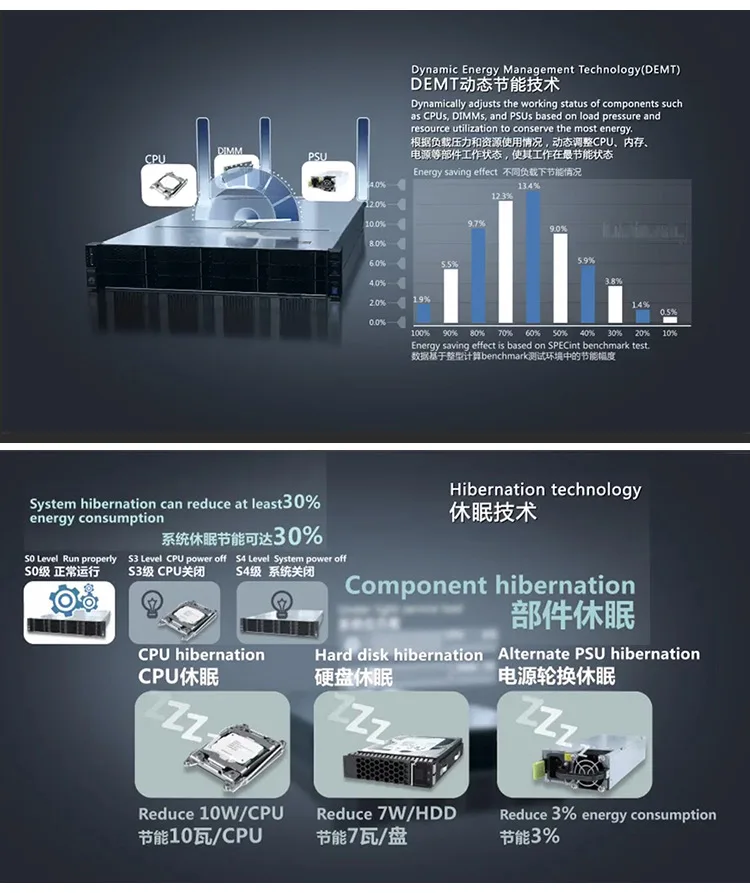

2.DEMT smart energy-saving strategy, multi-dimensional energy-saving technologies such as component hibernation, power supply shut-down, PID energy-saving speed regulation, power supply main and backup power supply, etc., energy saving; 550W/900W/1200W/1500W and other different power modules are optional, 1200W/1500W Adopt direct current and high voltage direct current HVDC technology to improve energy efficiency.
Intelligent operation and maintenance throughout the life cycle, FDM in-depth fault diagnosis technology, core component fault
diagnosis accuracy rate of 93%; onboard network card meets the needs of network high IO business, simple configuration;
standardized open interfaces and development guides, easy to third-party management software without Sewing integration.
diagnosis accuracy rate of 93%; onboard network card meets the needs of network high IO business, simple configuration;
standardized open interfaces and development guides, easy to third-party management software without Sewing integration.
Model | HUAWEI FUSIONSERVER PRO 2288H V5 INTEL XEON SLIVER 3104, 16GB, 1TB 2U RACK SERVER |
Form Factor | 2U, 2-socket rack server |
Processors | 1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
Memory | 24 DDR4 DIMM slots, up to 2,666 MT/s |
Local storage | Supports the following hard drive configuration options: * 8 x 2.5-inch SAS/SATA HDDs or SSDs * 12/16/20 x 3.5-inch SAS/SATA HDDs * 4, 8, 12, 24, or 28 NVMe SSDs * 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: * 2 M.2 SSDs |
RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection Supports RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
Network Ports | LOM: 2 x 10GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, or 1/2 x 56G FDR IB ports |
PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC. |

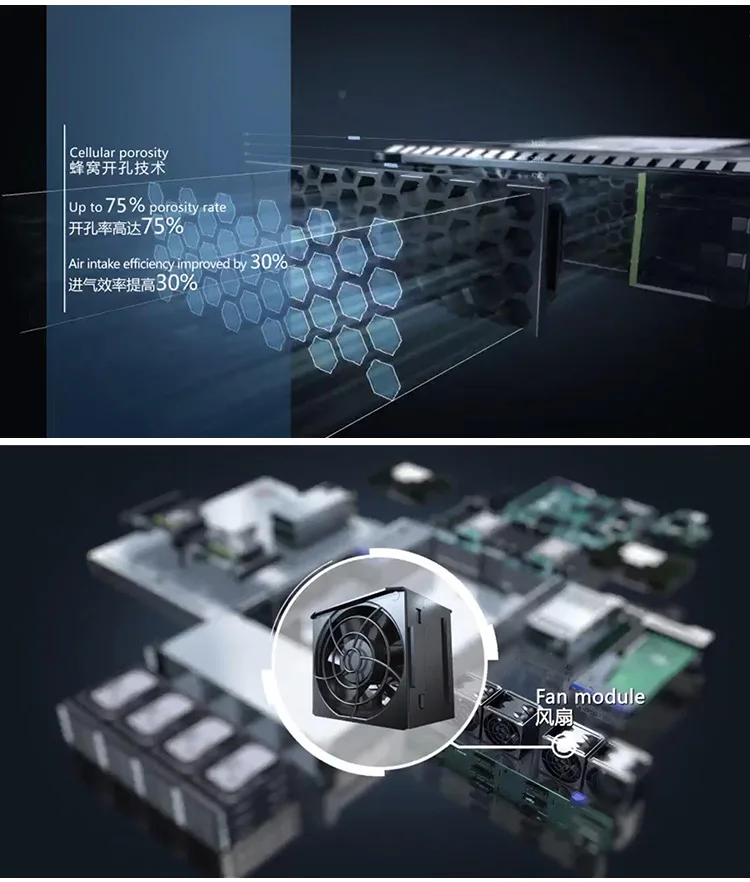

Fan Modules | 4 hot-swappable counter-rotating fan modules with support for N+1 redundancy |

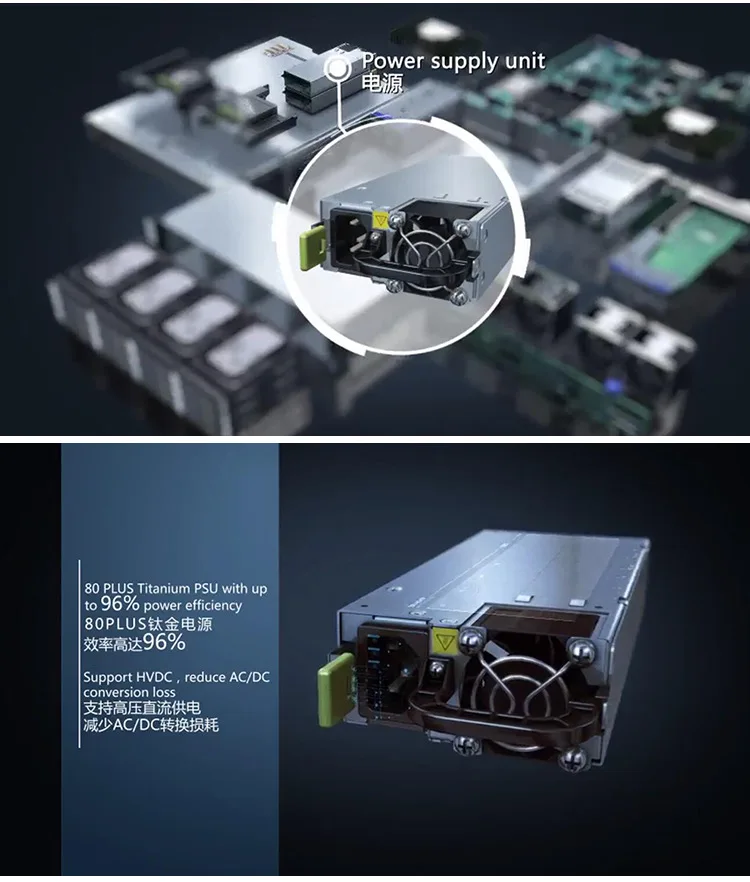

Power Supply Units | Can be configured with two hot-swappable PSUs in redundancy and supports N+1 redundancy. The server supports the following PSUs: • 460 W or 750 W AC or DC PSU • 800 W –48 V DC PSU • 1200 W high-voltage DC PSU |
Management | The on-board iBMC module supports Intelligent Platform Management Interface (IPMI), SOL, KVM over IP, and virtual media and provides a 1 Gbit/s RJ45 management network port supporting Network Controller Sideband Interface (NC-SI). |
Power supply units | 2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options (Note 1): 550 W,900W,1000W,1200 W,1500 W |
Power supply | 110 V to 220 V AC 240 V to 380 V DC –48 V DC |
Host Operating System | FusionSphere 6.3 |
Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.) |
Installation suite | Guide rails Adjustable holding rails |
