Грузовик для очистки сточных вод HOWO 5000L вакуумный танкер резервуар из
- Категории: Sewage Suction Trucks >>>
- Поставщик: Hubei,Runli,Special,Automobile,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
5000L HOWO Sewer Cleaning Truck Fecal Sewage Vacuum Suction Tanker Truck Stainless steel vacuum Tank Call Ms.Pinky Whastapp: 0086 15897603919
1. combination vacuum truck include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. combination vacuum truck , Self-discharge and self-suction.
3. The Truck Mounted Vacuum Cleaner Sewage Body can Self Dumper;
4. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
2. combination vacuum truck , Self-discharge and self-suction.
3. The Truck Mounted Vacuum Cleaner Sewage Body can Self Dumper;
4. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.

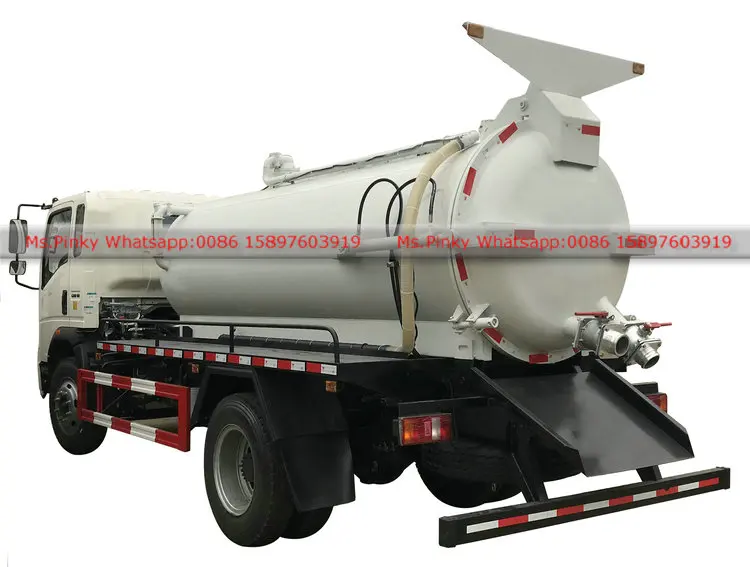

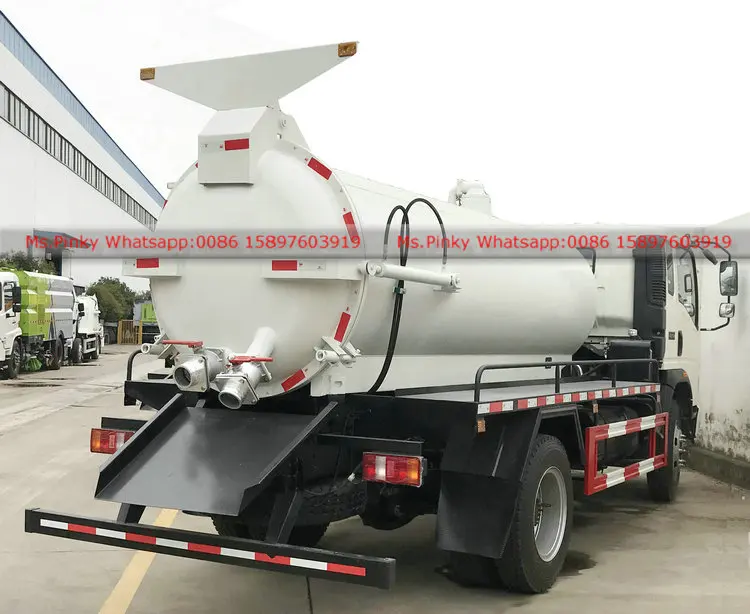

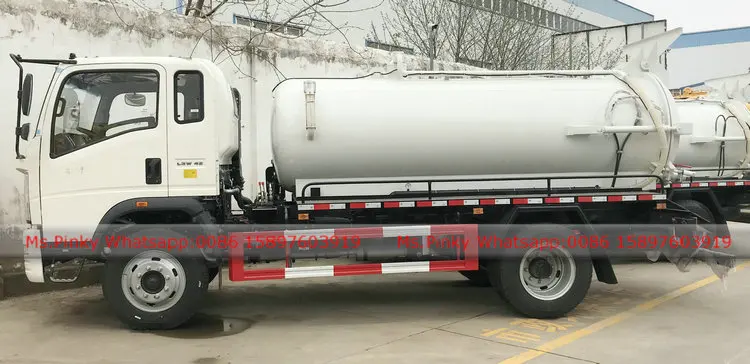

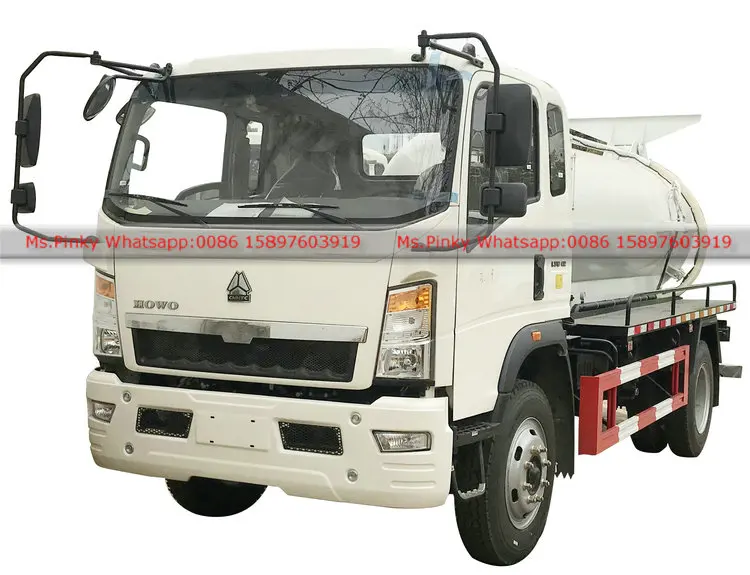

5000L HOWO Sewer Cleaning Truck Fecal Sewage Vacuum Suction Tanker Truck Stainless steel vacuum Tank
Chassis model: HOWO
Color: White body and blue cabin optional
Drive type: LHD

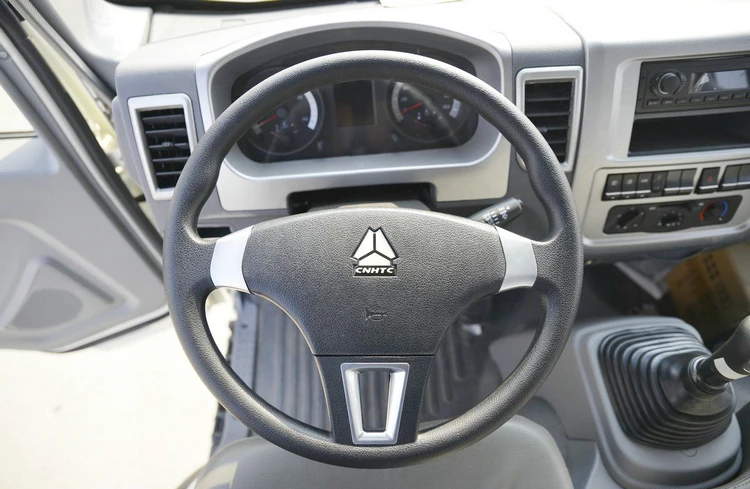

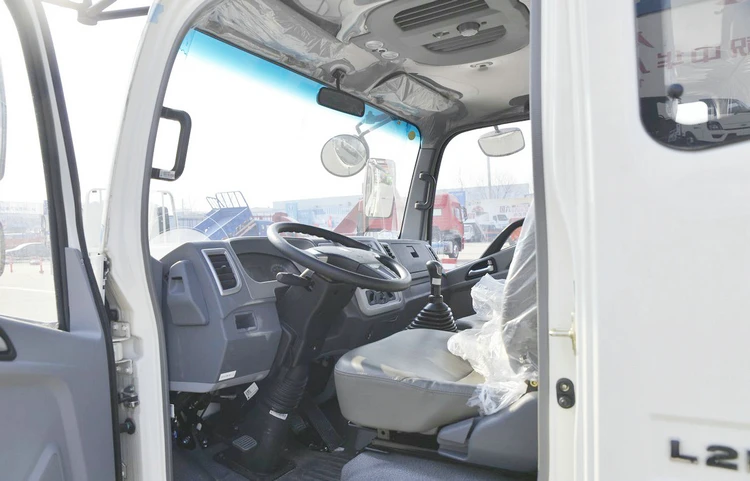

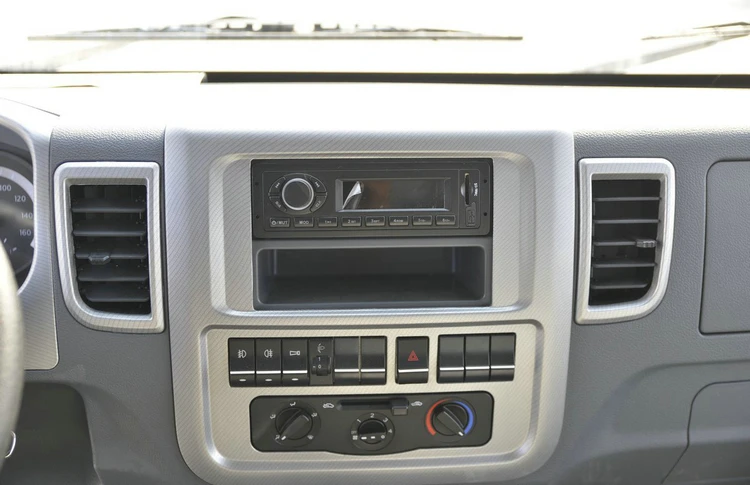

Cabin: with A/C
Engine Model:YC4E160-33
Engine power: 118KW / 160HP
Displacement:4216CC
Wheelbase: 3800mm
Tyre:7.50R16
Capacity of tank body:5000Liters
With Vacuum Pump
Color: White body and blue cabin optional
Drive type: LHD
Cabin: with A/C
Engine Model:YC4E160-33
Engine power: 118KW / 160HP
Displacement:4216CC
Wheelbase: 3800mm
Tyre:7.50R16
Capacity of tank body:5000Liters
With Vacuum Pump
The Specification of 5000L HOWO Sewer Cleaning Truck Fecal Sewage Vacuum Suction Tanker Truck Stainless steel vacuum Tank
Products Technical Specification | ||
Type | HOWO 5000L Sewage Suction Truck | |
Brand | HOWO 4*2 Right hand drive with air condition | |
Cab | power steering | |
Vehicle Description | ||
Overall dimensions（mm） | 7300×2390×3000 | |
Curb weight(vehicle) (kg) | 5920 | |
Loading capacity (kg) | 5Tons | |
Max speed (Km/h) | 95 | |
Engine | ||
Mode | YC4E160-33 | |
Type | Diesel, 4-cylinder in line with water cooling, | |
Displacement(ML) | 4260 | |
Company of engine | YunLei Engine | |
Chassis Description | ||
wheelbase | 3800mm | |
Gear box | 5 forwards 1 reverse | |
axle | 2.7T Front axle/ 7.2 Tons Rear Axles | |
tire | 7.50R16 | |
Air brake | ||
Capacity of tank body | 5000Litres | |
Other | Capacity: 5.0CBM. Vacuum pump Max presure: 70 MPA Time: 45 s Pipe length: 5-6m Pipe Diagaram: 75 mm Tank thickness: 5mm, rear cover 6mm. | |
Vacuum pump is drive by PTO, to self-suck and self-discharge by four-way valve. This truck can suck the mud, sewage, dejection and the dirty water with small stone under by vacuum pump | ||
Detail Equipment of 5000L HOWO Sewer Cleaning Truck Fecal Sewage Vacuum Suction Tanker Truck Stainless steel vacuum Tank:
HOWO Sewage Suction Truck:
Combi Vacuum Jetting Truck , Vacuum Sewage Suction Truck , Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed≥800r/m, max suction lift ≥6m, vacuum 500mmHg, clockwise)
Equipped withpower take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full suction<5min
Sewage Suction Truck, Vacuum Sewage Suction Truck Equipment is designed to collect, by suction, and transport the . Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO mounted to the gearbox of the vehicle. All the functions and the load distribution of the equipment are properly arranged to the technical specifications of the chassis on which it is mounted.
Equipped withpower take off, transmission shaft, fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full suction<5min
Sewage Suction Truck, Vacuum Sewage Suction Truck Equipment is designed to collect, by suction, and transport the . Cesspit emptier consists of a subframe connected to the vehicle's chassis. A cylindirical tank, a hydraulically openning full diameter tailgate and the vacuum system powered by the PTO mounted to the gearbox of the vehicle. All the functions and the load distribution of the equipment are properly arranged to the technical specifications of the chassis on which it is mounted.
Company Profile
Hubei Runli Special Automobile Co., Ltd. is located in Suizhou City, which is China special automobile industry city. Our company
covers an area of more than 166,000 square meters. We focus on the production of special automobile with export rights authorized
by the Ministry of Information Industry and Ministry of Commerce. Our company is licensed as the first tanker pressure
manufacturer by AQSIQ and is the only private enterprise which gets military quality system certification. Our company is also the
"100 key Enterprises in Hubei Province" and "Hubei Province Two Safety Standards Enterprise".
Hubei Runli Special Automobile Co., Ltd. is a special automobile corporation which integrates research, manufacture, and service
in one. Our company has 300 types of special vehicles in more than ten series including tank trucks, fire trucks, mobile machinery
shops, sprinklers, semi-trailers, pressure vessels, and more.
Our Client:
Our company's products have been exported to different countries and regions, including Central America: the Republic of Costa
Rica, Panama Republic, Trinidad and DOPA Republic.
South America: the Republic of Columbia, the Republic of Venezuela, the Republic of Ecuador, Peru, the Republic of Bolivia, Chile,
the Republic of Paraguay.
Africa: Ethiopia, Angola, Botswana, Burundi, Equatorial Guinea, Togo, Gambia, Republic of the Congo, Djibouti, Guinea, Ghana,
Gabon, Zimbabwe, Cameroon, Equatorial Guinea, Kenya and Liberia, Rwanda, Madagascar, Mali, Mozambique, Namibia, Nigeria, Sierra
Leone, Somalia, Tanzania, Uganda and Zambia.
Asia: the United Arab Emirates, Philippines, Cambodia, Qatar, Kyrgyzstan, Mongolia, old tart, Turkmenistan, Kazakhstan,
Tajikistan, Georgia, Uzbekistan, Afghanistan, Vietnam, Myanmar, Bangladesh. Papua: Oceania New Guinea, Fiji, Kiribati, Nauru,
etc..
covers an area of more than 166,000 square meters. We focus on the production of special automobile with export rights authorized
by the Ministry of Information Industry and Ministry of Commerce. Our company is licensed as the first tanker pressure
manufacturer by AQSIQ and is the only private enterprise which gets military quality system certification. Our company is also the
"100 key Enterprises in Hubei Province" and "Hubei Province Two Safety Standards Enterprise".
Hubei Runli Special Automobile Co., Ltd. is a special automobile corporation which integrates research, manufacture, and service
in one. Our company has 300 types of special vehicles in more than ten series including tank trucks, fire trucks, mobile machinery
shops, sprinklers, semi-trailers, pressure vessels, and more.
Our Client:
Our company's products have been exported to different countries and regions, including Central America: the Republic of Costa
Rica, Panama Republic, Trinidad and DOPA Republic.
South America: the Republic of Columbia, the Republic of Venezuela, the Republic of Ecuador, Peru, the Republic of Bolivia, Chile,
the Republic of Paraguay.
Africa: Ethiopia, Angola, Botswana, Burundi, Equatorial Guinea, Togo, Gambia, Republic of the Congo, Djibouti, Guinea, Ghana,
Gabon, Zimbabwe, Cameroon, Equatorial Guinea, Kenya and Liberia, Rwanda, Madagascar, Mali, Mozambique, Namibia, Nigeria, Sierra
Leone, Somalia, Tanzania, Uganda and Zambia.
Asia: the United Arab Emirates, Philippines, Cambodia, Qatar, Kyrgyzstan, Mongolia, old tart, Turkmenistan, Kazakhstan,
Tajikistan, Georgia, Uzbekistan, Afghanistan, Vietnam, Myanmar, Bangladesh. Papua: Oceania New Guinea, Fiji, Kiribati, Nauru,
etc..
Factory Room and equipment
professional workshop and worker for different tank truck at Hubei Runli Factory
