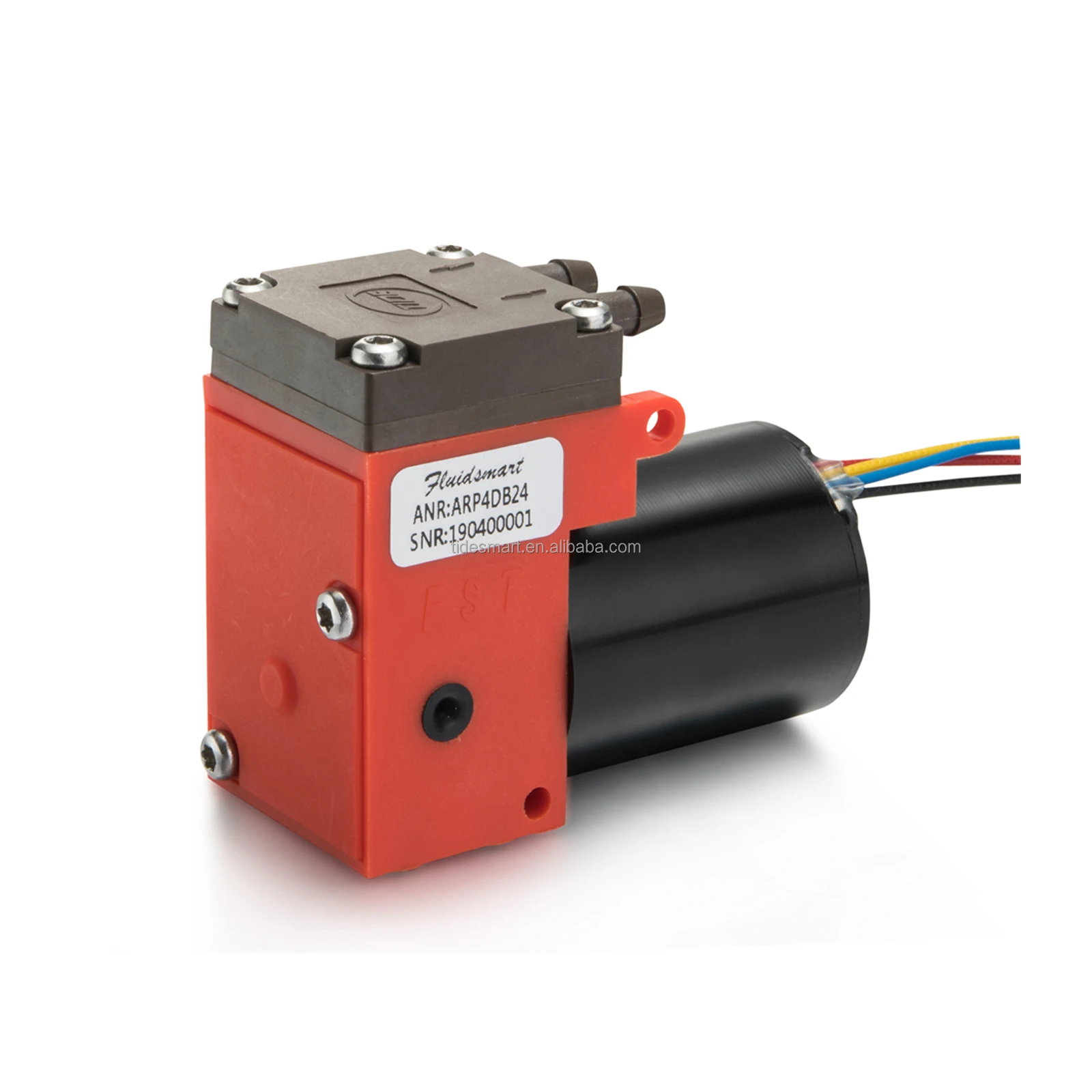

Бесщеточный химический дозирующий насос Fluidsmart ARP4VDB24 12 В химически стойкий
- Категории: >>>
- Поставщик: Tide,Smart,Technology,(Shanghai),Co.,LtdTide,Ltd
Поделиться:
Описание и отзывы
Характеристики

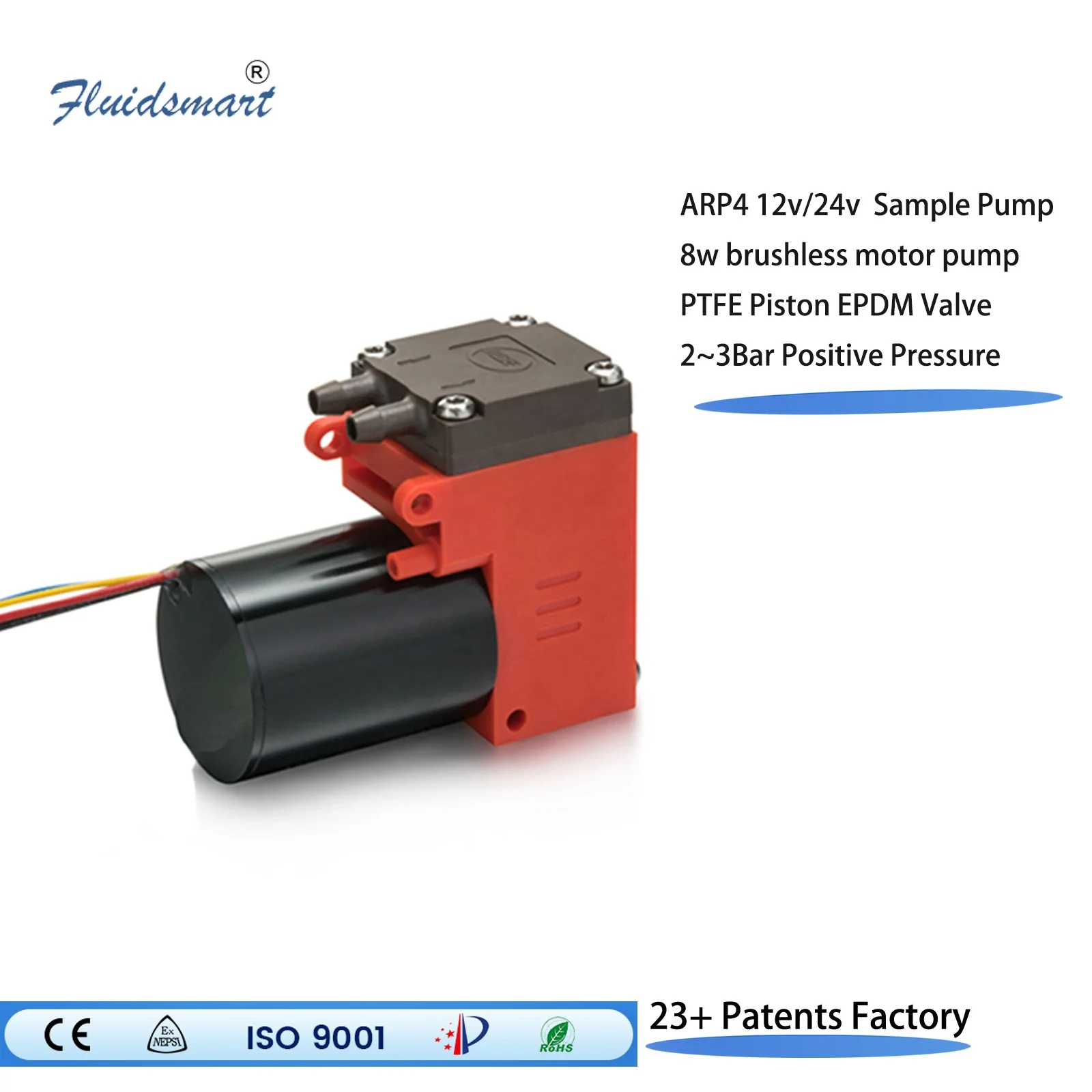

Brushless Sampling Pump 24V
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported PTFE piston cup withstand a variety of gas corrosion
Features
Optimized pump body to ensure small volume, provide large
flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* High performance dc brushed motor >8000hours lifetime
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported PTFE piston cup withstand a variety of gas corrosion
* piston valve: FKM(Anti-corrosion)
Model: | ARP4VDB24 |
Voltage range: | 24VDC |
Maximum flow(in series): | 5.5L/min |
Max. Negative Pressure: | -70KPa |
Max. Positive Pressure: | 2-3Bar |
DMotor type: | Dc brushless motor |
Max. power: | 8w |
Waterproof grade: | IP00 |
Storage environment temp.: | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ |
Pump head material: | Imported PPS |
Pump cup material: | Imported PTFE |
Pump valve material: | Imported FKM |
Pump Body material: | Imported PPS |
Dimensions(mm): | 80*31*54mm |
