Flipsky двойной fsesc 75100 с PCB алюминия 75В 100A контроллер на основе VESC для катания скейтборде/скутера/мотоцикла или электровелосипеда регулятор

Product Advatages

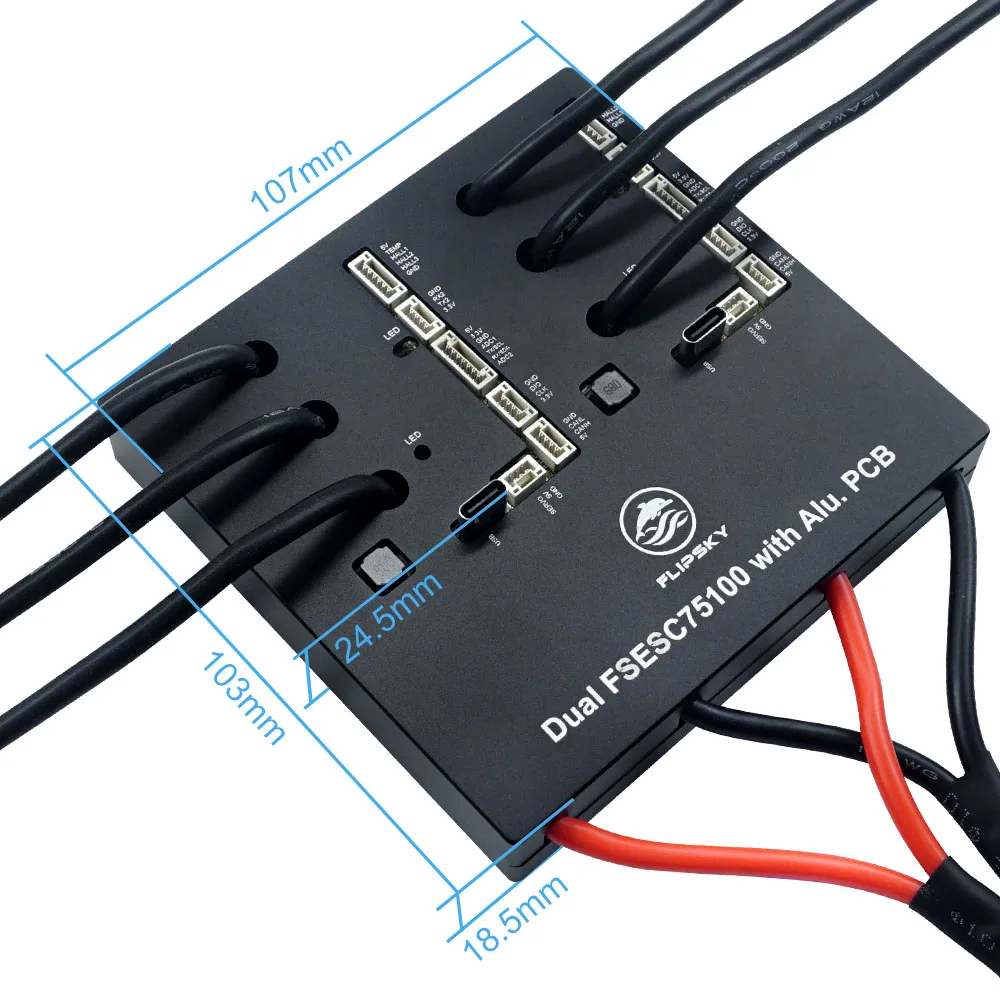

• Size:L107mm*W103mm*H18.5mm


• Voltage:14-84V (4-20S safey)


• Current:continuous max 100A single,dual continuous max 200A,values depend on the mounting  and ambient temperature around the device!


• BEC:5V@1A


• Support BLDC square wave mode control and FOC sine wave mode


• Firmware: latest (firmware update supported)


• ERPM:150000

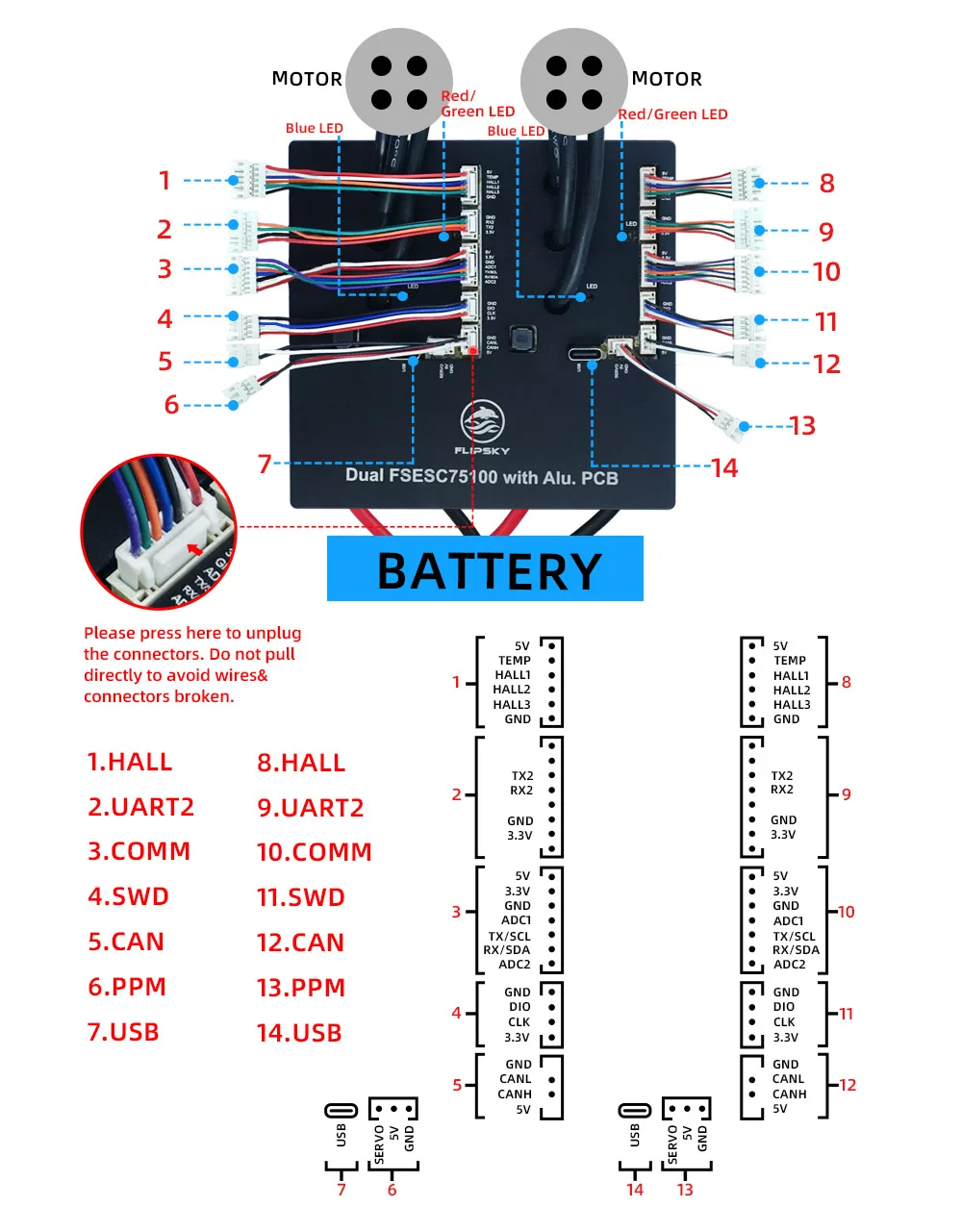

• Control Interface Ports:USB,CAN,UART


• Supported Sensors:ABI,HALL,AS5047,AS5048A


• Input Set Support:PPM,ADC,NRF,UART


• Wire Size: 12AWG


• Programmable: Yes


• Regenerative Capacity: Yes

Warm tips:

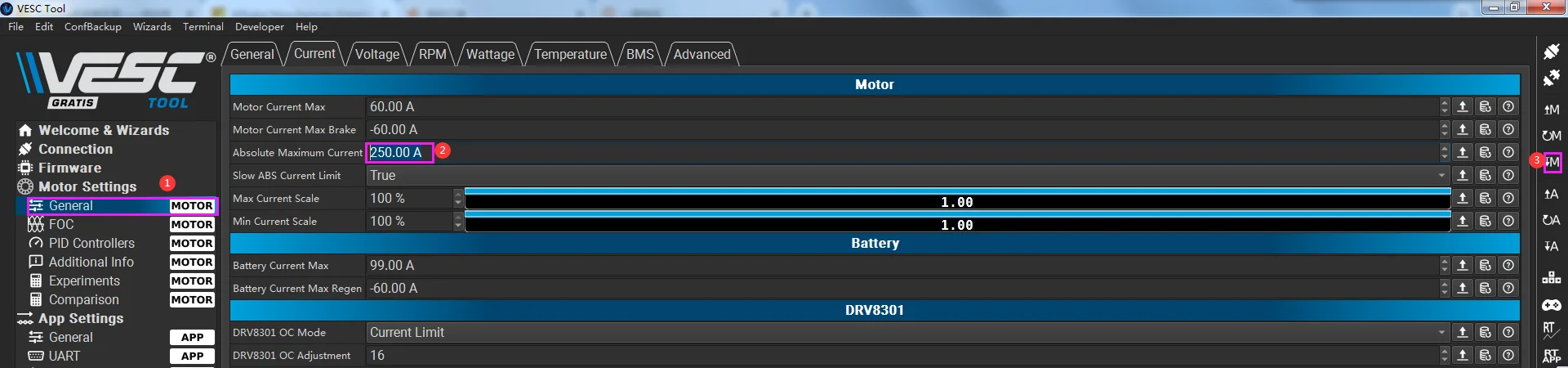

lease be careful to limit the Absolute Maximum Current below 250A.

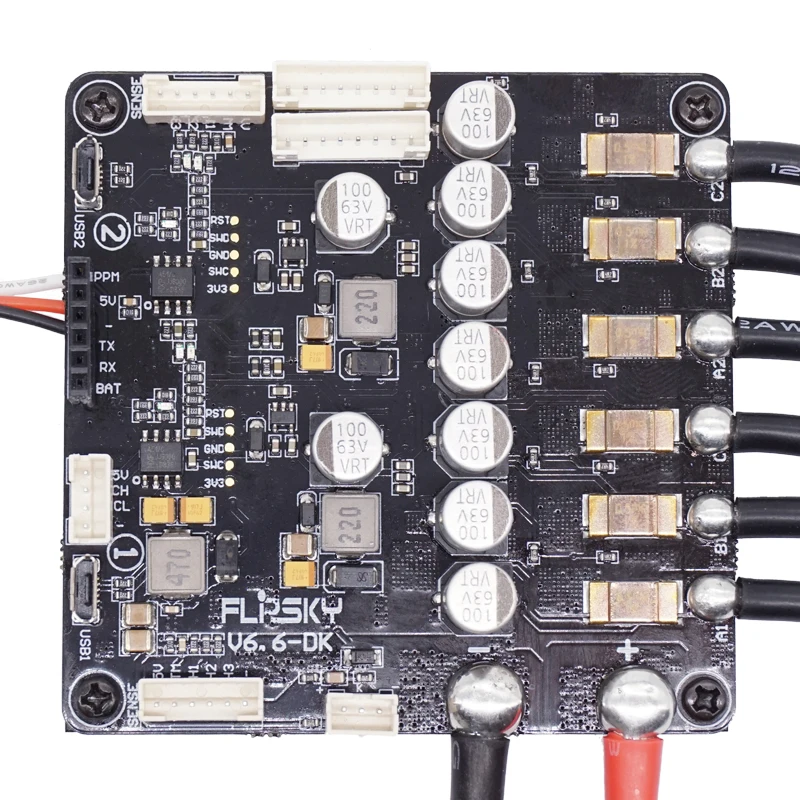

        FSESC 75200                                                           Dual VESC 4 Plus                                          Dual VESC 6 Plus

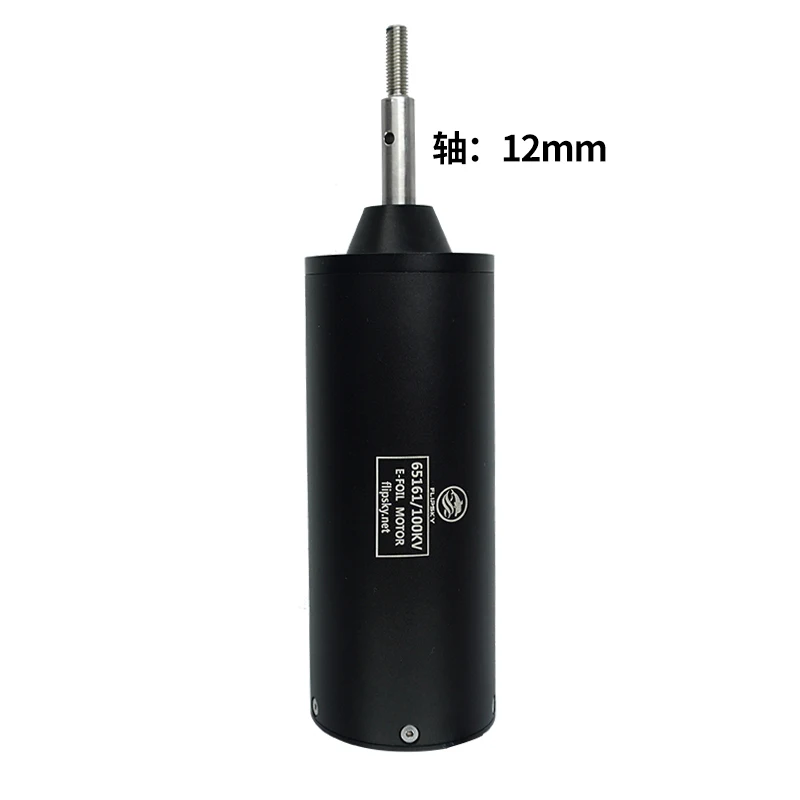

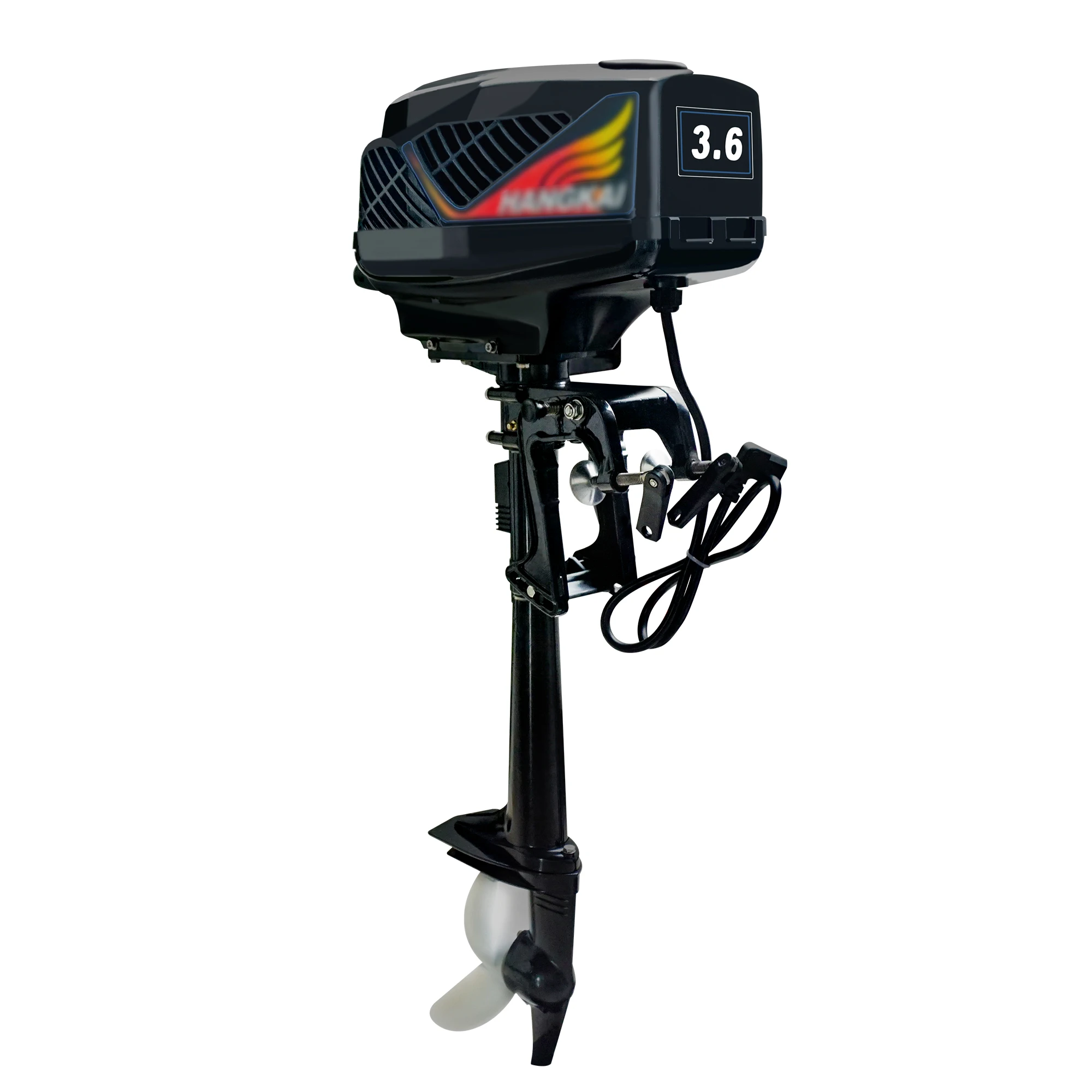

         Water Cooled VESC 6                                                 65161 Motor                                                Outboard Motor

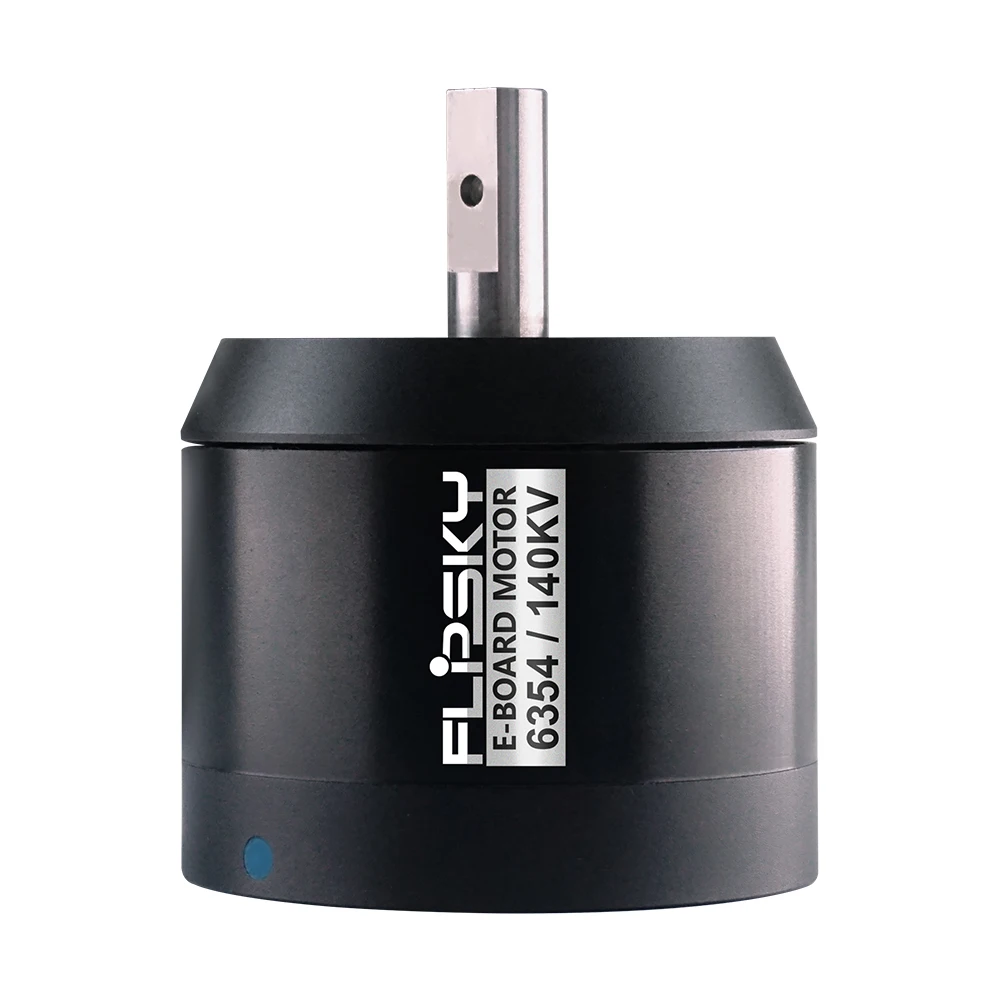

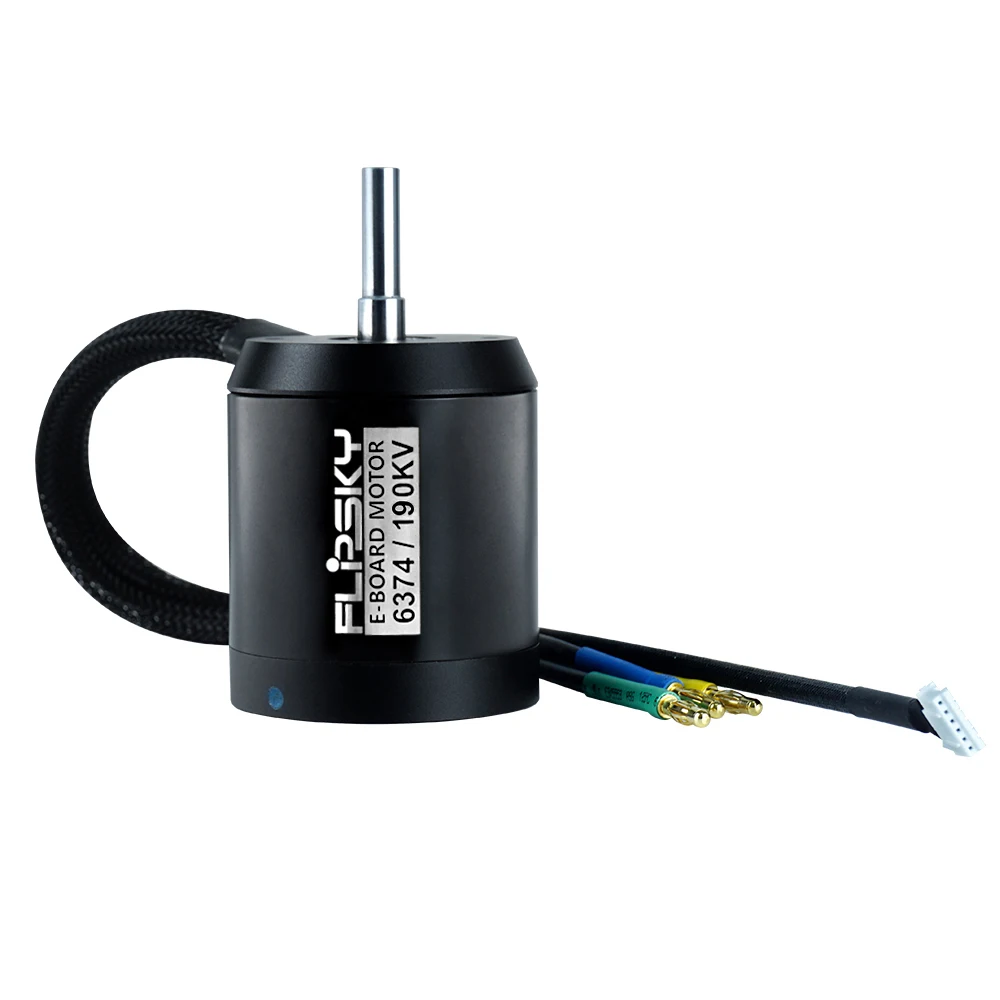

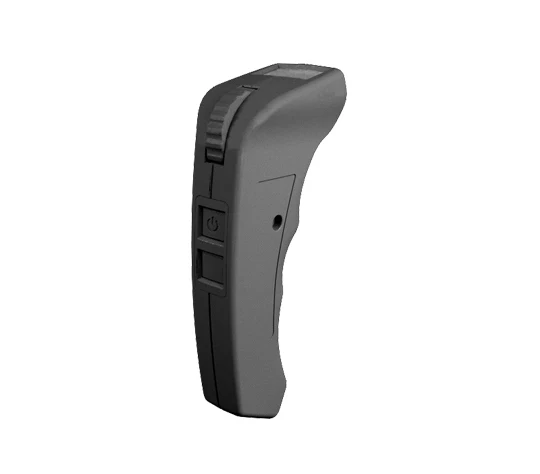

                6374 Motor                                                             6354 Motor                                                  Remote VX2
