Products Description

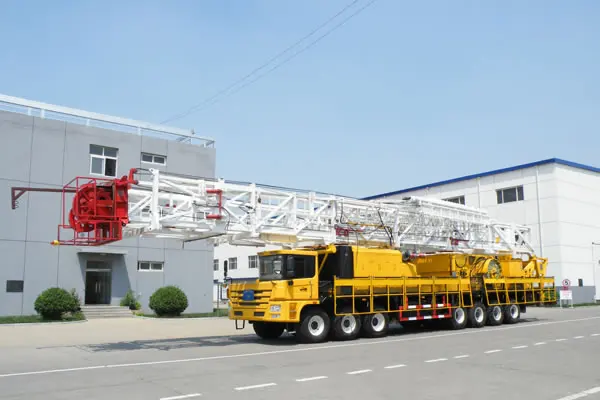

ZJ40/1800CZ Truck mounted drilling rigs
ZJ40/1800CZ truck-mounted drilling rig is a large-tonnage truck-mounted drilling rig independently developed by our company. It is
suitable for drilling operation of middle and shallow wells which is within 4000m, heavy repair operations of oil and gas wells
and water well drilling operations.
suitable for drilling operation of middle and shallow wells which is within 4000m, heavy repair operations of oil and gas wells
and water well drilling operations.
Application
ZJ40/1800CZ truck-mounted drilling rig is a large-tonnage truck-mounted drilling rig independently developed by our company. It is suitable for drilling operation of middle and shallow wells which is within 4000m, heavy repair operations of oil and gas wells and water well drilling operations.
Features
1. Well drilling rig is suitable for drilling and work-over operations of middle and shallow wells.
2. CAT/ Cummins series diesel engine can be used.
3. Equipped with ALLISON hydraulic transmission box.
4. Equipped with 14×10 petroleum-purposed vehicle chassis, it has good cross-country ability.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
ZJ40/1800CZ truck-mounted drilling rig is a large-tonnage truck-mounted drilling rig independently developed by our company. It is suitable for drilling operation of middle and shallow wells which is within 4000m, heavy repair operations of oil and gas wells and water well drilling operations.
Features
1. Well drilling rig is suitable for drilling and work-over operations of middle and shallow wells.
2. CAT/ Cummins series diesel engine can be used.
3. Equipped with ALLISON hydraulic transmission box.
4. Equipped with 14×10 petroleum-purposed vehicle chassis, it has good cross-country ability.
5. The main brake for the draw-works can be band brake or disc brake, the auxiliary brake can be Eaton pneumatic water cooled disc brake or water brake.
Product Parameters
Item | Name | Parameter |
1 | Drilling depth (41/2″Drill Pipe) m | 4000 |
2 | Overhaul depth (31/2″Drill Pipe) m | 7000 |
3 | Max. hook load KN | 2250 |
4 | Hook speed (m/s) | 0.2 to 1.4 |
5 | Mast (m) | 38/39 |
6 | Mast type | A-mast |
7 | Engine power (kW) | 2 × 470 |
8 | Hydraulic transmission box | 2 × M5620AR |
9 | Transmission type of well drilling rig | Hydraulic + Mechanical |
10 | Traveling system | 6×5 |
11 | Main rope diameter mm | φ32 |
12 | Hook block model | YG225 |
13 | Swivel model | SL225 |
14 | Rotary table model of truck mounted drill equipment | ZP275 |
15 | Chassis model | XDP80/14 × 10 |
16 | Approach / departure angle | 26°/18° |
17 | Min. ground clearance (mm) | 311 |
18 | Max. gradeability | 26% |
19 | Min. turning diameter | 41 |
20 | Overall dimension (m) | 22.3 × 3.2 × 4.5 |
21 | Main unit mass (kg) | 85000 |
Advantages of Truck Mounted Drilling Rig
1. The rotary table transmission case can achieve forward and reverse shift and adapt to positive and negative buckle drill pipe rotation operation.
2. The rotary table transmission case is equipped with anti-torque release device to ensure the safe release of the drill pipe
deformation energy.
3. The draw-works and rotary table can be electric driven.
4. The main drum uses integral Lebus rope groove to reduce the wear of the wire rope and effectively extend the service life of wire rope.
5. The main drum can adopt band brake or hydraulic disc brake. The auxiliary brake can adopt pneumatic water cooling disc brake or pneumatic tong type brake, water brake or eddy current brake.
6. Sand drum is optional.
7. There are many user friendly designs applied, including the new cab, new power steering, automatic locking pin of the mast, crown block and draw-works centralized lubrication systems, telescopic mast in place warning system and brake cooling system.

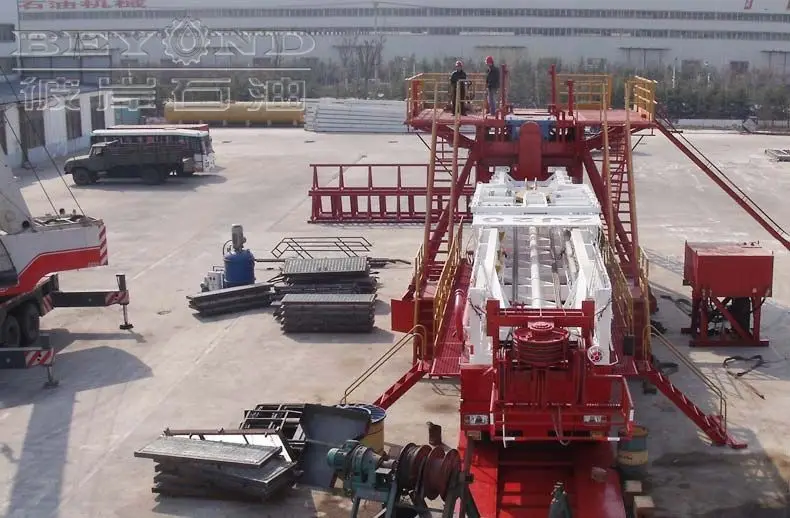

8. The substructure is two-part telescopic type or parallelogram structure, easy for transportation and lifting. The size and
height of the substructure can be designed according to user requirements.
9. Ambient temperature is from minus 45°C to 50°.
1. The rotary table transmission case can achieve forward and reverse shift and adapt to positive and negative buckle drill pipe rotation operation.
2. The rotary table transmission case is equipped with anti-torque release device to ensure the safe release of the drill pipe
deformation energy.
3. The draw-works and rotary table can be electric driven.
4. The main drum uses integral Lebus rope groove to reduce the wear of the wire rope and effectively extend the service life of wire rope.
5. The main drum can adopt band brake or hydraulic disc brake. The auxiliary brake can adopt pneumatic water cooling disc brake or pneumatic tong type brake, water brake or eddy current brake.
6. Sand drum is optional.
7. There are many user friendly designs applied, including the new cab, new power steering, automatic locking pin of the mast, crown block and draw-works centralized lubrication systems, telescopic mast in place warning system and brake cooling system.
8. The substructure is two-part telescopic type or parallelogram structure, easy for transportation and lifting. The size and
height of the substructure can be designed according to user requirements.
9. Ambient temperature is from minus 45°C to 50°.

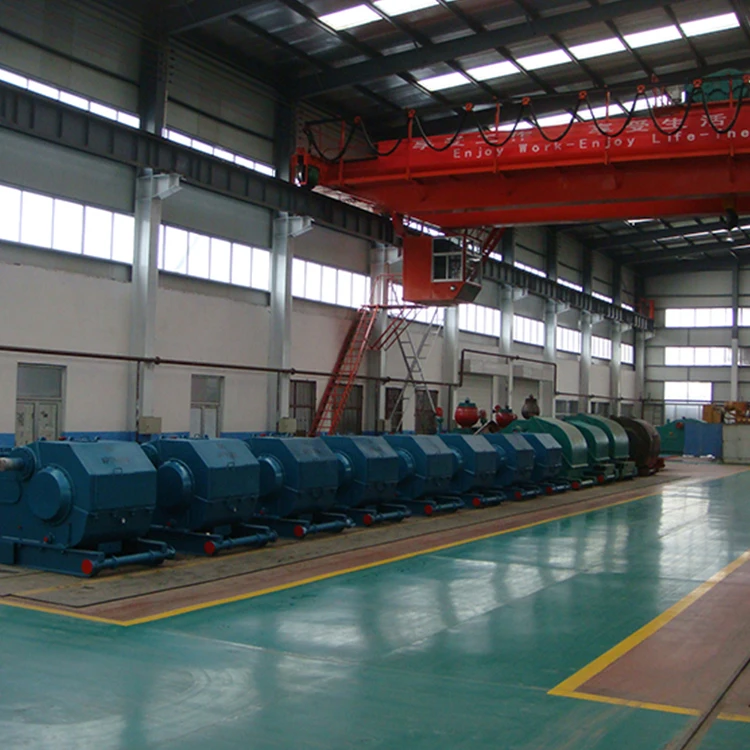

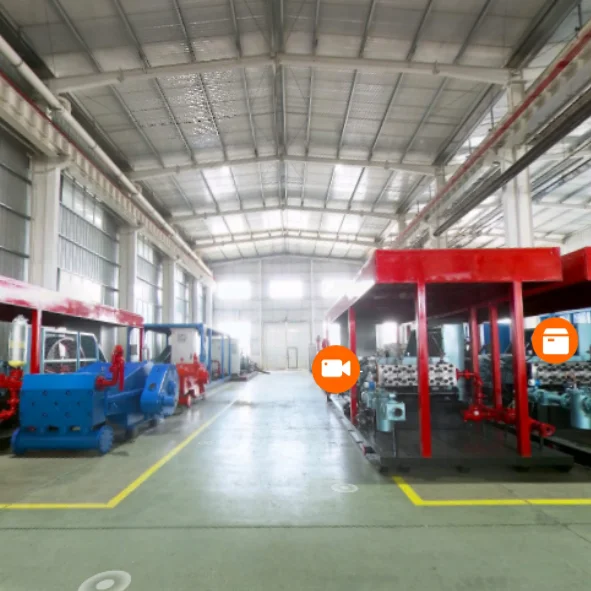

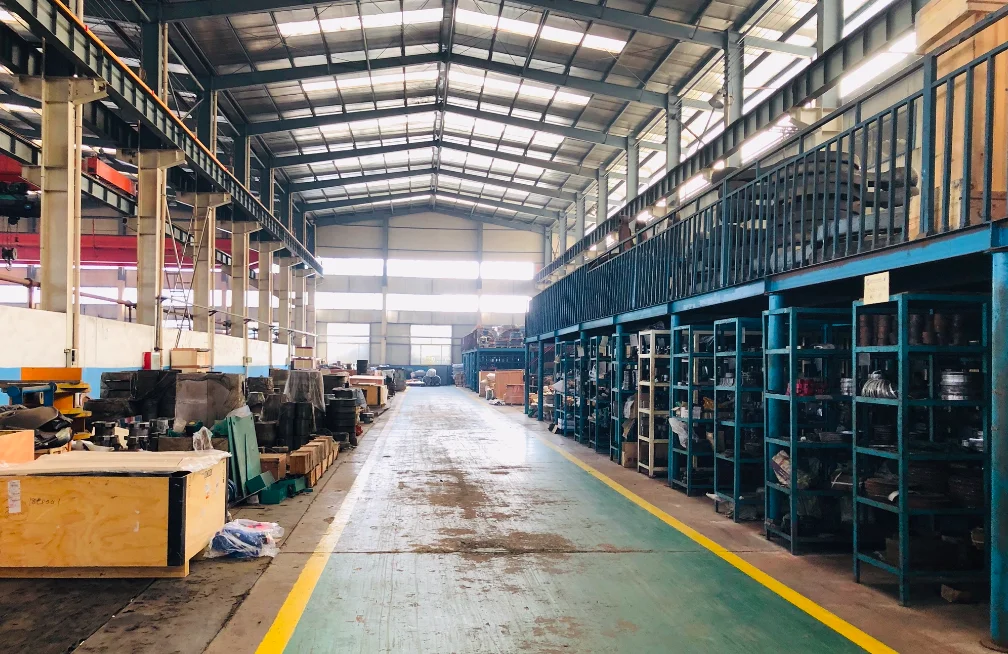

Our Professional Team

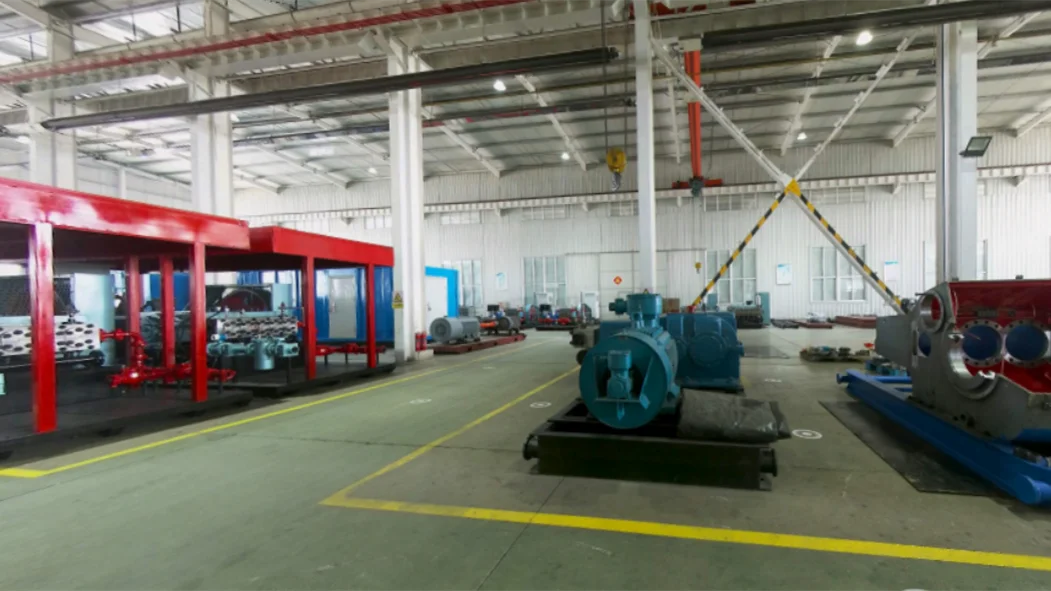

Company Profile
Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials.
Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very goodreputation among our customers. Our products had covered countries like USA, Venezuela, Argentina, India, Singapore, Kazakhstan,Azerbaijan, Egypt and Ethiopia.
Exhibition

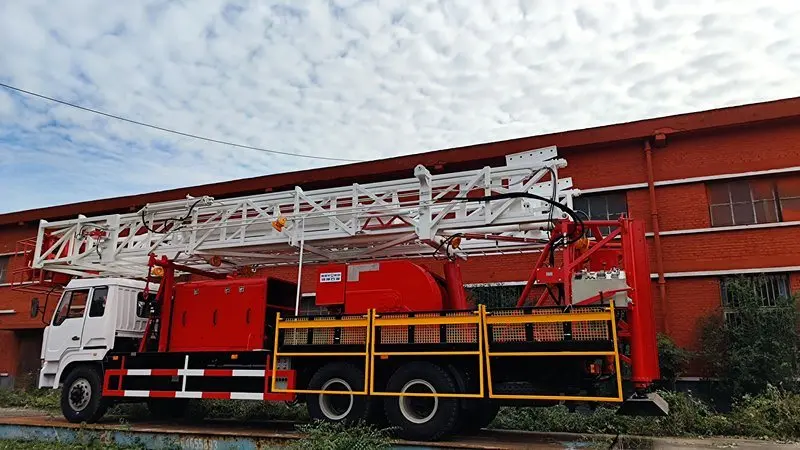

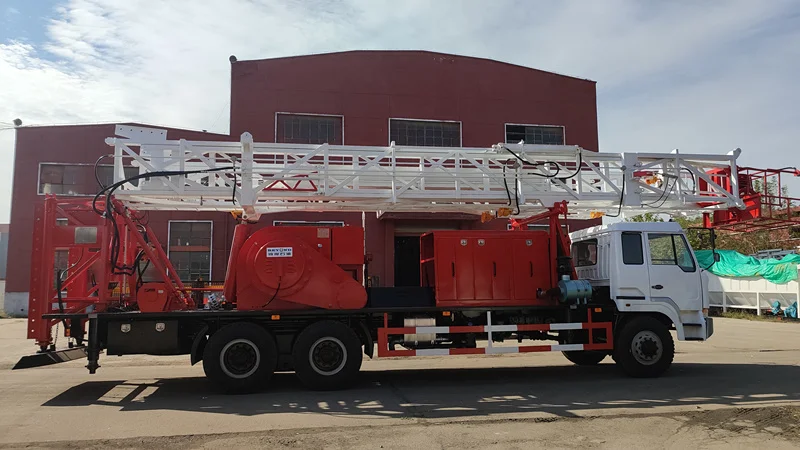

Product Packing
