Машина для прокатки листового металла
US $10000

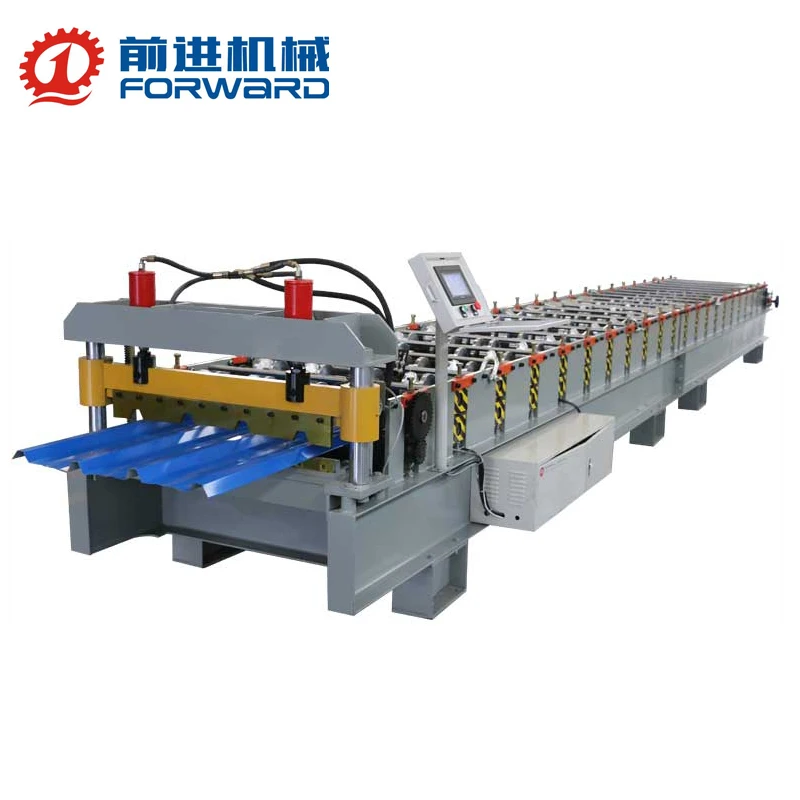

Машина для трапециевидной машины профиль из
- Категории: >>>
- Поставщик: Hebei,Forward,Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
This style of product is a discounted product, please contact us for the latest price

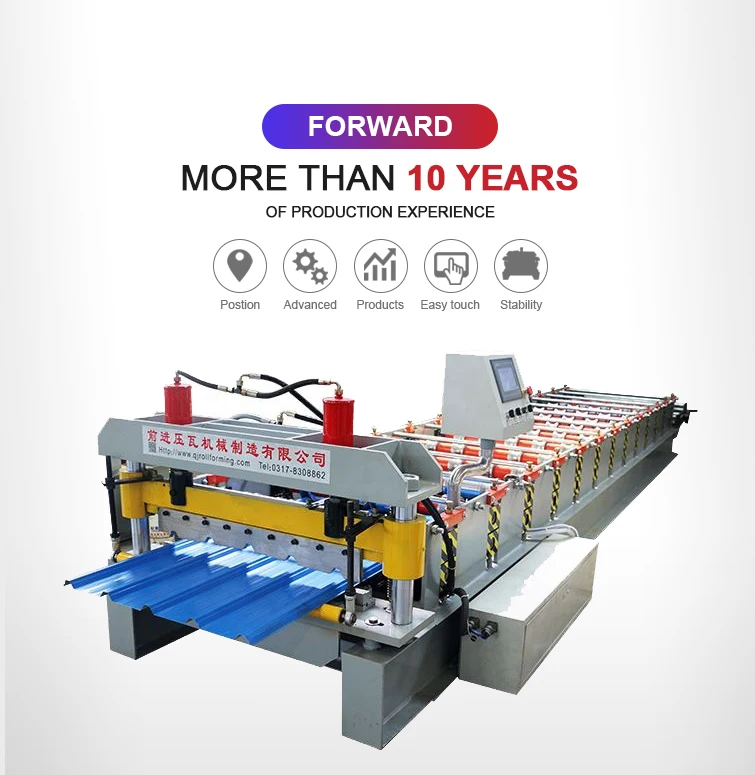

FORWARD----Your Best Cold Roll Forming Machine solution Supplier!!!
Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine,
steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail
forming machine, shearing machine, bending machine, slitting machine.
steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail
forming machine, shearing machine, bending machine, slitting machine.
Products Description
Frame Structure | Steel Plate Welded Manual |
Roller Flatting System | let the feeding fluently |
Installation Dimension | 9500mm*1400mm*1500mm |
Machine Under Frame | 400H-beam |
Sidewall Plate Thickness | 16mm |
Roller Stations | 21Steps |
Shaft Diameter | 70mm |
Main Shaft Material | 45# steel with finish turning ; |
Roller Material | 45# Forging Steel with Chromium Plate; |
Chromium Plate Thickness | 0.05mm |
Motor Power | 3kw |
Reducer Type | 8#Cycloidal Planetary Gear Speed Reducer |
Chain Wheel and Cycle Chain | 1 Inch |
Roll forming Speed | 15-20m/min (adjusted with frequency changer). |
Frequency Converter | Delta |
Voltage | 3phase/380V/50Hz (For confirmation ) |
Hydraulic Tank | 1 set |
Hydraulic Pump Station | 3Kw |
Cutting Length Tolerance | 10m ±1mm; |
Cutting Tool Material | Cr12 with quenched treatment 58°C-62°C. |
Recommend Products
Company Profile
Certifications
Product packaging
FAQ
Q1. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before
delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the
whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before
delivery. Of course your payment terms are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 18 months free warranty and free technical support for the whole life of any machine.
If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by
yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the
whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
