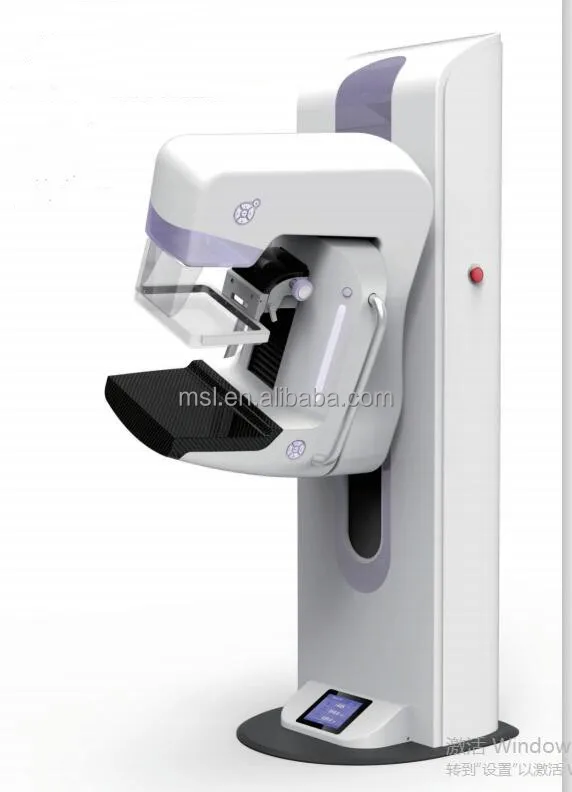

Product Description




Humanization design, easy to work
One key positioning, move to the designated position automatically; One key exposure, full-automatic AEC, All parameters settings and filter selection are completed automatically;Auto-mirror, body posture,position memory and mirror placement.

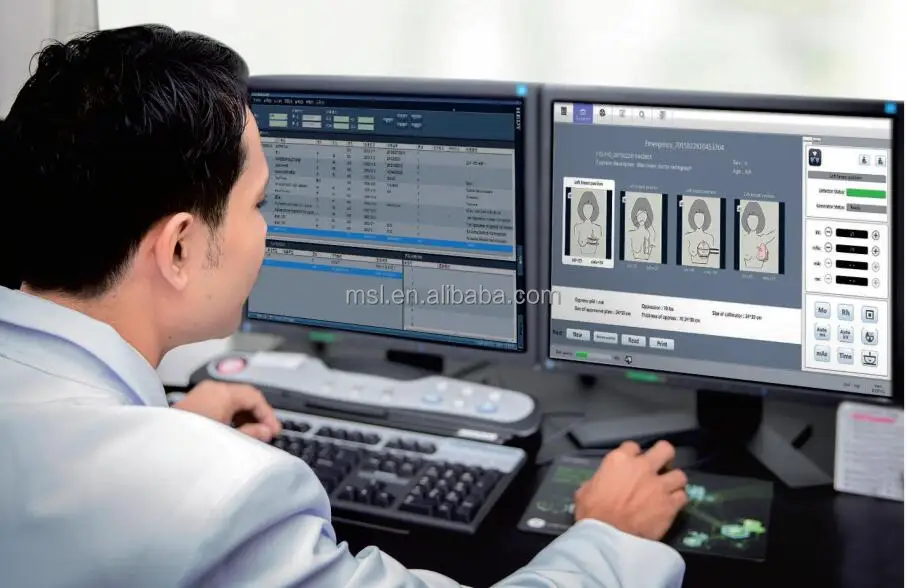

The software with friendly interface;position show by humanoid schematic diagram, automatic generation of standardized examination protocol;large color LCD screen for convenience of observation and operation.


Humanization design, easy to work
1.Rich options
Support 1.5X and 1.8X magnification radiography component and different type options of oppression disc. Support bar code reader and fingerprint recognition module; Let the cases input and department management into the era of inelligent.
2.Open the interface for easy interconnection

It is compatible with DICOM3.0, which can seamlessly interconnect with the HIS/RIS/PACS, and automatically generated the worklist, and it can connect with Hedy Cloud remote consultation system.

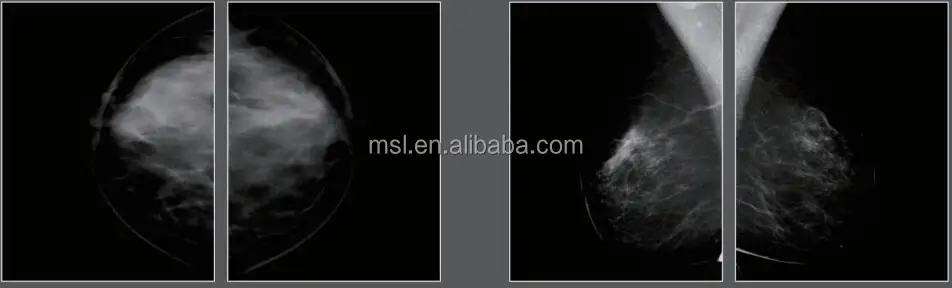

Image optimal presentation
Hedy patent IMACOPE algorithm and based on the human visual system contrast equllbrium display ensure the mammary image presented by the optimal way.

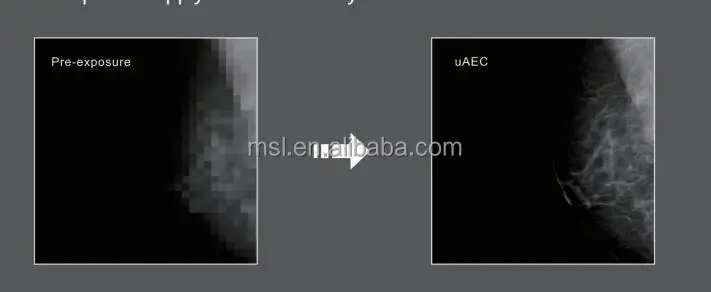

Smart AEC (Automatic Exposure Control)
Advanced AEC, filament automatic calibration and anode heat capacity automatic calibration; Double stable module of DC filament power supply makes the X-ray tube emission current more stable.

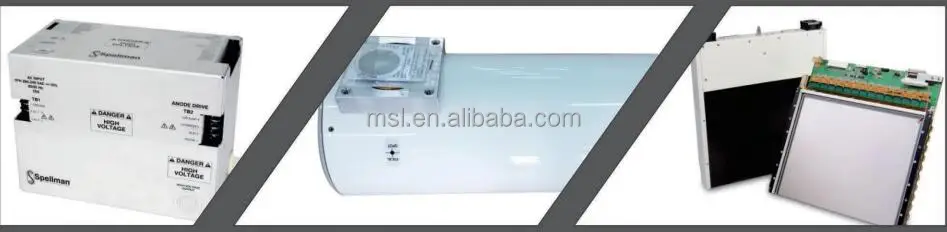

>>> Double focus and double speed tube> >  Large size of FPD
High-power and high heat capacity tube with double focus and speed rotating anode design makes it have both sharp image and high load capacity
The A-Se FPD maximum size of 24cmX30cm makes X-ray signal transforming to electric signal directly ---reduce the noise and greatly improve the transform efficiency.


Specification


Item Name
High Frequency Radiology Mammography Machine Other Radiology Equipment & Accessories
X-ray tube
Focus size
0.1mm/0.3mm
Maximum anode heat capacity
225kJ(300kHU)
Maximum heat dissipation
500W
Anode cooling mode
oil cooling
Nominal voltage
40kV
Target angle
15°
Target material
Mo
Radiation field
18cm-50cm
Inherent filtration
0.5mmBe
Additional filtration
0.03mmMo
Anode speed
low-speed3000r/min; high-speed 10000r/min
Anode input power
1.15-2KW / 4.8-9kW
C Arm frame
vertical range of motion
630-1400mm,deviation±5%
Rotation range of motion
+195°~-155°Angular division value 1°,deviation±2%
FID
660mm,deviation±5%
3D tomographic axial rotation
+30°~-30°deviation±2%
Rotate Mode
power-drive double speed rotate
Image Acquisition Workstation
Screen size/resolution
19",Resolution 1280*1024,Contrat 1000:1
Memory
≥8G
Hard disk
≥320G
OS
Win7
Image format
DICOM3.0(can connect with RIS)
Image storage capacity
≥20000 images
mamual input patients' date or download form HIS/RIS through DICOM Worklist
mamual input patients' date or download form HIS/RIS through DICOM Worklist
CD-R writer (storage image)
CD-R writer (storage image)
Choosing Breast implants Function
Choosing Breast implants Function
Integrated design with High voltage generator, exposure specification setting in workstation
Integrated design with High voltage generator, exposure specification setting in workstation


Company Profile








FAQ


1. Who are we?

We are based in Guangdong, China, start from 2013,sell to Southeast Asia(18.00%),Africa(18.00%),North America(15.00%),South
America(12.00%),Mid East(8.00%),Southern Europe(8.00%),Western Europe(6.00%),Central America(3.00%),South Asia(3.00%),Eastern
Europe(2.00%),Oceania(2.00%),Northern Europe(2.00%),Domestic Market(2.00%),Eastern Asia(00.00%). There are total about 51-100
people in our office.

2. How can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;Have our own engineer team who speak English very good stand by 24 hours a day, 7 days a
week for maintenance.
The only company who can offer u refund money in case of bad quality product

3.What can you buy from us?
Medical Image,Ultrasound Machine, Panel Detector, X-Ray Machine, Lab Analyzers,IVD,POCT,Medical Consumables,Beauty Equipment

4. Why should you buy from us not from other suppliers?
1) 8%-30% competitive price than others
2)We can offer one-stop shopping for our customer for buy medical equipment for hospital
3)12-36 months After sale service warranty

5. What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,French
