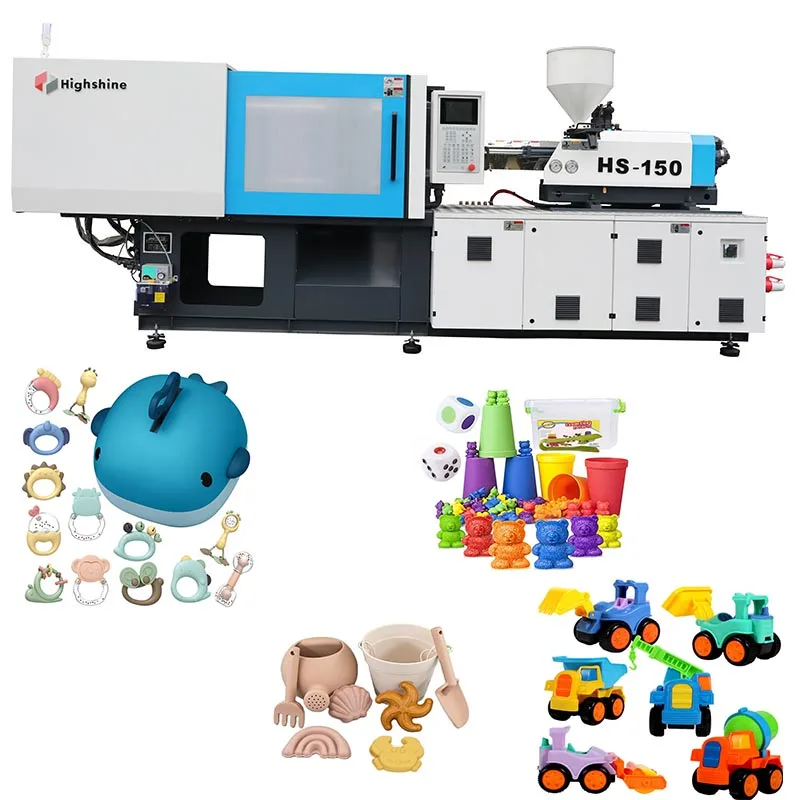

Highshine HS-150 Plastic Toy Making Machine Injection Molding Machine Manufacturer Plastic toy making machines
Contact: Jodie
What's app&Wechat: +8615869162884
The company is specializing in the production of clamping force 80T-4000T injection molding machine large equipment enterprises. In order to move towards a healthy and sustainable business philosophy, the company focuses on the deployment of technology, research and development and production quality backbone personnel actively involved in the development of new product series.
To serve the market with high quality, to meet the needs of customers in the industry, on the basis of inheriting the well-known brand " TUP ", enriched the factory product line; Bakelite injection molding machine, rigid PVC powder injection machine and other products, and actively develop the physical foam injection molding machine and all-electric injection molding machine as the main follow-up development.
To serve the market with high quality, to meet the needs of customers in the industry, on the basis of inheriting the well-known brand " TUP ", enriched the factory product line; Bakelite injection molding machine, rigid PVC powder injection machine and other products, and actively develop the physical foam injection molding machine and all-electric injection molding machine as the main follow-up development.
Parameter
Injection Unit B Screw
Screw Diameter mm 40
Theoretical Shot Volume CM 3251
Shot Weight (PS) g 229
Length/Diameter Ratio L/D 20
Injection Pressure MPa 164
Injection Rate ps g/s 142
Injection Stroke mm 200
Screw Speed rpm 246
Clamping Unit
Clamping Force ton 150
Max. daylight mm 910
Opening Stroke mm 380
Opening Stroke mm 380
Distance Between Tie Bars mm 460X410
Min. Mold Height mm 322X287
Mould thickness range mm 150~530
Ejector Force ton 4.2
Ejector Stroke mm 120
Ejector Stroke mm 120
No. of ejector pins pcs 5
System pressure Mpa 17.5
Others
Major motor KW 16
No. of heater zones unit 3+1
Heater input power KW 8.1/10/11.2
Oil Tank Capacity L 270
Net Weight T 4.4
Machine Dimensions(L*W*H) m 4.7X1.35X1.8
Our Advantages

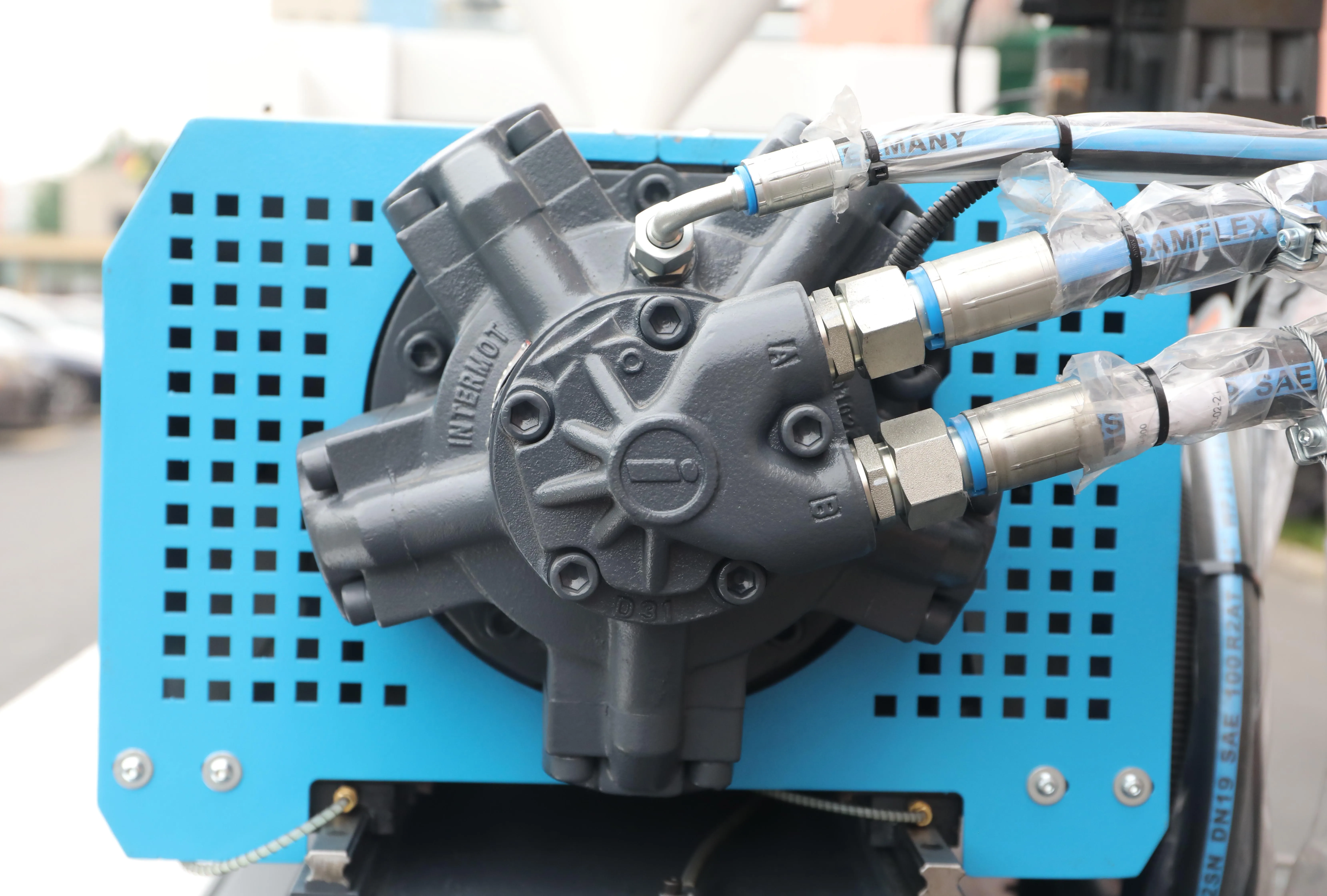

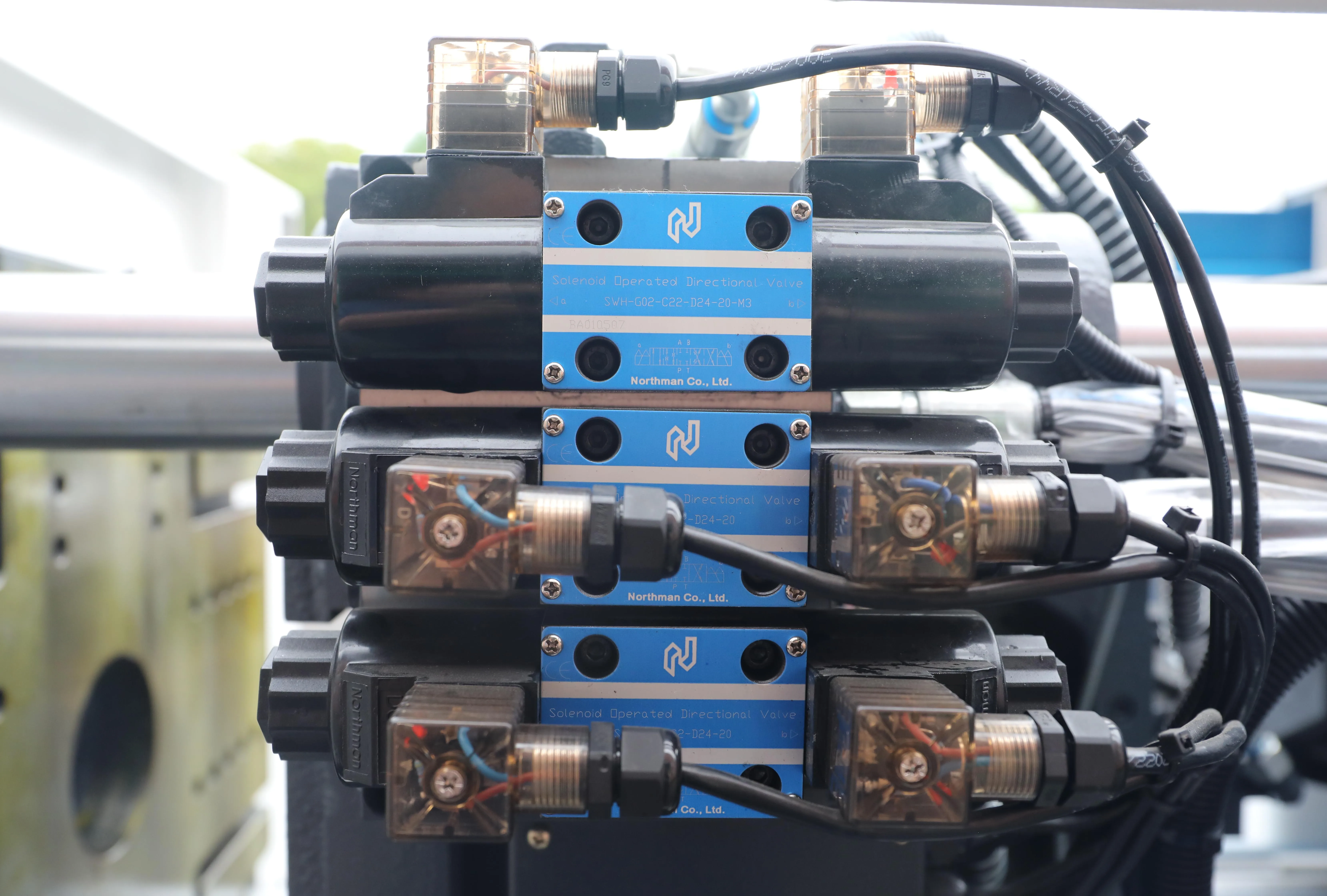

-Intermot Hydraulic Motor-Three socket&three plug

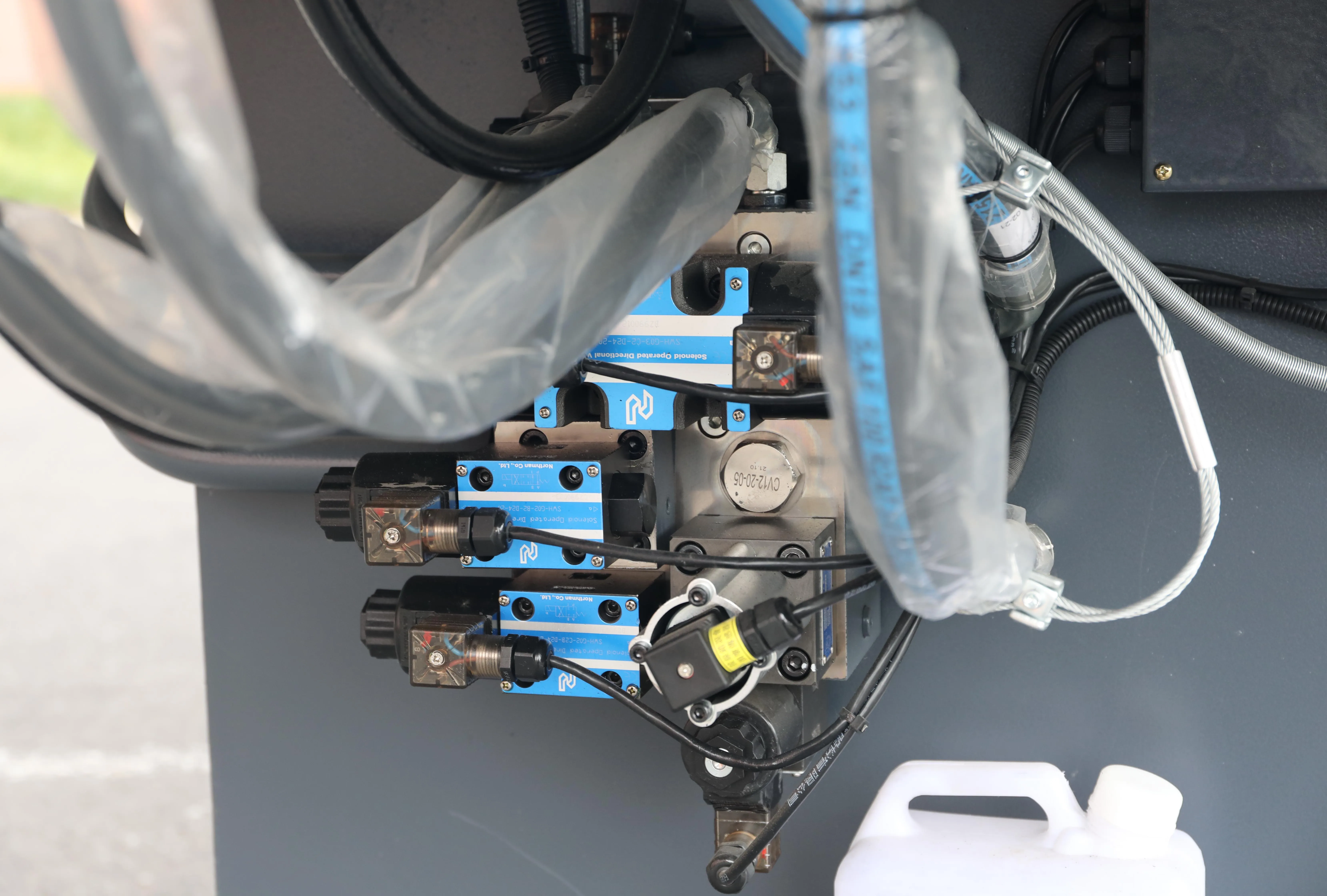

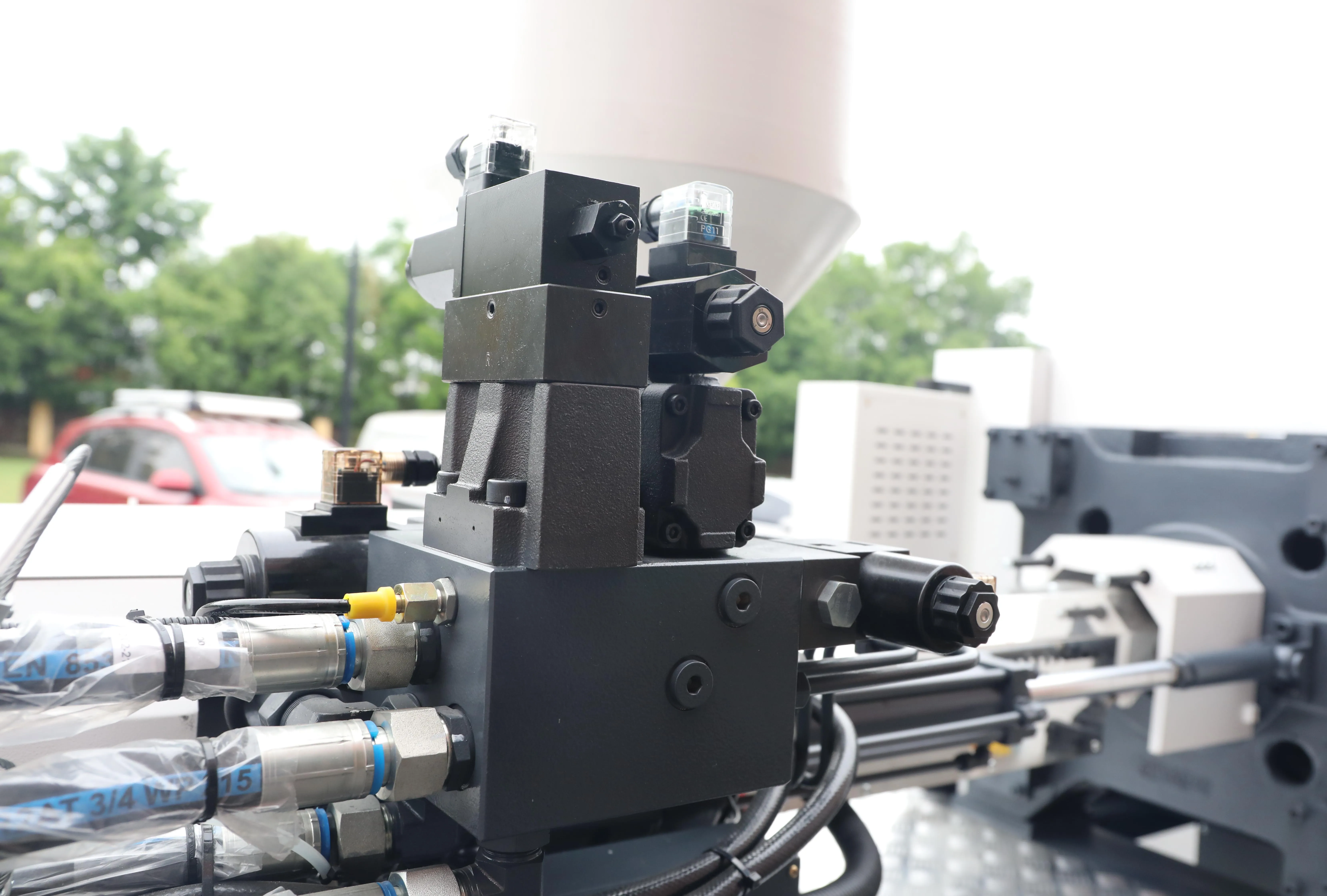

-Digital proportional valve for back pressure
-Two core pull
-SSR

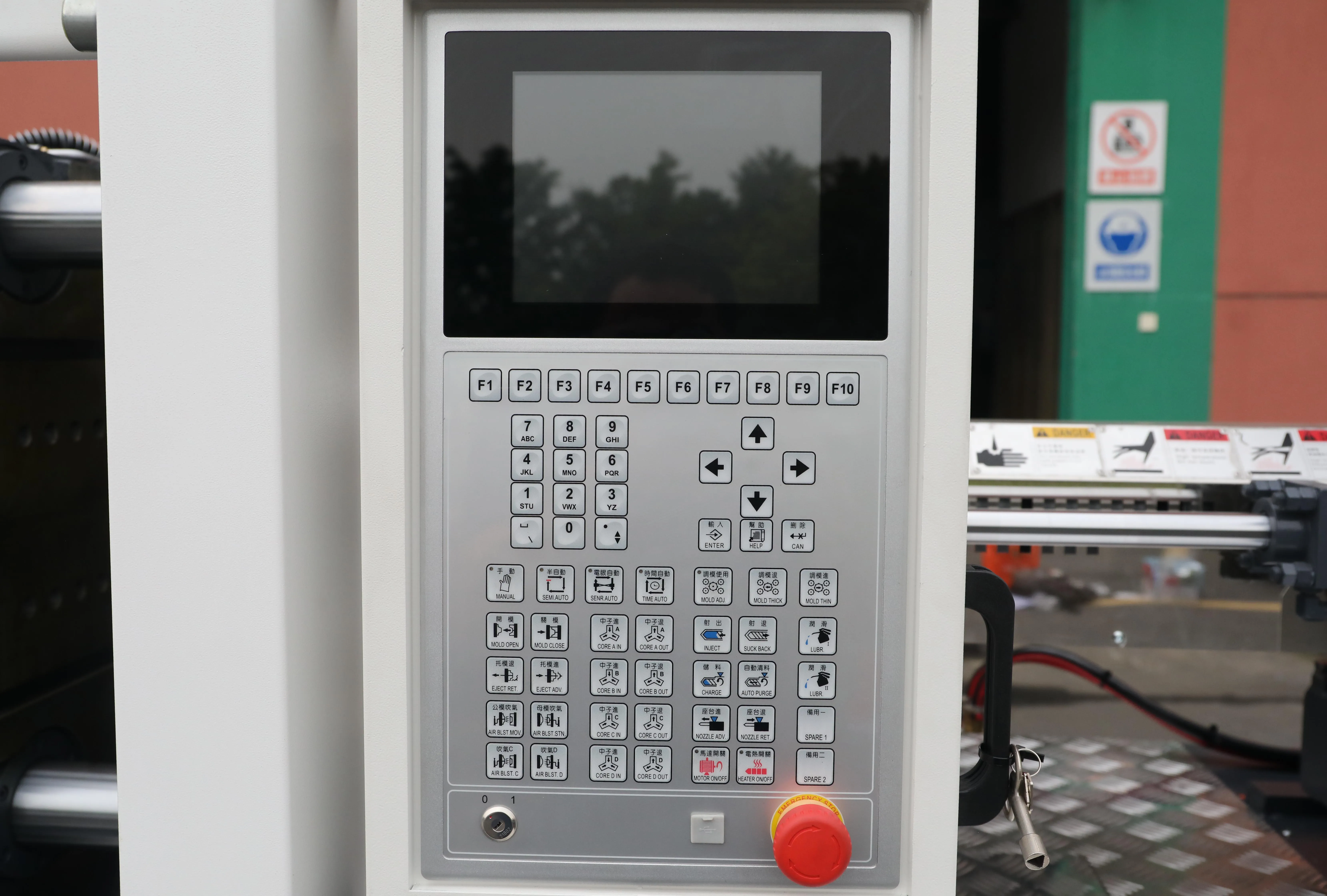

-Techmation Q8 PLC
-Digital proportional valve for back pressure
-Two core pull
-SSR
-Techmation Q8 PLC
More photos

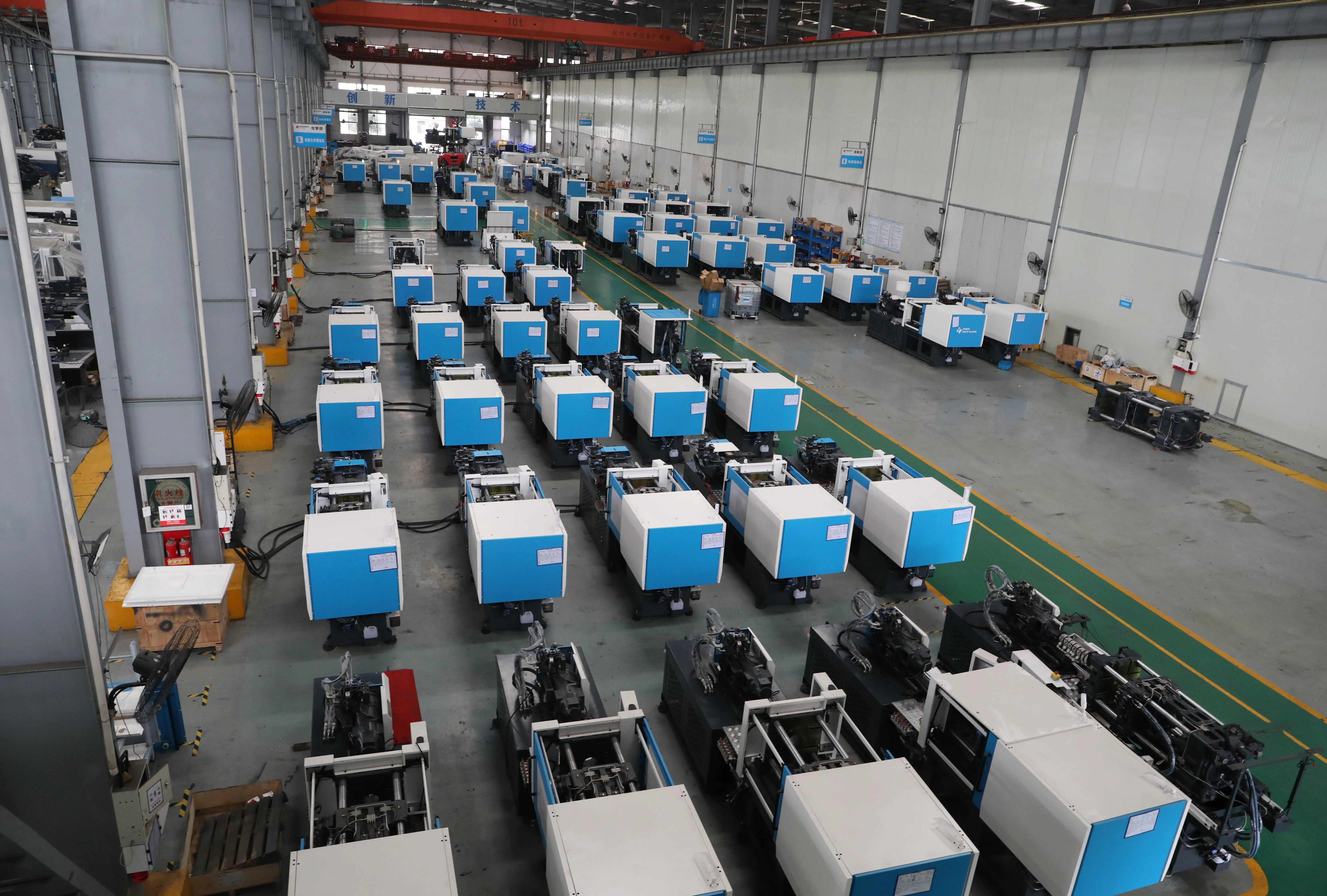

About us
