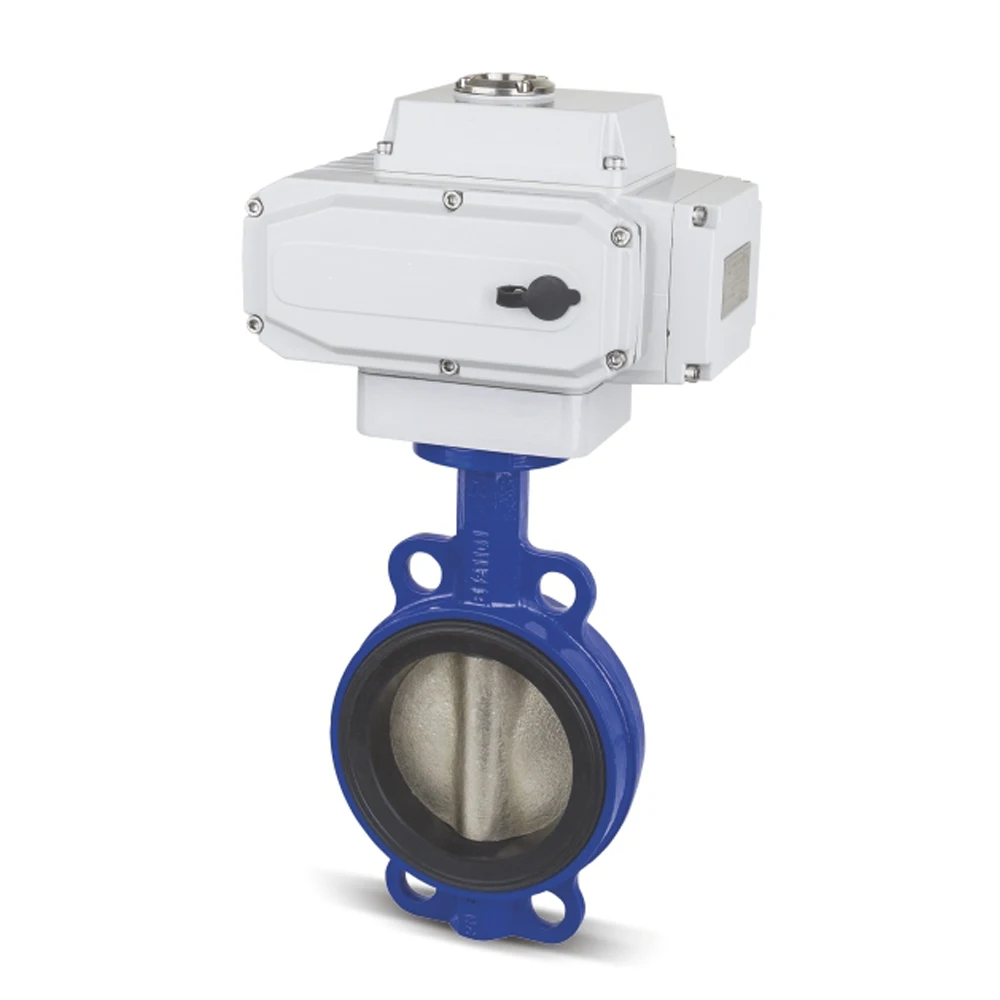

Электрический клапан-бабочка Pntek 220 В переменного тока 4-20 мА Dn50 в Dn350 чугунный моторизованный электрический клапан
- Категории: >>>
- Поставщик: Ningbo,Pntek,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Product name | Electric Butterfly valve |
Size Range | 2'~12',DN50~DN350 |
Operating Pressure | 1.0Mpa,1.6Mpa |
Control Mode | On Off Type / Modulating Type (option) |
Voltage | AC380V,AC220V,AC110V,DC24V |
On-off time | 15s,30s,45s,60s |
Protection | 1P67 |
Temperature | -20℃-+120℃,-320℃-+350℃ |
Valve body material | Stainless Steel304,Stainless Steel316,Cast Steel,Cast Iron |
Sealing material | NBR,PTFE,Rubber-liner,Hard-Alloy |
Valve Plate Material | Stainless Steel,PTFE,Cast Iron |
Applicable Media | Water,Steam,Oil,Acid,Se |
Connection Type | Wafer |
Application | Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries |
Product Description

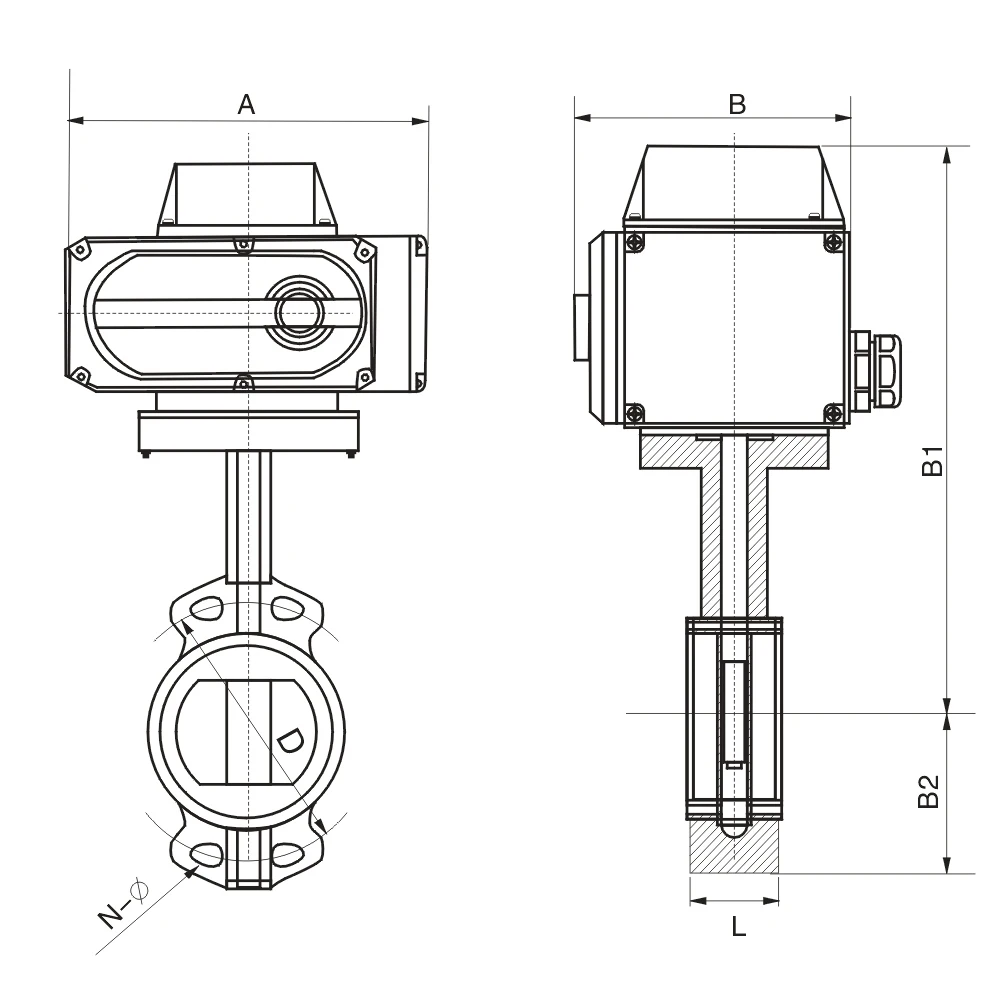

Main Technical parameter(1.6Mpa)
Specification/DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | 42 | 44.7 | 45.2 | 52.1 | 54.5 | 55.8 | 60.6 | 65.6 | 76.65 |
B | 145 | 145 | 145 | 145 | 182 | 182 | 182 | 182 | 182 |
A | 196 | 196 | 196 | 196 | 196 | 248 | 248 | 248 | 248 |
B1 | 347 | 361 | 367 | 386 | 399 | 464 | 490 | 530 | 575 |
B2 | 80 | 89 | 95 | 114 | 127 | 139 | 175 | 203 | 242 |
D | 120 | 136.2 | 160 | 185 | 215 | 238 | 295 | 357 | 407 |
N-Φ | 4-23 | 4-26.5 | 8-18 | 4-24.5 | 4-23 | 4-25 | 4-25 4-23 | 4-29 | 4-29 |
Electric actuator ( Optional)

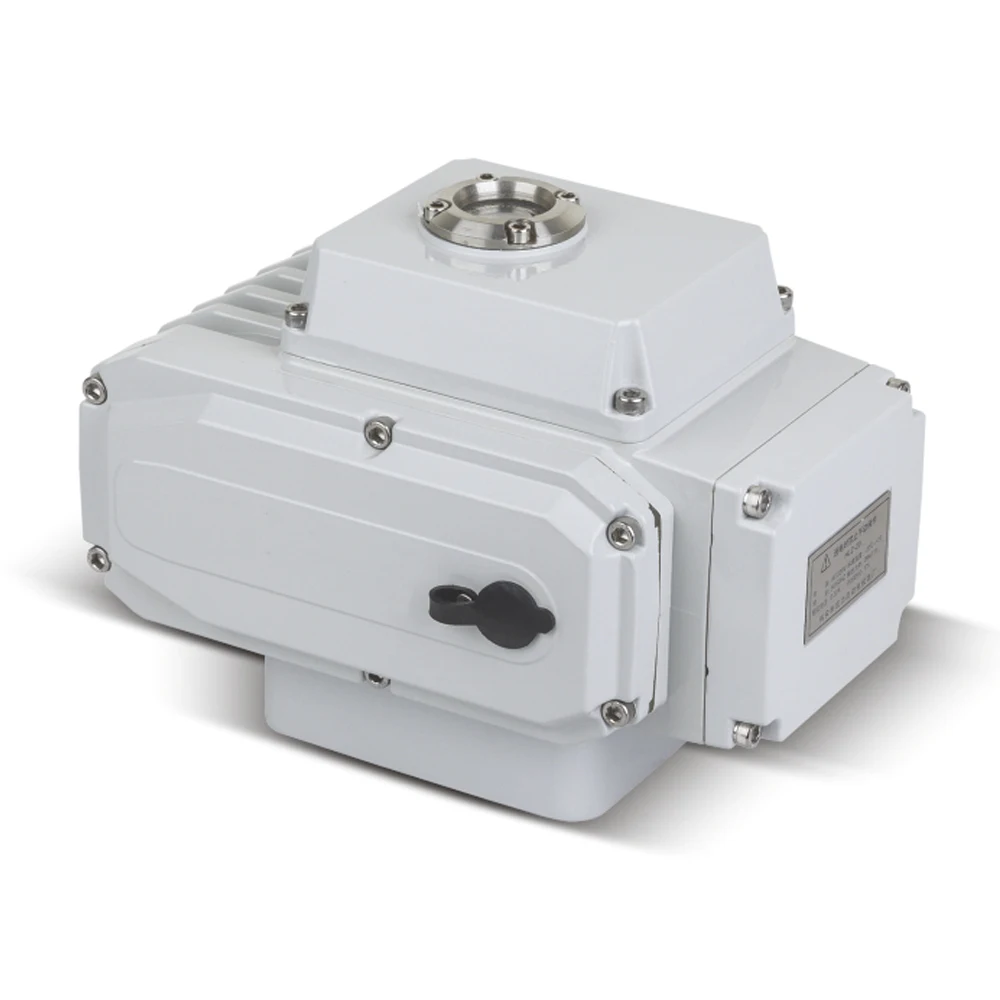

On Off Type
Modulating Type

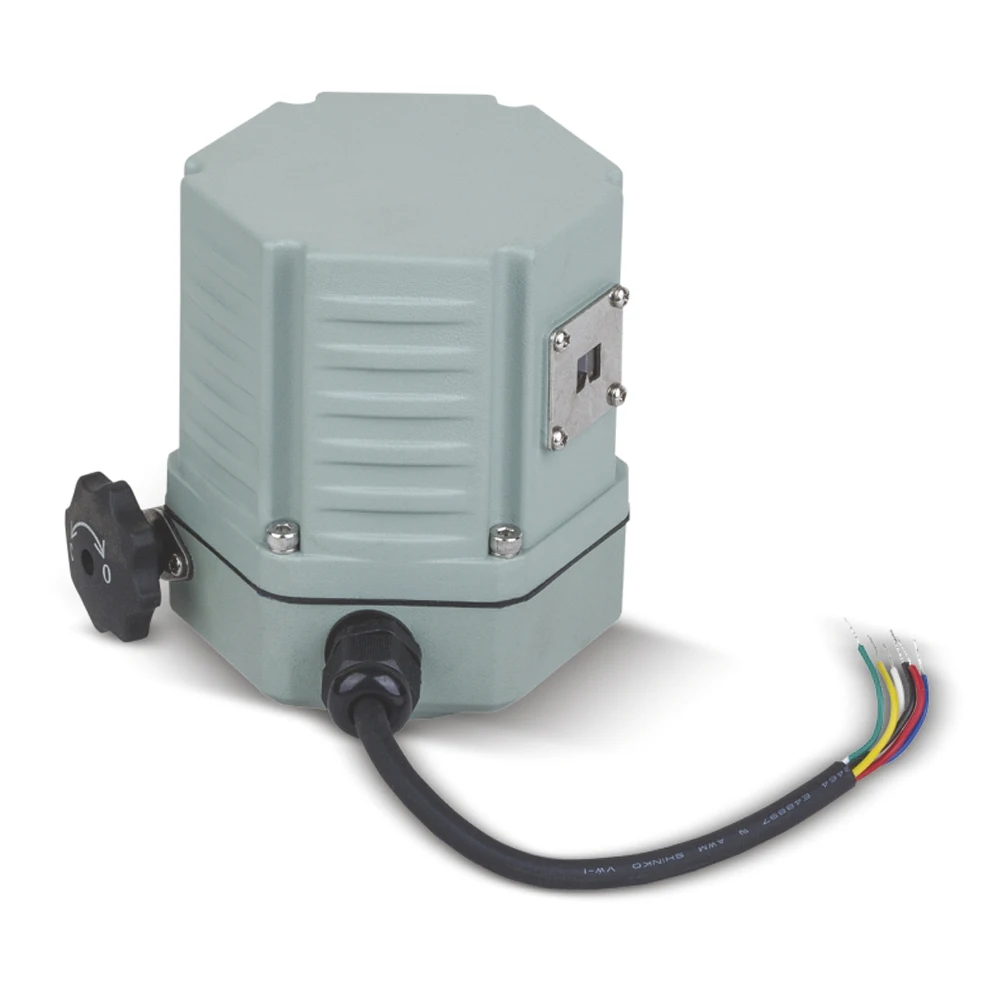

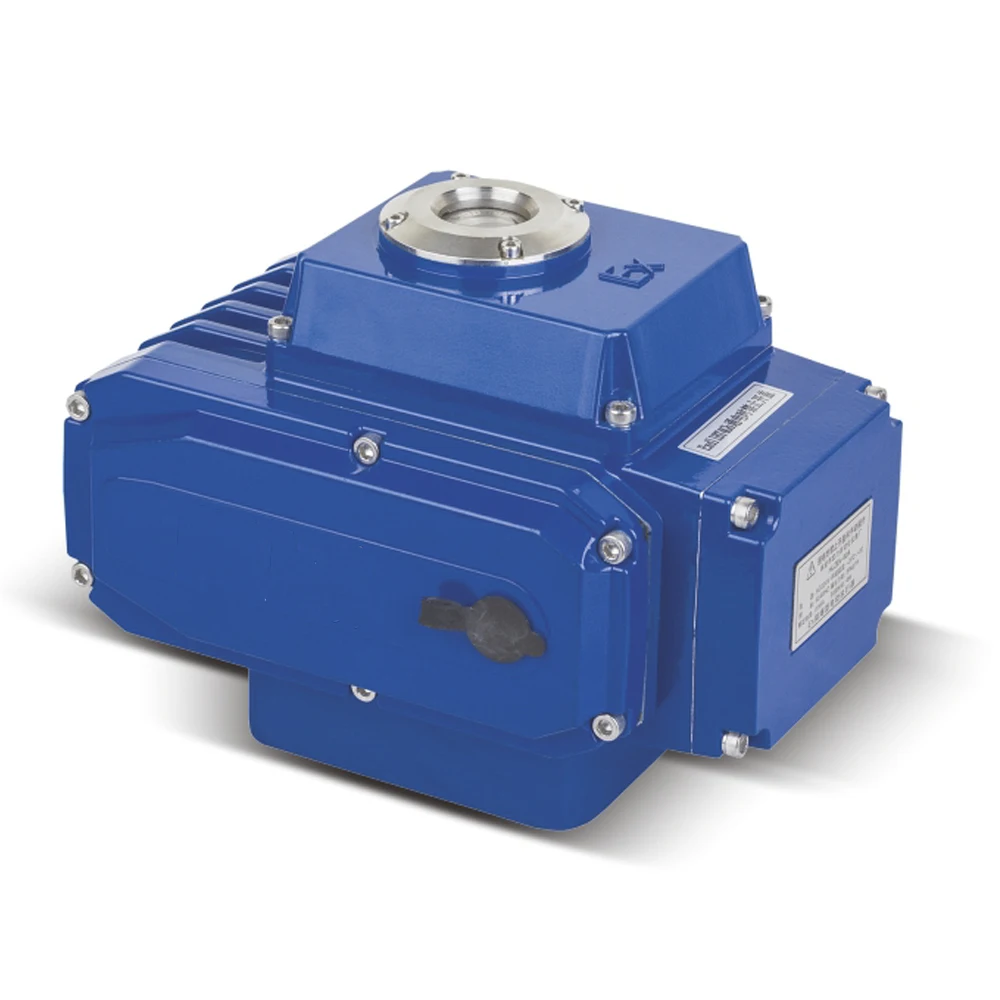

Electric Actuator Explosion Proof Electric Actuator Pneumatic Actuator Electric Actuator
Application
For the following process control,Pntek series electric actuators will become your porfect choose:
● Butterfly Valve/Ball Valve and other Rotary Type valve
● Automation and computer control system
● Flow,temperature,liquid level and pressure control devices,such as in dustrial process
● Rotating mechanical positioning
● Automation and computer control system
● Flow,temperature,liquid level and pressure control devices,such as in dustrial process
● Rotating mechanical positioning

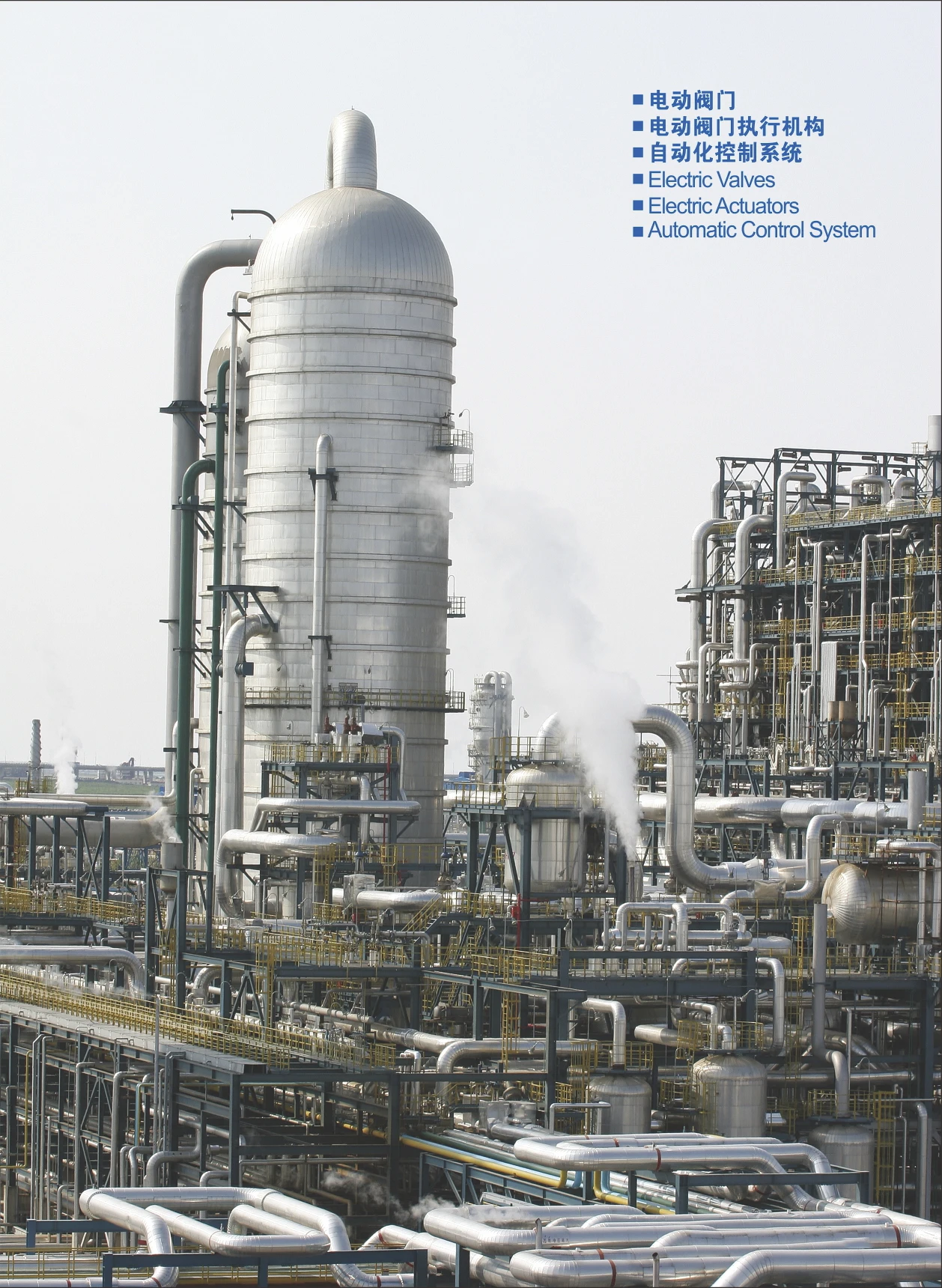

Pntek Series electric actuator is widely used in a variety of industries,including:including:petroleum,chemical,electric power,metallurgy,energy,building materials,pharmaceuticals,paper,water treatment,brewing,food processing,shipbuilding,and building automation systems and so on.
Related Products
Packing & Delivery

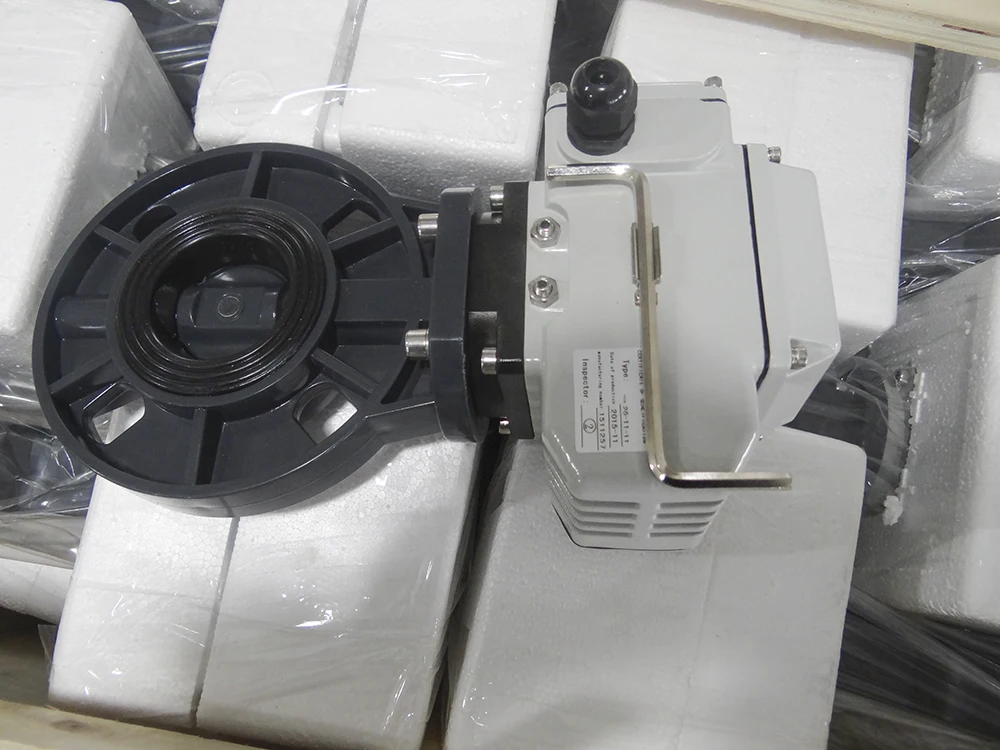

About Packing
The normal package is wooden box(Size:L*W*H).If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it accrding to customers special request.
Beilun Port,Ningbo,China
