Клапан затвора DN40 DN800 высокотемпературный с твердым уплотнением из литой
- Категории: >>>
- Поставщик: Henan,Hengye,Valve,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

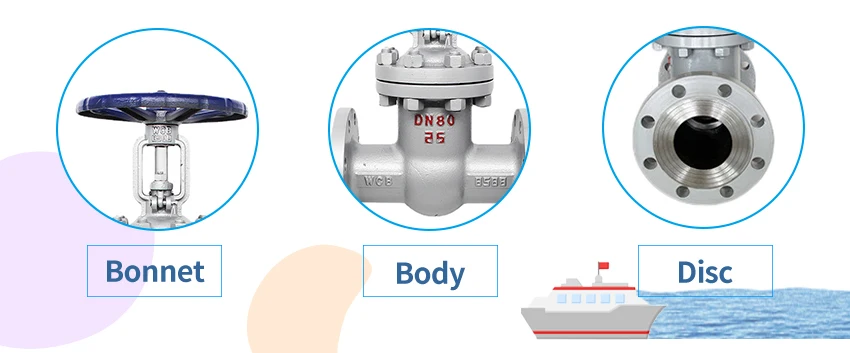

Bonnet
The valve body is made of cast steel, with good sealing performance
Body
Easy to operate, easy to install, pressure test before leaving the factory
Disc
Working medium: water, oil, air, steam and other media
1.Nominal pressure:≤1.6MPa 2.Working medium:water,gas,oil. 3.Working temperature:-29℃≤T≤425℃ 4.Thread standard: ISO228

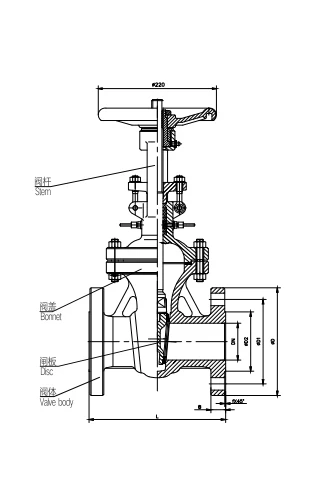

Model | SIZE | ||||||||||||||||
mm | L | D | D1 | D2 | b-f | z-фd | H | D0 | |||||||||
Z41H-16C | 40 | 200 | 150 | 110 | 84 | 18-2 | 4-ф18 | 305 | 200 | ||||||||
50 | 250 | 165 | 125 | 99 | 20-2 | 4-ф18 | 328 | 200 | |||||||||
65 | 270 | 185 | 145 | 118 | 22-2 | 4-ф18 | 348 | 240 | |||||||||
80 | 280 | 200 | 160 | 132 | 24-2 | 8-ф18 | 380 | 240 | |||||||||
100 | 300 | 220 | 180 | 156 | 22-2 | 8-ф18 | 435 | 280 | |||||||||
125 | 325 | 250 | 210 | 184 | 22-2 | 8-ф18 | 527 | 280 | |||||||||
150 | 350 | 285 | 240 | 211 | 24-2 | 8-ф22 | 599 | 320 | |||||||||
200 | 400 | 340 | 295 | 266 | 24-2 | 12-ф22 | 722 | 360 | |||||||||
250 | 450 | 405 | 355 | 319 | 26-2 | 12-ф26 | 905 | 400 | |||||||||
300 | 500 | 460 | 410 | 370 | 28-2 | 12-ф26 | 1070 | 450 | |||||||||
350 | 550 | 520 | 470 | 429 | 30-2 | 16-ф26 | 1178 | 500 | |||||||||
400 | 600 | 580 | 525 | 480 | 32-2 | 16-ф30 | 1321 | 560 | |||||||||
450 | 650 | 640 | 585 | 545 | 40-4 | 20-ф30 | 1441 | 640 | |||||||||
500 | 700 | 705 | 650 | 608 | 44-4 | 20-ф34 | 1601 | 720 | |||||||||
600 | 800 | 840 | 770 | 718 | 48-5 | 20-ф41 | 1961 | 800 | |||||||||
Company Profile
Henan Hengye Valve Co., Ltd. was established in August 2009. It is located in the largest industrial cluster in the Central Plains of China. The company covers an area of 5,000 square meters and has annual sales of 15 million US dollars. Our product line includes a variety of valves, fittings, instrumentation and more. Our company has five factories, mainly located in Tianjin, Zhejiang, Shandong, Hebei and Henan. The products are exported to 18 countries including Bangladesh, India, Pakistan, Tanzania, Libya, etc. Our products are widely used in petrochemical, sewage treatment, oil field, electric power, medicine, heat pipe network and other engineering projects.
Why Choose Us
Our Advantages
Recommend Products
Product ordering instructions:
1. The products are only for category display, the price is not for reference, please contact us for selection and quotation.
1. The products are only for category display, the price is not for reference, please contact us for selection and quotation.
2. Please specify in the order before placing the order:
2.1. Production standard 2.2. Material
2.3. Connection method
2.4. Pressure
2.5. Medium
2.6. Temperature
2.7 Other requirements
3. The company can configure electric devices, pneumatic drive devices, and turbine devices according to the specific requirements of users.
4. All kinds of valves produced by our company can meet the requirements of the contract, and are inspected and tested strictly according to the standards before leaving the factory. If you have any questions, you can contact us online, we will do our best to provide you with quality service.
FAQ
1.Q: How long will you give me the reply?
A:we will contact you in 6 hours as soon as we can.
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
4Q.What are your quality control procedures?
A: We adhere to strict quality control procedures that begin with product design and carry through to the end of the production
process using state-of -the-art quality control equipment.
A:we will contact you in 6 hours as soon as we can.
Q: Are you trading company or manufacturer ?
A: We are factory
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
4Q.What are your quality control procedures?
A: We adhere to strict quality control procedures that begin with product design and carry through to the end of the production
process using state-of -the-art quality control equipment.
