Поделиться:

Цена:219,04 $ - 255,47 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

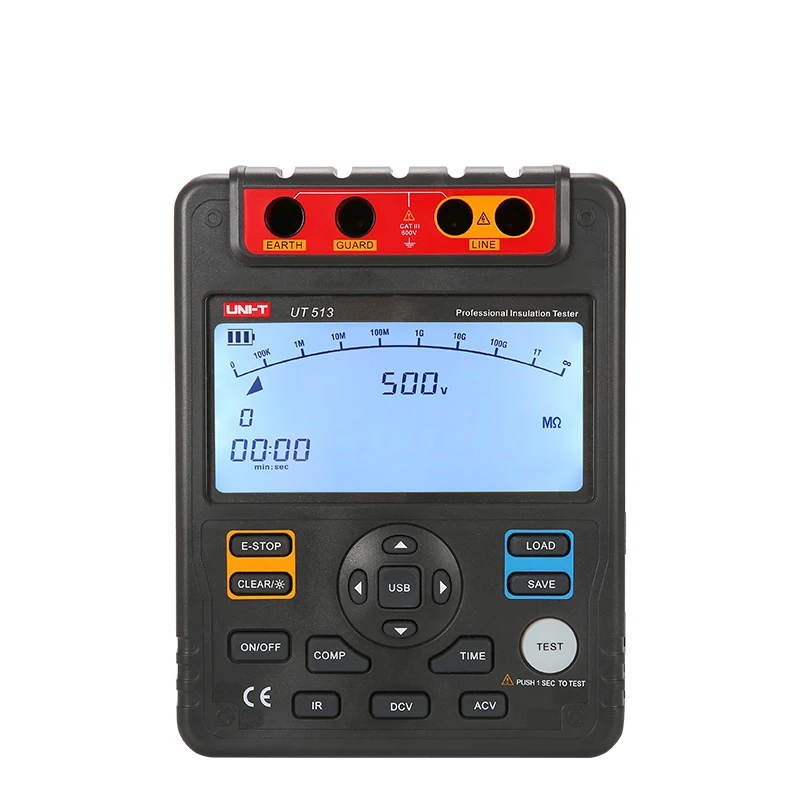

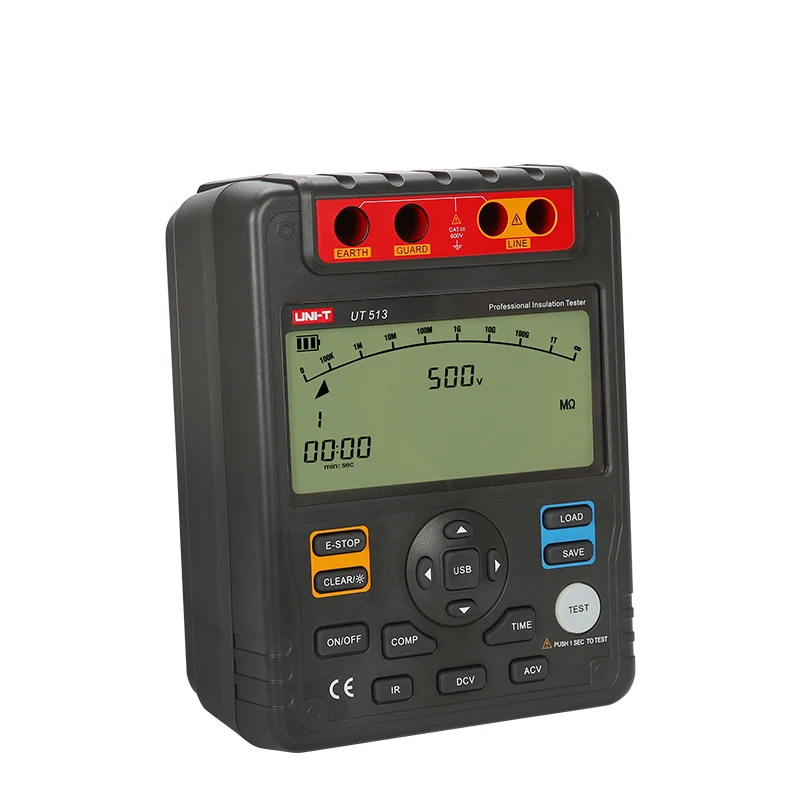

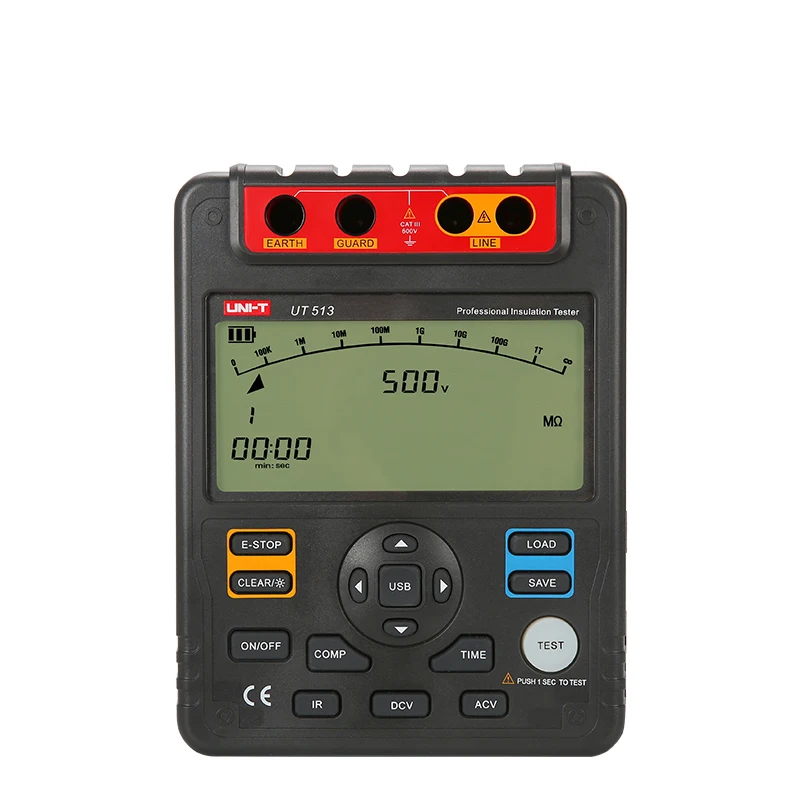

UT513 Digital Insulation Resistance Tester

UT510 series testers can measure insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software.


Features:

·LOW POWER CONSUMPTION
The resistance tester has automatic shutdown function, low battery indication and high voltage indication, which can save power and prolong the service life of the tester.

·WIDE APPLICATION
Megohmmeter is widely used for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities. It can also be used for measurement and overhaul in industries such as smelting, communication, manufacturing, petroleum, defense, power, chemical, and circuit.

·LCD DISPLAY
Insulation resistance tester is equipped with backlight LCD display for cleand accuracy readings even in dark environments.

·MULTI-FUNCTION
This megohmmeter has many functions such as auto-ranging, auto off, low voltage display, 18 groups data hold, polarization index, absorptance and USB data transmission.

·PURPOSE
This resistance tester can quickly complete motor-related insulation diagnosis operations. It can help you complete your work easily.


Advantages:

·100% brand new and high quality.
·It can quickly complete motor-related insulation diagnosis operations, such as generators, high-voltage motors, cables, arresters, etc.
·With automatic shutdown, low battery indication, high voltage indication and other functions
·Recordable data up to 18 groups
·LCD backlight function ensures that readings can be clearly seen in dark environments.


Functions
Auto-ranging
√
Data Storage
18
Comparison Measurement
√
Polarization index (PI)
√
Dielectric absorption ratio (DAR)
√
Analog bar graph
30
Backlight
√
Over-range warning
√
High voltage indication
√
Timing measurement（Around 30 minutes）
√




Technical Parameters
Item
Output Voltage
Range
Accury

Insulation Resistance Measurement
(Output Voltage 500V/1000V/2500V/5000V
Short-circuit Current:<1.8mA
500V
1MΩ～20GΩ
±(3%+5)
1000V
2MΩ～40GΩ
±(3%+5)
2500V
5MΩ～100GΩ
±(3%+5)
5000V
10MΩ～1000GΩ
±(3%+5)
