Полностью автоматическая винтовая машина Fasto для изготовления
- Категории: Metal & Metallurgy Machinery >>>
- Поставщик: Fasto,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

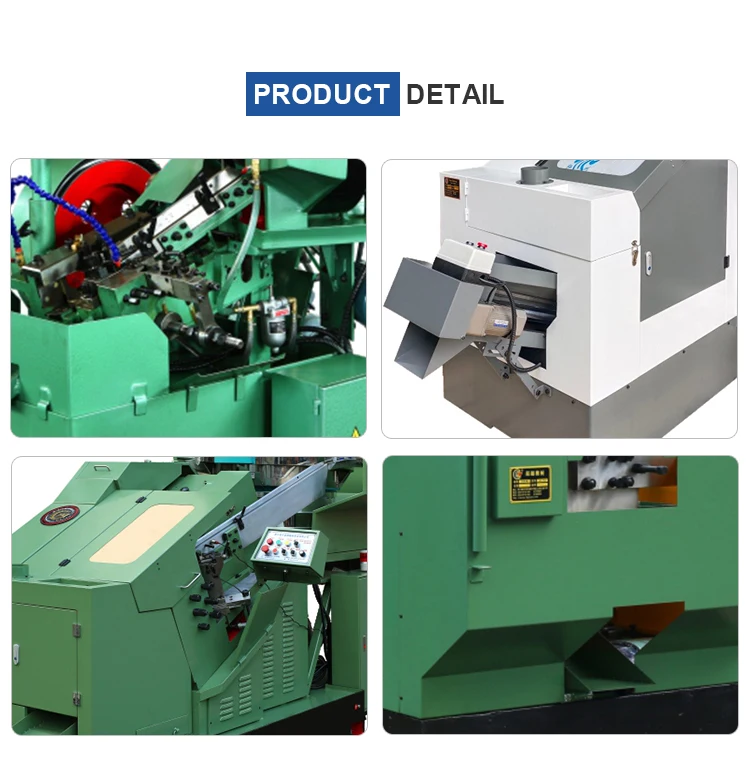

Details Images
Product Description
Fasto Full Automatic Screw Machinery Screw Thread Making Rolling Machine
Product Name | Fasto Full Automatic Screw Machinery Screw Thread Making Rolling Machine |
Condition | New |
Marketing Type: | Ordinary Product |
Power | 5.5kw |
weight | 1750 |
Place of origin | Tianjin, China |
Brand | Fasto |
Warranty | 1 year |

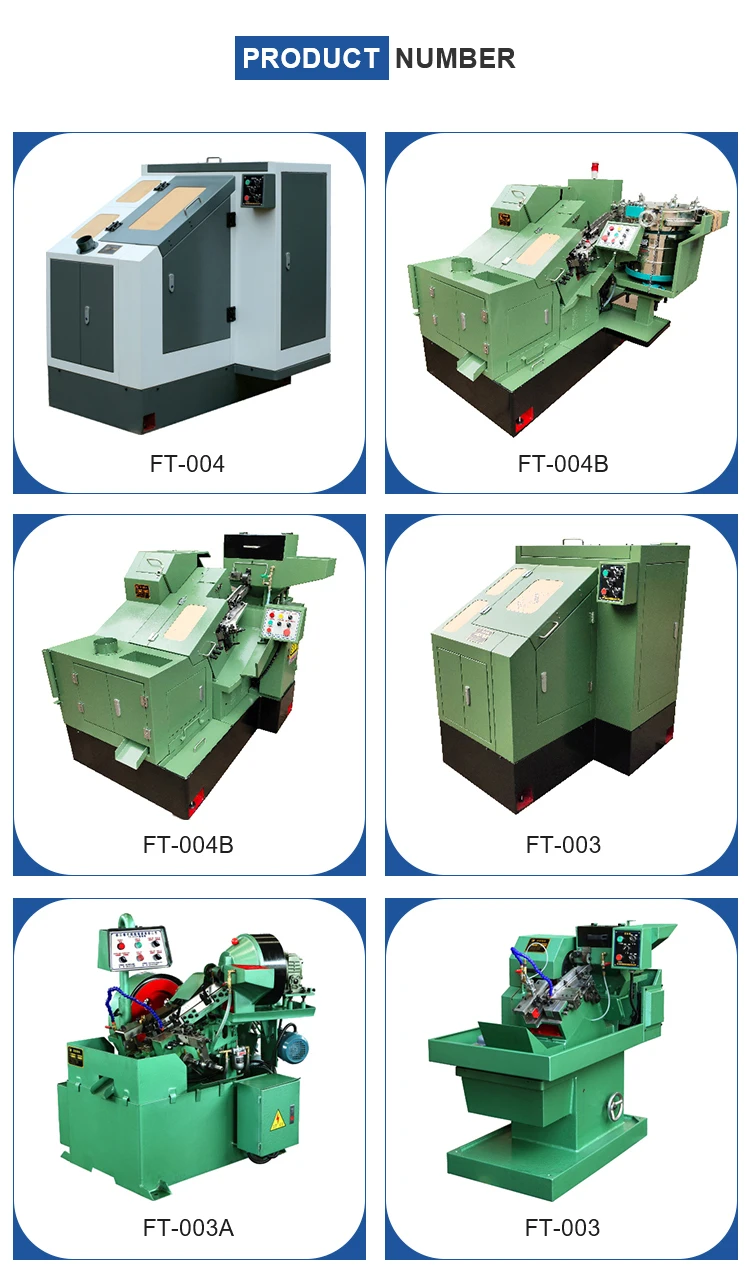

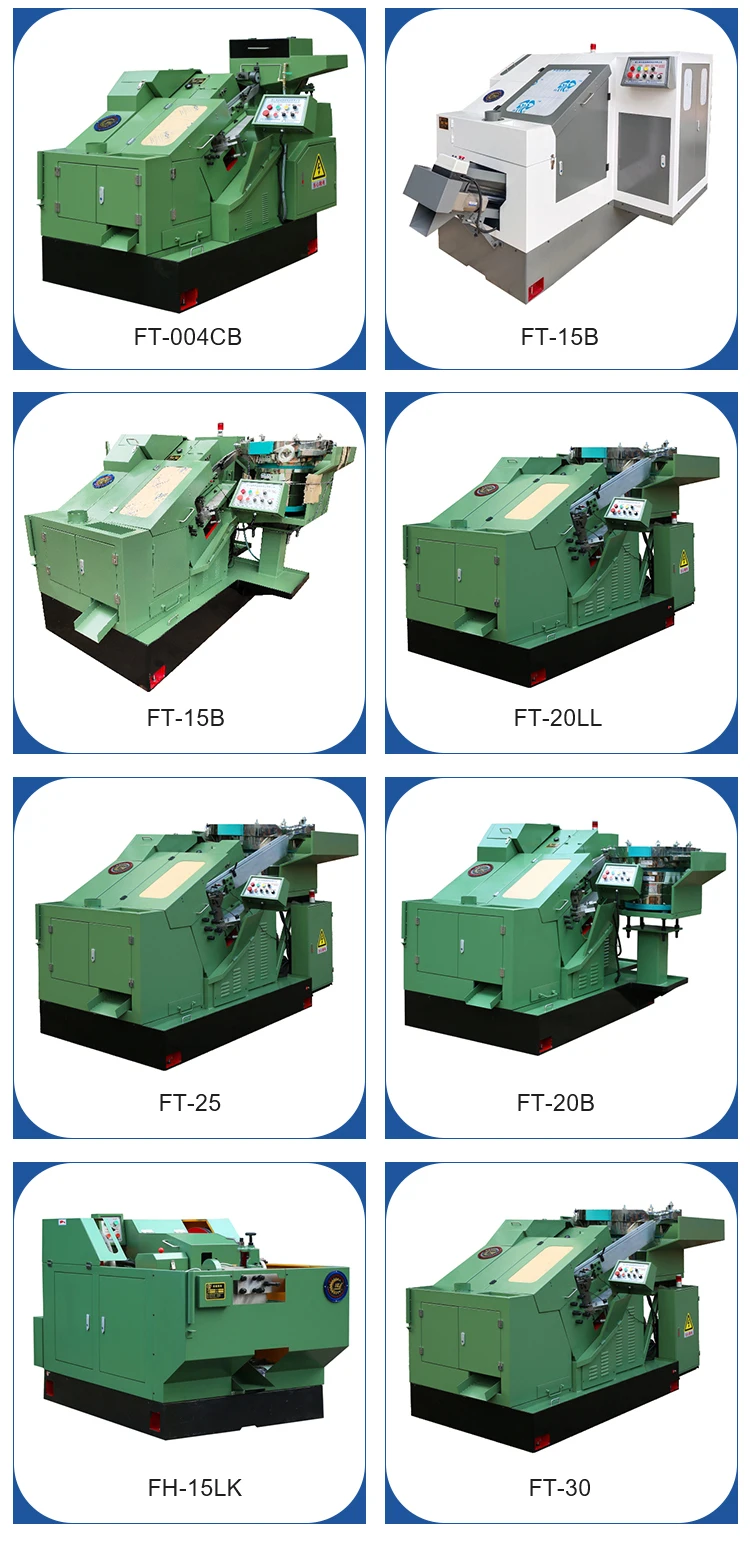

Product Number
Production Process
Specifications
Model | Max.Cut diameter | Max. Blank Length | Die Dimensions(w) | Die Dimensions(t) | moving die minension(l) | Stationary die minension(l) | Output rate | Body Motor Power | L*W*H |
Unit | mm | mm | mm | mm | mm | mm | pcs/min | KW | mm |
FT-20B | 8 | 105 | 25(30) | 105 | 170 | 150 | 140 | 7.5 | 2450x1820x1600 |
FT-20LL | 8 | 200 | 25(39) | 105 | 170 | 150 | 60-110 | 11 | 2800x2000x1600 |
FT-25 vibrating plate | 10 | 155 | 25(30) | 155 | 170 | 150 | 120 | 11 | 2800x1900x1550 |
FT-30 vibrating plate | 12 | 150 | 40(38) | 155 | 215 | 190 | 50-90 | 15 | 3420x1680x1795 |
FT-40 | 20 | 200 | 50(45) | 155 | 265 | 230 | 45-60 | 30 | 3500*2500*1950 |
Company Profile
Packing&Shipping
Contact Us
