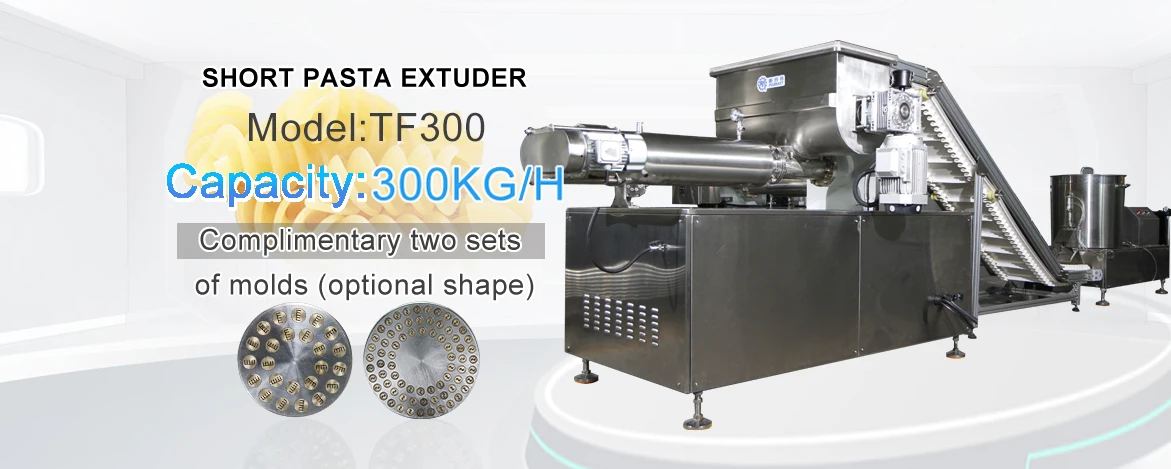

Машина для производства макаронных изделий различной формы 300 кг/ч вакуумная формовочная машина автоматическая линия
- Категории: Food & Beverage Machinery >>>
- Поставщик: Parmat,Automation,Equipment,(Jinan),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Start working for you with this machine and realize your endless wealth！

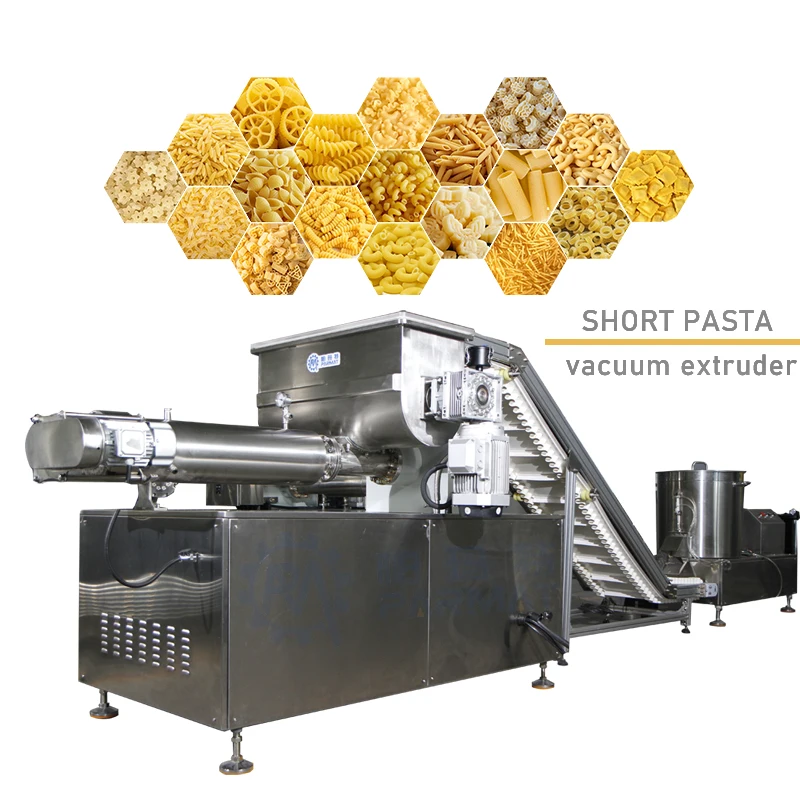

Parmat pasta extruder uses the most advanced manufacturing process and technology, using durum wheat flour as raw material → mixing with accurate proportion of water at atmospheric pressure → vacuum stirring → vacuum extrusion → cutting and forming, the machine has a high degree of continuous automation , To reduce labor cost and operation difficulty for customers, we can also provide customers with complete production line configuration, temporary storage system for raw materials and finished products, drying system, automatic packaging system, technical service support and after-sales maintenance services.
Equipment Name | Configuration | Power | Weight | Material |
TF300 Extruder | TF300 high-speed mixer | 5.5KW | 5T | 304/Q235 |
TF300 vacuum mixer | 2.2KW | 304/Q235 | ||
TF300 vacuum extruder | 22KW | 304/Q235 | ||
TF300 die | 304/Q235 | |||
TF300 cutting machine | 0.55KW | 304/Q235 | ||
TF300 PLC electronic control system | 200A | 304/Q235 | ||
TF300 vacuum system | 0.75KW | Q235 | ||
TF300 type water cooling device | 0.37KW | 304/Q235 | ||
TF300 oil cooling device | 0.25KW | Q235 |
Model | Production capacity/hour | Explanation | ||||
TF50 | 50KG/H | According to different customer needs, our pasta machine has three configurations: A, B, and C, A. Simple type (requires manual feeding), B. Standard type, C. High configuration type (automatic continuous production) | ||||
TF100 | 100KG/H | |||||
TF150 | 150KG/H | |||||
TF200 | 200KG/H | |||||
TF300 | 300KG/H | |||||
TF600 | 600KG/H | |||||
TF1200 | 1200KG/H | |||||
Two sets of spaghetti extrusion dies (optional), disassembly tools, finished product storage baskets, electronic components and machine accessories, etc. will be given as a gift when purchasing the machine (the specific list is subject to the quotation list) | ||||||
Thrust Roller Bearings
Using the best thrust roller bearings, the friction coefficient is extremely low, the speed is high, and it has self-aligning performance.

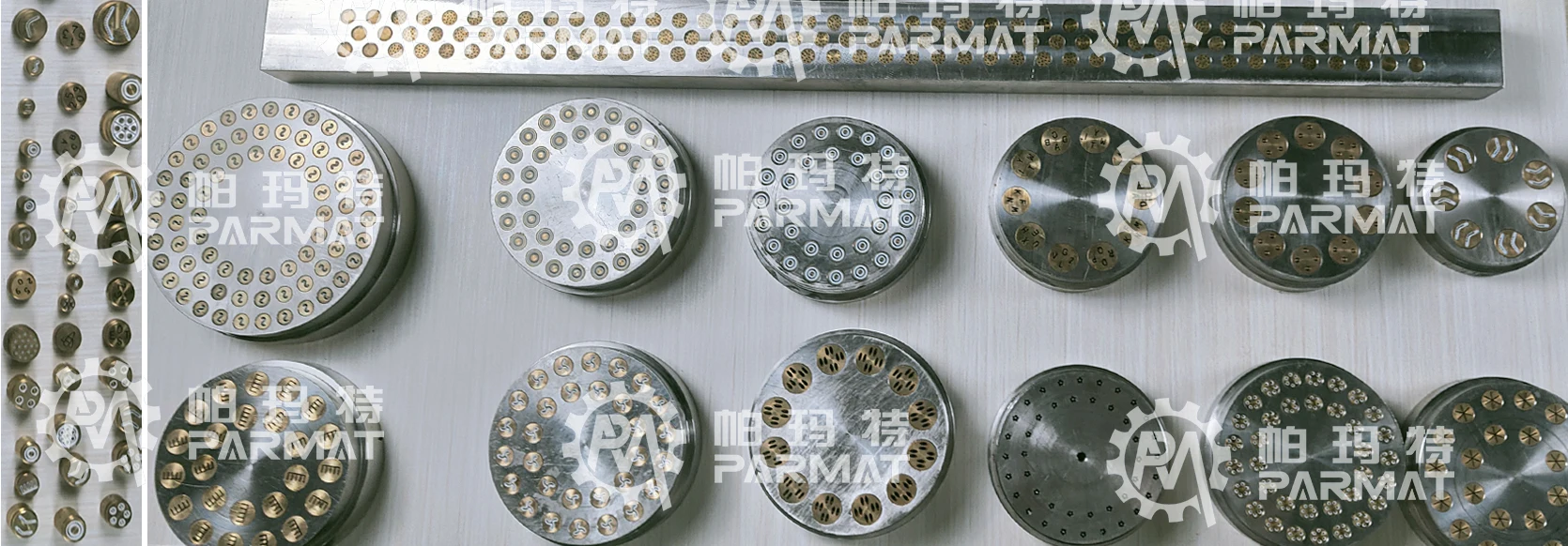

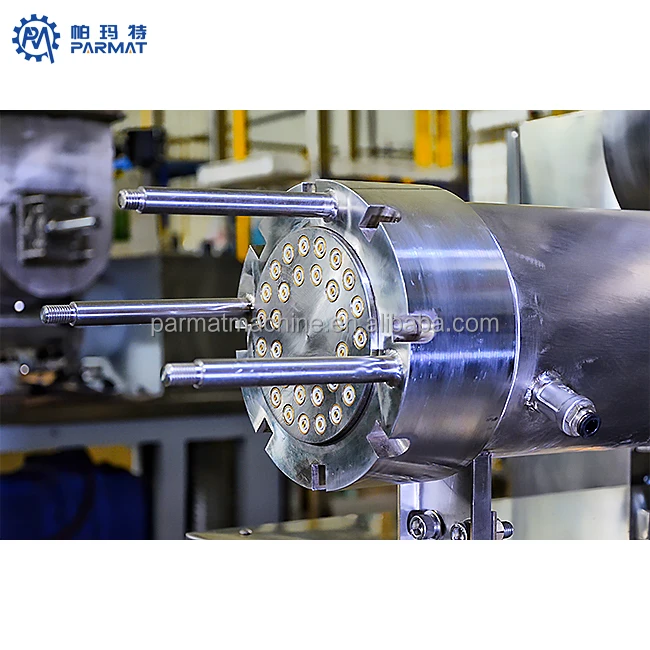

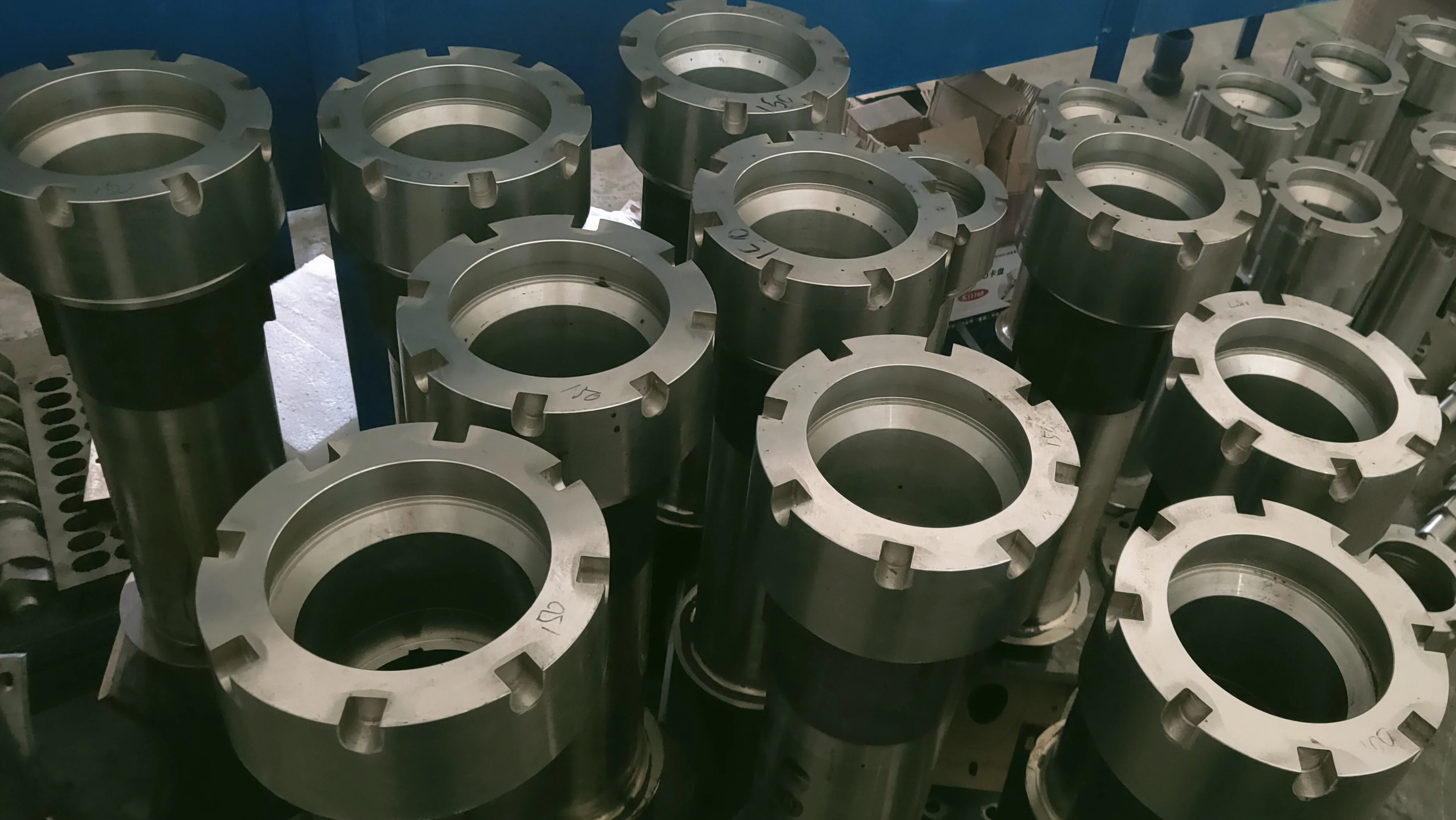

High precision extrusion die
The mould made of special material has a service life of 500 tons - 800 tons
Thrust Roller Bearings
Using the best thrust roller bearings, the friction coefficient is extremely low, the speed is high, and it has self-aligning performance.
Vacuum pump
The vacuum extraction efficiency is extremely fast, the noise is low, and the one-key start and stop.
Hardened gear reducer R
Our use the best reducer, so that it can work more efficiently, with very low noise and infinite normal service life.
Turbine worm reducer
Decelerate while increasing output torque, decelerate while reducing load inertia.

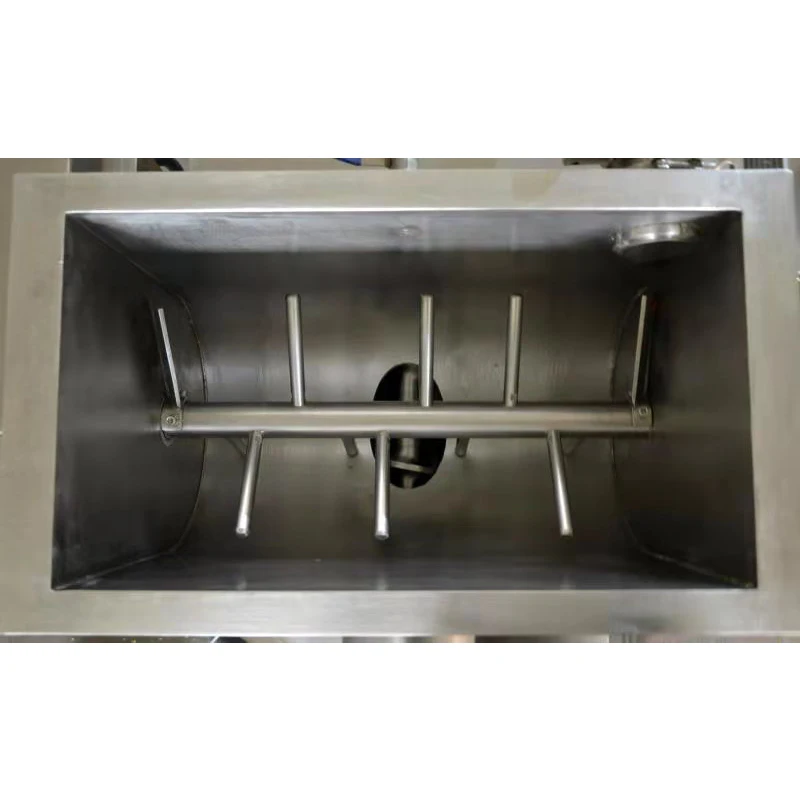

Flour automatic mixing device, put durum wheat flour and water, so that the raw materials can be automatically and quickly mixed under normal pressure.
Short Pasta Products

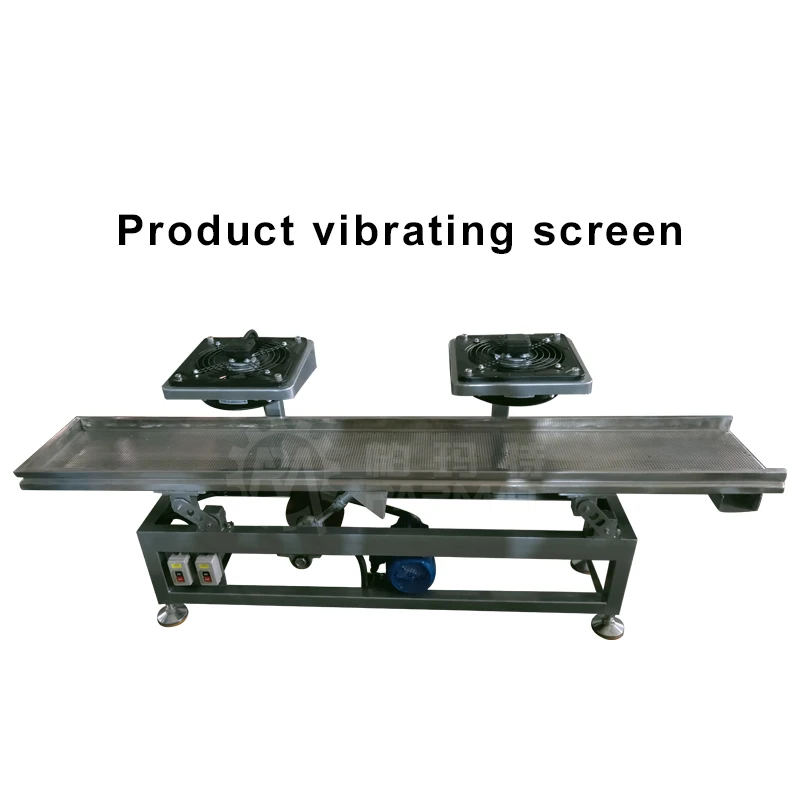

Pre-drying Shaker：
The surface of the cut short pasta is quickly dehydrated and dried, and the product is continuously vibrated and conveyed so that the product is not sticky.（Suitable for pasta machines under 200KG/H）

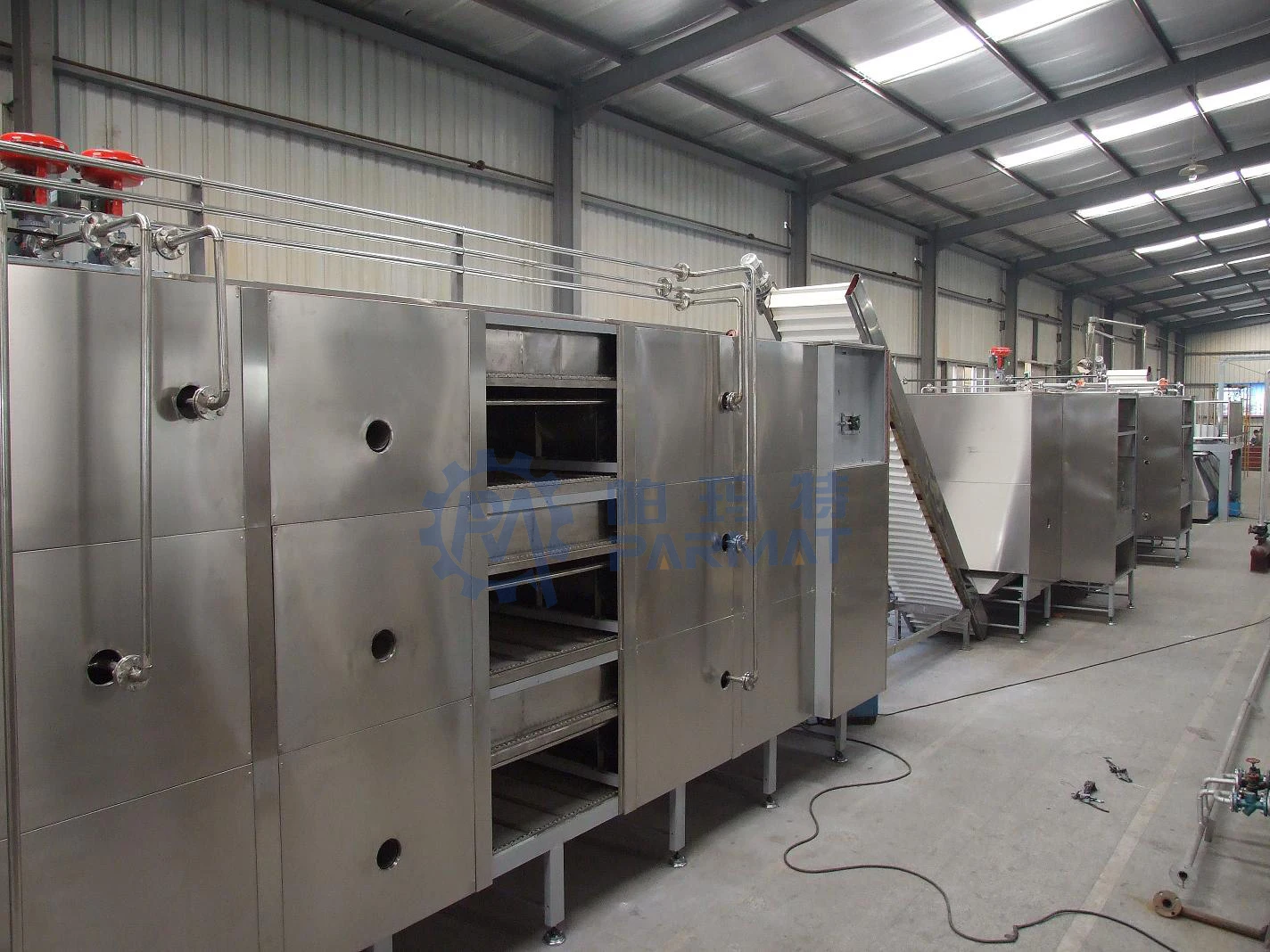

The drying process of pasta is very difficult, and it needs to control the temperature and humidity, so you need a professional drying system to complete it, and design different drying equipment according to your needs.
Technology & Manufacturing
Professional mechianical technology design
The mold designer writes the mold programming commands according to the customized molds of different customers' ideas
Precise control of CNC engraving machine, carving out various complex pasta molds with high precision and quality

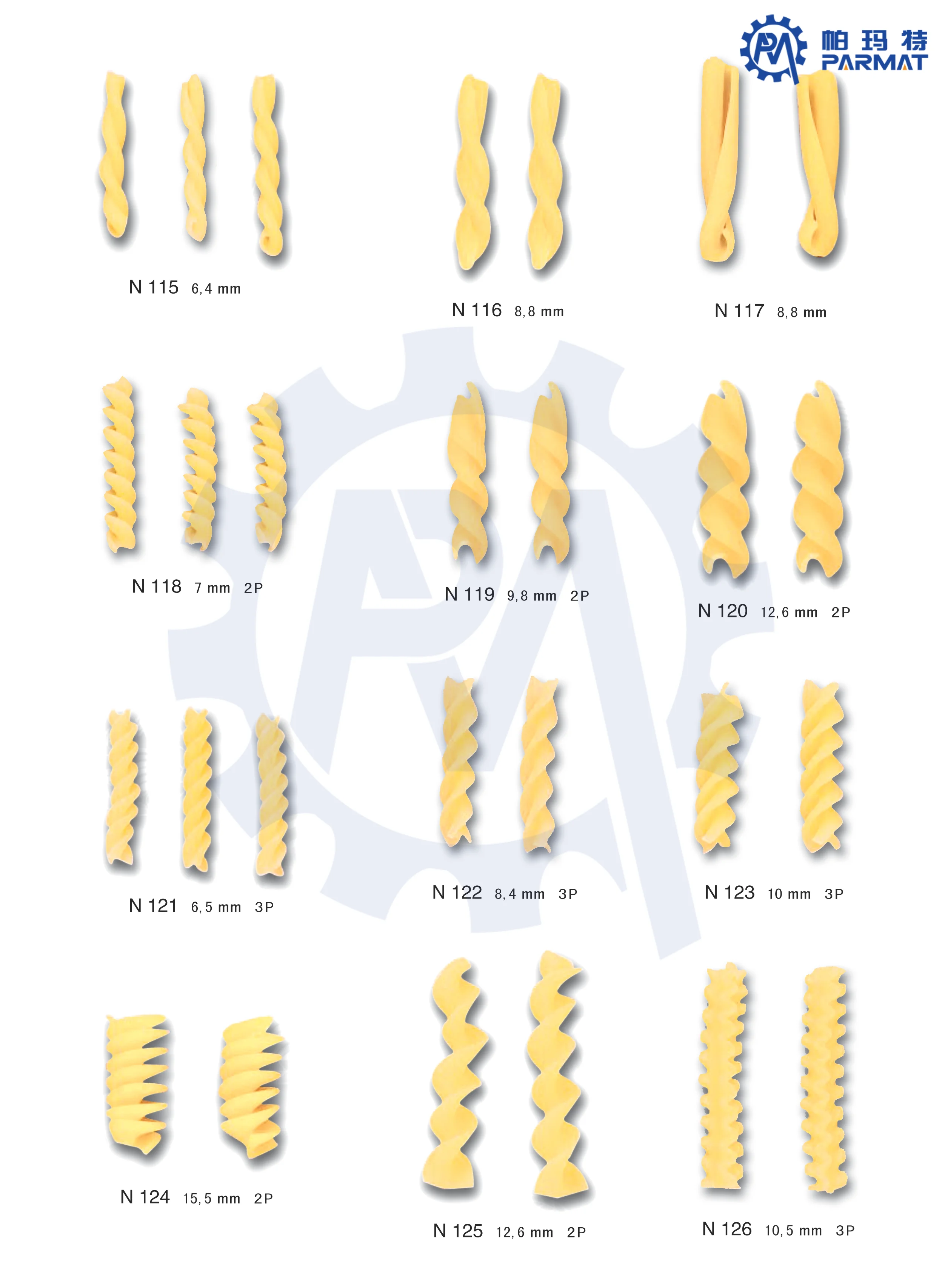

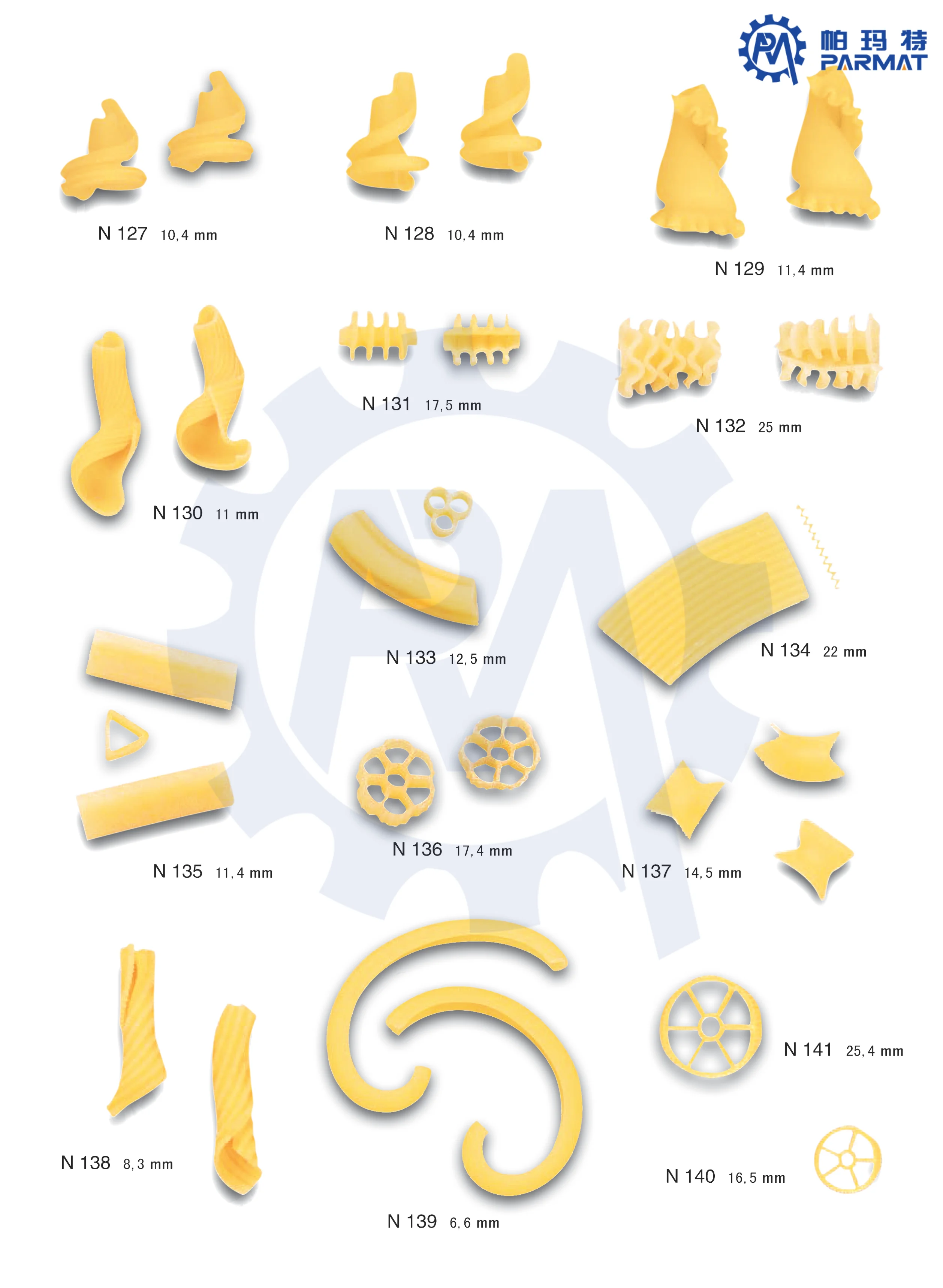

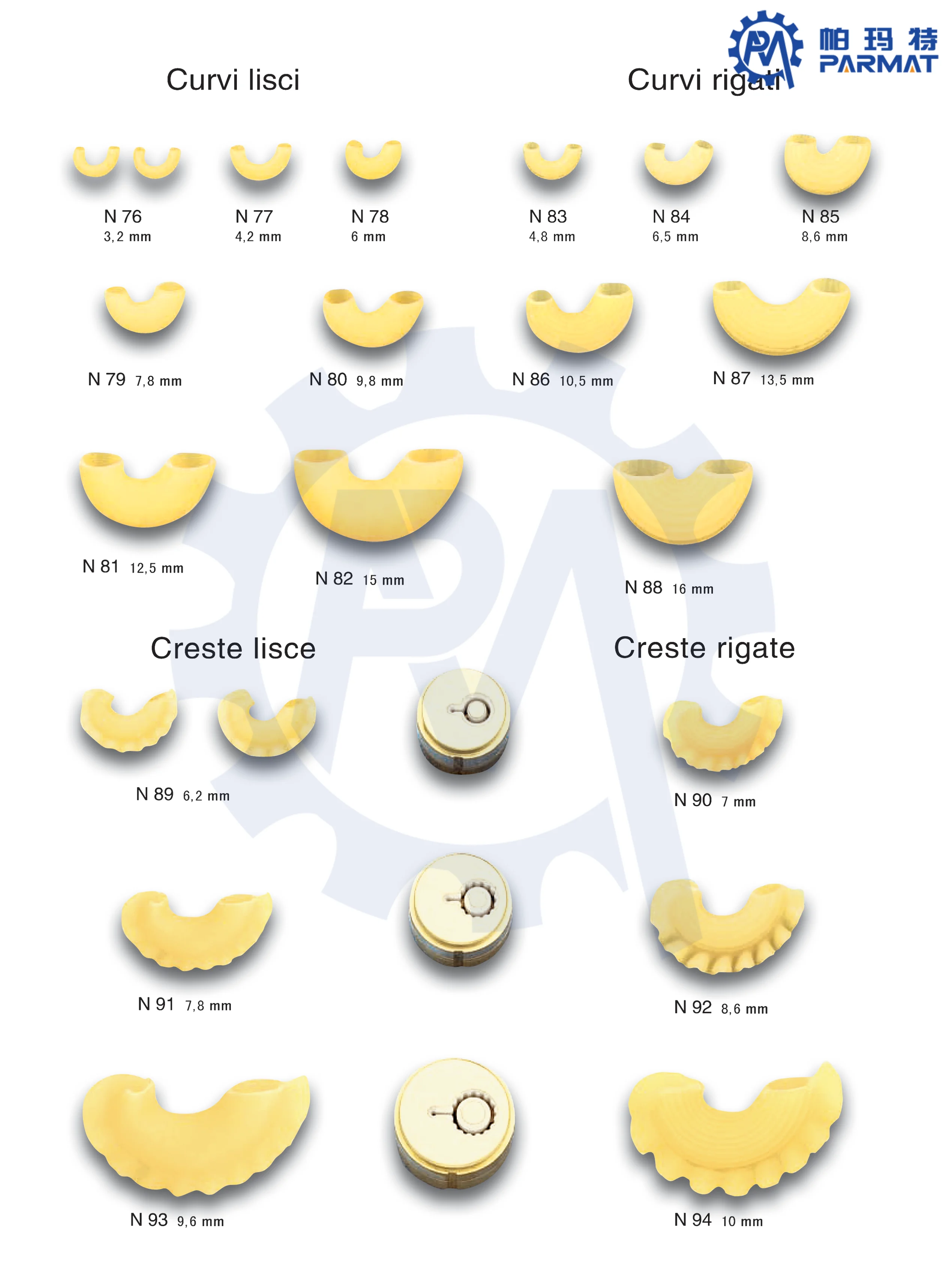

Short Pasta Sample
We can make all PASTA shapes, and we can do the best, tell us what you want, we will make the corresponding mold for you.

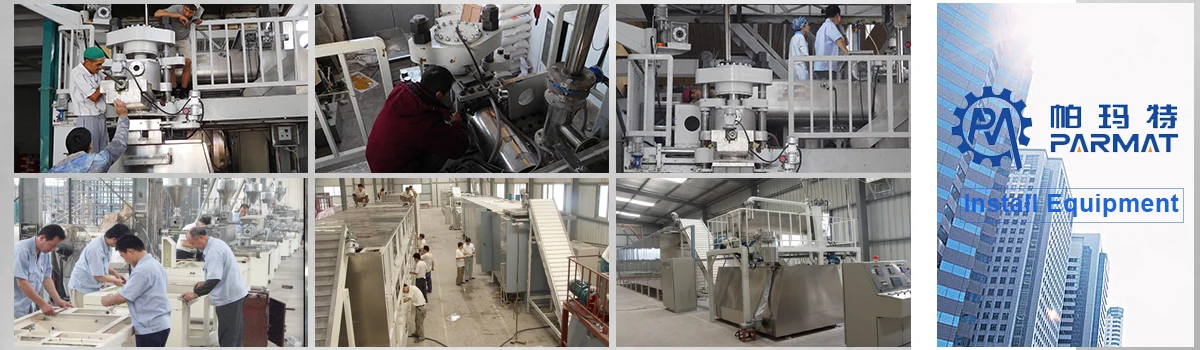

Real machine in factory
Complete Automatic Pasta Line
Successful Project
Parmat is a research and development and customization enterprise, providing a complete turnkey system for pasta production lines
Project in Kyrgyzstan

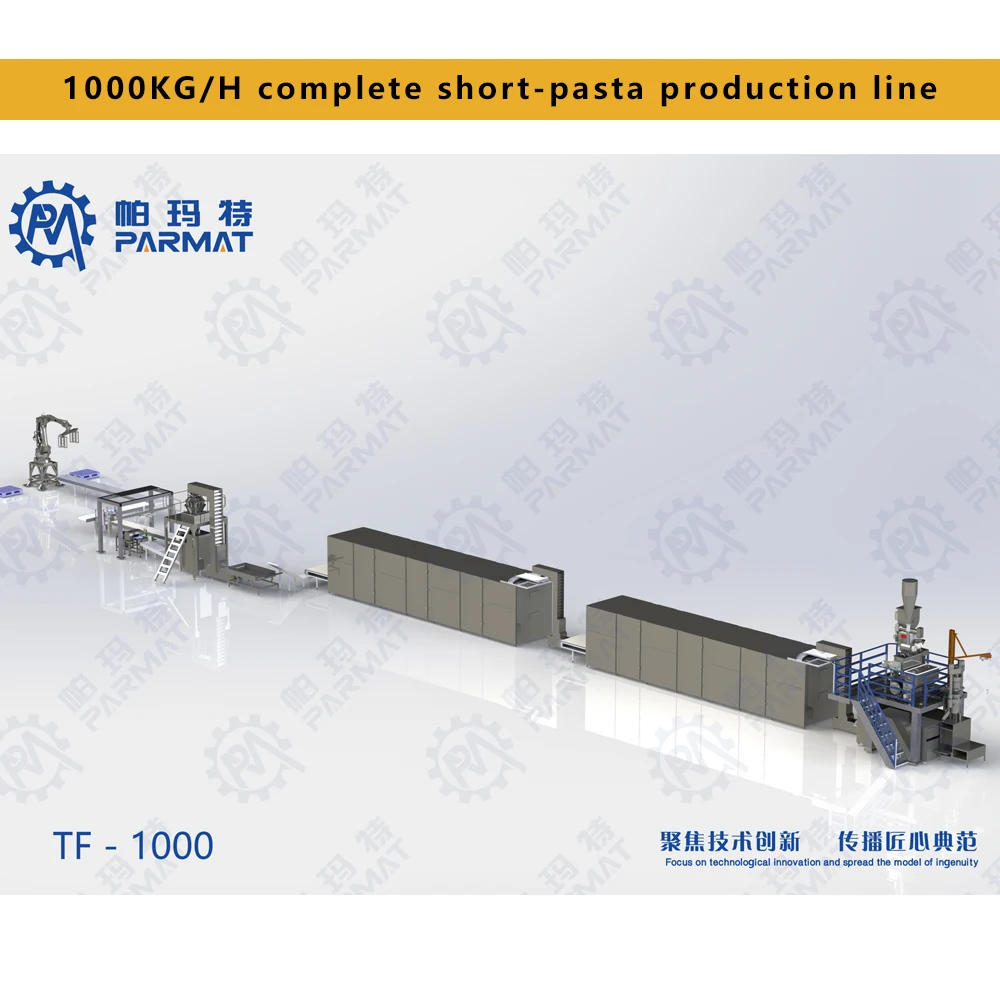

1000KG/H short pasta production line

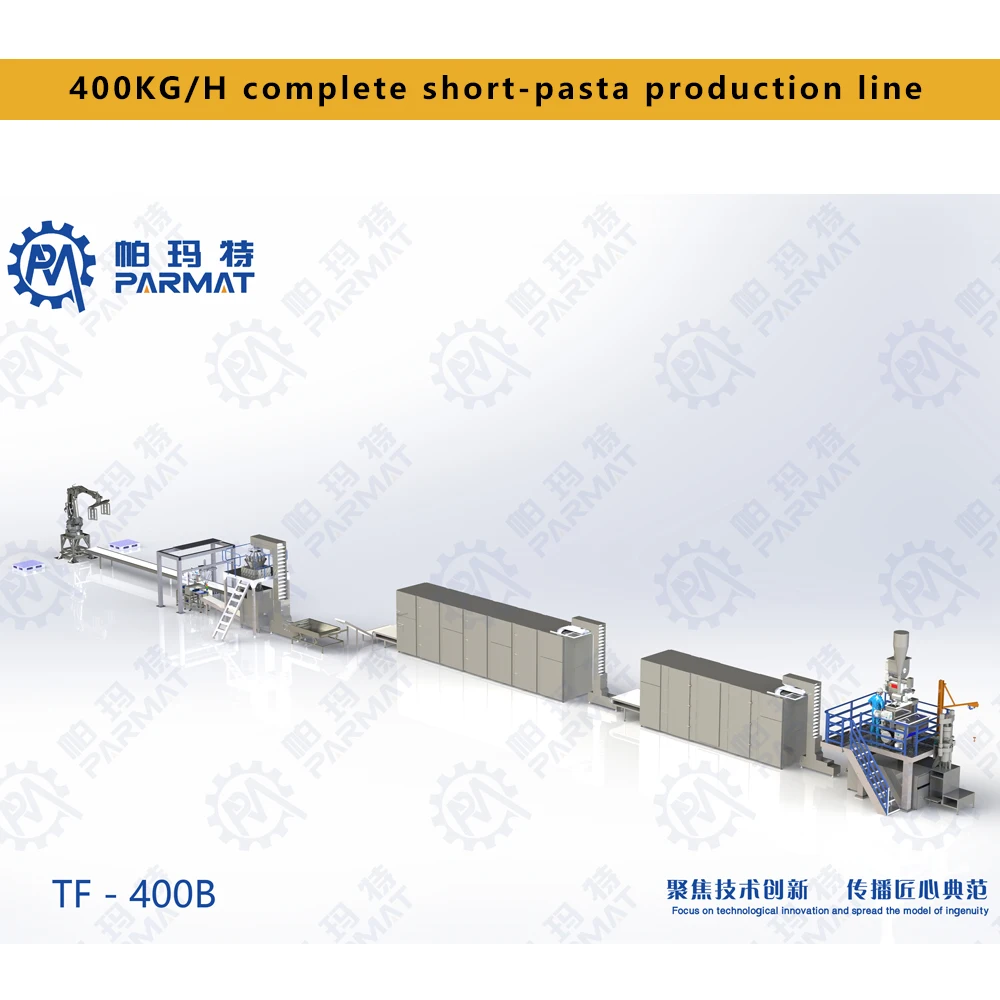

Project in Syria
400KG/H short pasta production line
Project in China
Fresh Noodle Production Line
Project in Iran
Project in Algeria
Project in Egypt
Why Choose Us
A. Consultation service before, during, and after sales;
B. Project planning and design service;
C. Debugging of equipment until everything is functional;
D. Management of equipments' long distance shipping from seller's factory to the named place by buyer;
E. Training of equipment maintenance and operating personally;
F. New production techniques and formulas;
G. Provide one year complete warranty and life time maintenance service.
B. Project planning and design service;
C. Debugging of equipment until everything is functional;
D. Management of equipments' long distance shipping from seller's factory to the named place by buyer;
E. Training of equipment maintenance and operating personally;
F. New production techniques and formulas;
G. Provide one year complete warranty and life time maintenance service.
