Product Description

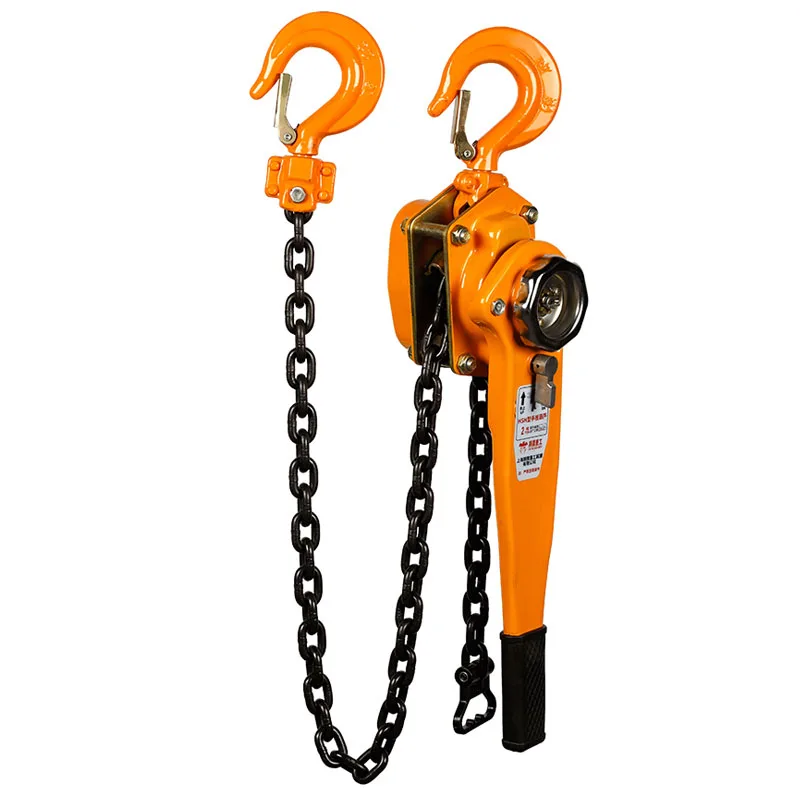

Lever hoist
Lever hoist is a simple to use, easy to carry manual lifting tool. The lever hoist can be used for lifting, pulling, lowering,
calibration and other operations. The lifting weight generally does not exceed 50T. Widely used in shipbuilding, electric power,
transportation, construction, mining, post and telecommunications and other industries for equipment installation, item lifting,
mechanical parts pulling, etc.
calibration and other operations. The lifting weight generally does not exceed 50T. Widely used in shipbuilding, electric power,
transportation, construction, mining, post and telecommunications and other industries for equipment installation, item lifting,
mechanical parts pulling, etc.
Application
Features
The lever hoist is safe, reliable and durable; good performance, easy maintenance; small size, light weight, easy to carry; small hand plate force, high efficiency; perfect structure, beautiful appearance and so on.
Lifting capacity
(T) is: 0.75, 1, 1.5, 2, 3, 6, 9;
Standard lifting height: 3 meters
lifting capacity | 0.75T | 1T | 2T | 3T | 6T | 9T |
lifting heigh | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M |
test altitude | 11KN | 13KN | 25KN | 37.5KN | 62KN | 110KN |
hand strength | 315N | 330N | 380N | 490N | 610N | 800N |
chain diameter | 6MM | 6MM | 8MM | 10MM | 10MM | 10MM |
net weight | 7.5KG | 7.5KG | 12KG | 13KG | 28KG | 50KG |
leading technlogy advantage
do the quality and service that others do not have

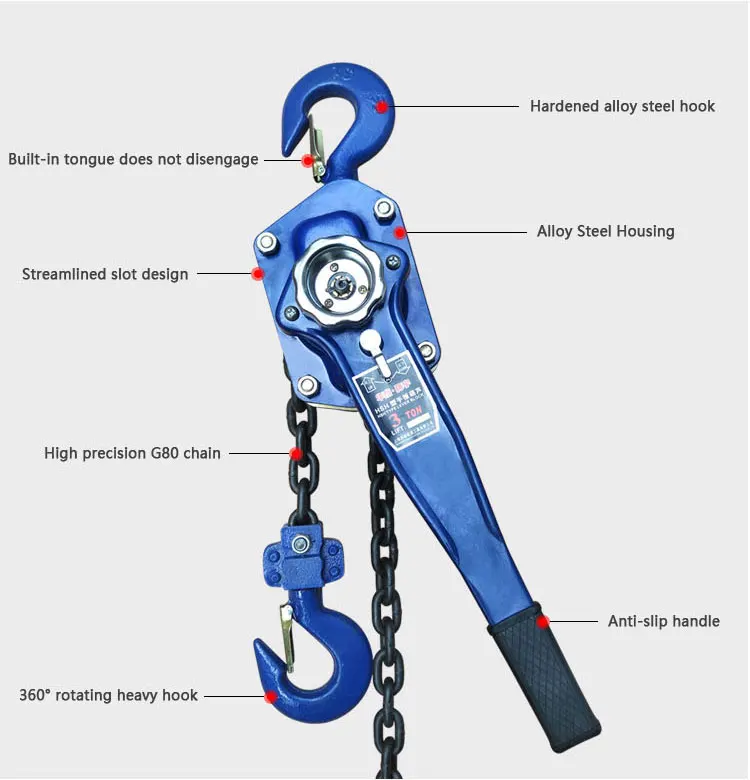

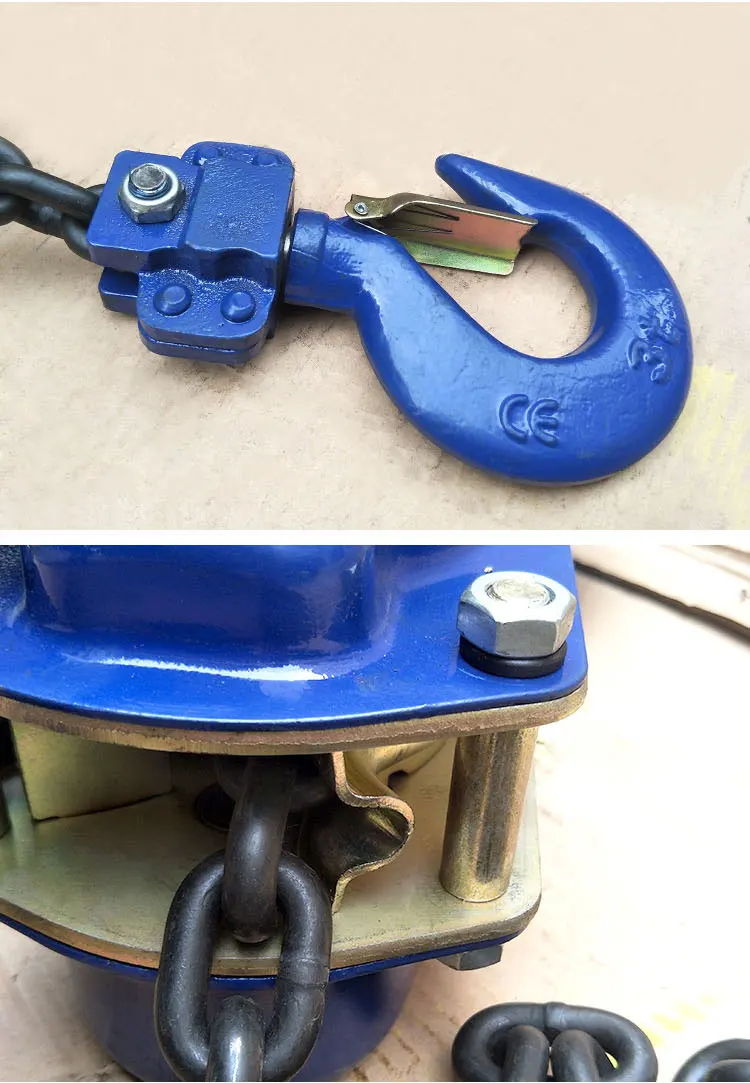

360°Rotating heavy hook
Forged hooks have slow bending properties
With safety tongue to prevent items from slipping

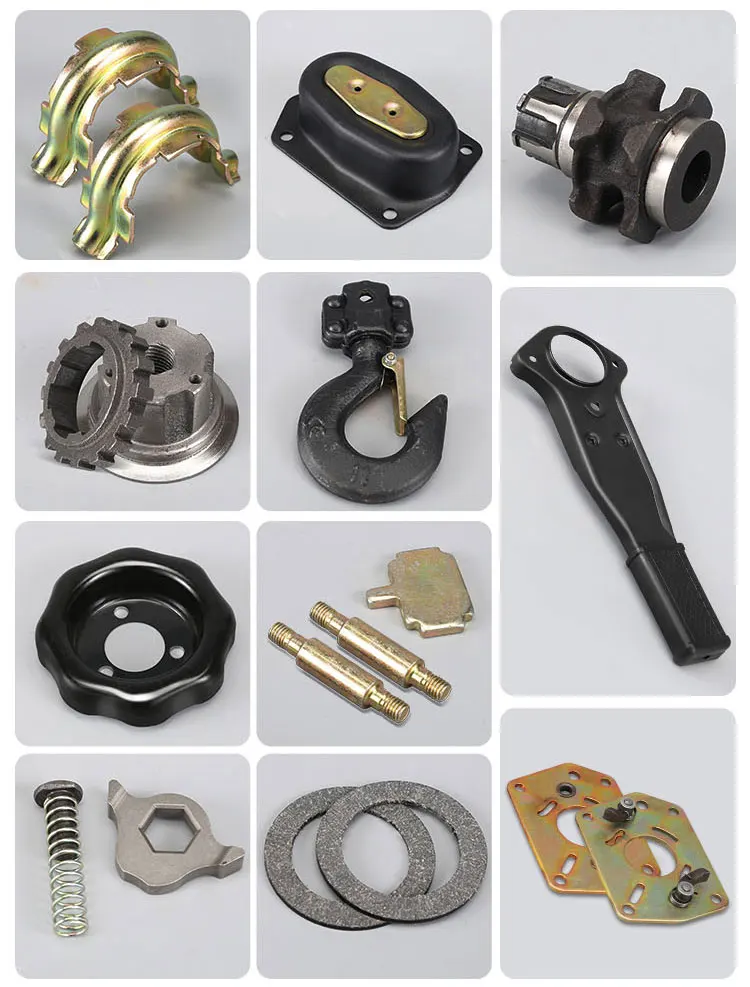

Features of chain lever hoist:
1. All structural steel
2. Premium alloy chain
3. All gear rotation
4. There are bearings or bushings at the rotation of gears and shafts
5. The surface of the product is sprayed
6. Professional alloy hook can meet the overload of the product
7. The product can meet the weight of 150% of the rated load
How to edit broadcast
1. Select a lever hoist with a suitable size for use, and it is strictly forbidden to overload.
2. Before using the hand lever hoist, carry out safety inspection, and at the same time, perform no-load test on the hand lever hoist, and adjust the position of the lower hook reasonably according to the actual requirements.
3. The adjustment method of the lower hook is: pull the dial to make the dial in the "N" position, rotate counterclockwise and pull out the handwheel. At this time, the clutch is in the open state, and the chain can be easily adjusted by pulling out the chain. After adjustment, turn the handwheel clockwise to restore it to its original position.
4. After the adjustment, hang the heavy object in the middle position of the lower hook, and pull the handle to realize the lifting of the heavy object.

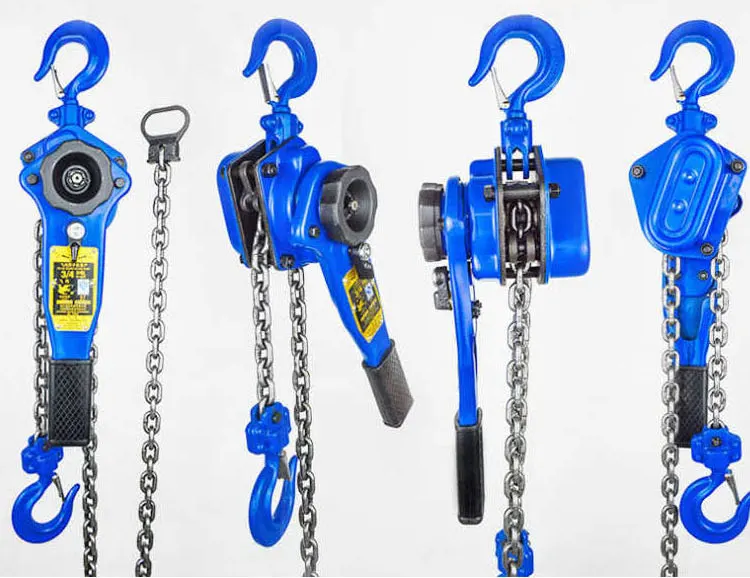

Factory real shooting
FAQ
1.Are you Trading or Factory ?
We are factory, Big quantity order is avaiable to us and the delivery time can be guaranteed
2.How Can I get contact with you about quotation?
We usually quote within 24 hours after we get your inquiry online because of the time difference.
For urgent condition, please call email us so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you need the
samples, you need pay the express fee, but it will be refundable after order confirmation
when your products amount is more than USD10,000.
4.What information you need to provide for a accurate quotation?
1. Lifting capacity.
2. Lifting height.( hook center to ground)
3. Power supply (Voltage)
4. Span (rail center to rail center)
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
5.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order.
About 15-20 days will be finished. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country .
6.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost
effective for you .
7.Which payment terms will you receive ?
T/T, Western Union
8.How long is the warranty ?
The whole machine of all our products have 12 months warranty, and we supply free maintenance within warranty period.
Low charge for continue maintenance when warranty is expired
We are factory, Big quantity order is avaiable to us and the delivery time can be guaranteed
2.How Can I get contact with you about quotation?
We usually quote within 24 hours after we get your inquiry online because of the time difference.
For urgent condition, please call email us so that we will regard your inquiry priority.
3.How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. If you need the
samples, you need pay the express fee, but it will be refundable after order confirmation
when your products amount is more than USD10,000.
4.What information you need to provide for a accurate quotation?
1. Lifting capacity.
2. Lifting height.( hook center to ground)
3. Power supply (Voltage)
4. Span (rail center to rail center)
5. Working condition: which material to lift? temprature?
6. Would be better if you have drawings of your plant.
5.What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order.
About 15-20 days will be finished. Generally speaking, we suggest that you start inquiry two months
before the date you would like to get the products at your country .
6.What is your terms of delivery ?
We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost
effective for you .
7.Which payment terms will you receive ?
T/T, Western Union
8.How long is the warranty ?
The whole machine of all our products have 12 months warranty, and we supply free maintenance within warranty period.
Low charge for continue maintenance when warranty is expired
