Product Description


Overview

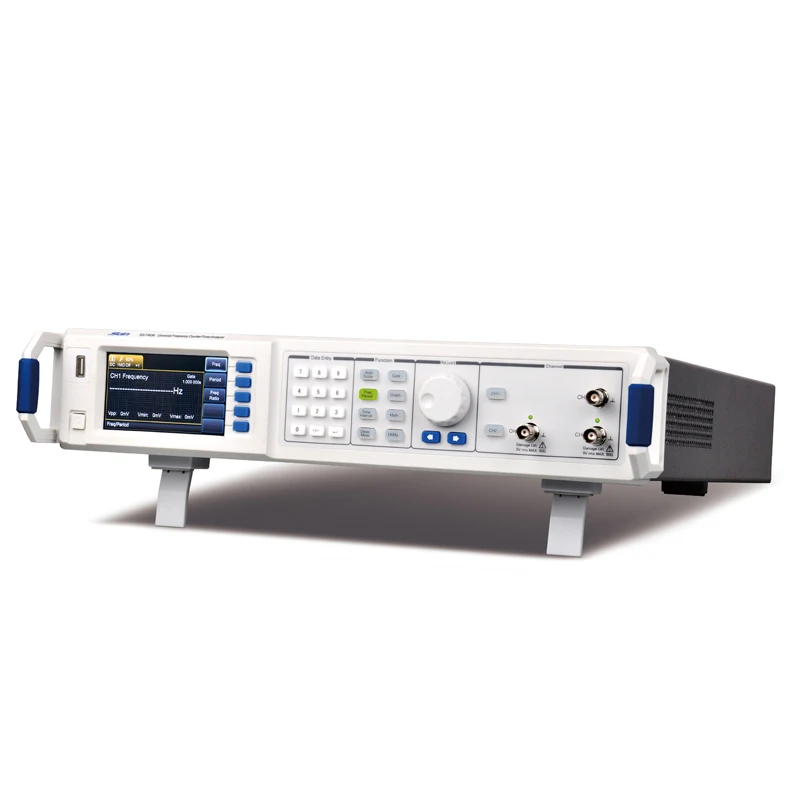

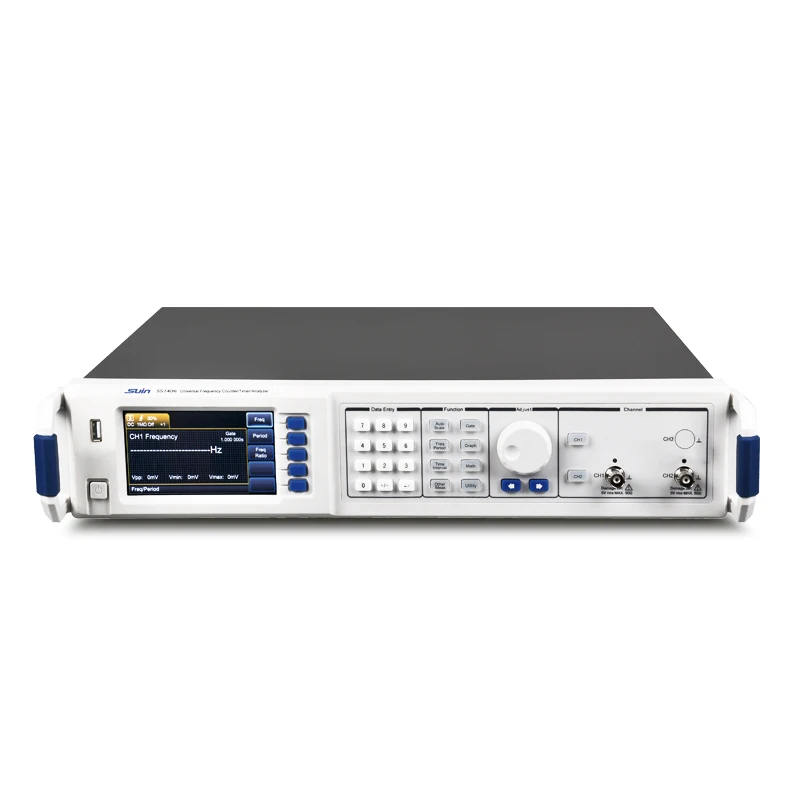

SS7406 frequency counter / timer / analyzer packs the functionality of a frequency counter, frequency meter and timer into one feature-rich instrument. With higher resolution, you can capture very small frequency and time changes. Meantime it offers comprehensive analysis modes, including measurement statistics, histograms, and trend chart.


Features
Two 200MHz general-purpose channels
Typical 25ps single-shot time resolution
11 digits/s frequency resolution
Optional 5×10–10/day high-stability time base
4.3' TFT-LCD display to show abundant information

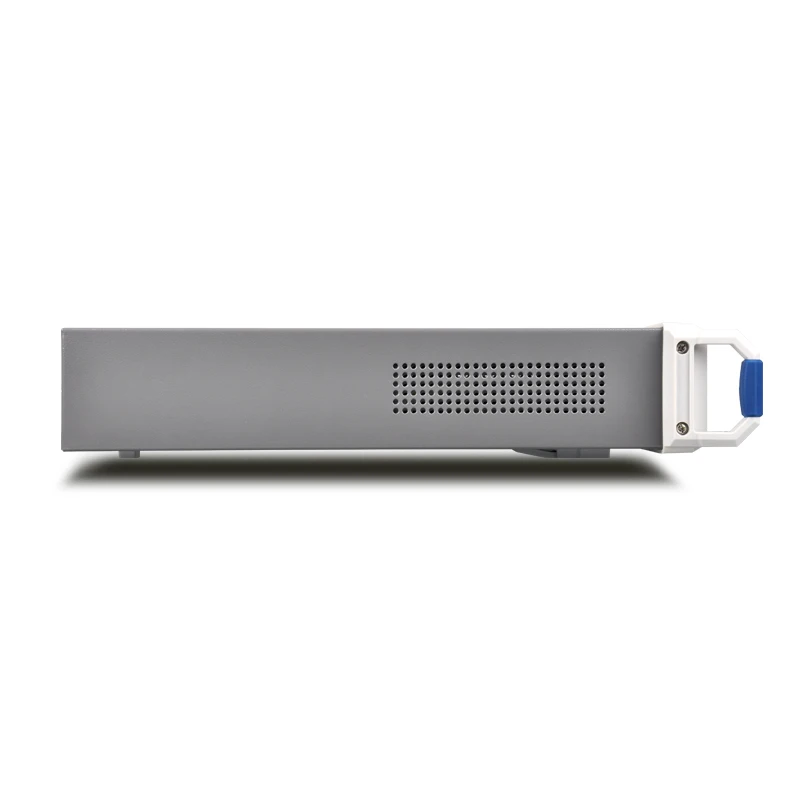

Firm and sophisticated standard 2U design

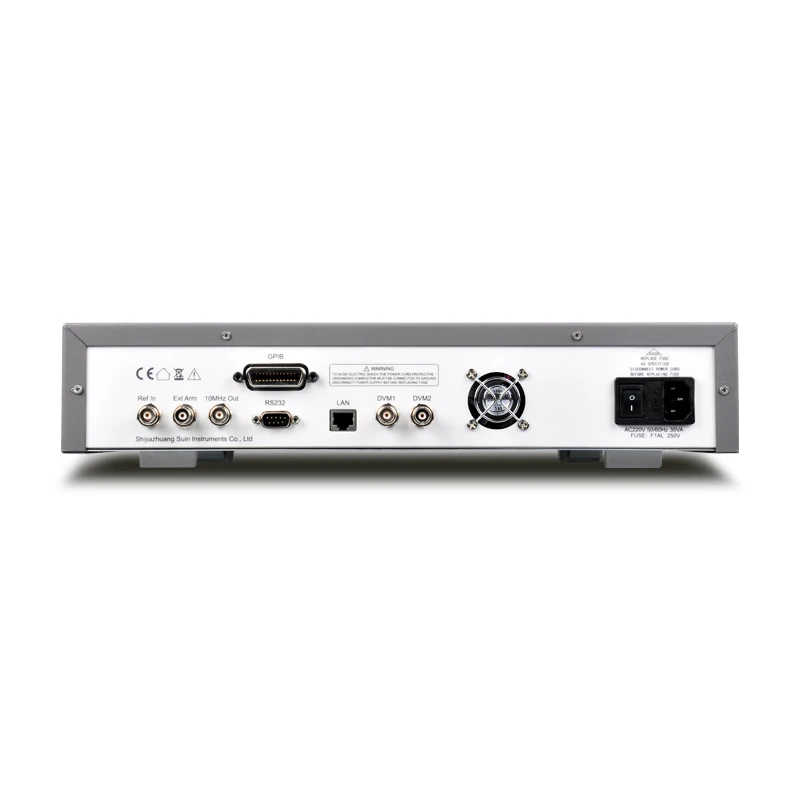

Standard interface of RS-232, GPIB and LAN






Specification


Measring Functions
Frequency Range
Channel 1: 1mHz ~ 200MHz,
Channel 2: 1mHz ~ 200MHz
Channel 3: 3GHz/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz (option)
Measurement Resolution
11 digits/s
Period
5ns ~ 1000s
Time Interval Range
1ns ~ 10000s
Time Resolution
25 ps
Pulse Width
1ns ~ 10000s
Duty Cycle
1% ~ 99%
Totalize
0 ~ 1×1013
Phase Difference
1° ~ 359°
Input
Dynamic Range
50mVrms ~ 1.0Vrms (Sine), 150mVPP ~ 4.5VPP(Pulse)
Input Impedance
1MΩ//35pF or 50Ω
Coupling Mode
AC or DC
Input Attenuation
×1 or ×10
Trigger Level
-5.000V ~ +5.000V, min. step 1mV or auto trigger level
Other Functions
Frequency Ratio
ratio value range : 0.00001~999999
Up/Low Limit
"Limit" light on shows the result out of range, off shows within range
Statistics Calculation
Multi-average, Max.,Min., PPM, SD, Allan Variance
Standard Time Base
Daily Aging
1×10-8/day
Yearly Aging
5×10-7/year
Optional Time Base
Daily Aging
5×10-10/day
Yearly Aging
5×10-8/year
Channel Options
Frequency Range
Dynamic Range
3.0GHz
100MHz ~ 3GHz
A. -27dBm~+19dBm (100MHz~2.6GHz) -15dBm~+19dBm (2.6GHz~3.0GHz)
100MHz ~ 3GHz
B. -27dBm~+19dBm
6.5GHz
200MHz ~ 6.5GHz
-15dBm ~+13dBm
12.4GHz
6.5GHz ~ 12.4GHz
-15dBm ~ +10dBm
16.0GHz
6.5GHz ~ 16GHz
-15dBm ~ +10dBm
20.0GHz
200MHz ~ 20GHz
-10dBm ~ +10dBm (200MHz~350MHz)
-15dBm ~ +10dBm (350MHz~18GHz)
-10dBm ~ +10dBm (18GHz~20GHz)
26.5GHz
10GHz~26.5GHz
-20dBm ~ +10dBm (10GHz~20GHz)
-15dBm ~ +10dBm (20GHz~24GHz)
-10dBm ~ +10dBm (24GHz~26.5GHz)
40GHz
18GHz-40GHz
-29dBm ~ +15dBm (18GHz~20GHz)
-20dBm ~ +15dBm (20GHz~28GHz)
-29dBm ~ +10dBm (28GHz~37GHz)
-20dBm ~ +13dBm (37GHz~40GHz)
General Characteristics
Interface
RS-232, GPIB, LAN
Power
Standard: AC220V (10%), 50Hz (5%), <70VA
Optional: AC110V (10%), 60Hz (5%), <70VA
Dimension & Weight
454*98*486mm,7.3kg


Packing & Delivery




Company Profile




SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.
Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.
Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.
