Мощная дробилка для пластиковых отходов
1 415,00-1 490,00 $
Китайское производство измельчитель для пшеничной муки мельница кукурузной самовсасывающая пульверная машина кормления
- Категории: >>>
- Поставщик: Henan,Bedo,Machinery,Equipment,Co.,Ltd.Henan,Ltd.
Поделиться:
Описание и отзывы
Характеристики
China Manufacture Wheat Flour Grinder Corn Flour Mill Self Priming Pulverser Machine Used For Animal Feeding
Product Description
This machine can be used for processing corn, rice, wheat, beans, sesame, pepper, pepper and other grains and seasonings material processing speed is fast, clean, one time into powder, can be changed by changing different aperture powder sieve to adjust the thickness!
Specification

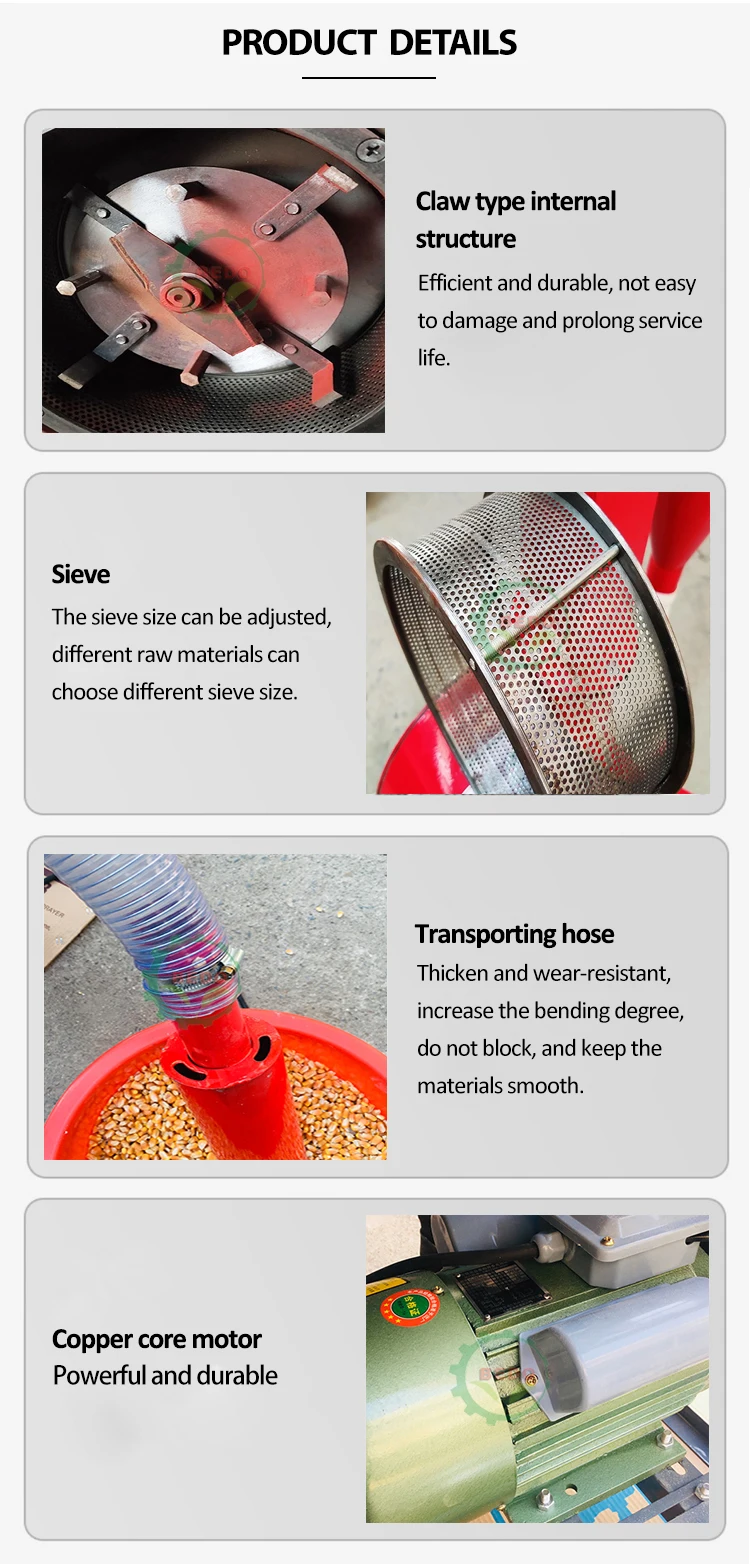

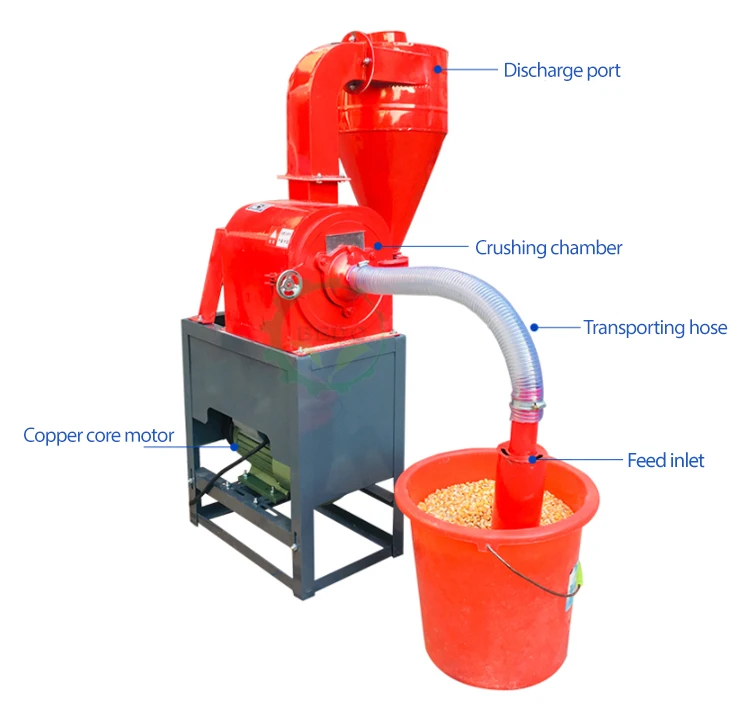

The machine is mainly composed of six parts, such as upper body, machine cover, rotor assembly, screen, feeding device, frame,body and rotor assembly together to form a crushing chamber, rotor assembly room main working parts, material crushing is completed in the crushing chamber. When the material into the crushing chamber, in the round teeth and flat teeth part of the broken strike and kneading impact, quickly broken into fine powder and slurry, under the action of centrifugal force and airflow, through the screen through the discharge port discharge.
Technical Data
Model | BD-SS160 | BD-SS280 | BD-SS300 | BD-SS320 | BD-SS360 |
Spindle speed(r/min) | 6300 | 4000 | 4000 | 4000 | 4000 |
The rotor diameter(mm) | 220 | 280 | 300 | 320 | 350 |
Hammer | 3 | 3 | 3 | 5 | 5 |
Capacity(kg/h) | 50-100 | 150-300 | 200-350 | 300-500 | 500-100 |
Power(kw) | 1.5-2.2 | 2.2-3 | 3-5.5 | 5.5-7.5 | 7.5-11 |
Dimension(mm) | 700*500*300 | 800*650*300 | 900*700*300 | 1150*550*400 | 1150*580*450 |
Weight(kg) | 60 | 80 | 90 | 140 | 180 |

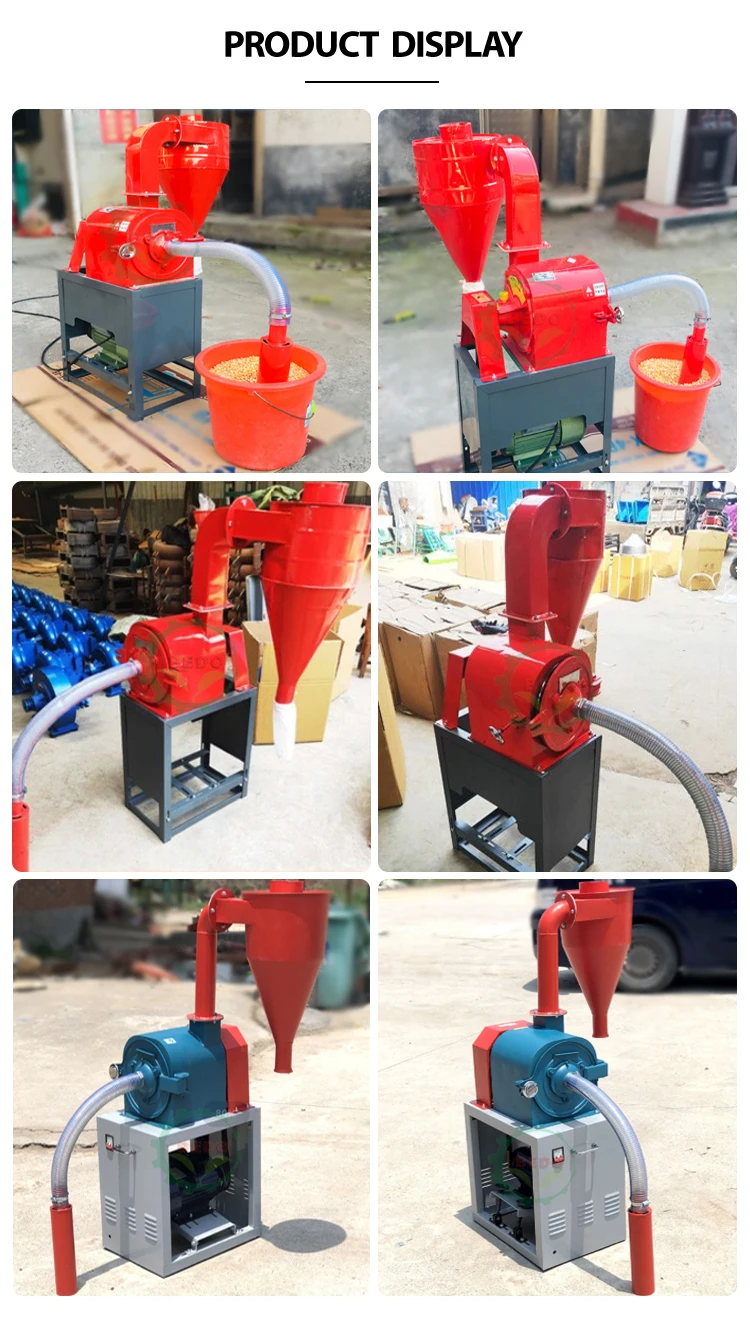

Detailed images
Final Production
