Products Description
Direct-drive Rooftop Cargo Van Refrigeration Units.
Driven directly by the vehicle engine, HUABON THERMO HT-380T is a rooftop cargo van refrigeration unit for the delivery of chilled & frozen goods, that is be used on big and large van box sizes of 16~22m³.
Products Features
► Roof-mounted condenser; applicable for large sized vans.
► Direct-drive by the vehicle engine; fast cooling, high reliability, and low failure rate.
► Reasonable design with big coils and strong framework, Durable fiberglass shell; Ultra-slim evaporators, saving loading space.
► Easy installation, simple maintenance, low operation cost.
► Digital and multi-functional control panel, double screen display, precise temperature control and simple operation, with
e-diagnostics and faults alarming.
► Optional heating and STANDBY.
► Direct-drive by the vehicle engine; fast cooling, high reliability, and low failure rate.
► Reasonable design with big coils and strong framework, Durable fiberglass shell; Ultra-slim evaporators, saving loading space.
► Easy installation, simple maintenance, low operation cost.
► Digital and multi-functional control panel, double screen display, precise temperature control and simple operation, with
e-diagnostics and faults alarming.
► Optional heating and STANDBY.
Technical Data
Model | HT-380T | ||||
Cooling Capacity | 0°C/38°C | 3850W | 13136Btu | ||
-18°C/38°C | 2150W | 7336Btu | |||
Voltage | DC12V/24V | ||||
Defrosting | Hot gas defrosting | ||||
Evaporator Airflow Volume | 1750m³/h | ||||
Refrigerant and volume | R404a/1.4g | ||||
Compressor | 5S14, 138cc/r | ||||
Condenser | Coils | Parallel flow aluminum condenser | |||
No. of fan | 2Pcs | ||||
Dimensions | 1060*750*200mm | ||||
Weight | 30.5kg | ||||
Evaporator | Coils | Copper tube and fin | |||
No. of fan | 2Pcs | ||||
Dimensions | 980*570*210mm | ||||
Weight | 20kg | ||||
Recommended Vehicle Box Volume | 16~22m³ | ||||
Products Advantages

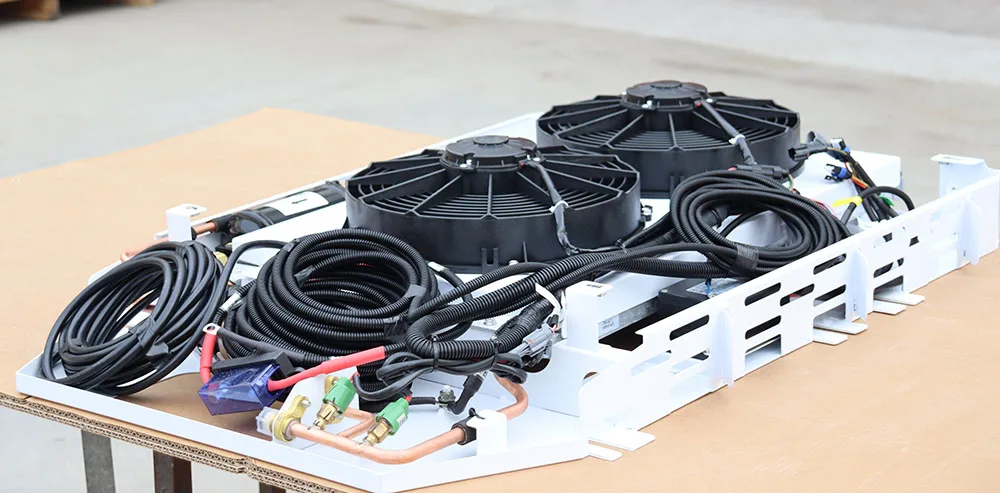

► Two 12 inch fan - large airflow volume
► Big condenser & cooling capacity
► 200mm thick overall height(including fiberglass cover)

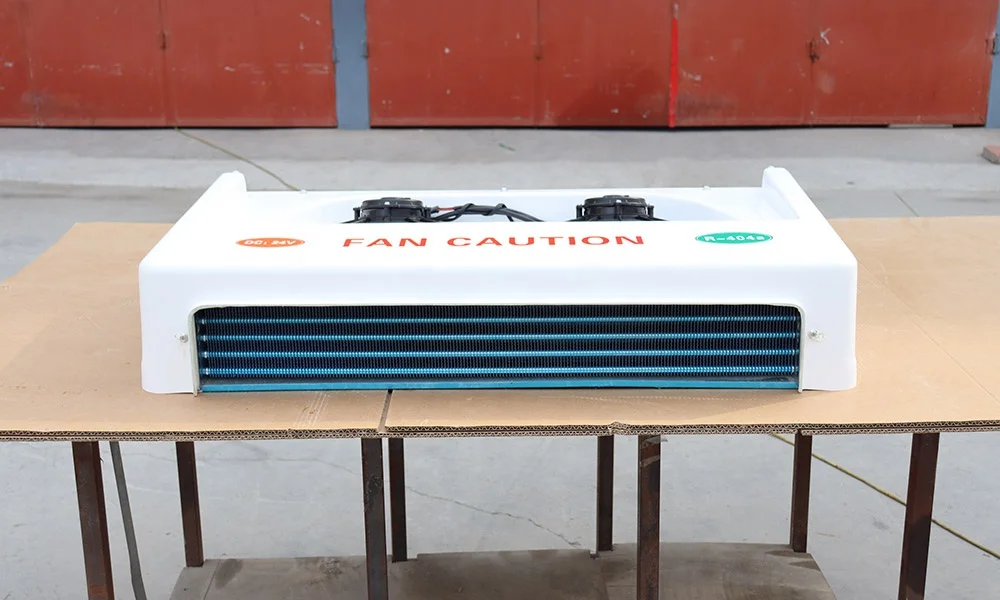

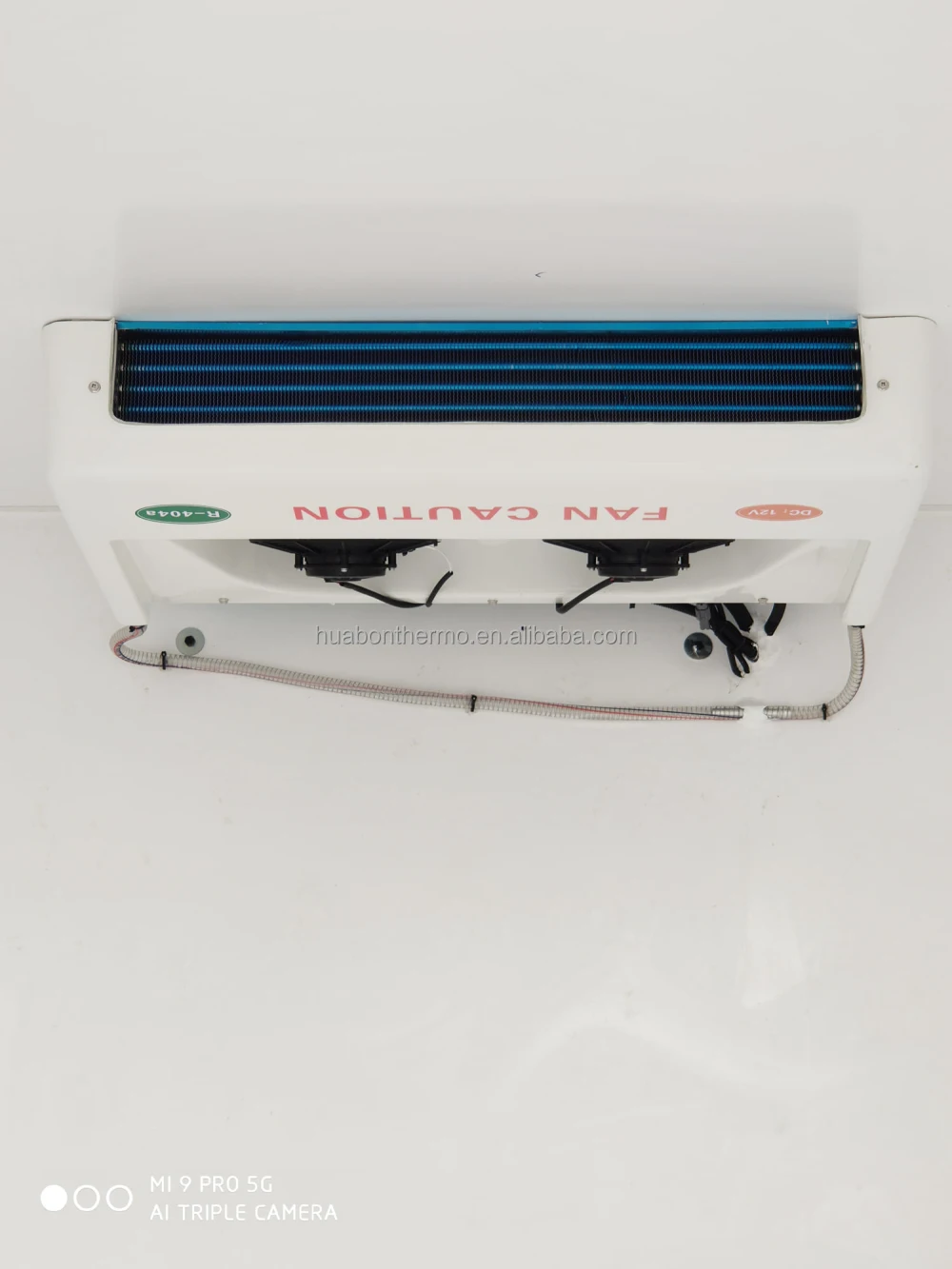

Extra-slim 2 Fan Evaporator

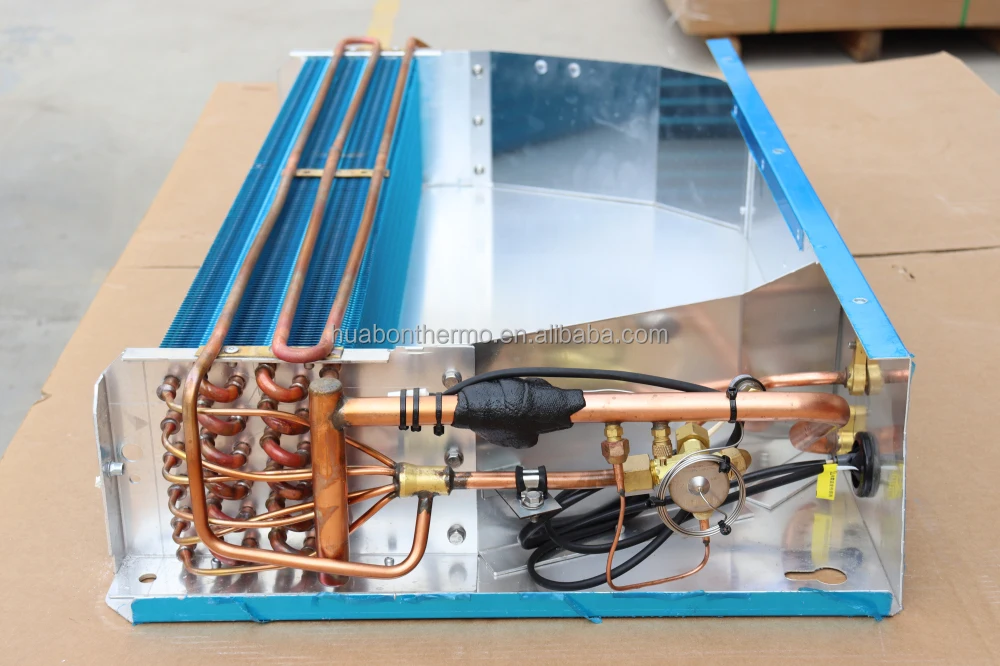

► Big evaporator coils and capacity
► Hot gas defrosting: Auto. & manual defrost
► Fast cooling

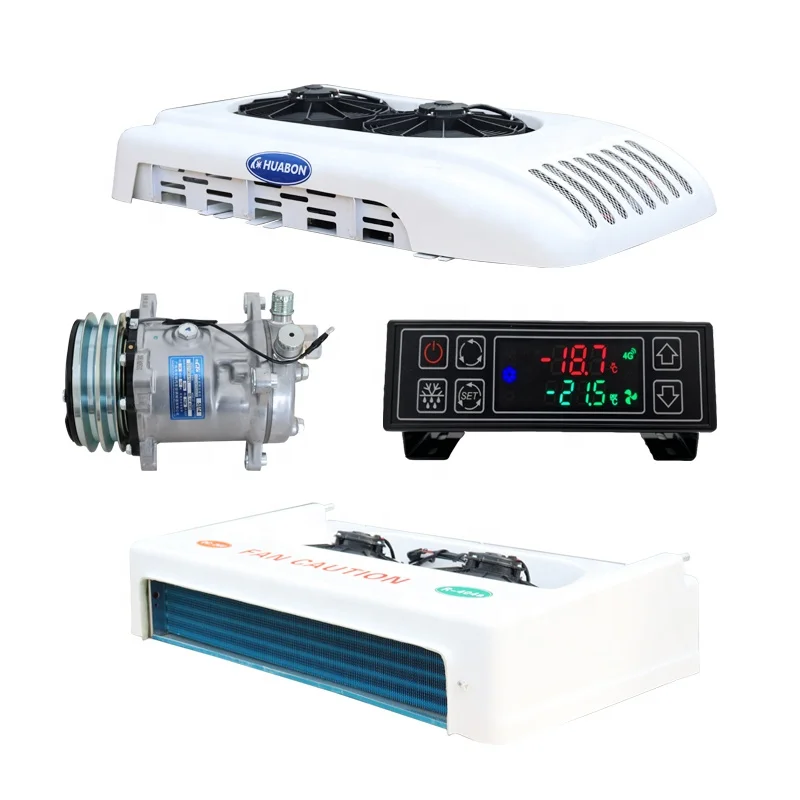

Accessories
Cloth cover R404a hose
Carbon steel fittings and clips

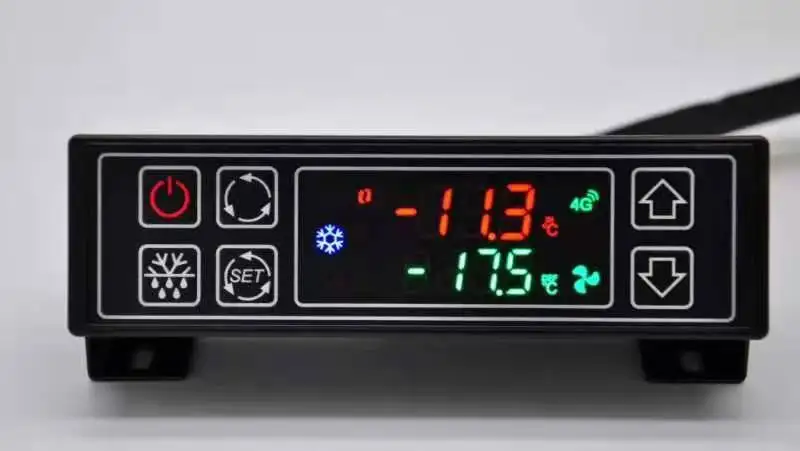

Digital control panel
5S14 Compressor
Reliable R404a compressor made in China
Optional compressor: Valeo TM16,
Or QP16
Installation

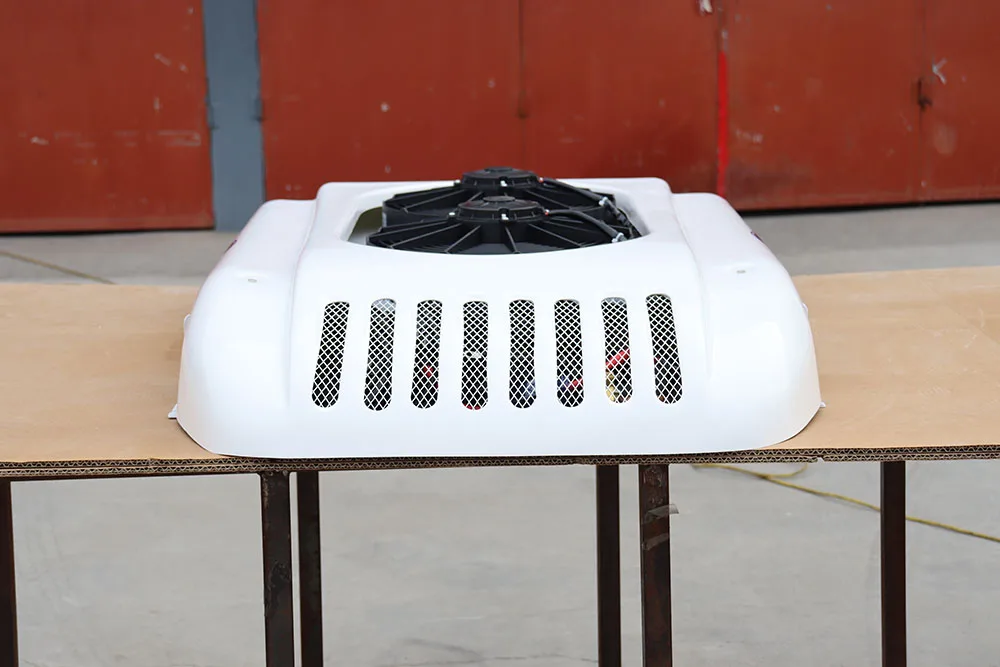

Outdoor Unit: Rooftop Condenser
Indoor Unit: Ceiling Evaporator
Compressor: Direct engine drive compressor
In Cab: Control Panel; Install hose and fittings
Packing & Delivery
Recommend Products
About us
Located at Zhengzhou, China - one important traffic hub on One-Belt-One-Road, we are Huabon Thermo, and we are experts in the supply of HVAC products on transport refrigeration, truck air conditioning and heaters since 2010.
Main Products:
* Transport Refrigeration Units
* In-Cab Heaters and Air Con Systems
* Refrigeration and Air Conditioning
Compressors
-Evaporator and Condenser Fan Motors
- Oil Separators - Driers
- Refrigerant Hoses and Fittings
- Solenoids
- Cab Controls -Circuit boards and electrical components
HUABON people always regards customer benefits on the first priority. After years of quality assurance and after-sales accumulation, nowadays Huabon has become a leading supplier of transport refrigeration units and refrigeration solution provider in China, with products supplying FAW, FOTON, CIMC, HONGYU, SONGCHUAN and many other domestic manufacturers of refrigerated trucks and special vehicles.
Professional, Pragmatic, Innovative, Honest HUABON THERMO is the Most Reliable Refrigeration Units Manufacturer of Truck and Van in China!
Main Products:
* Transport Refrigeration Units
* In-Cab Heaters and Air Con Systems
* Refrigeration and Air Conditioning
Compressors
-Evaporator and Condenser Fan Motors
- Oil Separators - Driers
- Refrigerant Hoses and Fittings
- Solenoids
- Cab Controls -Circuit boards and electrical components
Our Services:
We have a production capacity of more than 8,000 units annually, and a complete ranges of products on transport cooling and refrigeration solutions.
Skilled technical workers with average 5 years experience in transport refrigeration, well management production, ensuring high qualified products
Enough stocks of spare parts, half-finished items, and ready to ship refrigeration units, ensuring quickest delivery time for clients in China and overseas.
Certificate:
HUABON company keeps up with the changes of domestic market, national standards and customers' demands, standardizes product design and production management, improves product quality, passes ISO9001, ISO/TS16949 quality management system certification and obtains EU CE product certification.
CE - REFRIGERATION UNIT
CE - PARKING HEATERS
ISO9001 - REFRIGERATION UNITS
Customer
Based on high quality products and good services, we have been actively expanding overseas markets since 2018 and have developed long-term cooperative distributorship in countries: Russia, East-Europe, Middle-east, South-east Asia, South-America, Mexico, South Africa, etc. In addition, it can provide OEM customized design and manufacturing services to continuously provide customers in different countries, with local transport refrigeration and air conditioning solutions.
FAQ
1. What will be included in the package?
Condenser, evaporator, controller, hoses, wire harness and installation kits, expect for compressor bracket, belt and
refrigerant.
2. What's your warranty for refrigeration units?
We will provide one year warranty for our all units. During warranty, we will offer free spare parts; Out of warranty, spare parts will be supplied for products life time.
3. What is your MOQ and delivery time for refrigeration units?
We can accept samples before bulk purchasing, so MOQ is 1 set; our delivery time for samples will be 3-5 days after payment, and 1~2 week for bulk purchasing...
Condenser, evaporator, controller, hoses, wire harness and installation kits, expect for compressor bracket, belt and
refrigerant.
2. What's your warranty for refrigeration units?
We will provide one year warranty for our all units. During warranty, we will offer free spare parts; Out of warranty, spare parts will be supplied for products life time.
3. What is your MOQ and delivery time for refrigeration units?
We can accept samples before bulk purchasing, so MOQ is 1 set; our delivery time for samples will be 3-5 days after payment, and 1~2 week for bulk purchasing...
4. What ambient temperature that your refrigeration units can survive?
Our refrigeration units perform well under ambient temperatures between -30C to +50C.
5. If your refrigeration units are OK to cool with AC220V/AC380V power source?
Yes, we have rooftop standby system for van refrigeration units to cool on standby mode when the truck engine is off; please consult our salesman to know more about the products details.
6. Do you have rooftop refrigeration units for the large-sized van?
Yes, we have rooftop standby system for van refrigeration units to cool on standby mode when the truck engine is off; please consult our salesman to know more about the products details.
6. Do you have rooftop refrigeration units for the large-sized van?

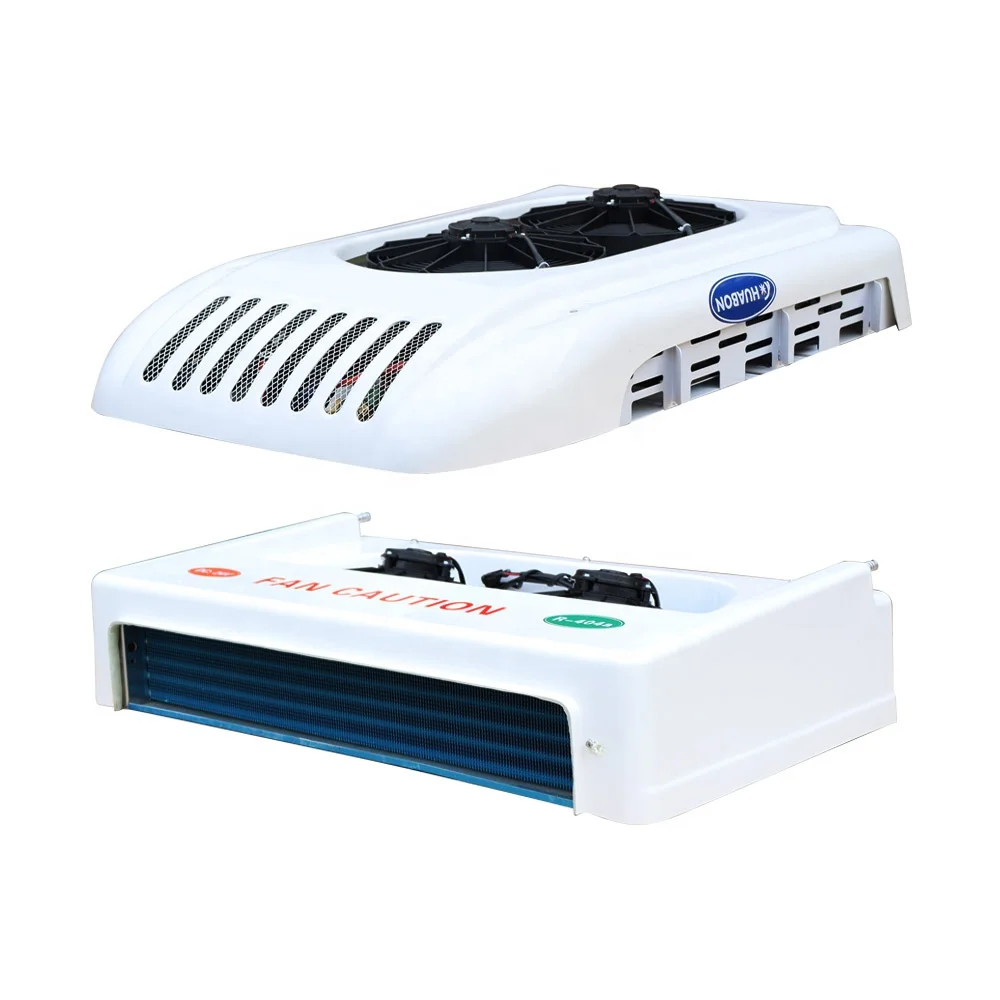

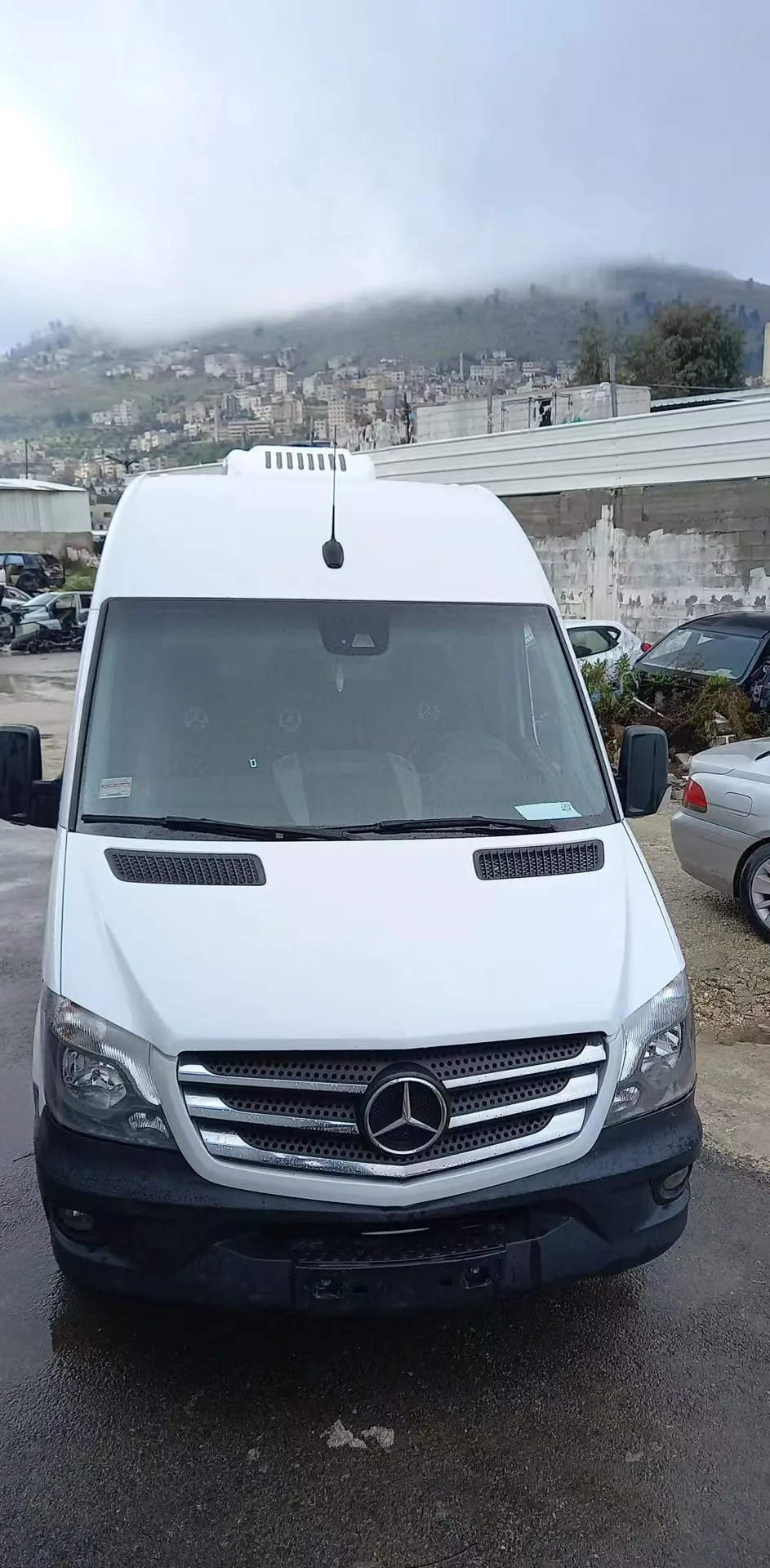

HT-380T Rooftop Unit for Large Sized Vans.
Our biggest van refrigeration unit is HT-380T,
2 fan condenser and 2 fan evaporator: R404a, The compressor is 5S14 or Valeo TM16. It is used for large sized van box size of 16-22m3.
