Product Overview

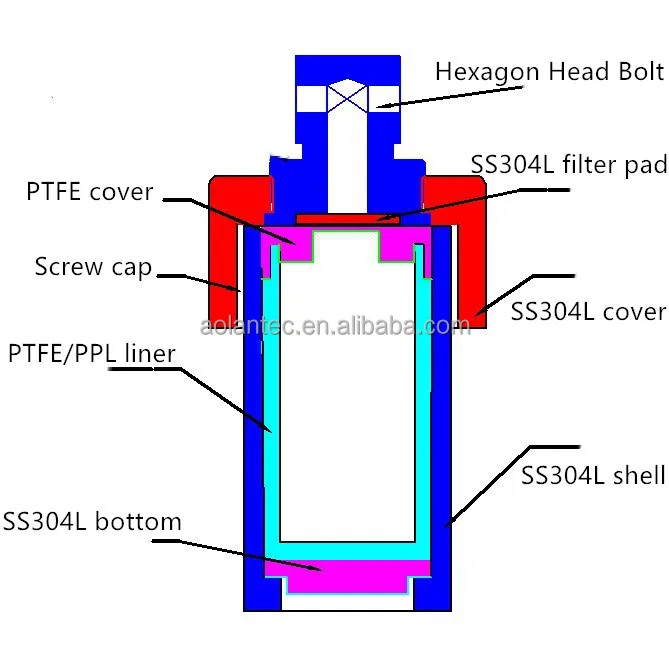

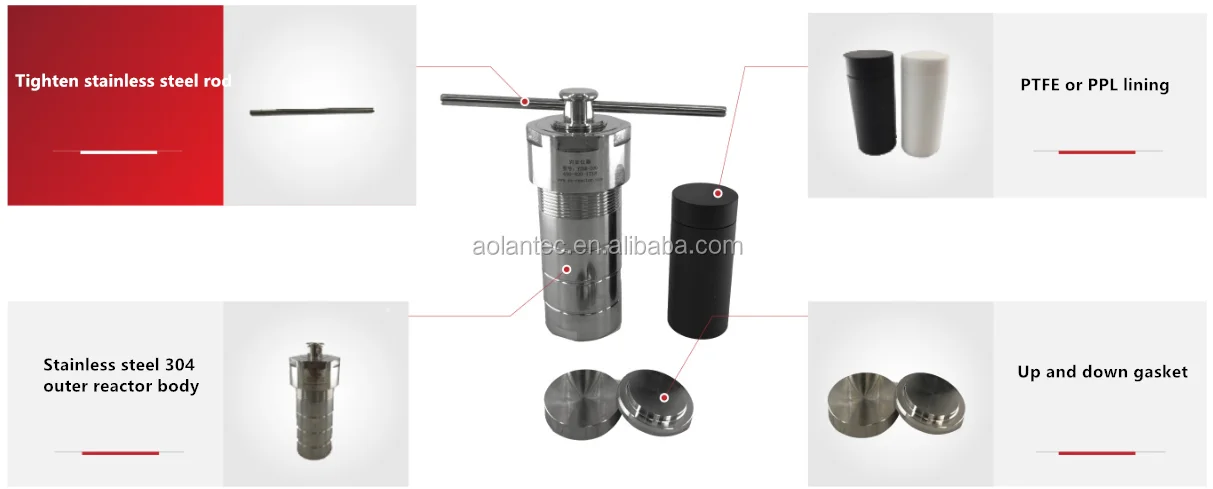

Hydrothermal synthesis reactor introduction: hydrothermal synthesis reactor is composed of body + lining, PPL lining safety temperature is 280 ℃, PTFE lining safety temperature 220 ℃, the highest pressure within 3-6 MPa. With beautiful appearance, reasonable structure, easy operation, good corrosion resistance, is the ideal product of the university laboratory, environmental monitoring, health and epidemic prevention, quality supervision and scientific research fields do sample digestion.

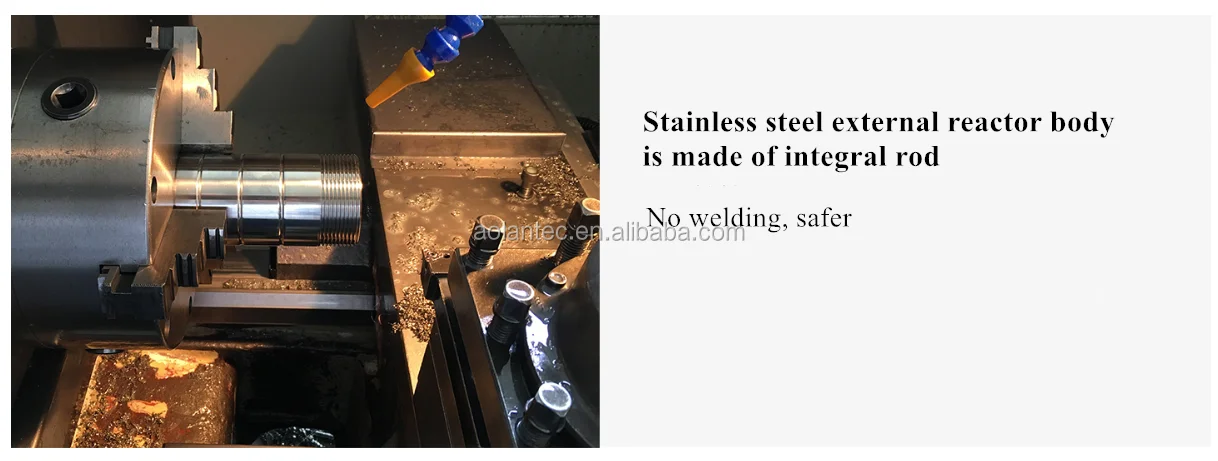

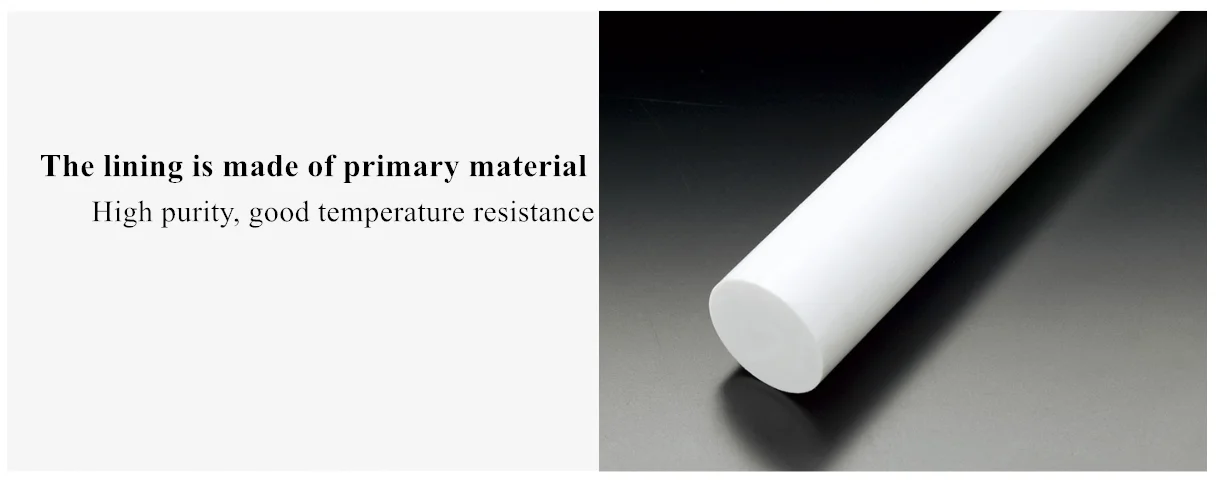

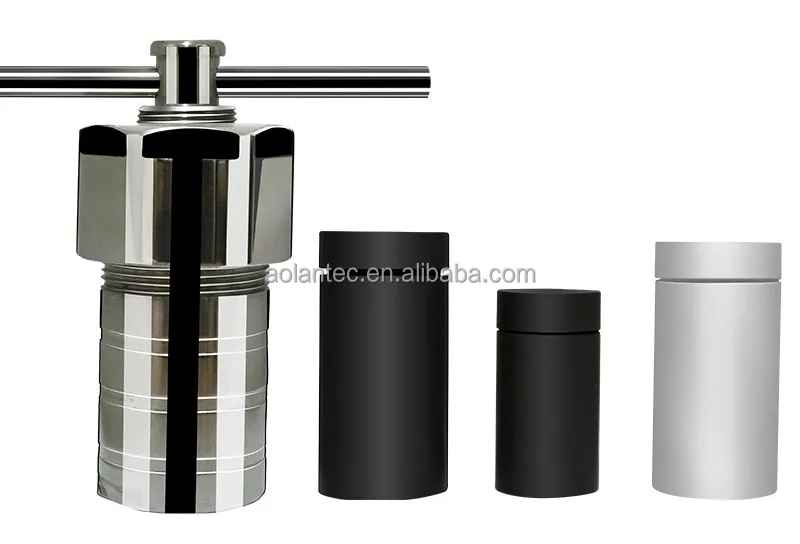

The reactor body is made of high quality non-magnetic 0Cr18Ni9Ti stainless steel and is machined by hand. It has the advantages of good sealing, high safety, less solvent consumption and simple use.Teflon PTFE or PPL liner is available in two materials, double protection, acid and alkali resistant.
FEATURES AT A GLANCE
1. Good corrosion resistance, harmful material not overflow, reduce pollution, safe use.
2. After Temperature and pressure rise, can quickly dissolve dissolve the sample which is difficult to dissolve under normal conditions and the sample containing volatile elements.
3. Beautiful appearance, reasonable structure, simple operation, shorten the analysis time, and the data is reliable.

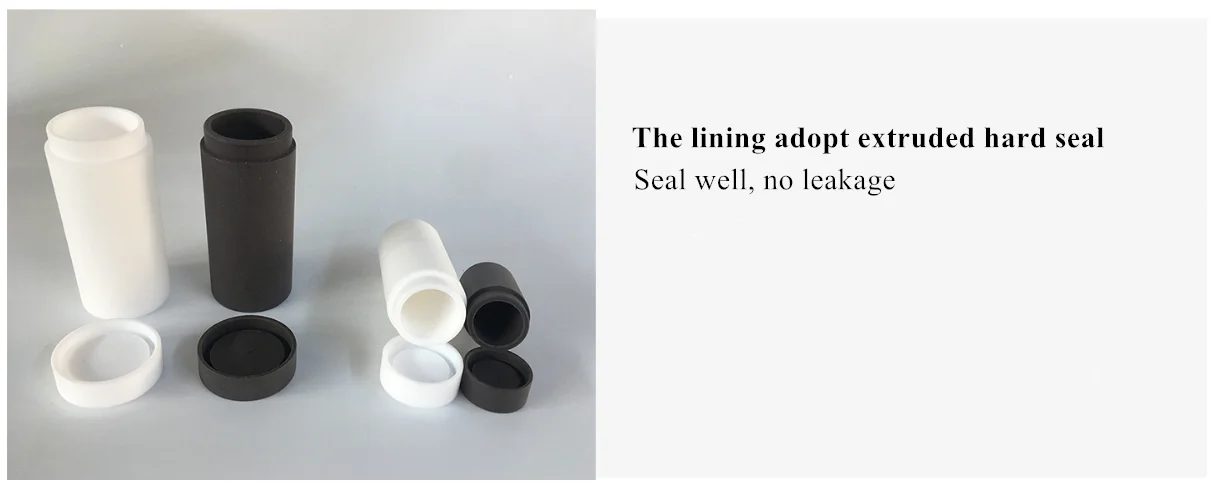

4. Inside has PTFE liner, acid-resisting, alkali-resisting, etc.
5. alternative platinum crucible to solve the analysis sample processing of trace elements in high purity alumina problem.
2. After Temperature and pressure rise, can quickly dissolve dissolve the sample which is difficult to dissolve under normal conditions and the sample containing volatile elements.
3. Beautiful appearance, reasonable structure, simple operation, shorten the analysis time, and the data is reliable.
4. Inside has PTFE liner, acid-resisting, alkali-resisting, etc.
5. alternative platinum crucible to solve the analysis sample processing of trace elements in high purity alumina problem.
PRODUCT SPECIFICATIONS
Name | Hydrothermal synthesis Reactor (PTFE liner) | Hydrothermal synthesis Reactor (PPL liner) |
Mode | HR-5/10/25/50/100/150/200/300/500 | HR-5/10/25/50/100/150/200/300/500 |
Volume | 5ml/10ml/25ml/50ml/100ml/150ml/200ml/3 00ml/500ml | 5ml/10ml/25ml/50ml/100ml/150ml/200ml/3 00ml/500ml |
Safe Temperature | 220℃ | 280℃ |
Material | High quality 304 stainless steel +PTFE lining | High quality 304 stainless steel +PPL lining |
Corosion Resistance | Resistant strong acid,strong alkali, aqua regia and various organic solvents | Do not apply alcohol, benzene and other organic solvents |
Using Pressure | 3 Mpa | 3 Mpa |
Antifouling Performance | The blank value of metallic elements is low, the content oflead is less than 10-11g/ml, and the content of uranium is less than 10-12g/ml | The blank value of metallic elements is low, the content oflead is less than 10-11g/ml. and the content of uranium is less than 10-12g/m1 |
Leakproof Performance | When falling from a height of 1.2 meters above the ground,the bottle does not break, the cap does not fall off and there is no damage or leakage | When falling from a height of 1.2 meters above the ground,the bottle does not break, the cap does not fall off and there is no damage or leakage |
Operation Method
1. Pour the reactant into the PTFE liner and ensure that the feeding coefficient is less than 0.8.
2. Ensure that the lower gasket position of the kettle body is correct (the bulge faces down), and then put the PTFE liner or
(PPL) liner and the upper gasket, first tighten the kettle cover, and then tighten the kettle cover with screw screw.
3. Place the hydrothermal synthesis reactor in the heater and heat up to the required reaction temperature at the specified heating rate (less than the specified safe operating temperature).
4. After confirming that the temperature in the kettle is lower than the boiling point of the reactant solvent, the kettle cover can be opened for subsequent operation. When the reaction is over, the cooling rate should be strictly followed to ensure safety and the service life of the reactor.
5. Confirm that the temperature in the kettle is lower than the boiling point of the reactant solvent, first loosen the kettle cover with a screw screw, and then open the kettle cover.
6. The hydrothermal synthesis reactor should be cleaned in time after each use to avoid corrosion. Kettle body, kettle cover line sealing should pay special attention to clean, and strictly prevent damage to the collision.
2. Ensure that the lower gasket position of the kettle body is correct (the bulge faces down), and then put the PTFE liner or
(PPL) liner and the upper gasket, first tighten the kettle cover, and then tighten the kettle cover with screw screw.
3. Place the hydrothermal synthesis reactor in the heater and heat up to the required reaction temperature at the specified heating rate (less than the specified safe operating temperature).
4. After confirming that the temperature in the kettle is lower than the boiling point of the reactant solvent, the kettle cover can be opened for subsequent operation. When the reaction is over, the cooling rate should be strictly followed to ensure safety and the service life of the reactor.
5. Confirm that the temperature in the kettle is lower than the boiling point of the reactant solvent, first loosen the kettle cover with a screw screw, and then open the kettle cover.
6. The hydrothermal synthesis reactor should be cleaned in time after each use to avoid corrosion. Kettle body, kettle cover line sealing should pay special attention to clean, and strictly prevent damage to the collision.
Application Area
Packing & Shipping
Company Profile
Company Information
Guangzhou Aolantec Commerce And Trade Co., Ltd is an experienced manufacture in the field of the lab instrument for the state
grade scientific institute, phsrmaceutical factory and colleges and universities' testing laboratories. We are specialized in High
Press Reactor, Vacuum Freeze Dryer, Essentail Oil Distiller, Graphite Tubes etc.
We pursue the spirit of "dedication, reality, competition and struggle" and supplying the well-content products service.
grade scientific institute, phsrmaceutical factory and colleges and universities' testing laboratories. We are specialized in High
Press Reactor, Vacuum Freeze Dryer, Essentail Oil Distiller, Graphite Tubes etc.
We pursue the spirit of "dedication, reality, competition and struggle" and supplying the well-content products service.
FAQ
Q1. Do you accept OEM or ODM orders?
A1.Yes, we do.
Q2.Why should you buy from us not from other suppliers?
A2.We have complete production line, strict quality control system and perfect pre-sales and after-sales service team.
Q3. How about your delivery time?
A3.Usually we have in stock, and the delivery time is 2 weeks after payment.
Q4. What is your MOQ?
A4.There is no limit.
Q5. What is the package?
A5.We will pack the goods as your requested.
Q6: What is the terms of payment?
A6.We accept T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union,and Cash.
Q6: How about transportation?
A6.We can transport goods by express, by air and by sea as you need.
Q8. Do you have after-sale service?
A8.Yes. Our after-sales staff will always stand by you, if you have any questions about the products, please e-mail to us, we will
try our best to solve your problem.
Q9. how can we guarantee quality?
A9.Always a pre-production sample before mass production; Always final Inspection before shipment.
Q2.Why should you buy from us not from other suppliers?
A2.We have complete production line, strict quality control system and perfect pre-sales and after-sales service team.
Q3. How about your delivery time?
A3.Usually we have in stock, and the delivery time is 2 weeks after payment.
Q4. What is your MOQ?
A4.There is no limit.
Q5. What is the package?
A5.We will pack the goods as your requested.
Q6: What is the terms of payment?
A6.We accept T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union,and Cash.
Q6: How about transportation?
A6.We can transport goods by express, by air and by sea as you need.
Q8. Do you have after-sale service?
A8.Yes. Our after-sales staff will always stand by you, if you have any questions about the products, please e-mail to us, we will
try our best to solve your problem.
Q9. how can we guarantee quality?
A9.Always a pre-production sample before mass production; Always final Inspection before shipment.
