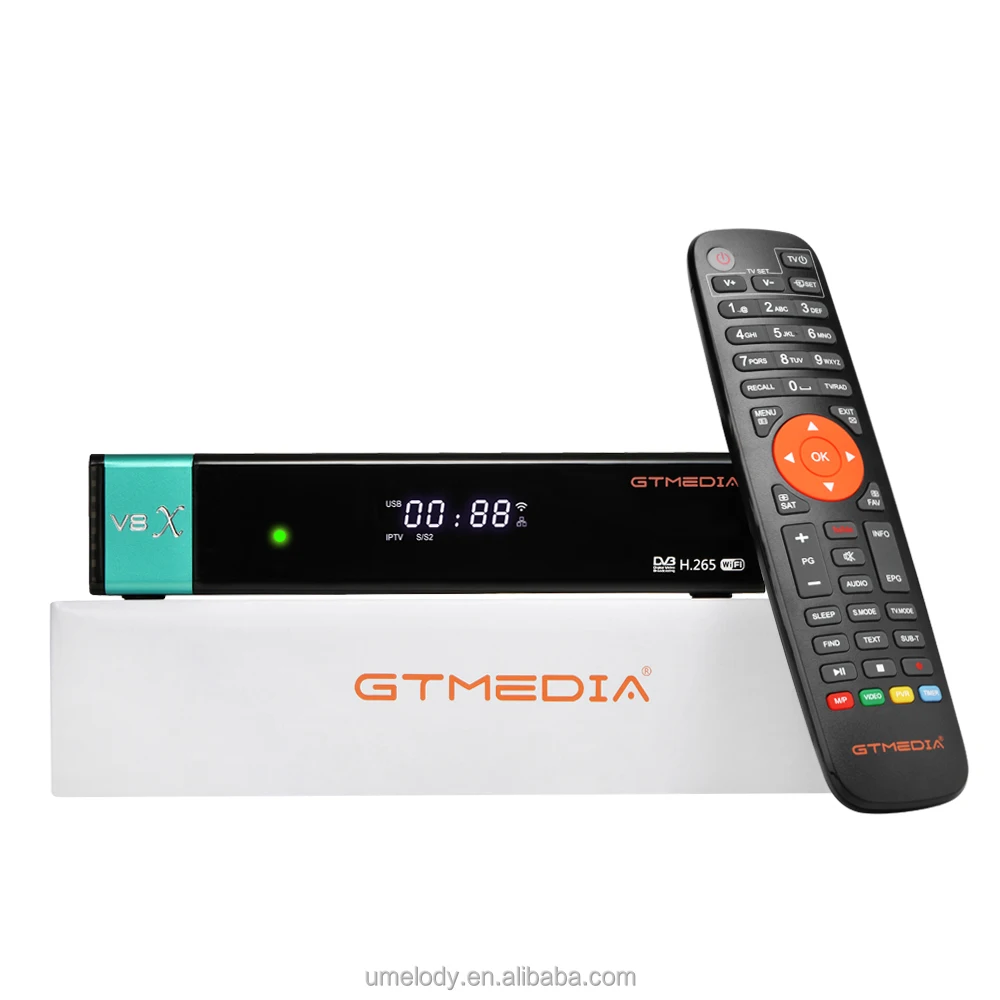

Самый популярный в Испании спутниковый ТВ-приемник GTmedia V8X H.265 FTA DVB S2/S2X iptv stb с гнездом для карт CA обновление GT MEDIA

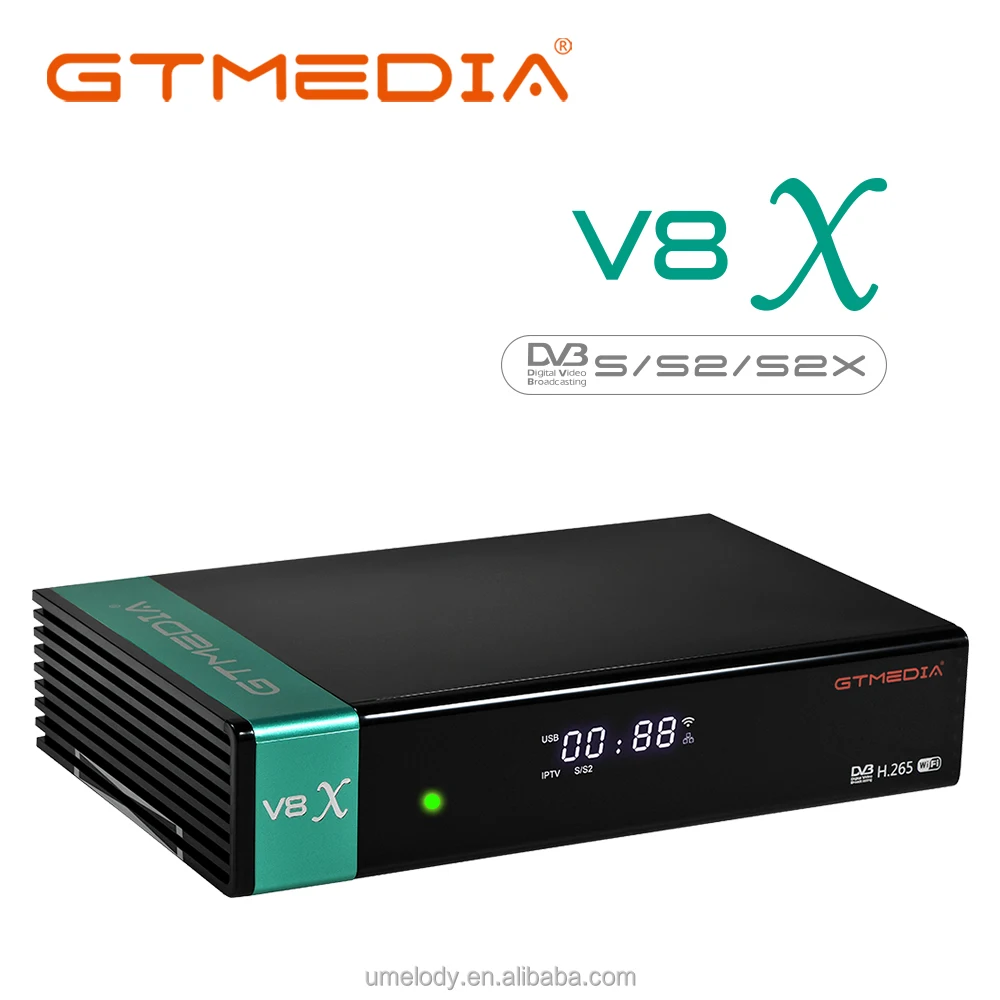

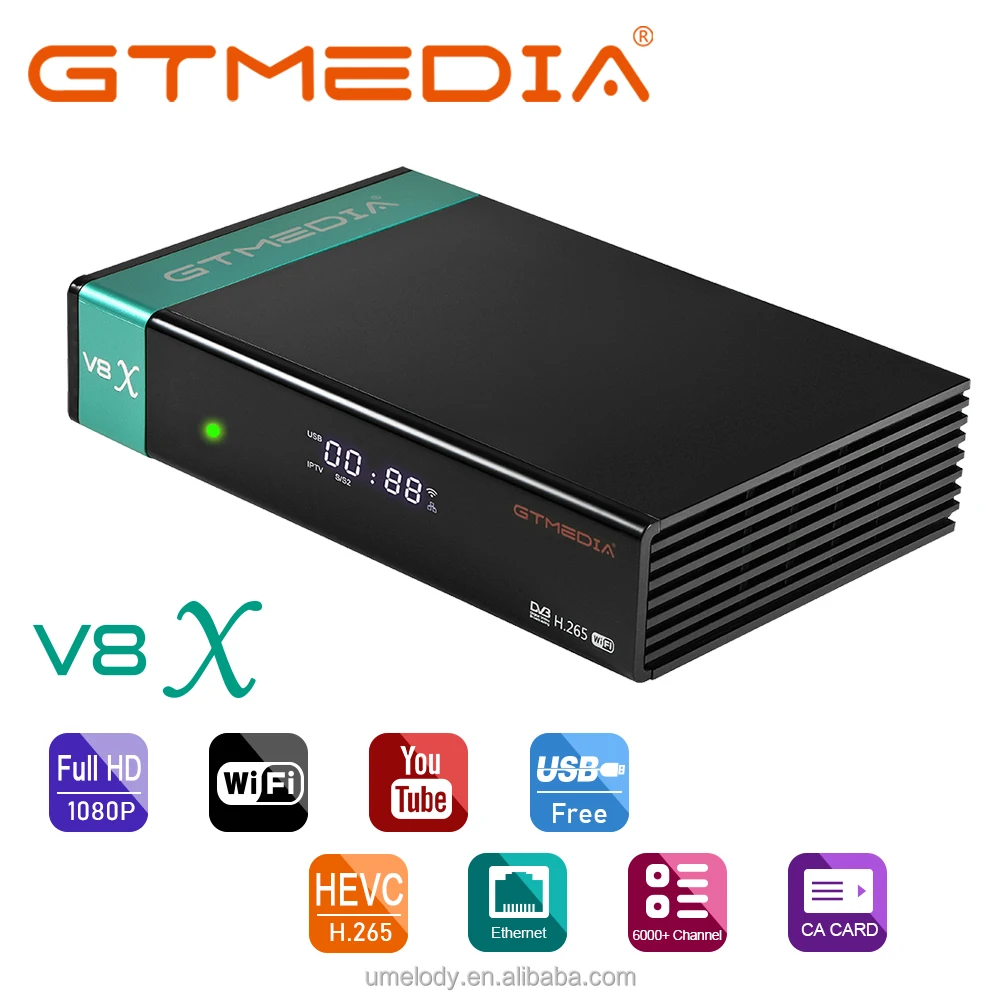

GTMEDIA V8 X (DVB-S/S2/S2X SCART+CA)

Highlight

1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS+

2.Support BISS auto roll, Full PowerVu, DRE &Biss key;

3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;

4.Support SAT streamed to Gtplayer, DLNA;

5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;

6.Support Online Movie (Youtube,Youporn,Hotstar);

7.Support IPTV (Customize, xtream, stalker);

8.Support Network Sharing Cccam,Newcam,Mgcam;

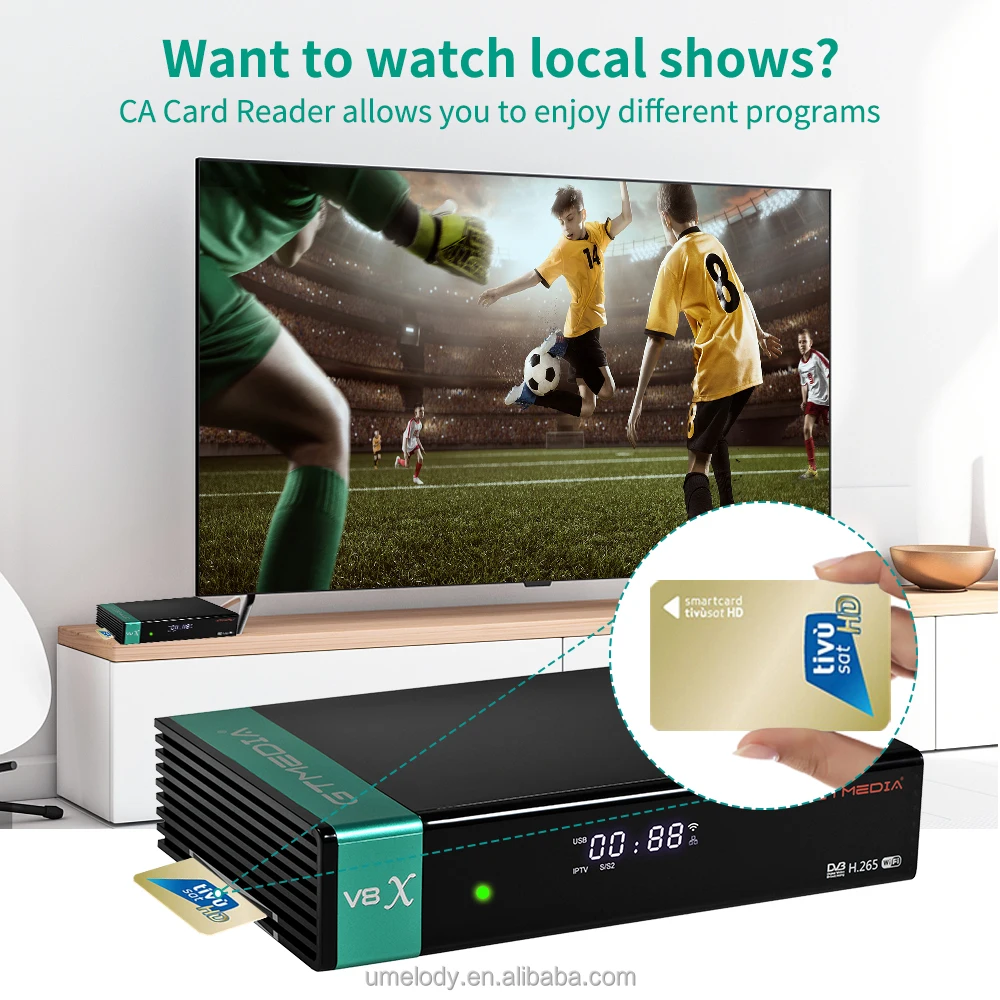

9.Support CA card slot;

10.Technical support website : www.freesat.cn;

Note: We reserve the right to change the design and OEM/ODM supported

Main Chip Sets

CPU

770MHz Dual Core

Flash Memory

64MB SPI Flash

DDR2 Memory

1G RAM

TS Demux

Demultiplexer

ISO/IEC 13818-1

Input Bit Rate

Max 100Mbit/s

Video Decode

Video Decode

HEVC main profile level 4.1 and main10 profile L4.1,High tier
MPEG-2 MP ML
H.264 BP,MP&HP L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile L5
VC1 SP ML, MP HL, AP L0-3
H263 baseline profile
JPEG decoder

TV System

Automatic PAL/NTSC conversion

Aspect Mode

Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box

Video effects

Standard, Default, Vivid.

Video Resolution

1080P, 1080I, 720P, 576P, 480P, 576I, 480I

HD Color Space

RGB, YUV422, YUV444, Auto

Audio Decode

Audio Decode

MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC,
DB AC3/AC3+, DRA CH/5.1CH

Sound Mode

LEFT/RIGHT/STEREO/MONO

Sampling Frequency

32KHz,44.1KHz,48KHz

Audio Out

LPCM Out, BS Out

Hardware specifications

Panel display

4-digit white LED display (Support function display)

LED Indicator

Power ON :Green; Standby :Red

Button

NOT

Wifi

Built in 2.4G WiFi Support IEEE 802.1.1b/g/n

IR

Exit IR for 38KHz,Infra Remote control

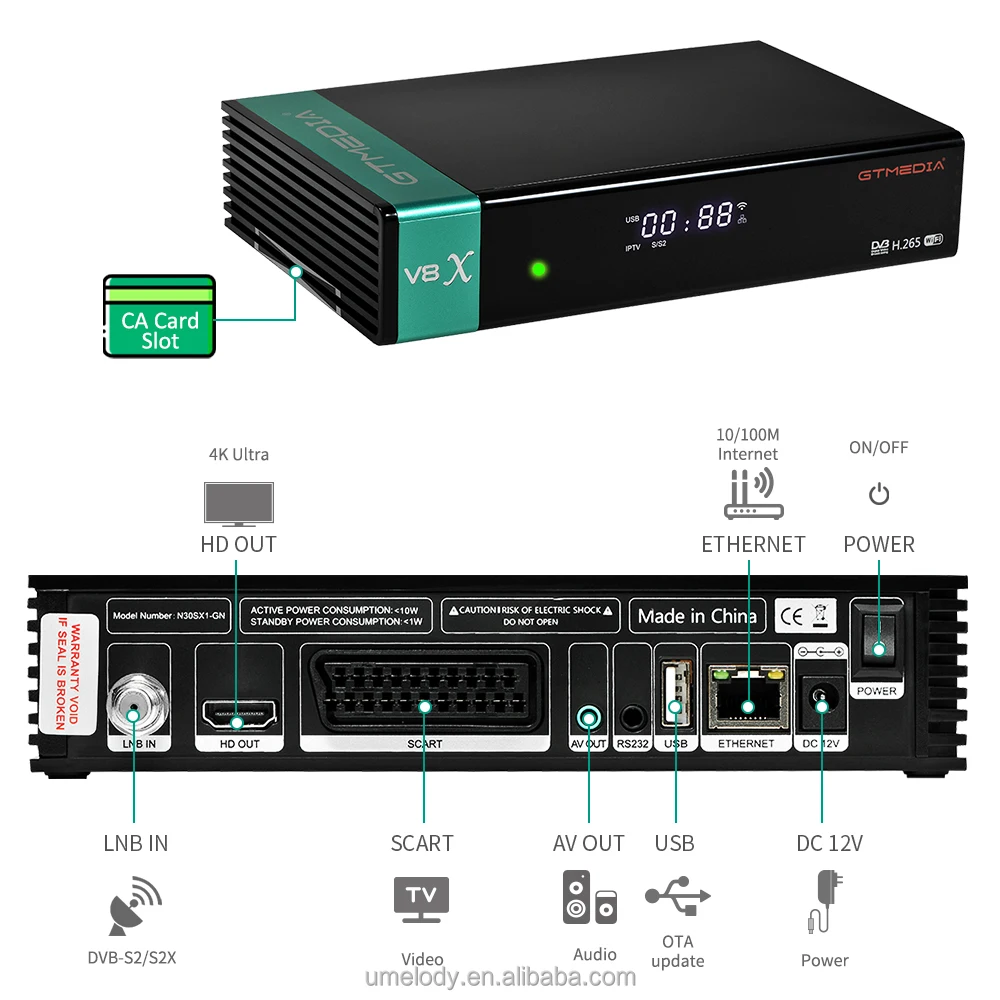

Rear Panel

LNB IN (Frequency Range950MHz to 2150MHz)

HD OUT (up to 1080P)

SCART OUT

AV OUT (3.5MM*18MM Jack/4-Pin:Red-White-Yellow-GND)

1*CA card solt

1*USB HOST

1*RJ45

1*RS232 (3-pin 3.5 mm jack)

DC IN (DC12V/1.5A)

DVB-S/S2 specificati-ons

System standard

ETS 302 307

Frequency Range

950~2150MHz for DVB-S/S2/S2X baseband demodulator

LNB Power and Polarization

DiSEqC1.0/1.1/1.2/USALS Motor fully support,
Support Unicable, 13/18V DC  400mA MAX, 22KHz±0.4KHz

Input Level Range

-80dBm ~ -20dBm (average power)

Symbol Rates

DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK,
DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK

Forward error correction rate

1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range

±5MHz for symbol rates above 3 Msps and ±3MHz for the

Symbol Rates

2 ~ 90MSPS(Code Rate 1/2)

Roll-off factors

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Code Rates

1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6
,8/9,9/10 for DVB-S2,
DVB-S2X Normal Frame and Short Frame FEC code rates

ANT. Connector

Connector:IEC TYPE F Input Impedance:75 Ω

Sortware Features

Standard

Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable

Channel Search

Support automatic network search for new added transponders

Channels Number

6000+ channels TV and Radio programmable

Channel

Recording one channel, can view another channel under the

Favorites

31 different favorite groups selection

OSD Language

English,French,German,Italian,Spanish,Portuguese,Russian,Turkish

OSD Color

32-bits OSD with anti-flickering

OSD Setting

Support OSD Timeout and Transparency, Subtitle Display, Channel

Other Setting

Sets up multiple habitual operation Settings

Parental Ctrl

Parental control for channels

Easy Menu

Plug and Play installation, with an easy to use Menu System

EPG

Fully support to 7 days Electronic Program Guide(EPG)

Subtitle

support DVB EN300743 and EBU

Teletext

support DVB ETS300472 by VBI

SoftUpgrade

Software upgrades through USB port, or FTP upgrade.

Time Set

Time set by GMT offset automatic and manual,

Timer

5 event timers,off/Once/Daily/Weekly Mode

USB Decode

USB 2.0

Support FAT/FAT32/NTFS big capacity hard disk

PVR Option

USB 2.0 for PVR,TIMESHIFT,media files playback

Media Codec

TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files

Audio Codec

WMA,MP3

Photo Codec

JPG, BMP, PNG, GIF

Packing

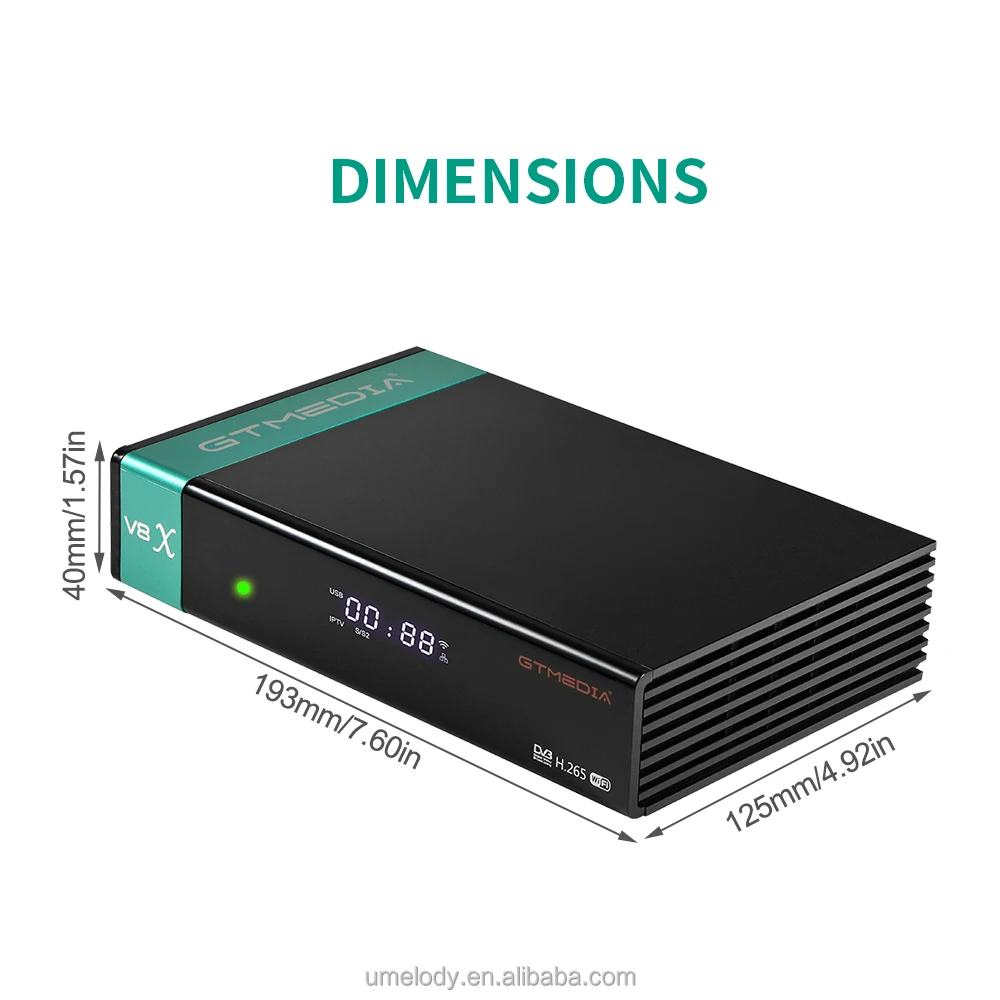

Product Dimension

193*125*40MM(L*W*H)

Packaged Size

264*170*55MM

Carton Size

572*360*280MM (20pcs/ctn)

Unit Weight

0.68 Kg with gift box

Carton Qty&Weight

20 pcs/Carton, 14 kgs

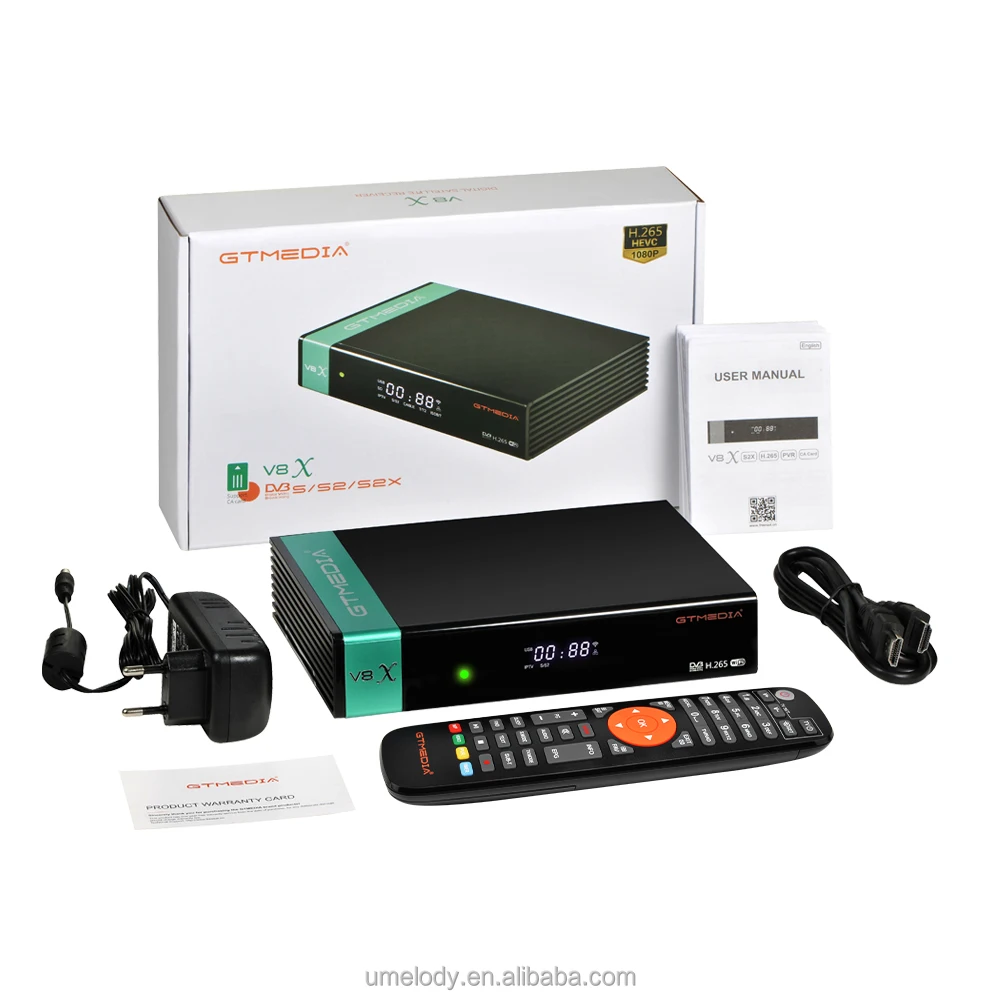

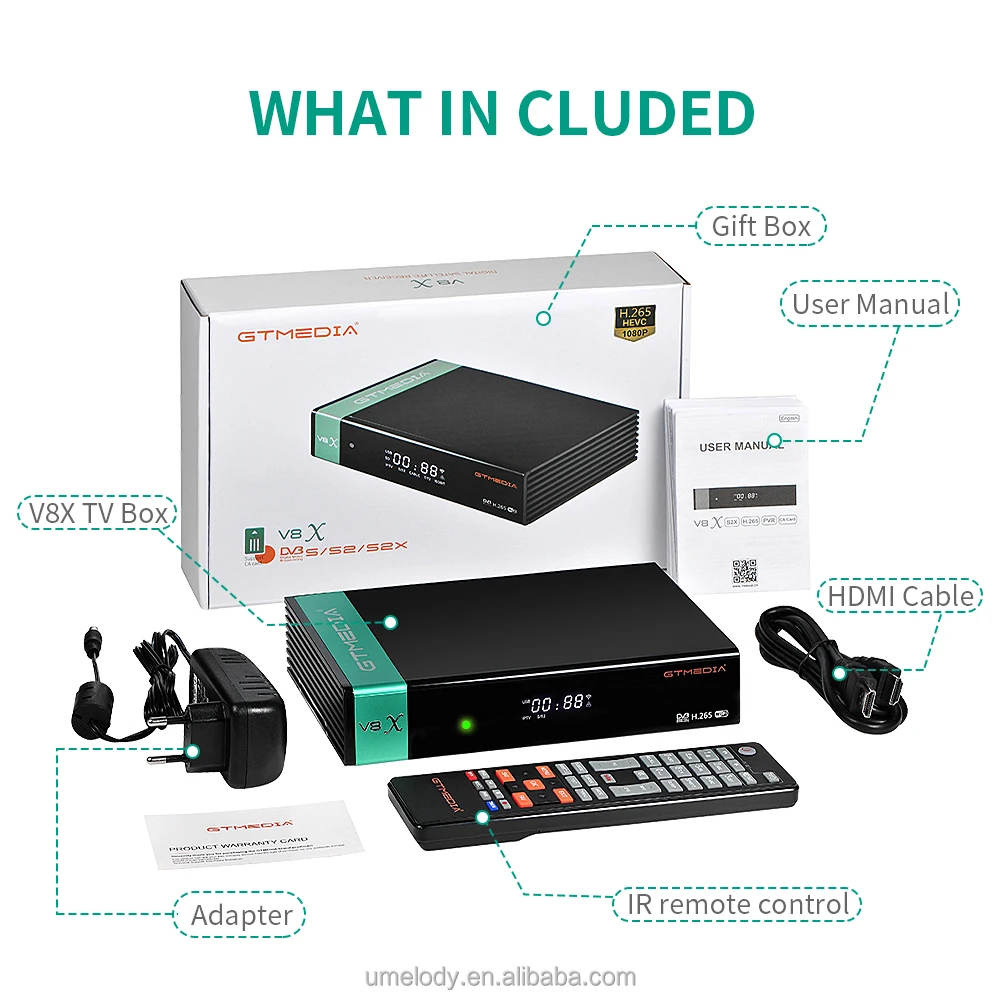

Accessories

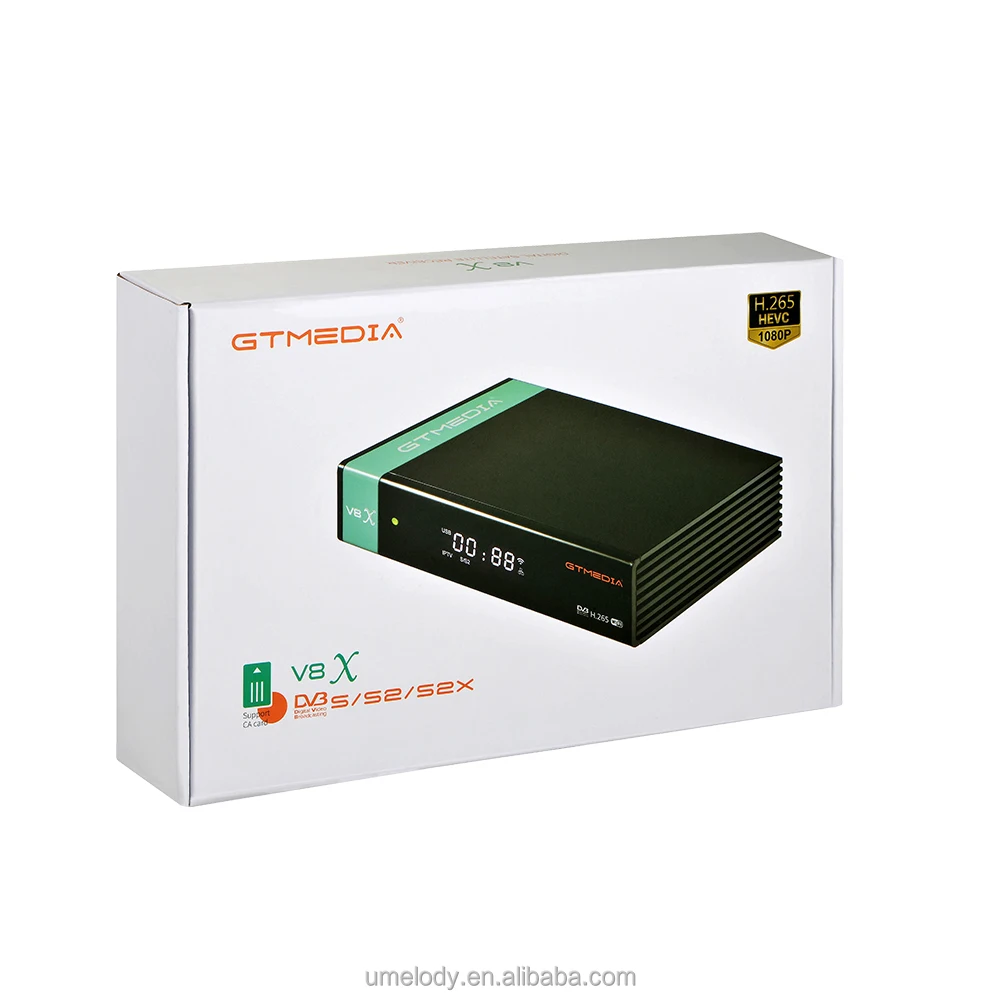

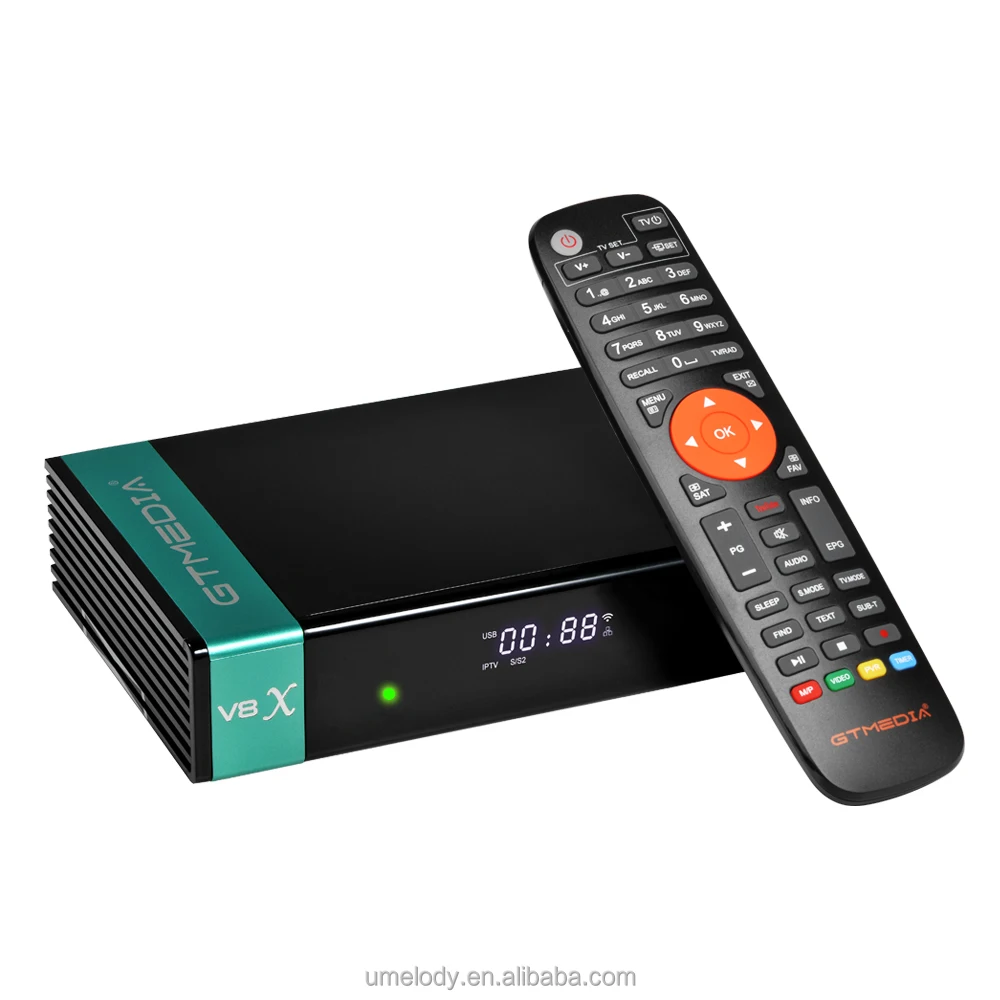

Gift Box, Adapter, IR remote control, HD Cable, User Manual,

Physicals

Power Supply

AC 100V ~250V, 50/60Hz

Power Consumption

10W in operation
1 W Standby Power Mode

Temperature

Operation 0~+45℃; Storage -10~+60℃

Humidity

20~90%, non-condensed
