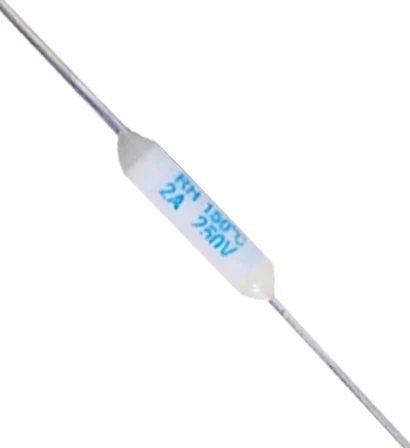

Термопредохранитель RH 2 А 250 В предохранитель с тепловой связью радиальный свинцовый температурный
- Категории: Fuses >>>
- Поставщик: Yangzhou,Baozhu,Electric,Appliances,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Structure：
Temperature fuse by plastic shell, low melting point alloy wire, copper wire and special resin, pin sealing resin composition
Appearance:
Printing logo must be clear: the sealing of the resin should be full and uniform: pin tin plating layer is good, no black oxide damage phenomenon: the shell without damage scars, punch, etc.
Printing logo must be clear: the sealing of the resin should be full and uniform: pin tin plating layer is good, no black oxide damage phenomenon: the shell without damage scars, punch, etc.
Products Show

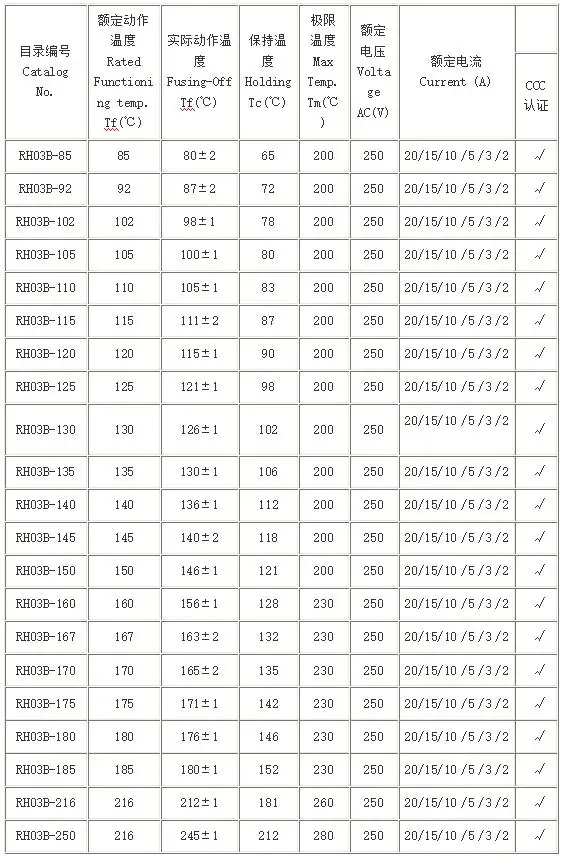

Temperature Range and Tolerance：

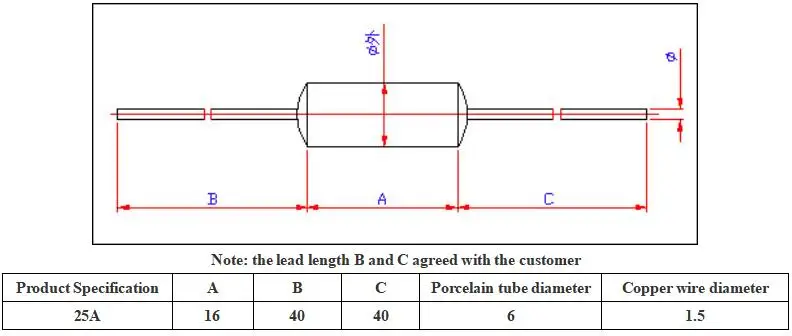

Size:
Features
The products have the ability to cut circuit immediately for high current,with non-resettable. The thermal fuse has low internal
resistance itself,small size that easy to install.
The products are sensitive to external temperature and the operating temperature has high accuracy and stability.
resistance itself,small size that easy to install.
The products are sensitive to external temperature and the operating temperature has high accuracy and stability.
Certifications
VDE:40050455
Package and label
Transparent plastic bags size:
115mm wide * 160mm long or 198mm wide * 275mm.
Shipping mark size:
100mm wide * 150mm long.
Shipping mark size:
100mm wide * 150mm long.
Our Service
Free sample
Our company can provide 10 free samles for your testing.
Our Company
Factory
Headquarters
Workshop
Our Workshop
Chengnan Branch
Jinghe branch
Warehouse
Our Warehouse
Equipmen
Our Part equipment
Packing & Delivery
Samples Packing Details : File pocket
Order Packing Details :
1000pcs in one plastic bag
5000pcs in one export carton(26*18*22cm)
10000pcs in one export carton (carton size:32*26*22cm)
Delivery Details : 7-15 days
Decide delivery time according to order quantity and requirement.
Our Certifications
Certificates of our products include CE, CQC, ROHS, UL, VDE, etc.
Please contact me if you need relevant certificates.
Please contact me if you need relevant certificates.
Contact information:
Skype:bzdq5_168
E-mail:bzdq5@bzdq.cn
Wechat:17768559558
