Single Phase 230V 32A EV Charger Wholesale EV Charging Station 7KW Blue CEE Plug Type 2 5M Cable
Specification
Voltage | 230Vac |
Model Number | FY-PT2-7 |
Design Style | Portable |
Rated power | 7.4kw |
Input voltage | 230V +/- 15% |
Output Current | 10A-16A-20A-24A-32A Adjustable |
Connector | IEC62196 Type 2 (7 pins) |
Cable Length | 5M PTE |
Standard | IEC 61851-1, IEC 81851-22 |
RCD | Type A |
Operating temperature | -30℃ ~ + 50℃ |
IP Grade | IP65 |
Warranty | 1 Year |
Product Description

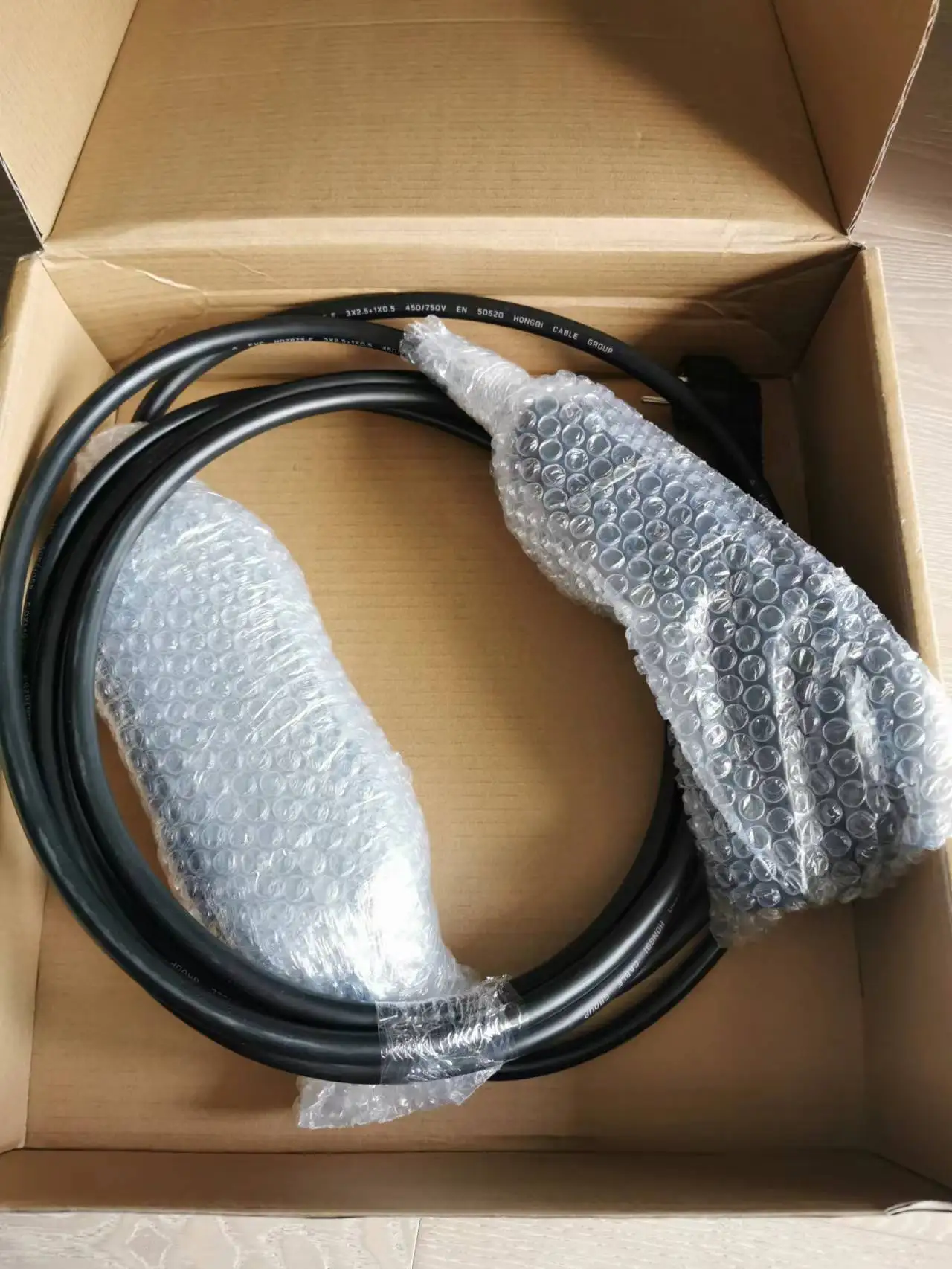

Packing & Delivery
Carton Size: 40* 40*10CM

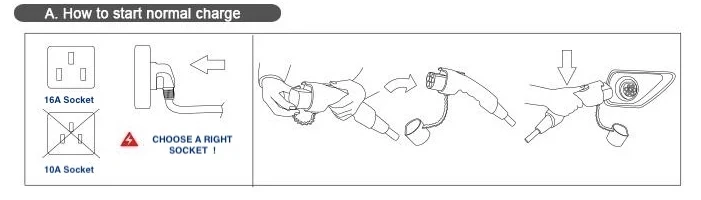

How to Charge my Car with it?
1. Firmly plug the power supply socket into the suitable power outlet. ( remember to choose a socket which can withstand the Highest current, for example for this 16A Charger, the socket need to withstand at lest 16A current)
2. Remove the protection cap on the inlet plug, and insert the charging cord into your car's inlet socket firmly and completely till it clicks.

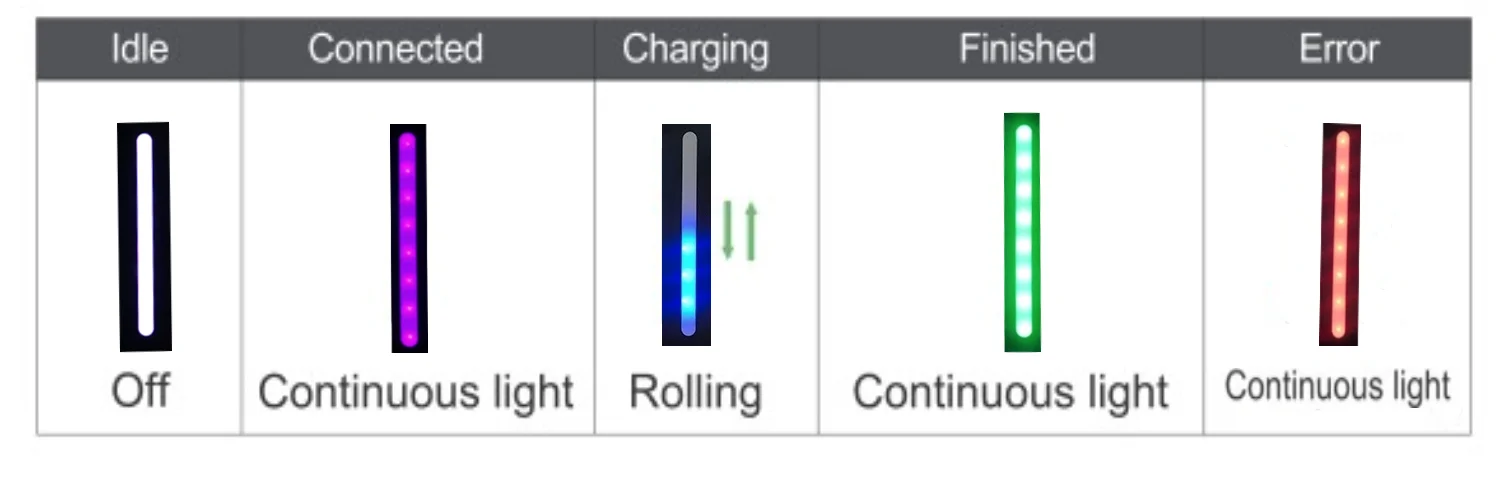

3. Choose the suitable Current by touching the capacitive screen. then start charging. the charging status shows as following.
2. Remove the protection cap on the inlet plug, and insert the charging cord into your car's inlet socket firmly and completely till it clicks.
3. Choose the suitable Current by touching the capacitive screen. then start charging. the charging status shows as following.

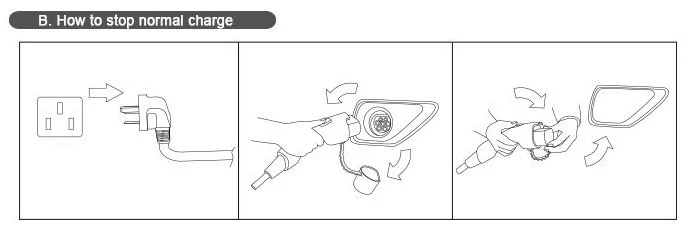

How to stop the charging ?
1. Disconnect the power supply plug from the power outlet.
2. Disconnect the charging cord from your car inlet.
3. Close the cap on the charging cord, to protect the cord from dust and water for a longer life span.
Remember, our charger have multiple protections, it will automatically shut down, once the charging finished without worrying of overcharge.
1. Disconnect the power supply plug from the power outlet.
2. Disconnect the charging cord from your car inlet.
3. Close the cap on the charging cord, to protect the cord from dust and water for a longer life span.
Remember, our charger have multiple protections, it will automatically shut down, once the charging finished without worrying of overcharge.

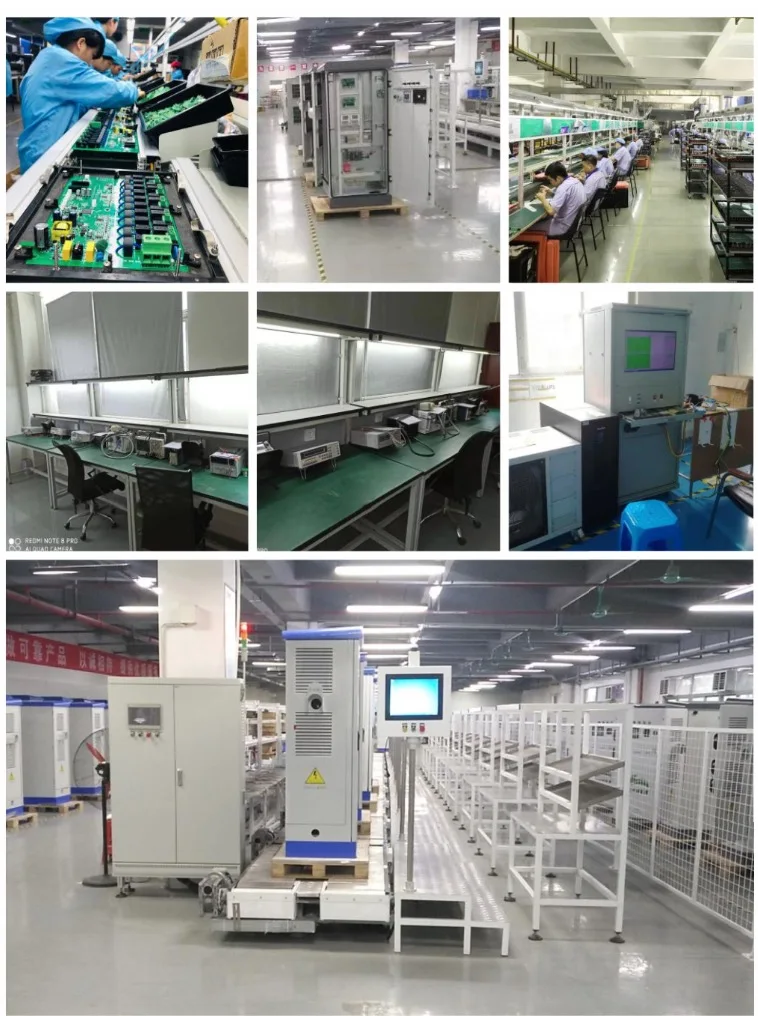

Company Profile
Specializing in Electric Vehicle (EV) Charger and EVSE Infrastructure solution. It was established because of the growing popularity of EV, especially for the development of our future green city with the convenience of smart mobility. We share the vision of China Government to transition the town to smart city by building up the manageable, interoperable and sustainable smart charger infrastructure.
Founded in 2013 by enthusiasts in the Electric Vehicle Charger technology, FIVER has successfully developed its own total solution of EV Charging Infrastructure and is now providing full range of ac/dc chargers with different standards and output power up to 350kW, mobile apps, local controller, cloud based "management & control" & payment platform, power load management solution and etc.
The product has passed all of the type test requirements of IEC 61851-1 & IEC 62192. The company provides services cover design, installation, testing, commissioning, operation and after-sales maintenance with various business models including equipment supply and install, system integration and service provision with various different service packages.
Founded in 2013 by enthusiasts in the Electric Vehicle Charger technology, FIVER has successfully developed its own total solution of EV Charging Infrastructure and is now providing full range of ac/dc chargers with different standards and output power up to 350kW, mobile apps, local controller, cloud based "management & control" & payment platform, power load management solution and etc.
The product has passed all of the type test requirements of IEC 61851-1 & IEC 62192. The company provides services cover design, installation, testing, commissioning, operation and after-sales maintenance with various business models including equipment supply and install, system integration and service provision with various different service packages.
