PVC corrugated Roof Tile Sheet Extrusion Machine
Machine configuration:
No.\t Machine name\t Qty
1\t Auto feeding machin\t 1 set
2\t SJZS65/132 Conical twin screw extruder\t 1 set
3\t Auto feeding machine and dryer \t 1 set
4\t SJ45/28 Single screw extruder\t 1 set
5\t Extrusion mould and distributor\t 1 set

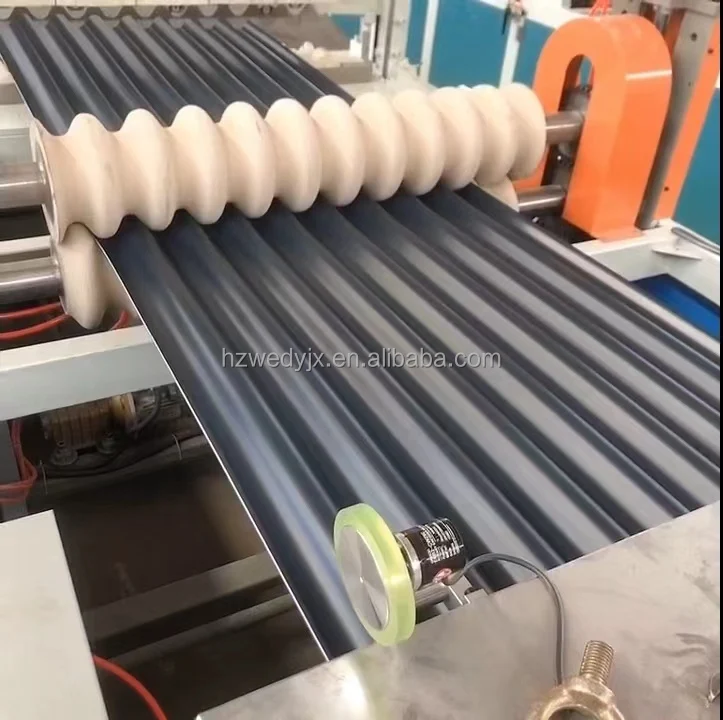

6\t Two rollers Embossing machine\t 1 set (option)

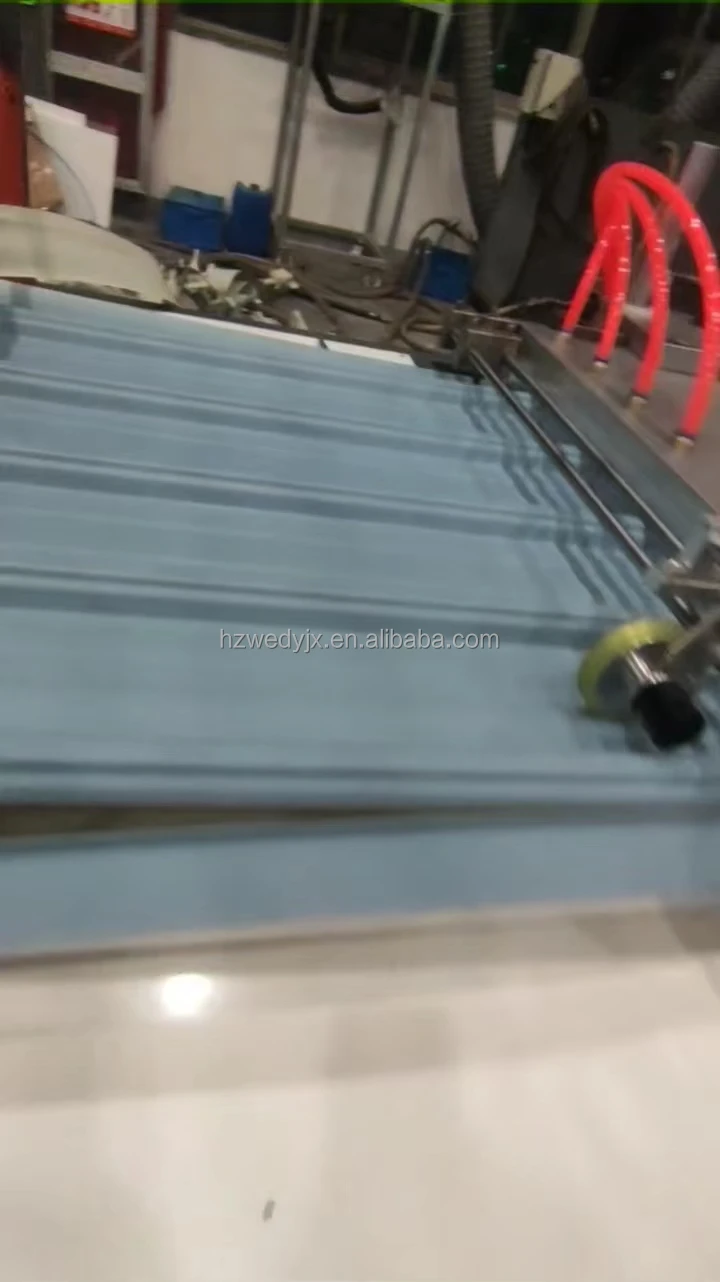

7\t Roofing sheet downstream unit 1 set (Included shaping unit,haul-off unit and cutter)
8 Stacker\t 1 set
No.\t Machine name\t Qty
1\t Auto feeding machin\t 1 set
2\t SJZS65/132 Conical twin screw extruder\t 1 set
3\t Auto feeding machine and dryer \t 1 set
4\t SJ45/28 Single screw extruder\t 1 set
5\t Extrusion mould and distributor\t 1 set
6\t Two rollers Embossing machine\t 1 set (option)
7\t Roofing sheet downstream unit 1 set (Included shaping unit,haul-off unit and cutter)
8 Stacker\t 1 set
Main technical parameters:
Raw material & formulation | Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin. Surface layer: ASA/PMMA granule |
Description final product & Output | Two layers PVC+ASA Co-extrusion Glazed tile; Output:300-400kg/h(Depending on CaCO3 proportion) |

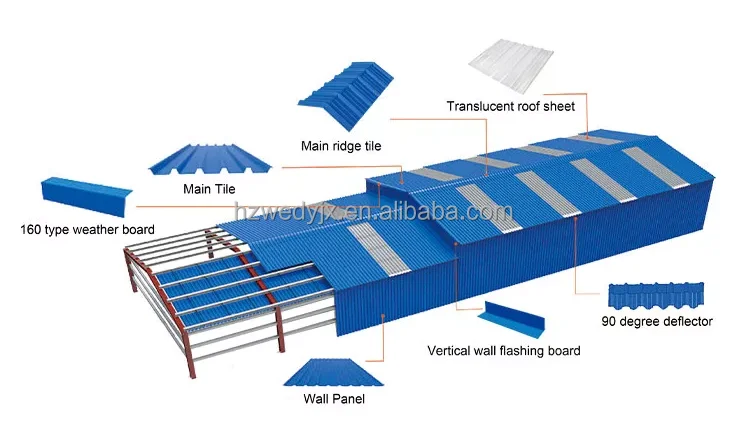

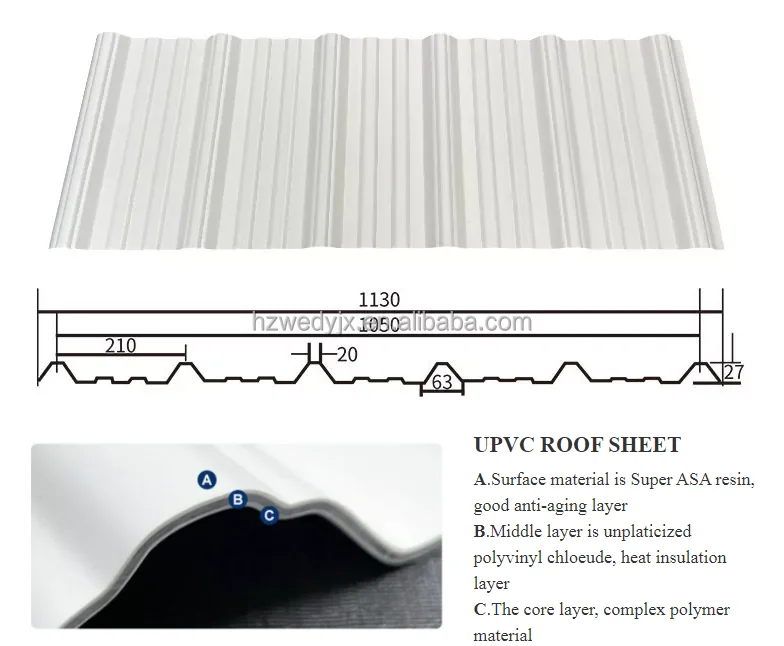

Final product (Also can be produced according to customers’ requirements) | Main tile:1 set Two layers PVC+ASA/PMMA Roofing tile; Wave shape:trapezidal/round wave Width:840/860 /1050/1130mm Thickness: 0.8~3.0mm; Length:Can be fixed length according to customers’ requirements; Ridge tile:1 set or more |
Warehouse/Workshop | Machine Dimension (M*M*M): 15(Length)×5(width) ×3.5 (Height) Crane: Machine positioning |
Temperature & Humidity | ≤40, ≤95% |
Power supply | 3-phase, 380 V, 50 Hz(or customized) |
Wire/cables: | Wires/cables from power supply to control cabinet of this production line; |
Cooling water hose/pipe: | Water supply to machines and pools |
Compressor | Necessary |
Installation power | Total 185.75KW,Actual consumption about 70% Suggested 200KVA transformer Needing at least 160KVA transformer |
Cooling Water | ≤20, ≥0.3Mpa, 5-6tons/hr |
Compressed air | 0.3m3/min, 0.6Mpa |
Manpower | 3 Persons/shift |
Work flow:

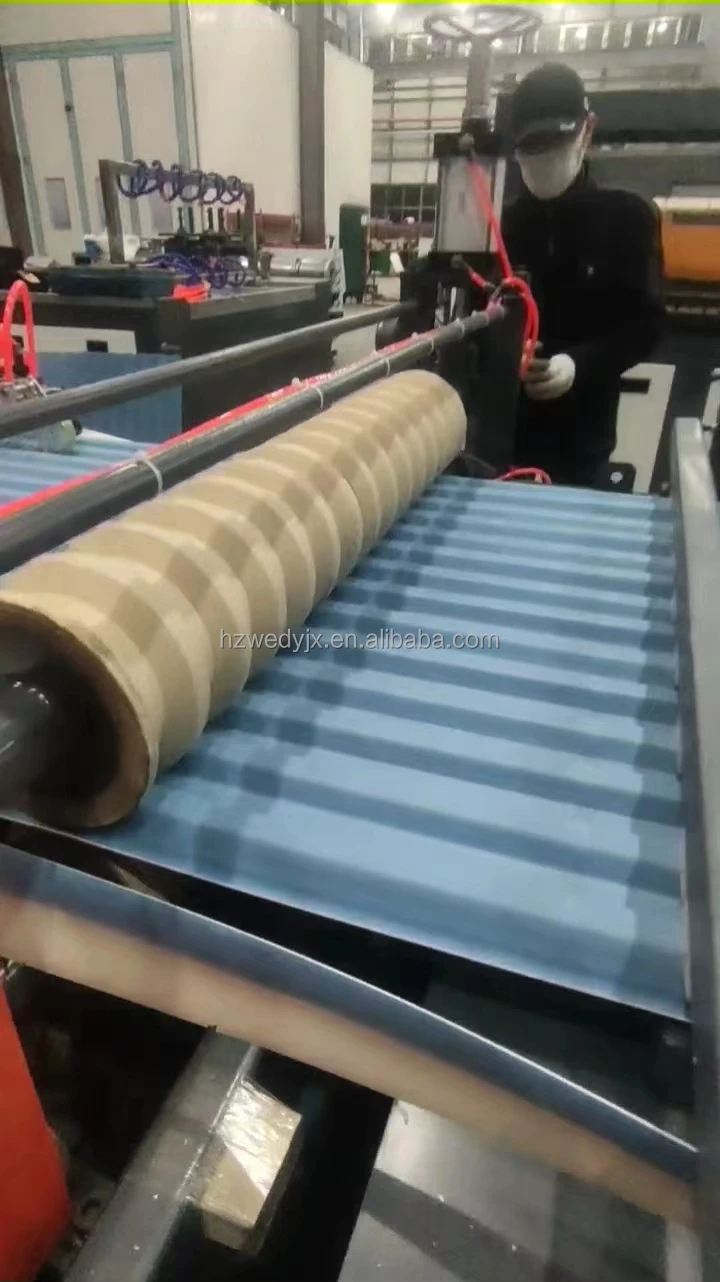

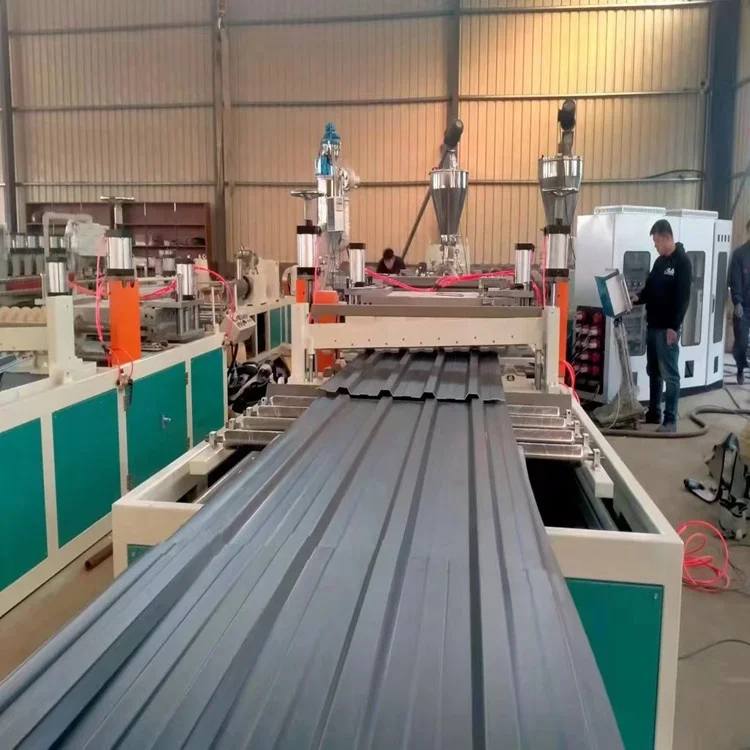

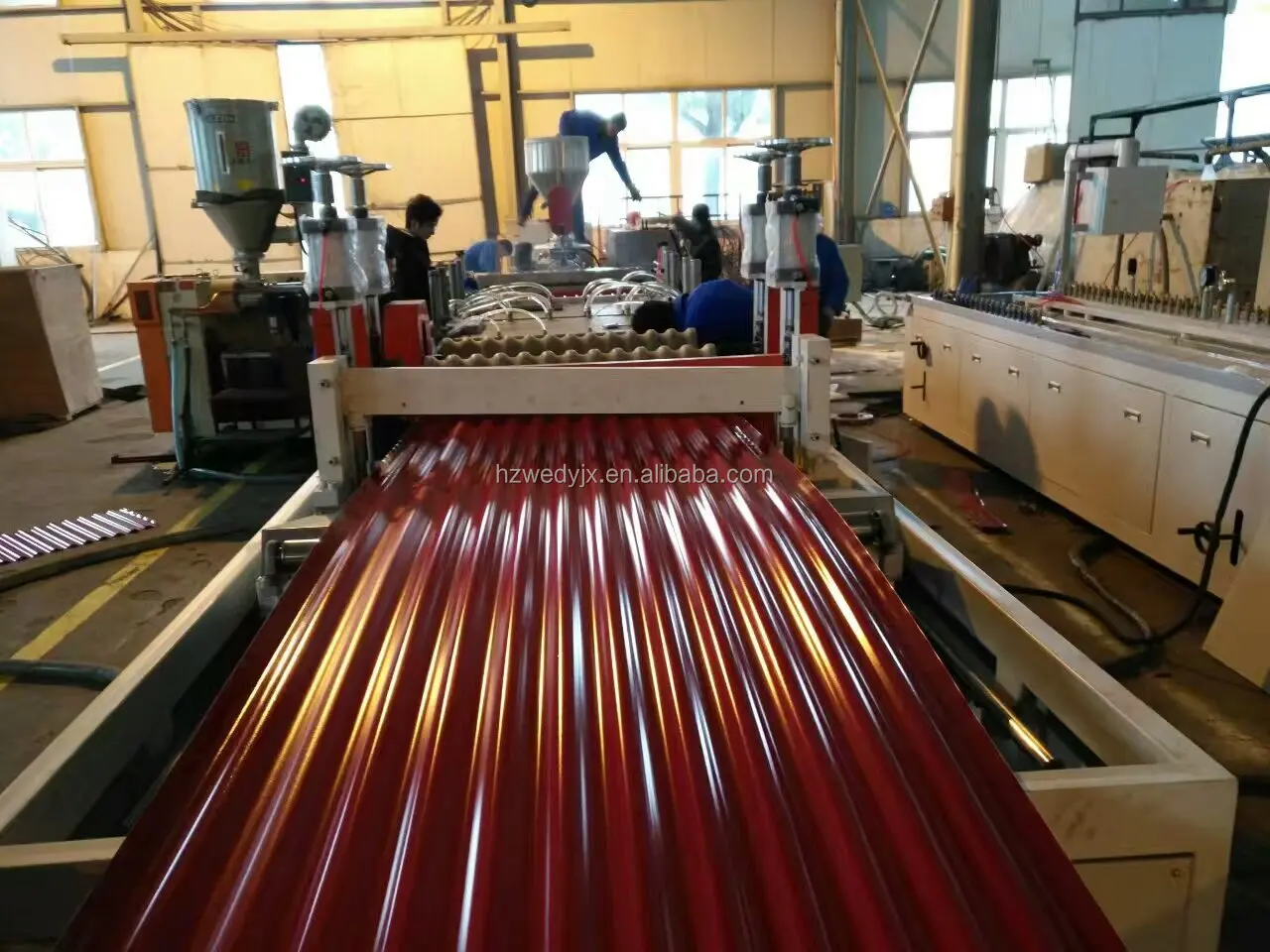

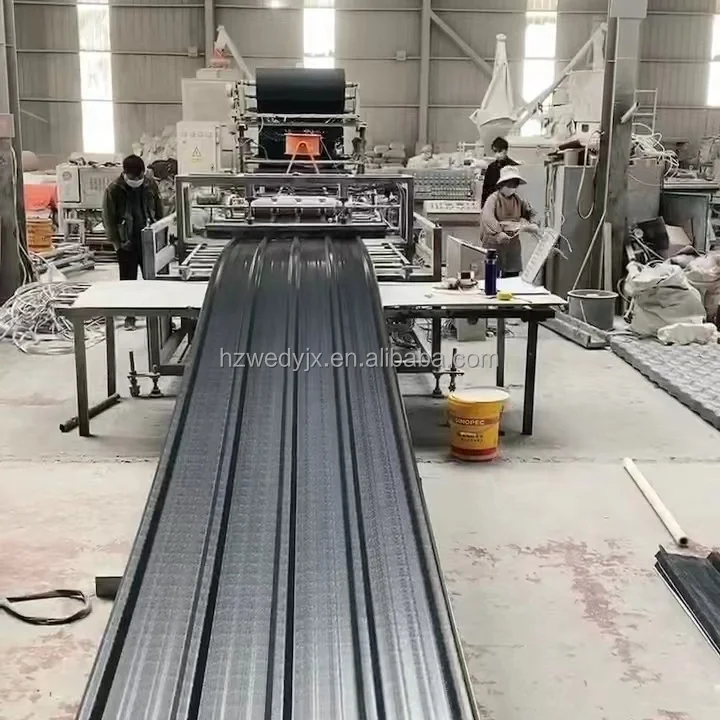

Mixer for bottom layer(PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilize,ACR, paraffin) Extrusion process: Conical twin-screw extruder for bottom layer-Single screw extruder for Surface layer(ASA)-Mould-Shaping machine-cutter-stacker---
Main tile Oven-Ridge tile machine and mould---1 set ridge tile
Crusher(waste material)-Pulverizer---Reuse again for extrusion line

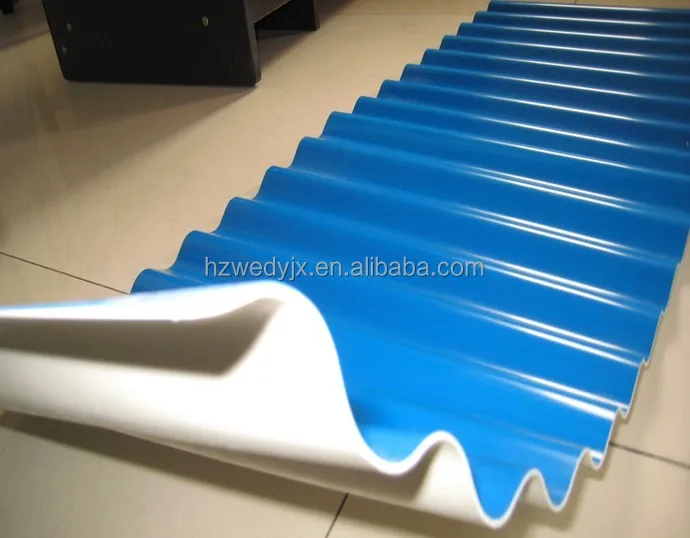

ASA+PVC corrugated roof tile sheet, is a replacement product of color steel tile. Multi-layer co-extrusion technology is adopted to cover the anti-aging ASA layer on the surface of the product. The 4 layer Weather Proof ASA PVC Roofing sheet is manufactured by one-time processing through 4 layer co-extrusion technique. It has long lasting color stability and offers strong UV performance to ensure a long lifespan.

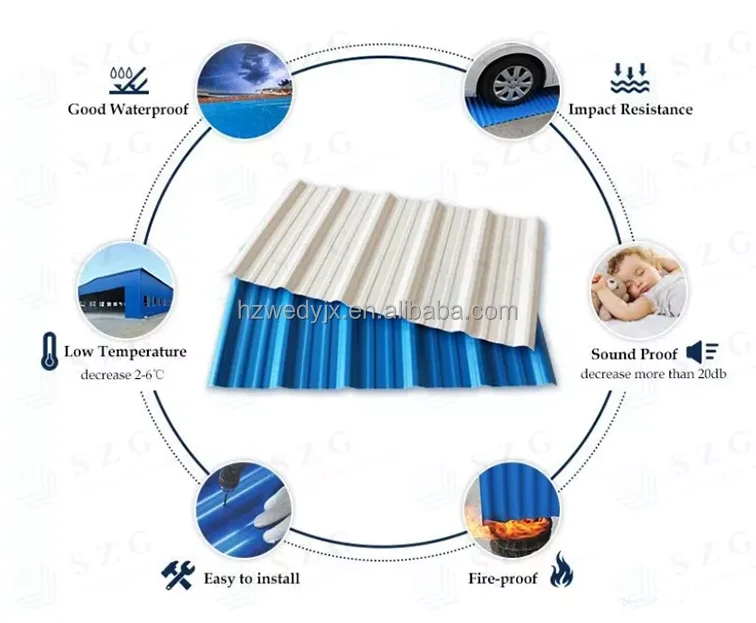

Heat insulation: With excellent weather resistance has a good heat insulation effect,and the thermal conductivity is 0.29w/mk, which is 1/2000 of color steel roof.
Sound insulation: The roof has good noise absorbing function under influence of outside noises including rainstorm and strong wind,etc.
Excellent Anti-corrosion Performance:It can resist long term acid ,alkali and salt corrosion ,etc.Tests have proved that there would be no chemical reaction after soaking in salt and alkali and various acid under 60% .It is ideal for application in areas where acid rain is common.
Perfect Self-cleaning Performance: The surface is compact and smooth “lotus effect” so it will not absorb dust and be clean and new after being washed by rain. It appears mottled phenomenon.
Product application:

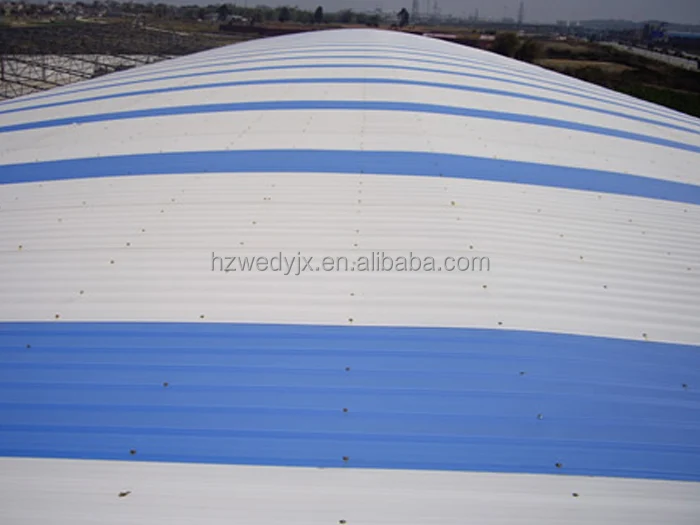

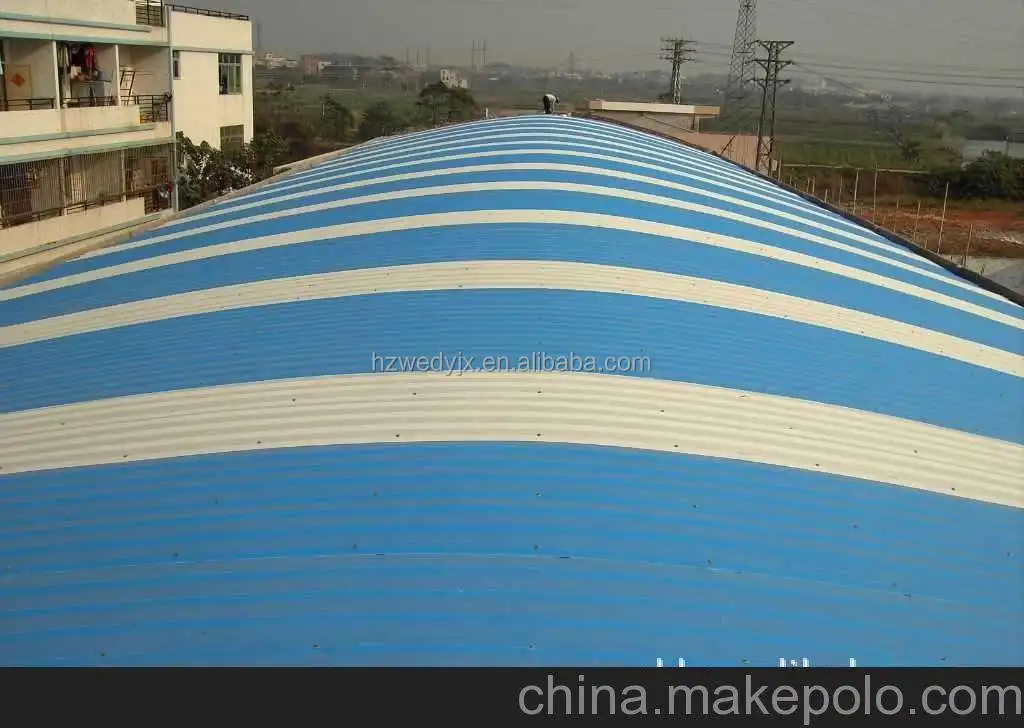

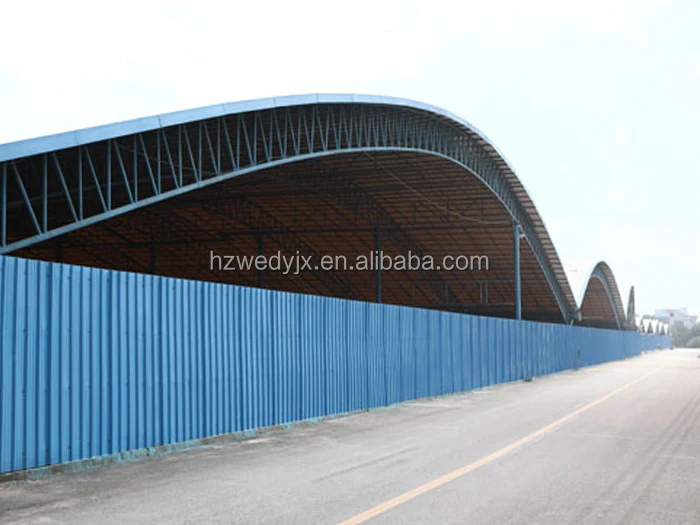

It is used in workshops, warehouses, workshops , smelting workshops, foundries, chemical plants, steel mills, paper mills, coal mines, sewage treatment plants and coastal areas and various places with high corrosivity.
Q1.Are you a factory or a trading company?
A1: Yes, we are manufacturing factory, we are experienced and professional manufacturer of plastic extruder and extrusion lines for more than 10 year.We can guarantee the quality of products and good after-sales service.Welcome to consult.
Q2. Do you provide samples? Is it free or need extra fees ?
A2: Yes, we could offer free samples for the items in stock,just need to pay shipping cost.
Q3: What's the MOQ for your product?
A3: The minimum order quantity depends on your requirements.For conventional products, we can produce small MOQ, maybe 1 set, please feel free to contact us.
Q4: Do you support online order or your products?
A4: Yes,we are support online order, you are easy to set a purchase by each product page, before order, please kindly let us know the item specification and details.Then we will quickly offer base on that and modify the price online.After check the update price,you can pay deposit.
Q5: How long is your delivery time of parts products,such as vacuum pulse cleaner of extruder,confluence core,feeder of extruder,ridge tile accessories mould etc.?
A5: We have large stock, 3 days for stock items,7-15 days for production.
Q6. Can we just buy one machine for example shaping machine or cutter, not the whole production line from your side?
A6:Yes,You can rest assured to buy any single machine, because these are very mature machines, it will certainly cooperate very well with your existing production line.
Q7.What about the installation and commissioning test service of the whole production line?
A7:We will send 2 of experienced technicians for installation and commissioning the machines.The duration of the stay of the engineers will be determined by working condition.And they will also assume the responsibility of training your operators, to teach them about machines operation and daily maintenance, and also the handling of common failures.
Q8.How long is your products warranty?
A8:We shall warranted all of our products within 12 months after you received them.
Q9.If the machine any part is broken some day,how can we get help from you?
A9.If the machine part is broken during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or wechat or video.If there’s any equipment damage caused by the your wrong operating, and we will supply equipment by preferential price.
Q10. Can you provide the factory information which buy and use your machines for us visit and reference?
A10:Yes,we can show you our customers’ information for your reference.We always keep very good relationship with our customer factory, and if you want to know more about our machines and services, and even about product cost and quality control, our customers will share with you without reservation under our referral.
