Гидравлическая машина для резки пластиковых БЛИСТЕРОВ
US $1300-$2000
Автоматическая машина для резки резиновой пены/резиновых
- Категории: Plastic Cutting Machines >>>
- Поставщик: Shanghai,Yangmi,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
For more than ten years, YANGMI has been a leader in ultrasonic rubber cutting. YANGMI ’s broad capabilities and global presence enable equipment builders and tire manufacturers around the world to quickly and economically adapt to cutting processes in the rubber industry.
With technical centers and sales support centers worldwide, YANGMI is always close by, ready to understand and
fulfill the needs of its customers when requested.
With ultrasonic cutting, YANGMI ’s application knowledge and expertise are unsurpassed, specifically with its ability to utilize Finite Element Analysis (FEA) by skilled engineers to analyze the most critical of factors during the acoustical tooling development process. YANGMI has a long history of being a partner with tire manufacturers and tire machine builders.
Some of these partnerships have pushed the boundaries of our technology, to what was once uncommon is now an everyday cutting system.
fulfill the needs of its customers when requested.
With ultrasonic cutting, YANGMI ’s application knowledge and expertise are unsurpassed, specifically with its ability to utilize Finite Element Analysis (FEA) by skilled engineers to analyze the most critical of factors during the acoustical tooling development process. YANGMI has a long history of being a partner with tire manufacturers and tire machine builders.
Some of these partnerships have pushed the boundaries of our technology, to what was once uncommon is now an everyday cutting system.
Advantage
1. Very high precision cutting — the cuts are smooth, clear, and clean.
2. Repeatable cutting — the blade output is monitored by a closed loop electrical circuit to provide consistent cuts time after
time.
3. Cool temperature — little heat is imparted to the rubber.
4. Dry — no lubrication is needed since the vibrating cutting tool passes smoothly through the rubber, while ultrasonically
vibrating at 20,000 to 40,000 cycles per second, depending on the application.
5. Low energy consumption — the vibrating cutting horn is only activated when cutting, yielding approximately 100 watts or less
during a typical thin material application.
6. Ease of integration into automation — the ultrasonic rubber cutting process is simple enough to upgrade into existing
machinery or implement into new machinery.
2. Repeatable cutting — the blade output is monitored by a closed loop electrical circuit to provide consistent cuts time after
time.
3. Cool temperature — little heat is imparted to the rubber.
4. Dry — no lubrication is needed since the vibrating cutting tool passes smoothly through the rubber, while ultrasonically
vibrating at 20,000 to 40,000 cycles per second, depending on the application.
5. Low energy consumption — the vibrating cutting horn is only activated when cutting, yielding approximately 100 watts or less
during a typical thin material application.
6. Ease of integration into automation — the ultrasonic rubber cutting process is simple enough to upgrade into existing
machinery or implement into new machinery.
Generator
Converts 50/60Hz AC electric voltage into
high-frequency electrical energy. Depending on the application, frequencies can be 20kHz to 40kHz.
high-frequency electrical energy. Depending on the application, frequencies can be 20kHz to 40kHz.
Converter
An electro-mechanical device that receives the electrical energy from the power supply and converts it into high-frequency mechanical vibrations.
Booster
Sits between the converter and horn (blade).
Provides rigidity to the stack and controls the amplitude (range of motion) of the cutting horn.
Provides rigidity to the stack and controls the amplitude (range of motion) of the cutting horn.

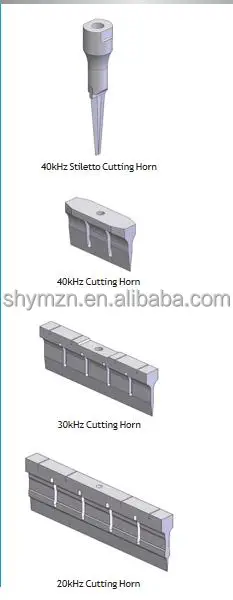

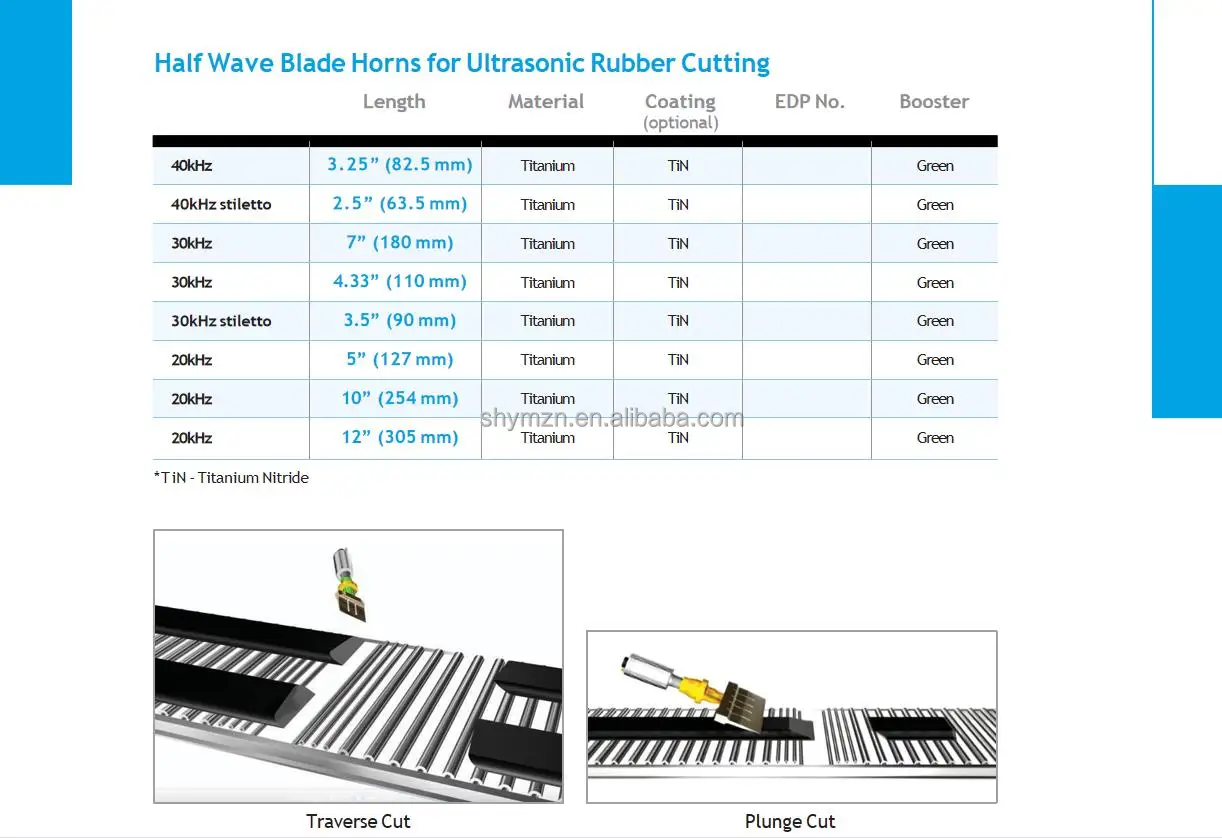

Titanium Horn
Also referred to as the blade . A wide array
of configurations are available, each custom engineered for the specific application to ensure exacting, long-term performance.
of configurations are available, each custom engineered for the specific application to ensure exacting, long-term performance.
