Автобусная остановка GPS
- Категории: Bus Parts >>>
- Поставщик: Xiamen,Magnetic,North,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Overview
Quick details:
| OS: Linux | Memory: more than 256MB of internal storage space |
| Standard voltage: 12/24V | Place of origin: CN, FUJ |
| Static current: <150mA(24V) | Material: Steel |
| Consumption power: 10W | Size: Single spindle structure 178*50*100 (mm) |

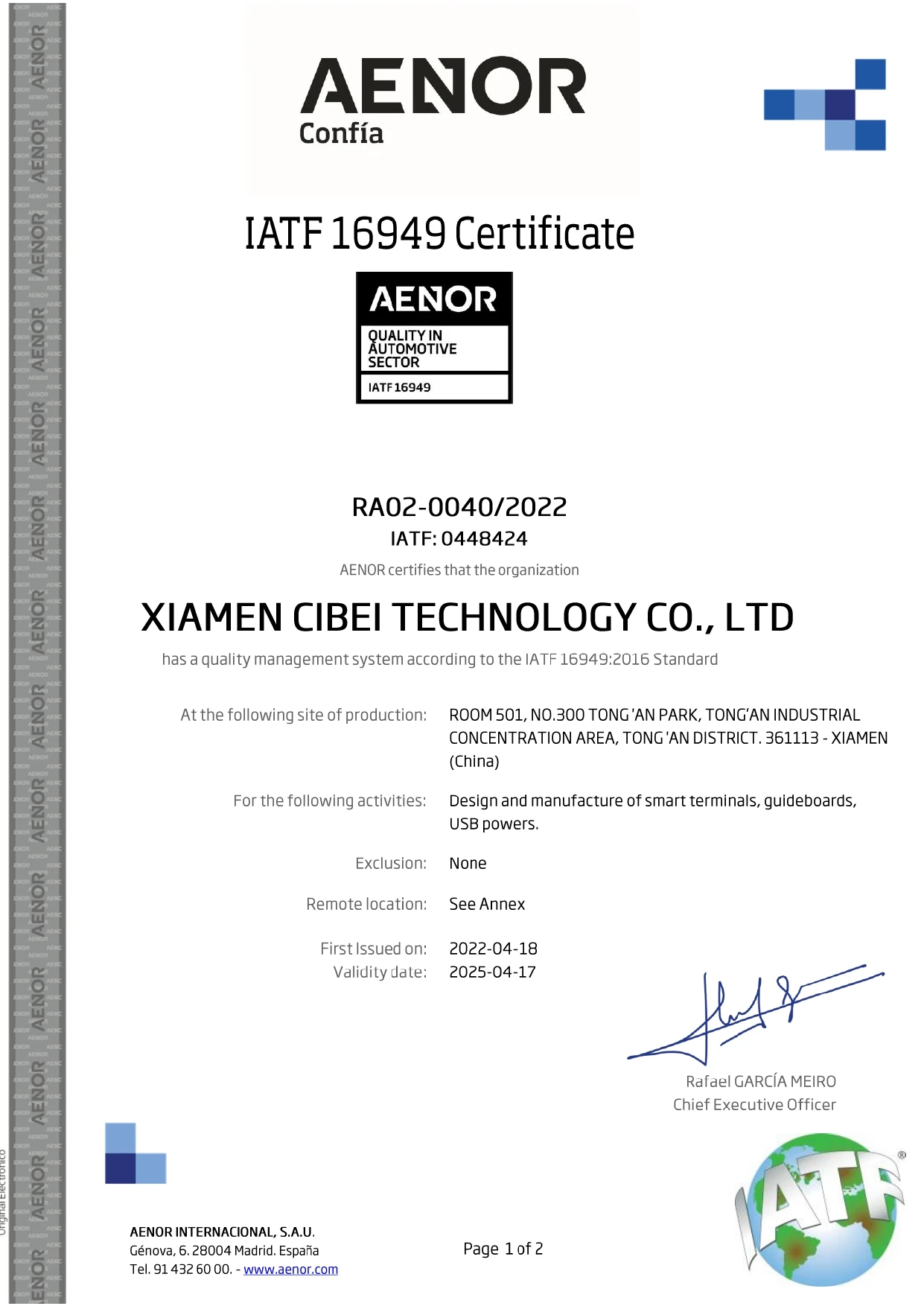

| Voice format: MP3 and WPA | Certificate: ISO9001: 2015; TS16949 |
Packaging & Delivery
Packing size: 35×35×10 (cm)
Weight: 1.25kg
Picture example:
Lead time:
| Quantity (units) | 1-100 | >100 |
| Est. Time (days) | 5 | to be negotiated |
Product Description
Parameter classification | Parameters | Parameter Value |
System Parameters | Operating System | Embedded LINUX, multi-tasking support, ARM9 industrial grade processor |
Positioning | BD/GPS dual-mode high-precision positioning | |
File System | Industrial-grade file system for 100% reliable data storage | |
Power supply | Standard voltage: 12/24V; 8~50V vehicle wide power supply adapters | |

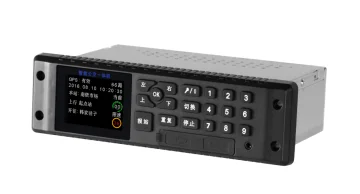

Exterior display | Display screen | 2.4" true color LCD, 320*240 dot matrix display |
Size | Single spindle structure 178*50*100mm,Instrument panel mounting depth 100mm | |
Operation interface | Customized Ui for public transport applications, intuitive operation, Pingshun | |
Service Button | Total ten service buttons: 0 to 9 numeric buttons respectively | |
Function button | Total ten function buttons | |
Memory | Memory | More than 256MByte of internal storage space, optimized for in-vehicle fault tolerance and write balancing |

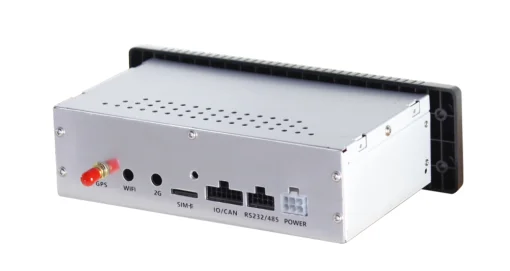

Interface | USB | High-speed USB-HOST communication interface, adaptable to various models of U disk in the market |
SD | High-speed SHDC interface, supporting a variety of capacities, adaptable to various models of SD cards on the market | |
RS232 | RS232*2 For common serial port, keyboard interface and transparent serial port | |
RS485 | RS485*1 Support a variety of LED, POS transmissions protocol | |
Wireless Communication | Support 2/4G and WIFI wireless communication | |
CAN | CAN*1 | |
GPS/BeiDou | GPS/BeiDou dual-mode antenna interface | |
Function | Voice | Two-way 35W power amplifier output; support bus station announcement and voice advertising |
TTS | With intelligent text analysis and polyphonic word processing algorithm, smooth and natural voice broadcasting | |
Site Location Learning | Station location can be collected with one click, with station latitude and longitude, angle memory learning function, convenient to update, collection of bus routes | |
Calling | Hand microphone interface for in-car shouting and center call |

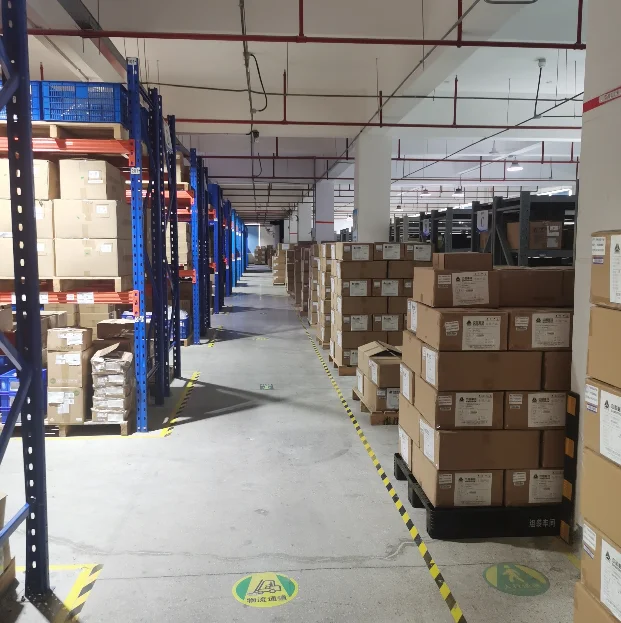

Packaging & Shipping
Packing
Inner packing: paper box or according to customers
Outer packing: Carton box
Shipping
3 days for sample order; 7-10 days for bulk order
Delivery method: DHL, FedEX, UPS, EMS. By sea, air or according to customers' advice
Why choose us
About us
Xiamen Magnetic North Technology Co., Ltd integrates R&D, manufacturing and sales. Our company focuses on the development of the intelligent transportation systems. As a solution manufacturer, we provide software, hardware and customer service. Up to now, our company’s product solutions has covered Public Transportation System(ITS), Automatic Fare Collection system(AFC), Electric Vehicle Health Monitoring system, etc.
